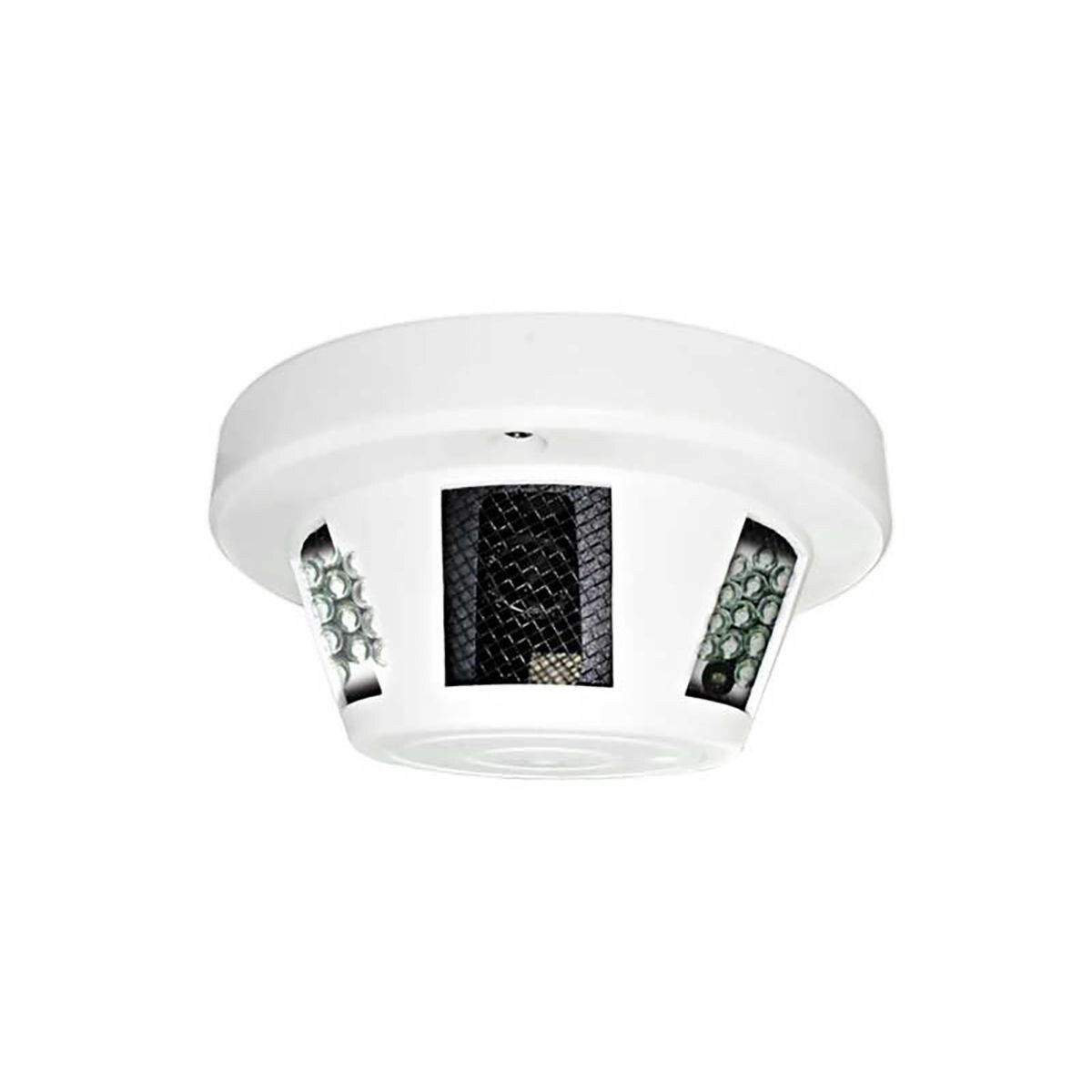

ICR-SMOKE-IR
Details
When covert video is needed for both daytime and night-time surveillance. the ICR-SMOKE-IR gets the job done. 24 invisible IR LEDs allow users to see in the dark. With advanced infrared LEDs tuned to the 940nm frequency these cameras lack the recognizable red glow common to other IR cameras used in the field. HD Resolution of 2MP makes this a powerful camera for your surveillance project. Made in Korea
Specifications
| Camera | |
| Image Sensor: | 1/3" Sony Super HAD color CCD |
| Effective Pixels: | NTSC: 976H - 494V | PAL: 976H - 582V |
| Scanning System: | 2:1 Interlace |
| Minimum Illumination: | 0.1 Lux (F 1.2) |
| S/N Ratio: | More Than 52dB |
| Illumination Distance: | N/A |
| PIR Sensor Range: | N/A |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Focal Length: | Pinhole Lens 3.7mm |
| PTZ | |
| Pan/Tilt Range: | N/A |
| Manual Control Speed: | N/A |
| Preset Speed: | N/A |
| Presets: | N/A |
| PTZ Mode: | N/A |
| Speed Setup: | N/A |
| Power up Action: | N/A |
| Idle Motion: | N/A |
| Protocol: | N/A |
| Time Task: | N/A |
| OSD Menu: | N/A |
| Wiper: | N/A |
| Tracking Trigger Mode: | N/A |
| Tracking Trigger Event: | N/A |
| Video | |
| Resolution: | 700 TV Line |
| Gain Control: | Automatic |
| Gamma Correction: | 0.45 Approx. |
| Audio | |
| Compression: | N/A |
| Network | |
| Ethernet: | N/A |
| Protocol: | N/A |
| Wifi: | N/A |
| Compatibility: | N/A |
| Smart Phone: | N/A |
| Interface | |
| Video Interface: | 1.0Vp-p Composite. 75 Ohms |
| RS232: | N/A |
| RS485: | N/A |
| Audio I/O: | N/A |
| Factory Reset: | N/A |
| Memory Slot: | N/A |
| Electrical | |
| Power Supply: | DC 12V 500mA Regulated Power Supply |
| Power Consumption: | MAX 2.0W |
| Environmental | |
| Operating Conditions: | -10"C ~ +50"C |
| Ingress Protection: | N/A |
| Vandal Resistance: | N/A |
| Construction | |
| Dimensions: | 4.92" D X 2.07" L - 125mm(D) X 53mm(L) |
