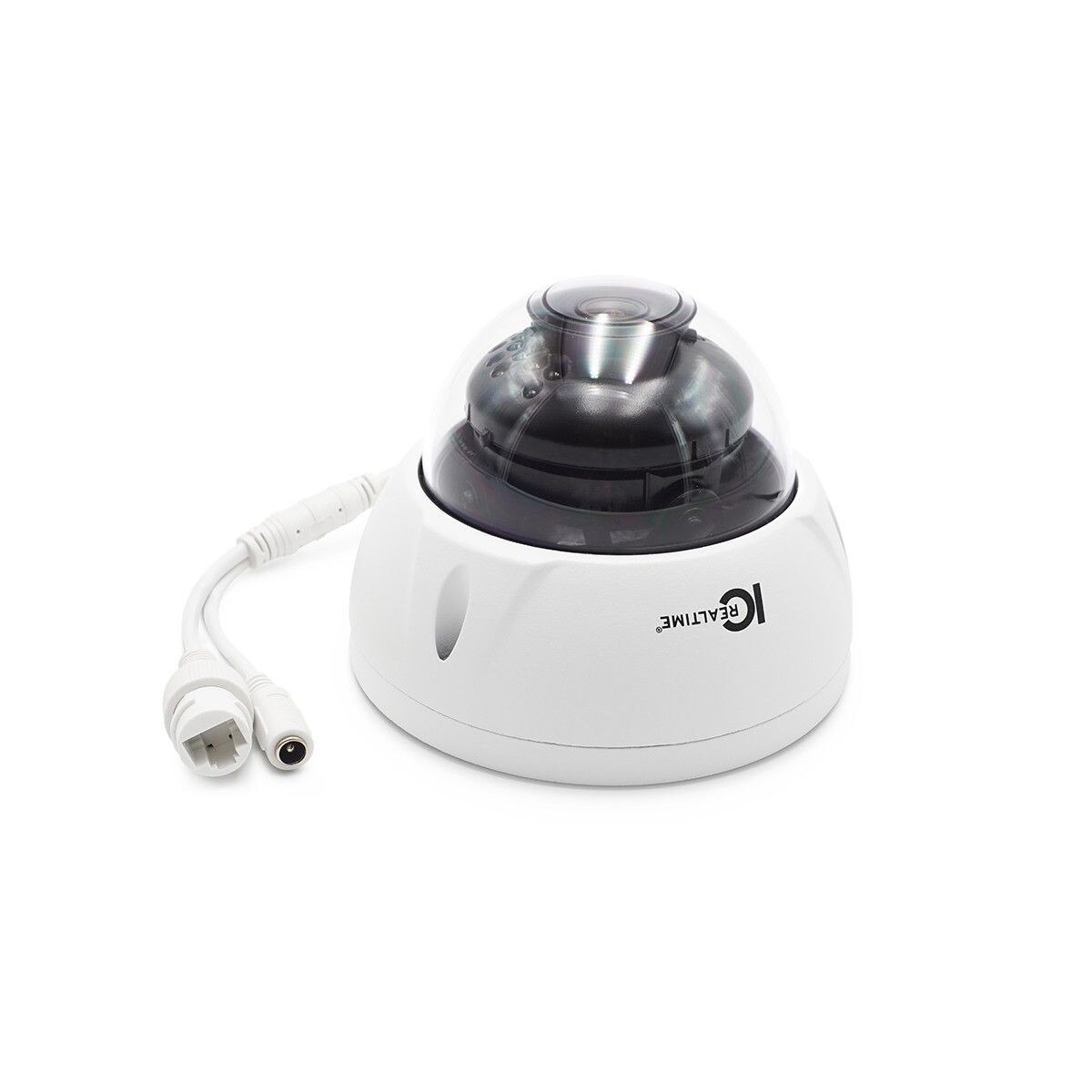

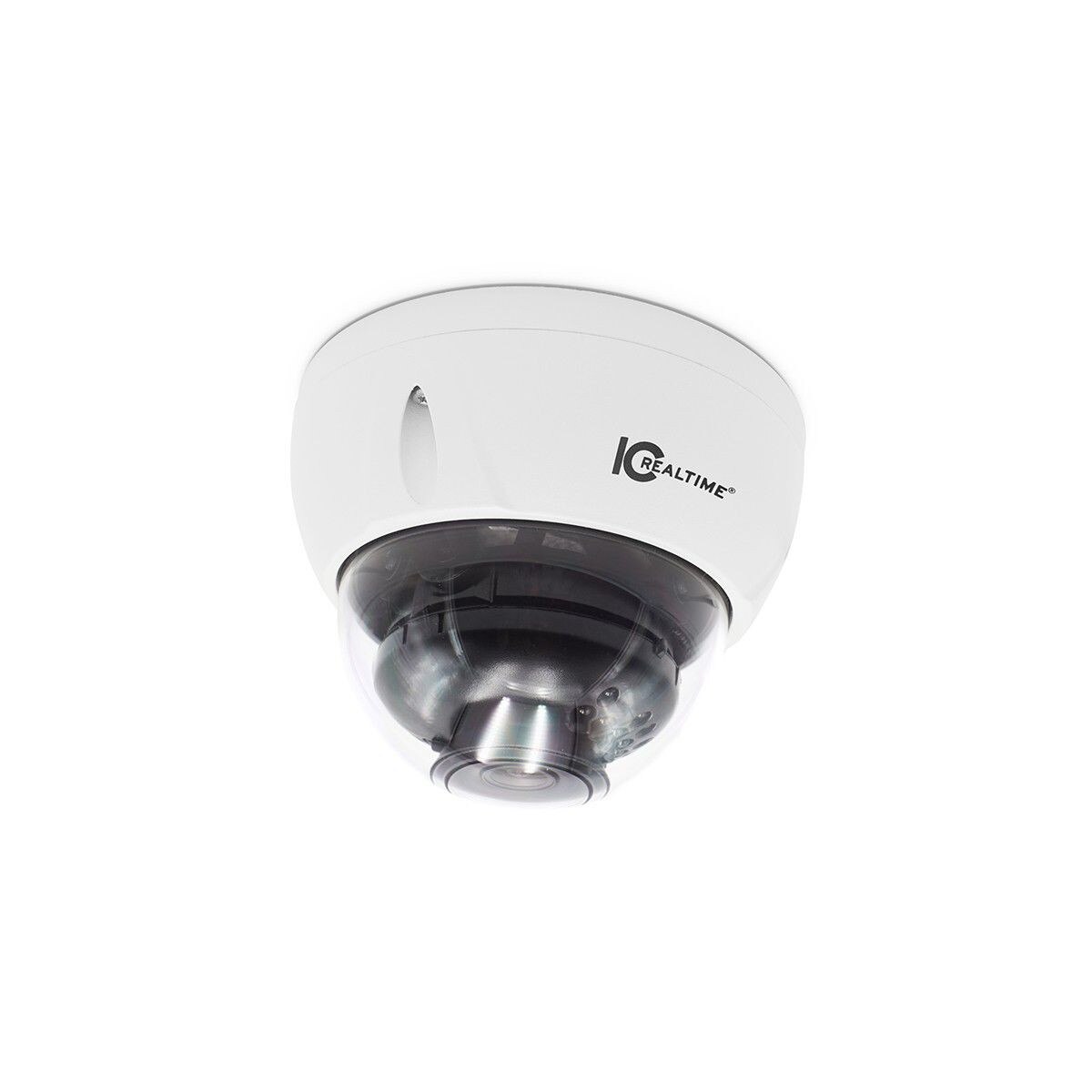

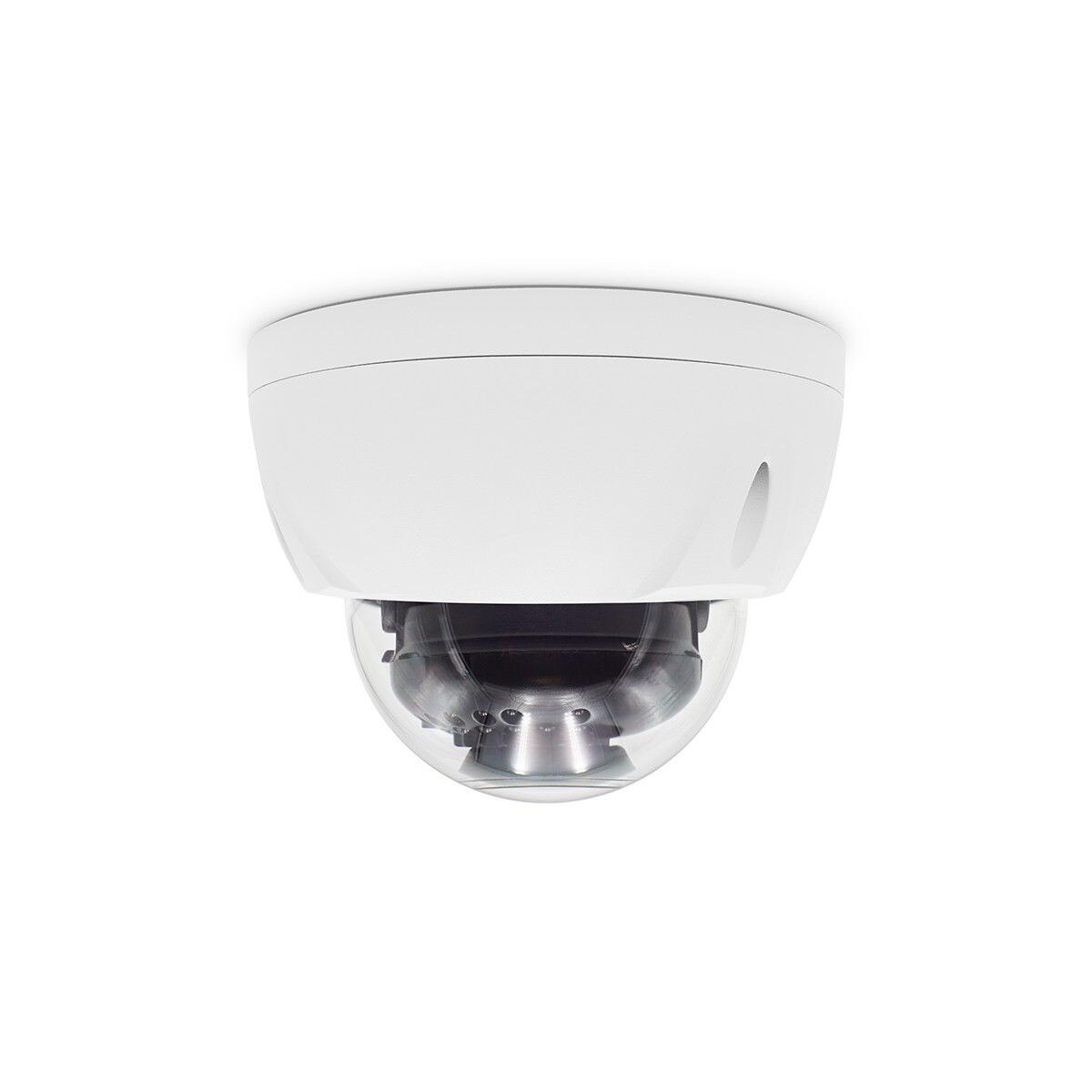

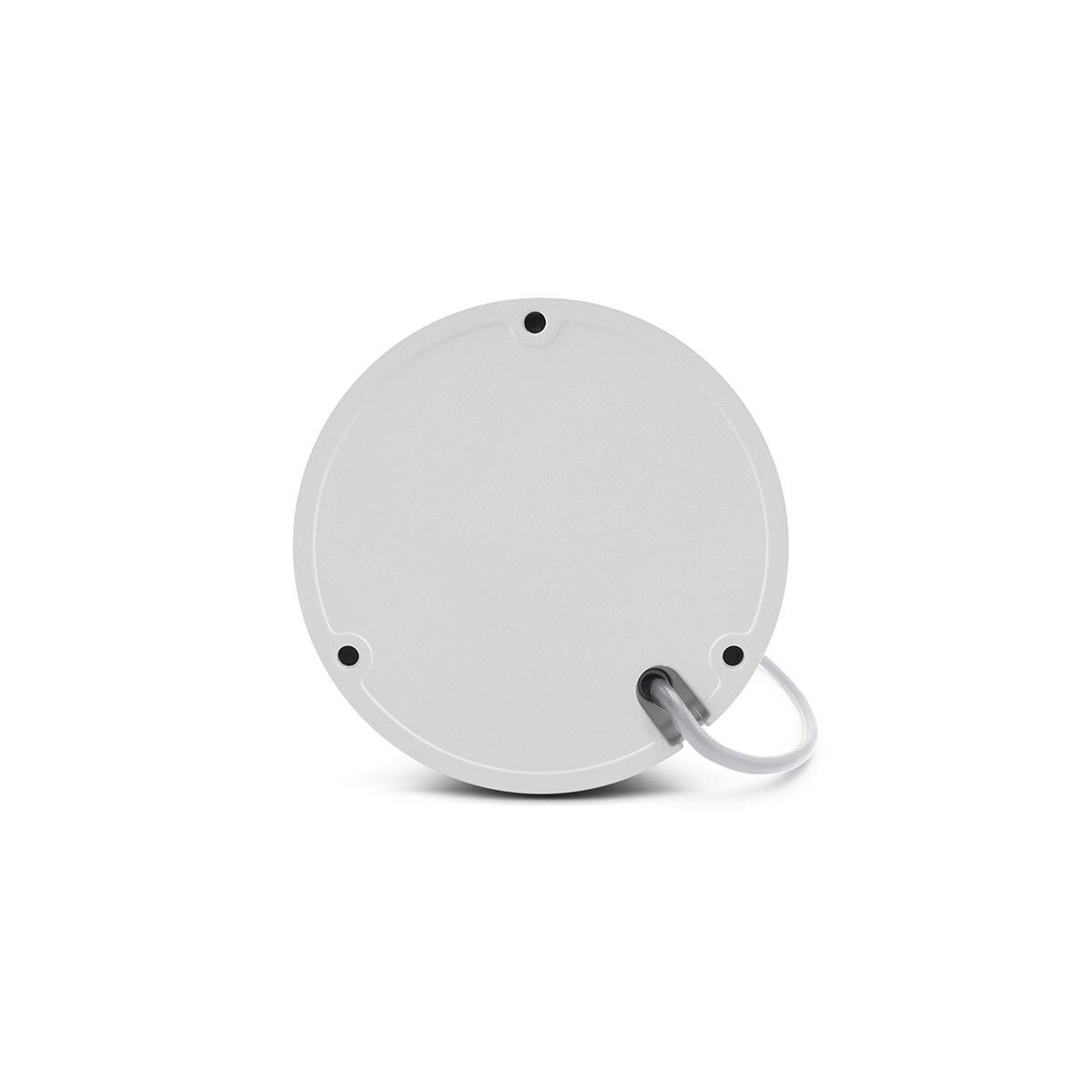

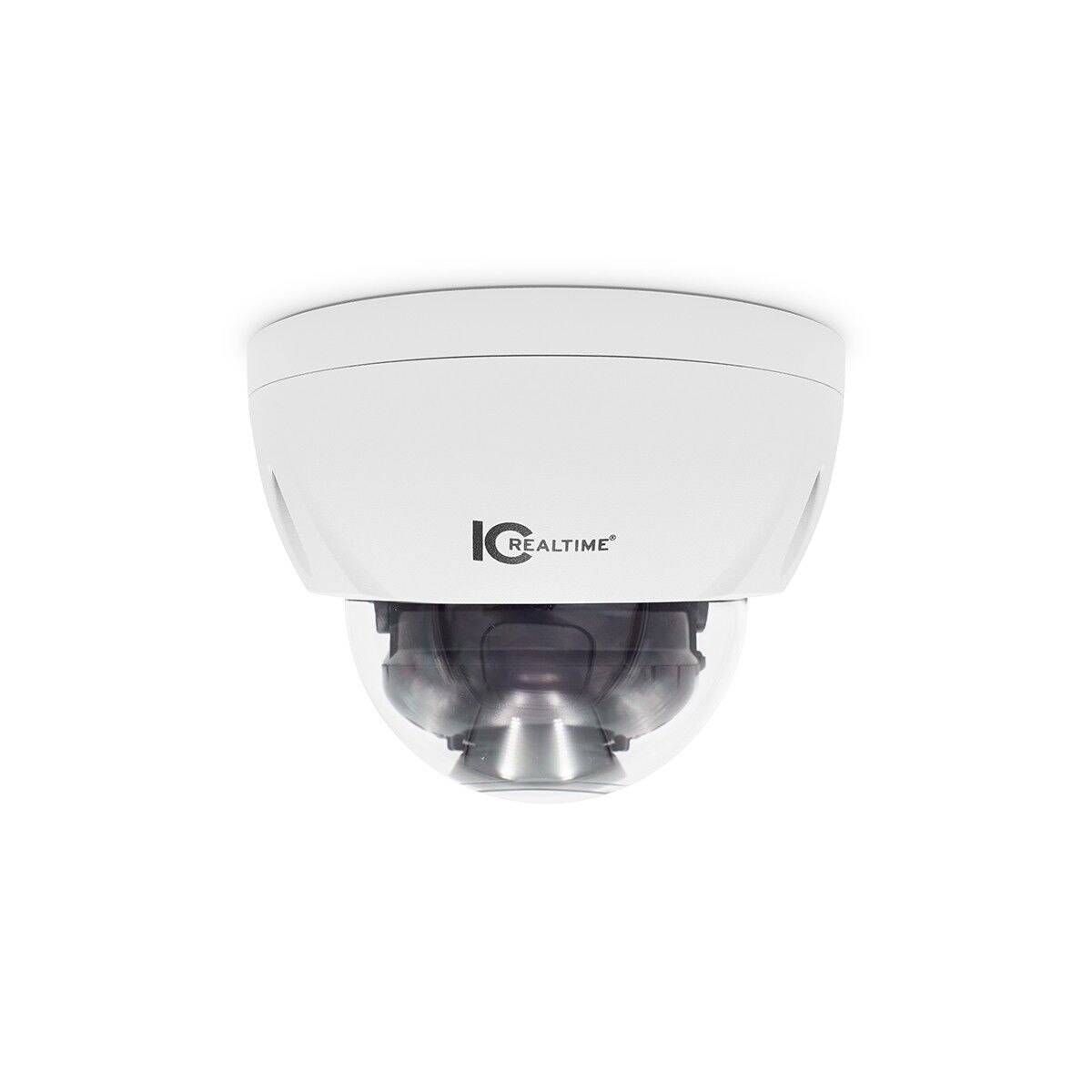

ICR-D4001-IR
Details
Your favorite 'dome' style camera, now available in the EDGE lineup - the ICR-D4001-IR. The ICR-D4001-IR is a 4MP Day/Night camera with a 2.8mm fixed lens. The camera itself supports H265 and H265+ compression, and True Day/Night viewing at up to 30 meters with 0 light. It's IP67 weather rated, IK10 impact proof as well as PoE. *All Edge series products come with a 3 year limited warranty
Specifications
| Camera | |
| Image Sensor: | 1/3” 4 Megapixel progressive CMOS |
| Effective Pixels: | 2560(H)x1440(V) |
| RAM/Rom: | 256MB / 16MB |
| Scanning System: | Progressive |
| Electronic Shutter Speed: | N/A |
| Minimum Illumination: | 0.09Lux/F2.0( Color,1/3s,30IRE) 0.5Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
| S/N Ratio: | More than 50dB |
| IR Distance: | Distance up to 30m(98ft) |
| IR On/Off Control: | N/A |
| IR LEDs: | 24 |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H:101°, V:54° |
| Optical Zoom: | N/A |
| Focus Control: | Fixed |
| Close Focus Distance: | 0.5m |
| DORI - Detect: | 184ft |
| DORI - Observe: | 73.5ft |
| DORI - Recognize: | 36.7ft |
| DORI - Identify: | 18.4ft |
| Intelligence | |
| IVS: | N/A |
| Advanced Intelligent Functions: | N/A |
| Video | |
| Compression: | H.265/H.264H/MJPEG(Sub Stream) |
| Streaming Capability: | 2 Streams |
| Resolution: | 4M(2560X1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate: | Main Stream: 4M(1 ~ 20fps) Sub Stream: D1(1 ~ 20fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.265: 12K~ 6144K H.264: 32K~6144K |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS): | N/A |
| Smart IR: | Support |
| Digital Zoom: | 16x |
| Flip: | 0° / 90° / 180° / 270° |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression: | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH |
| Interoperability: | ONVIF Profile S&G, API |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users/20 Users |
| Edge Storage: | NAS(Network Attached Storage), Local PC for instant recording |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, ICRSS Pro, IC View |
| Smart Phone: | IOS, Android |
| Interface | |
| Video Interface: | N/A |
| RS485: | N/A |
| Audio I/O: | N/A |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption: | <3.9W |
| Enviromental | |
| Operating Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Operating Humidity: | Less than 95% RH |
| Storage Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) |
| Storage Humidity: | Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |
| Gross Weight: | 0.49Kg (1.08lb) |
