ICR-B2001-IR
Details

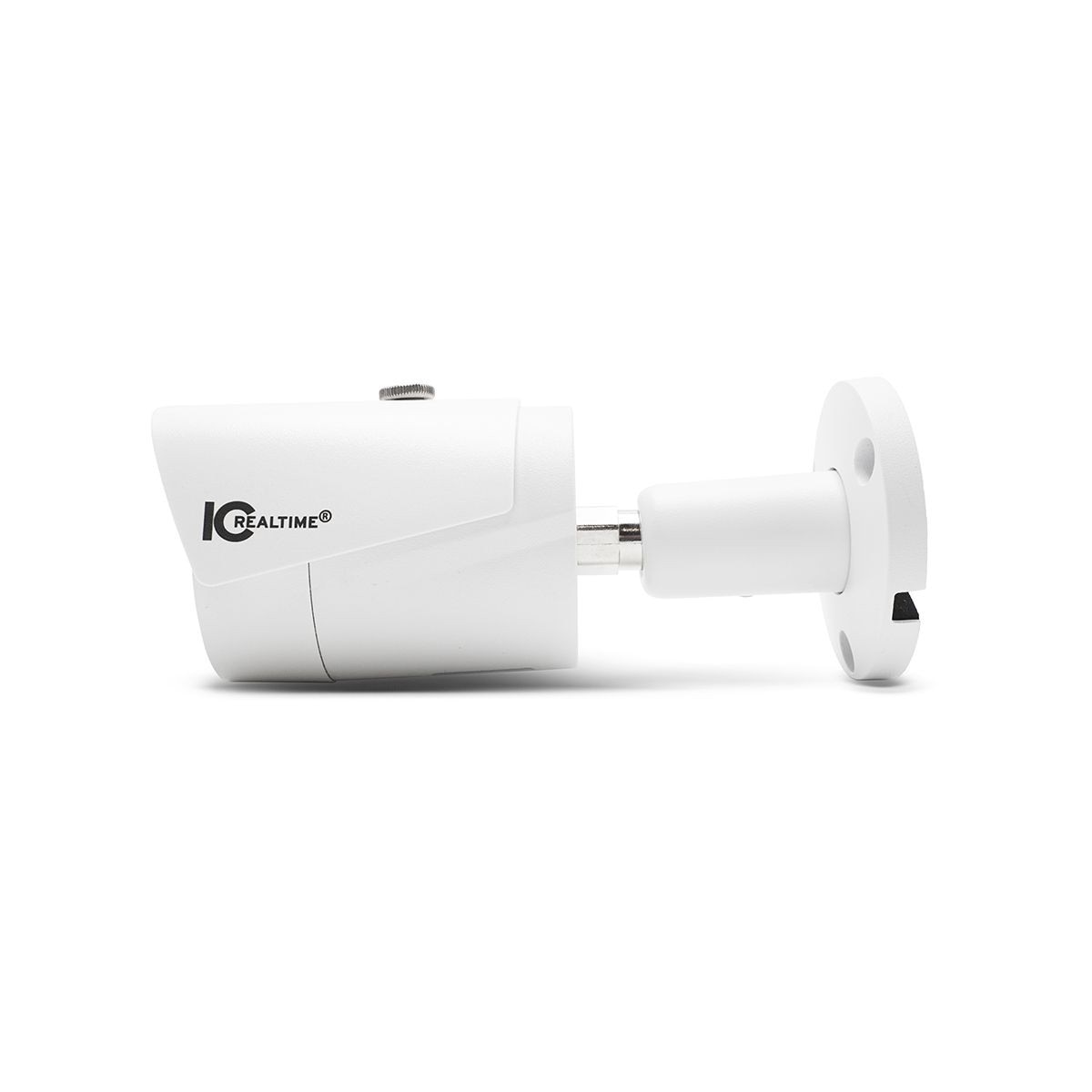

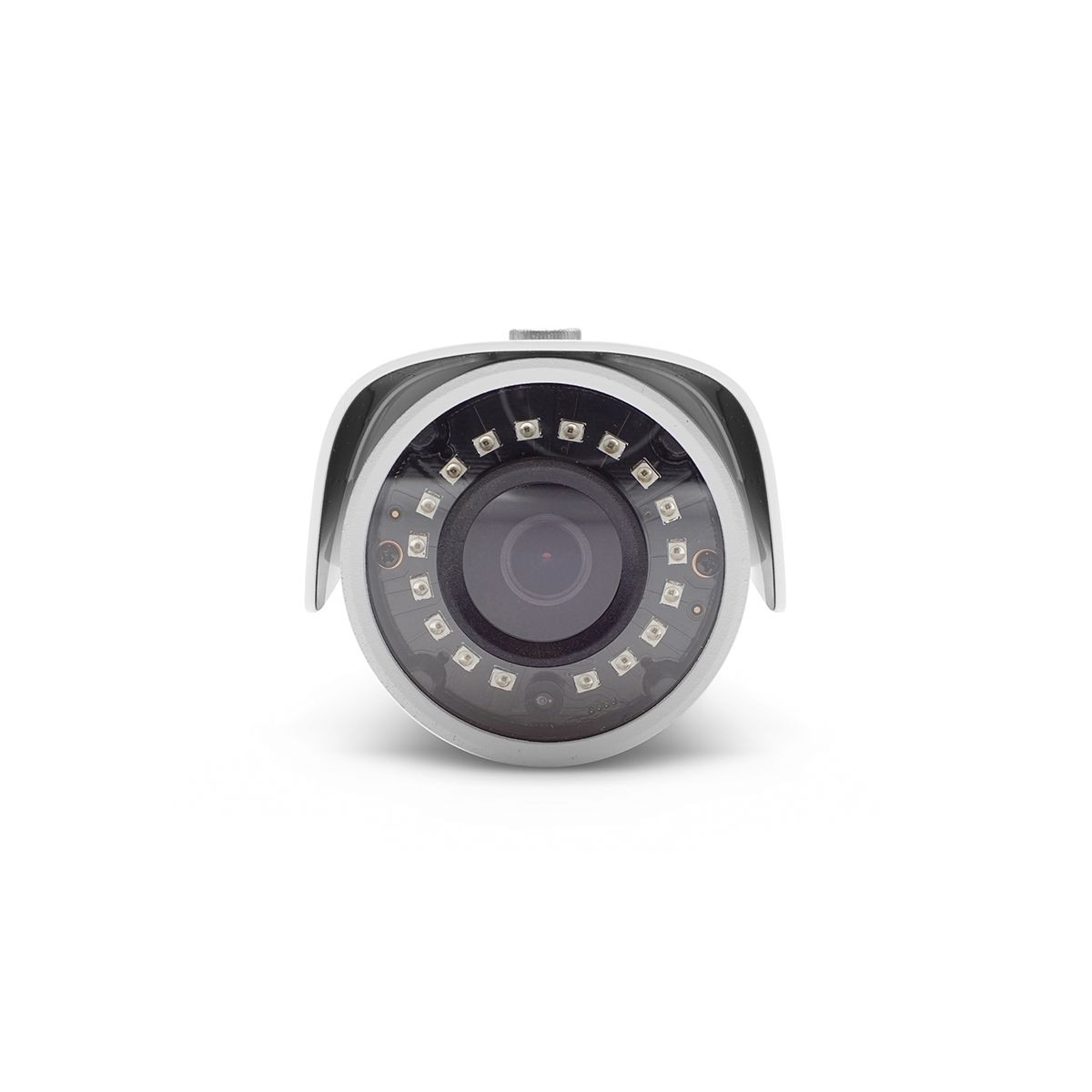

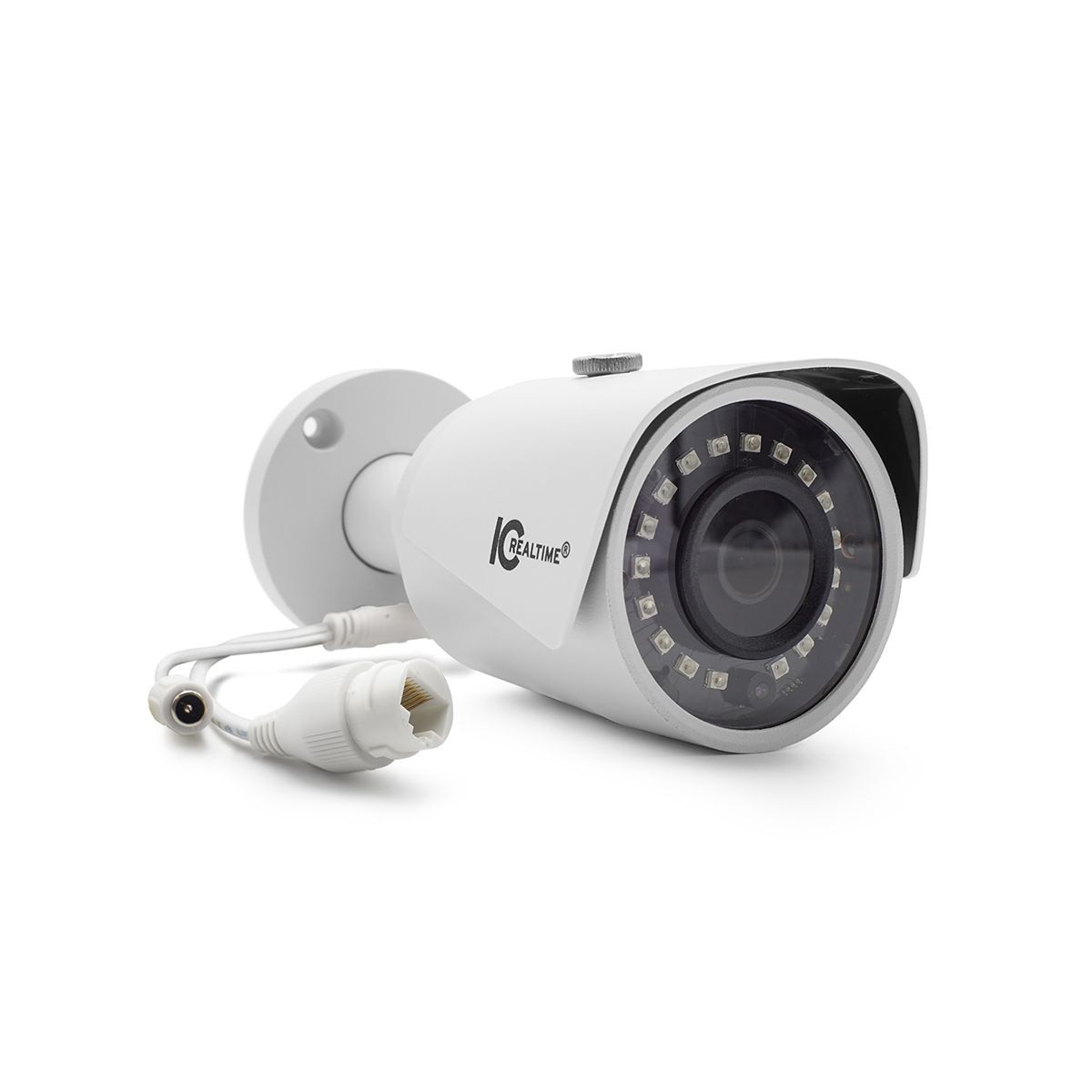

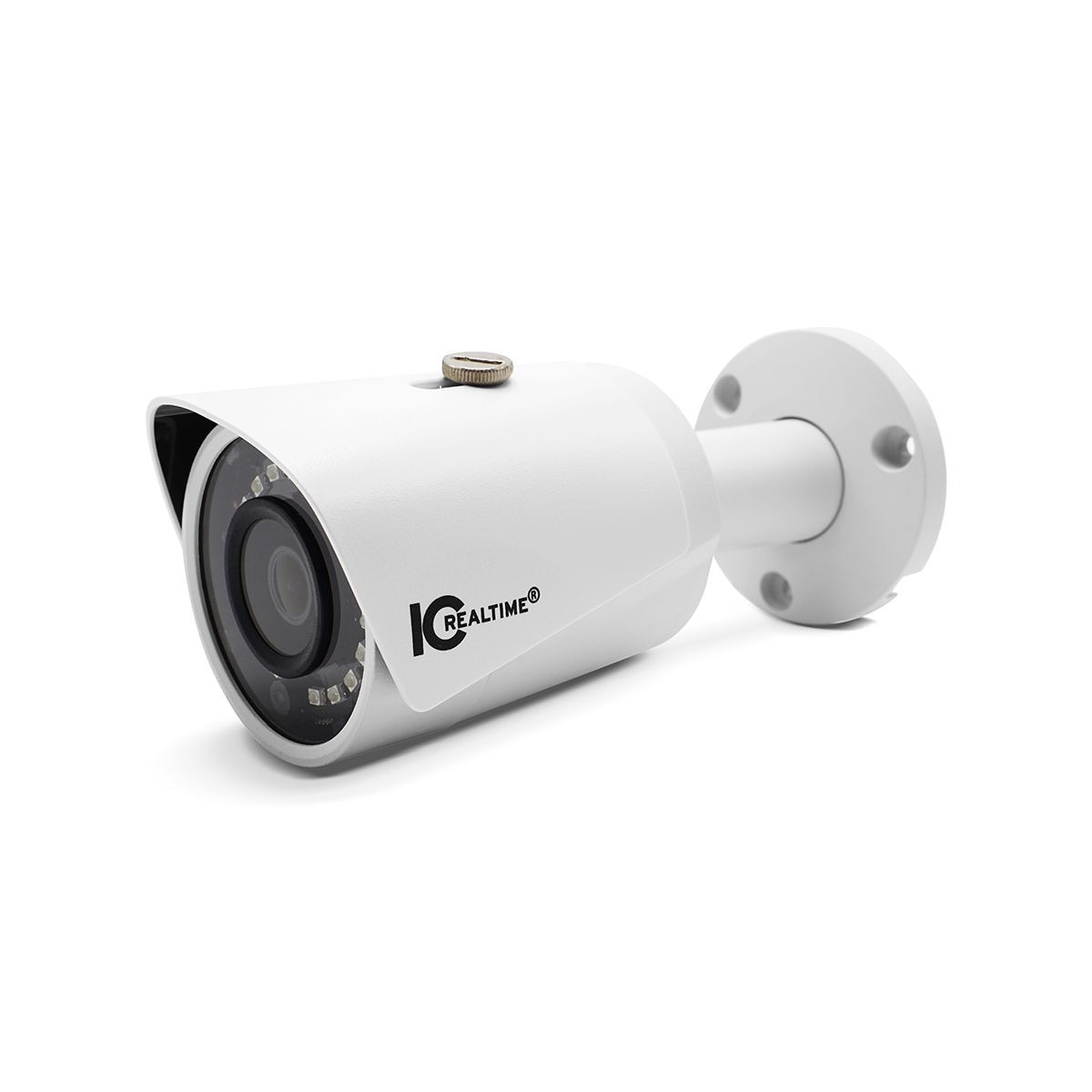

Your favorite mini bullet camera, now available in the EDGE lineup - the ICR-B2001-IR The ICR-B2001-IR is a 2MP Day/Night with a 2.8mm fixed. lens. The camera itself supports H264 and H264+ compression, and True Day/Night viewing at up to 30 meters with 0 light. It's IP67 w weather rated as well as PoE. *All Edge series products come with a 3 year limited warranty
Specifications
| Camera | |
| Image Sensor: | 1/2.9 CMOS |
| Effective Pixels: | 2592(H) x 1944(V) |
| RAM/Rom: | 256MB / 16MB |
| Scanning System: | Progressive |
| Electronic Shutter Speed: | Supported |
| Minimum Illumination: | 0.1Lux/F2.0(Color) 0Lux/F2.0(IR on) |
| S/N Ratio: | More than 50dB |
| IR Distance: | Distance up to 30m(98ft) |
| IR On/Off Control: | Auto/ Manual |
| IR LEDs: | 18 |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H:101 degrees V:57 degrees |
| Focus Control: | Fixed |
| DORI - Detect: | 45m (147ft) |
| DORI - Observe: | 18m (59ft) |
| DORI - Recognize: | 9m (30ft) |
| DORI - Identify: | 5m (16ft) |
| PTZ | |
| Pan/Tilt Range: | Pan:0 ~ 360 ;/ Tilt:0 ~ 90 ;/ Rotation:0 ~ 360 |
| Video | |
| Compression: | H.264+ / H.264 |
| Resolution: | 1080P (1920 x 1080) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | 2M (1 - 25/30fps) D1 / CIF(1 - 25/30fps) |
| Bit Rate: | H264:24K - 8192Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Electronic Image Stabilization (EIS): | Supported |
| Smart IR: | Supported |
| Digital Zoom: | 16x |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP |
| Interoperability: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users / 20 Users |
| Edge Storage: | NAS / Local PC for instant recording |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | < 6.4W |
| Enviromental | |
| Operating Conditions: | -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal + Plastic |
| Dimensions: | 70mm x 164.7mm (2.76in x 6.49in) |
| Gross Weight: | 0.44kg (0.97lb) |
