ICR-220

(0) No Reviews yet
SKU: ICR-220
ITEM WEIGHT: 1

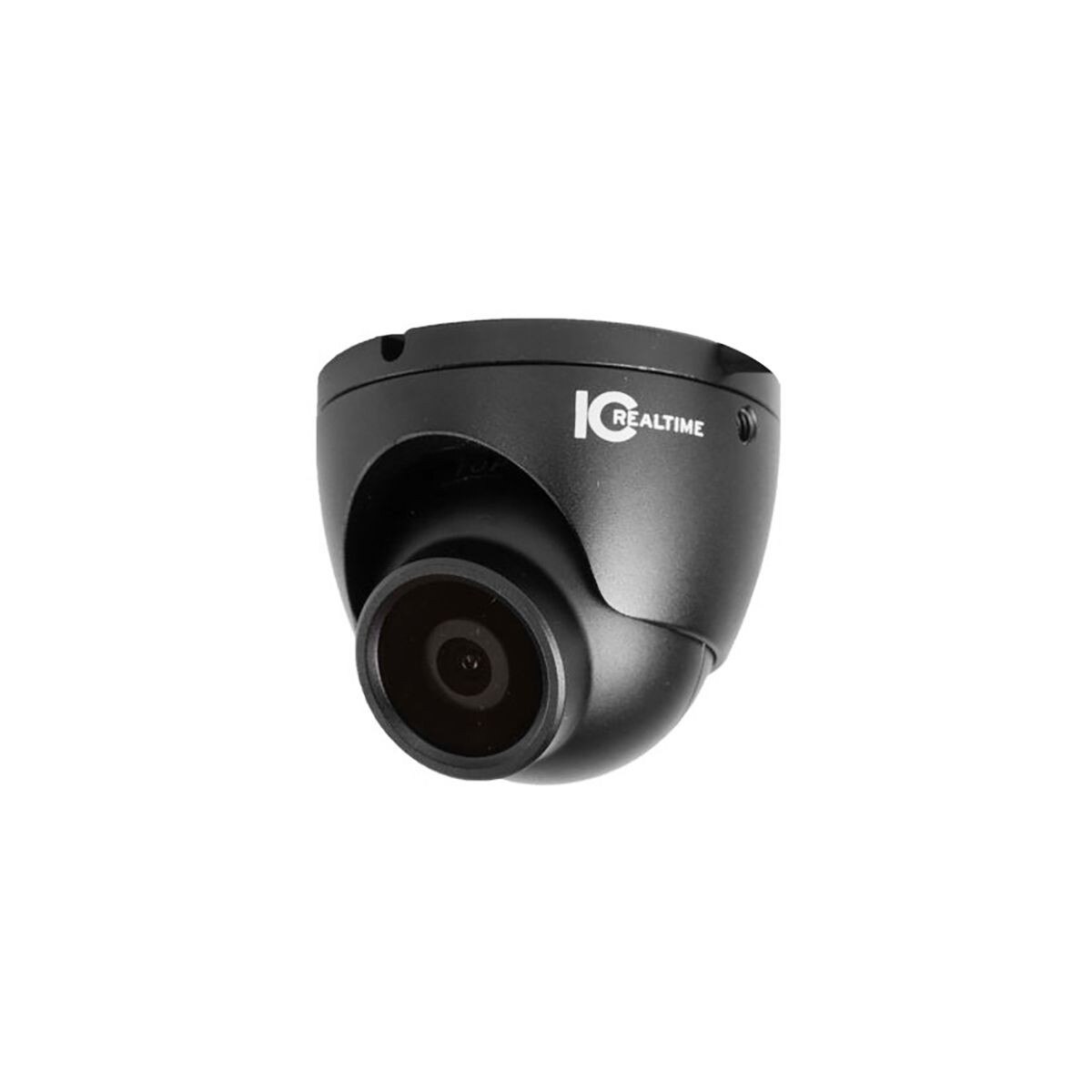

650TVL(Color)/ 700TVL(B/W) Mini Spy Armor Dome Camera (Black)
1/3 Sony Ex-view HAD CCD | 960H
3.6mm | fixed
IR Sensitive, No IR LEDs
Economic Design | No Audio | No Alarm
IP66 | 12VDC | Max 0.96W
AGC
Discontinued Item

Details

Who says good things can't come in small packages? The ICR220 is our smallest dome camera, only two inches wide and two inches tall. Despite the small form factor, the ICR220 offers a high resolution Sony 960H Ex-view HAD CCD II, resulting in 700TVL video. The camera has a fixed, 3.6mm lens, and a digital day/night filter, enabling this camera to see B&W imaging when light levels are low. The IP 66 weatherproof rating also enables the camera to be installed in both indoor, and outdoor applications. When a mini camera is required, the ICR-220 will deliver a superior image despite its small size.

Specifications

Camera
Image Sensor: 1/3" Sony 960H Ex-view HAD CCD
Effective Pixels: NTSC : 976(H) x 494(V), PAL : 976(H) x 582(V)
Scanning System: 2:1 Interlaced
Sync: Internal
Minimum Illumination: 0.1Lux(Color), 0.01Lux(B/W)
S/N Ratio: More than 52dB (AGC Off)
IR Distance: N/A
Lens
Focal Length: 3.6mm Fixed iris lens
Video
Resolution: 650TV Lines(Color)/ 700TV Lines(B/W)
White Balance: 1,800šK ~ 10,500K Auto
Gain Control: Standard : -6dB ~ 44.8dB Auto
Gamma Correction: 0.45
Smear Effect: 0.005%
Iris Control: Electronic
Interface
Video Interface: 1.0Vp-p Composite 75 Ohms
Electrical
Power Supply: 12VDC(Tol. 7~18VDC)
Power Consumption: 80mA
Enviromental
Operating Conditions: -20°C ~ 70°C
Operating Humidity: 90% RH
Ingress Protection: N/A
Vandal Resistance: N/A
Construction
Dimensions: 1.97" x 1.74"(50mm x 44mm)
