ICR-200H
Details

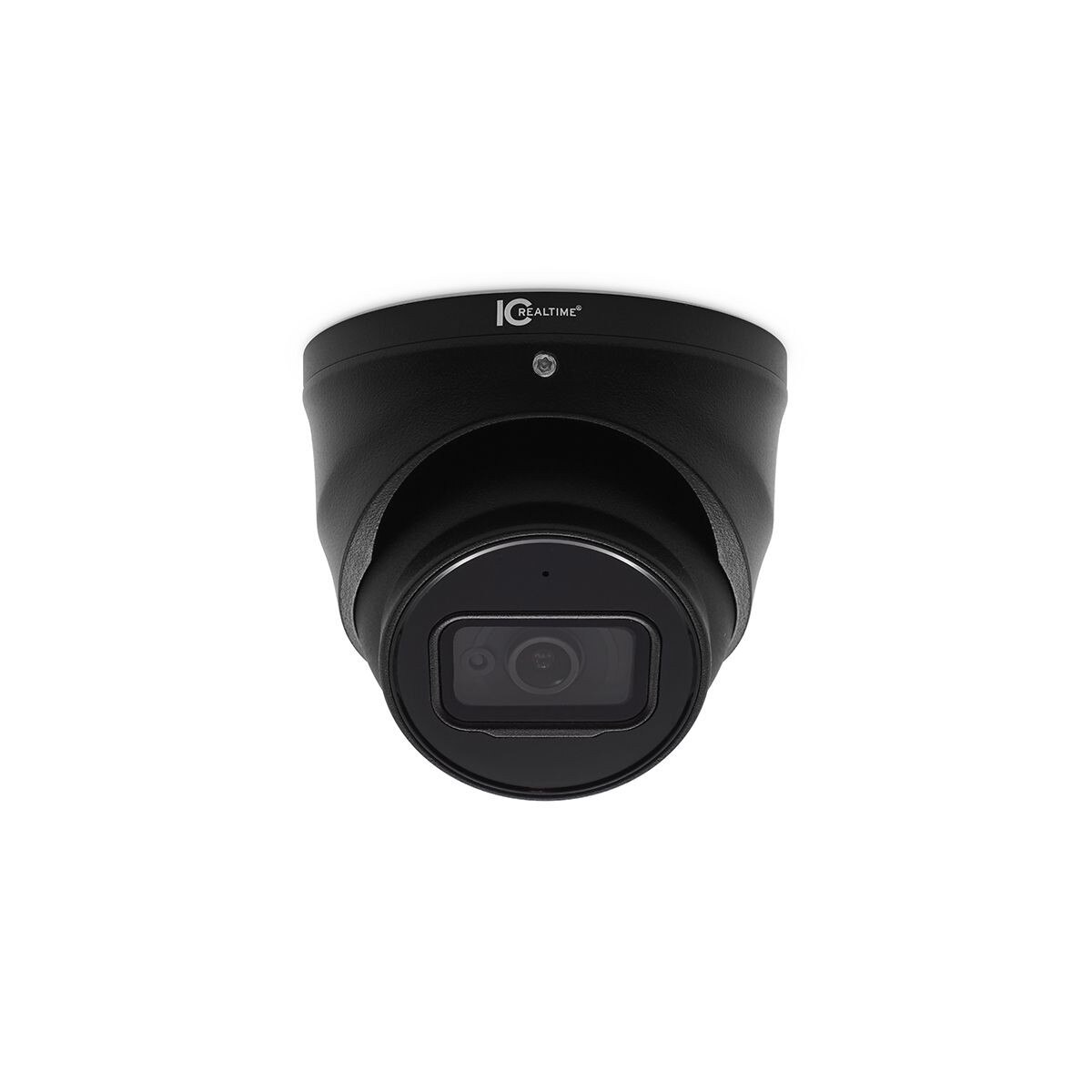

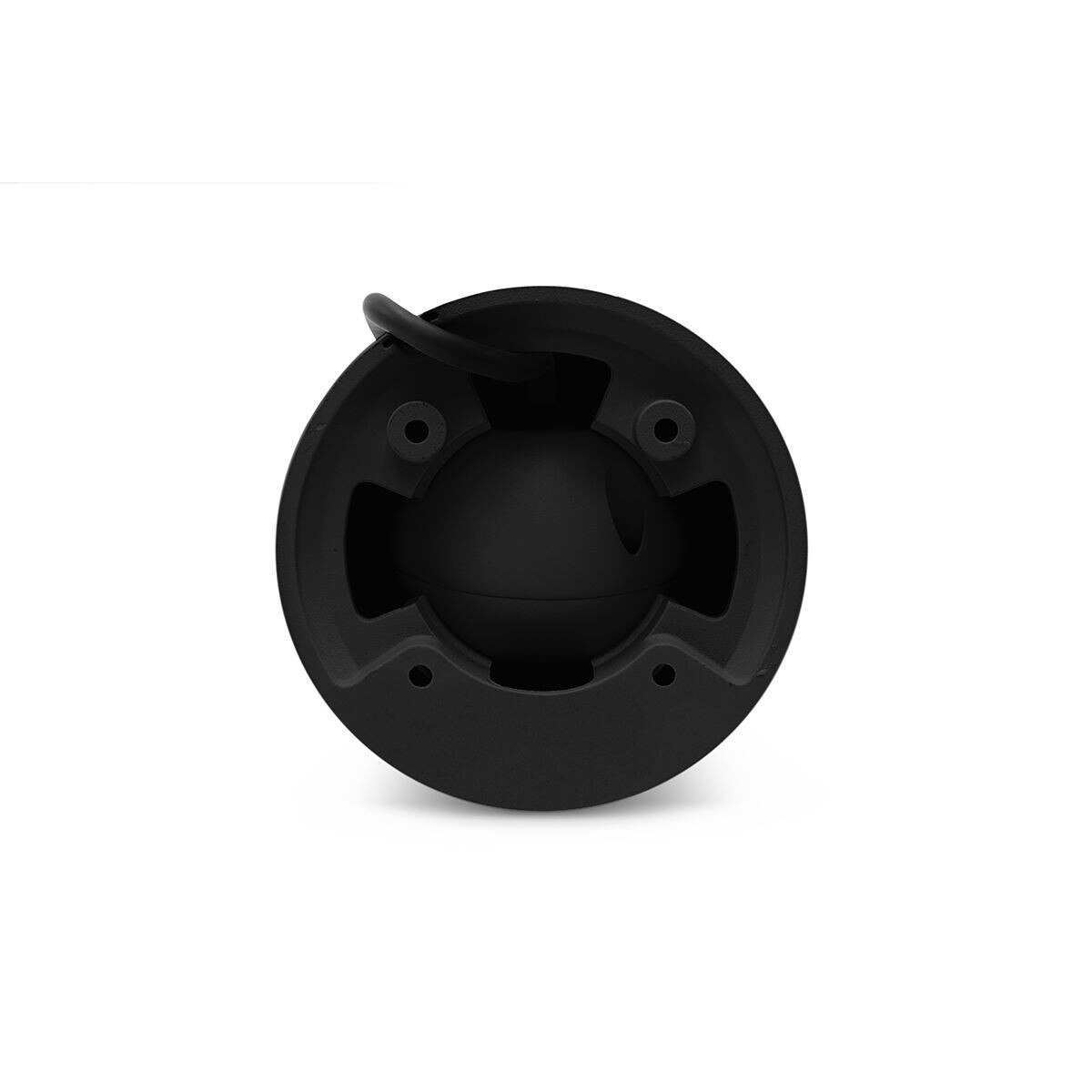

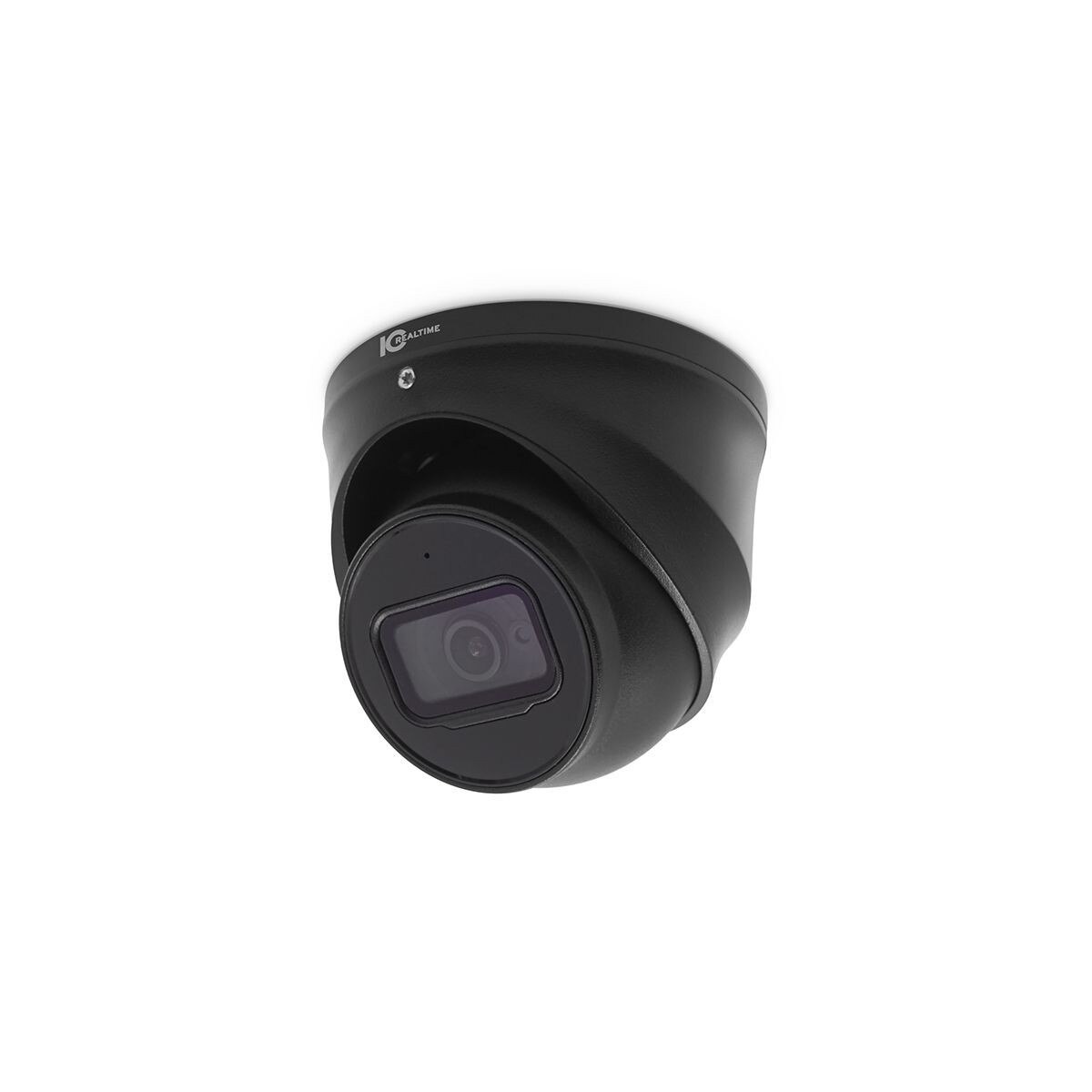

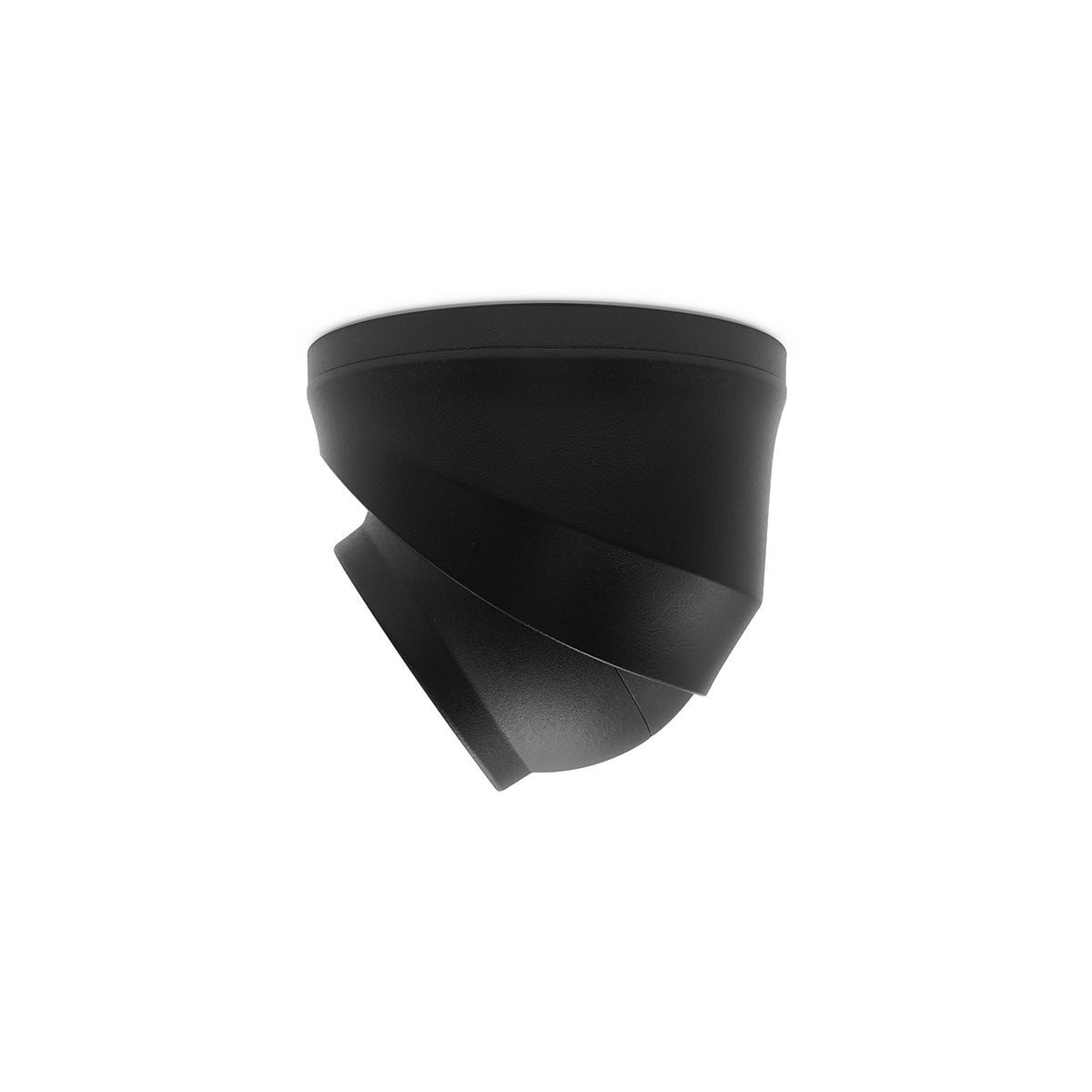

The ICR-200 HDAVS series cameras have been a staple in the IC Realtime product lineup for many years. Their small form factor but large delivery of crisp, clear 110º wide angle video makes for a very versatile HDAVS surveillance camera. The locking ball and socket design allows for many different mounting angles as well as full use of a powerful smart IR with a range up to 164ft. Boasting a 2MP HD sensor, true 120dB WDR and a 2.8mm lens, the ICR-200H can tackle an infinite amount of applications. HD over coaxial cable has never been so simple and cost effective.
Specifications
| Camera | |
| Image Sensor: | 1/2.8 Starlight CMOS |
| Effective Pixels: | 1920(H) x 1080(V) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.004Lux/F1.6 30IRE 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 50m (164ft) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 110 degrees |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 500mm (19.7in) |
| DORI - Detect: | 39m (128ft) |
| DORI - Observe: | 15m (49ft) |
| DORI - Recognize: | 8m (26ft) |
| DORI - Identify: | 4m (13ft) |
| PTZ | |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 1080P (1920 x 1080) |
| Frame Rate: | 25/30fps@1080P 25/30 / 50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| Smart IR: | Auto / Manual |
| WDR: | 120dB |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Audio I/O: | 1-channel audio in & Built-in Mic |
| Electrical | |
| Power Supply: | 12V DC +/- 30% |
| Power Consumption: | Max. 5.3W (12V DC IR on) |
| Environmental | |
| Operating Conditions: | -40C ~ +60C (-40F ~ +140F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminium |

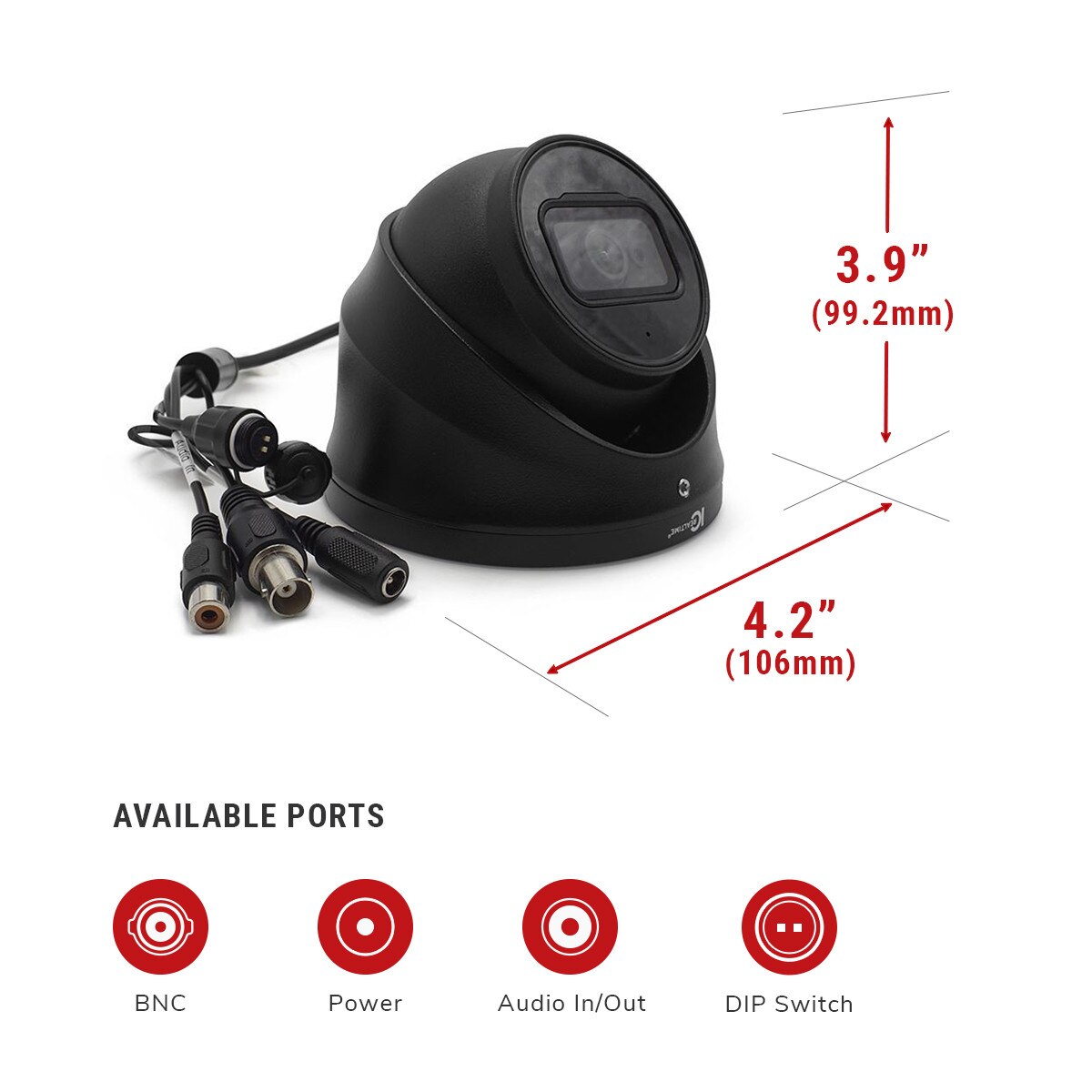

| Dimensions: | 106mm x 99.2mm (Diameter 4.17in x 3.9in) |
| Gross Weight: | 0.62kg (1.34lb) |
