ICIP-S3000AF

(0) No Reviews yet
SKU: ICIP-S3000AF
ITEM WEIGHT: 6
3 Megapixel Indoor/Outdoor Full-Size Long Range Bullet IR Network Camera
1/3 CMOS Exmor | 3MP | 15fps@3MP
8mm to 16mm | manual varifocal
Max. IR length 98ft
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 32GB mSD
12VDC 24VAC or PoE | Max. 15W
AGC | DWDR | HLC | BLC | 2DNR
Discontinued Item

Details

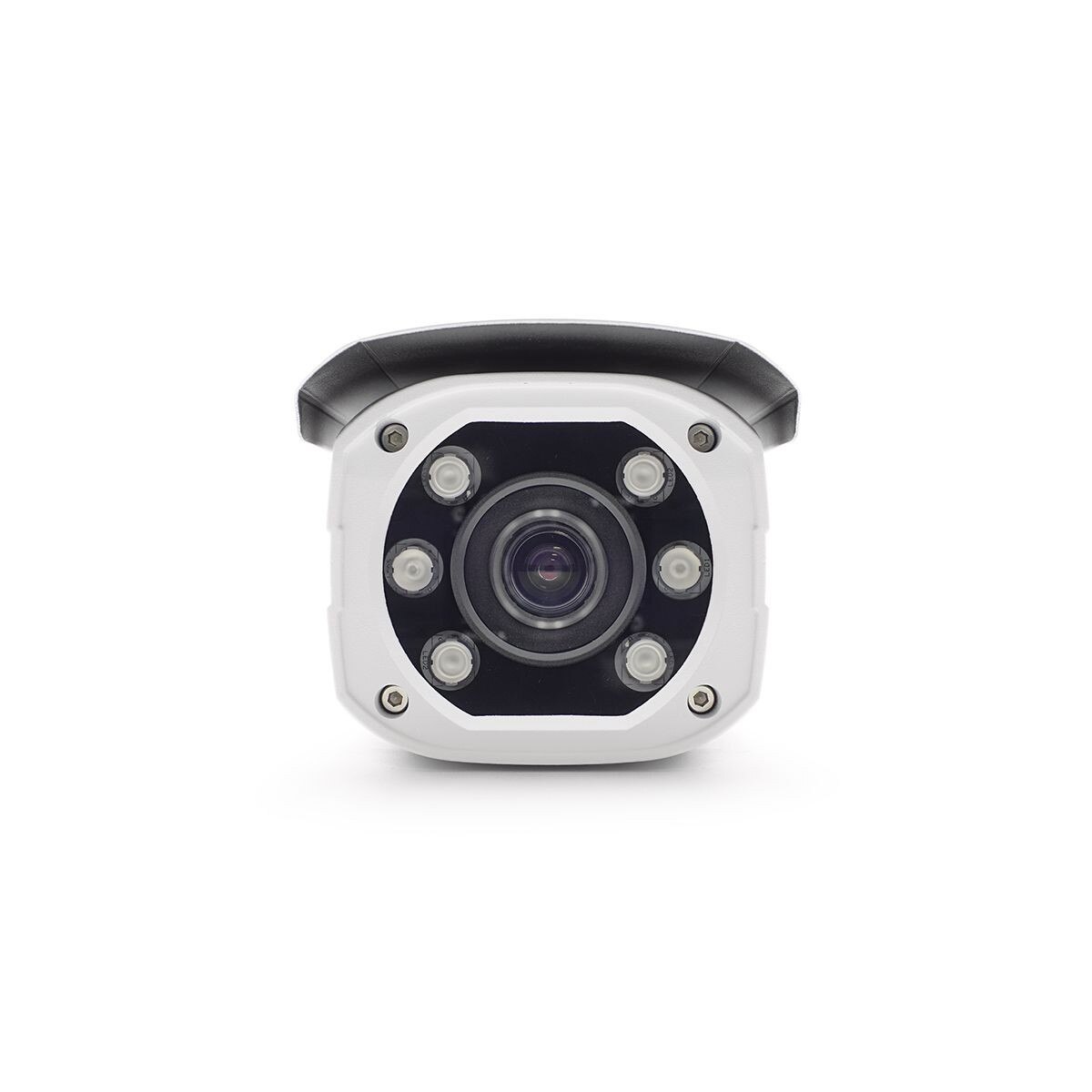

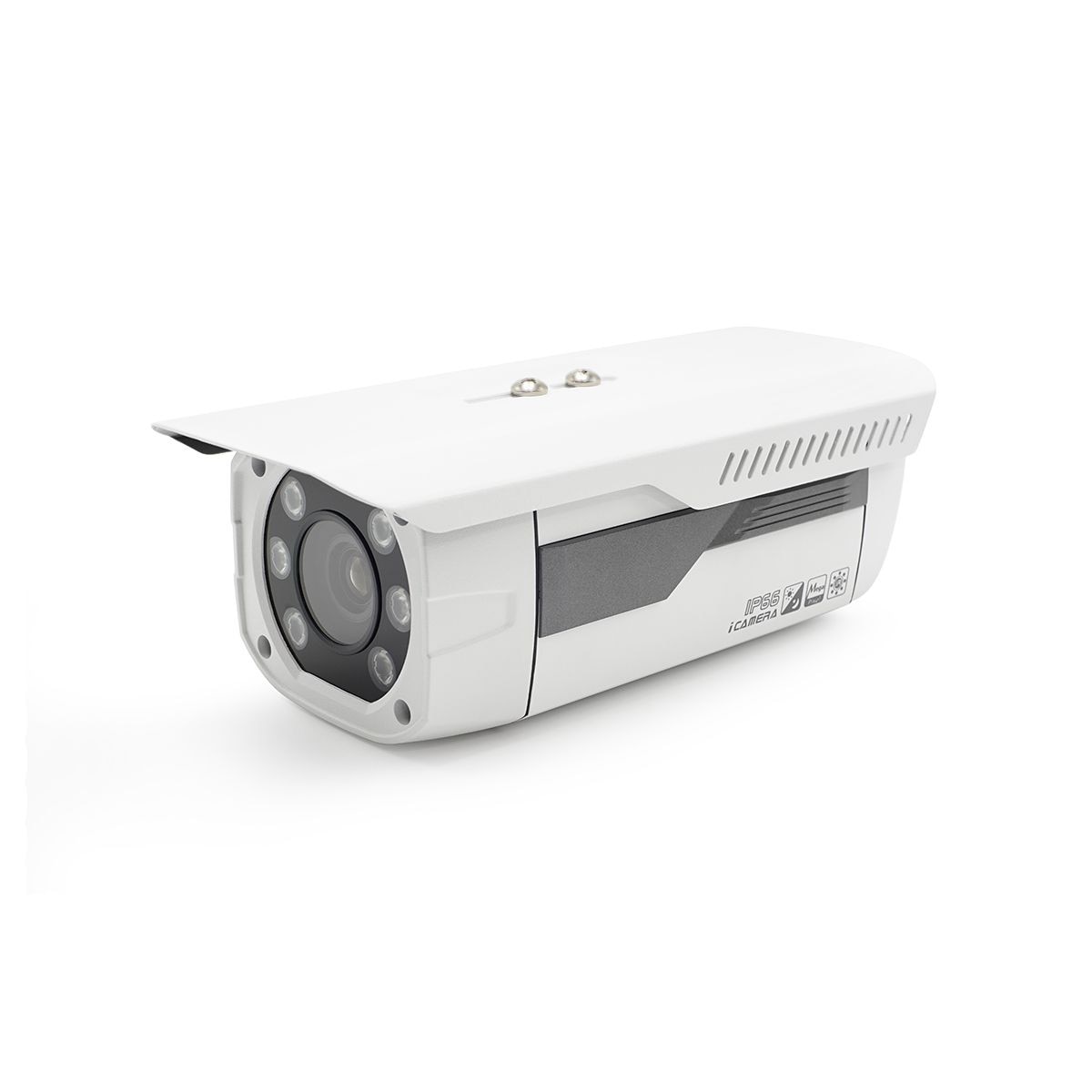

A weatherproof, day/night, 3 Megapixel, full-bodied bullet camera- the ICIPS3000AF. This full box style design contains a high resolution 3 Megapixel Sony Progressive Scan Exmor CMOS sensor, capable of outputting a crisp and clear image. The optics on this camera are located behind the removable front bezel, which conceals the 8-16mm vari-focal lens. The removable front glass also contains a high intensity LED ring, suitable for 100' of viewing with 0 light. This camera is IP 66 rated and highly weatherproof.

Specifications

Camera
Image Sensor: 1/2.8" 3.0 Megapixel SONY progressive scan Exmor CMOS
Effective Pixels: 2096(H)×1561(V)
Minimum Illumination: 0.2LUX/F1.6(Color), 0.01LUX/F1.6(B/W), 0LUX(IR on)
S/N Ratio: >50dB
IR Distance: 60~100 ft
Lens
Lens Type: Auto Iris
Mount Type: CS mount
Focal Length: 8~16mm
Max. Aperture: F1.6
Video
Compression: H.264E/MJPEG
Resolution: 3.0M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×480)
CIF(352×240)/VGA(640×480)
Frame Rate: Main Stream: 3.0M(1~20fps),1080P/720P/ D1/CIF/ VGA(1~30fps)
Extra Stream: D1/CIF (1~30fps)
Bit Rate: 160K~8Mbps
Day/Night: ICR
White Balance: Auto/Manual
Gain Control: Auto/Manual
Audio
Compression: G.711a / G.711u / PCM
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP,TCP/IP,ARP,IGMP,ICMP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,UPNP,NTP,Bonjour,SNMP
Interoperability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Web Viewer: Smart ICRSS, DSS
Interface
Video Interface: 1 channel BNC(1.0Vp-p, 75Ω)
Audio I/O: 1 channel RCA, Input
1 channel RCA, Output
Memory Slot: Max 32GB, local storage
Electrical
Power Supply: DC12V, PoE
Power Consumption: <10W
Enviromental
Operating Conditions: -40°F ~ 140°F / -40°C ~ 60°C, 10%~90%
Ingress Protection: IP66
Construction
Dimensions: 11.35"×4.66"×3.98" (288.3×118.3×101mm)
