ICIP-PANO-A820

(0) No Reviews yet
SKU: ICIP-PANO-A820
ITEM WEIGHT: 60
8 x 2MP (16MP Total) IP 360 Panoramic Pan Tilt Zoom Dome Basic IVS Auto Tracking (WALL MOUNT INCLUDED)
Nine 1/1.8 CMOS | Two 5.8MP plus One 2MP | 25fps@5.8MP plus 60fps@2MP
5mm | fixed | AoV 360
IR Sensitive, No IR LEDs
2ch audio in 1ch audio out | 7ch alarm in 2ch alarm out | 128GB mSD
IP67 | IK10 | 36VDC | Max. 120W
IVS | AGC | WDR | HLC | BLC | 3DNR

On Back Order

Details

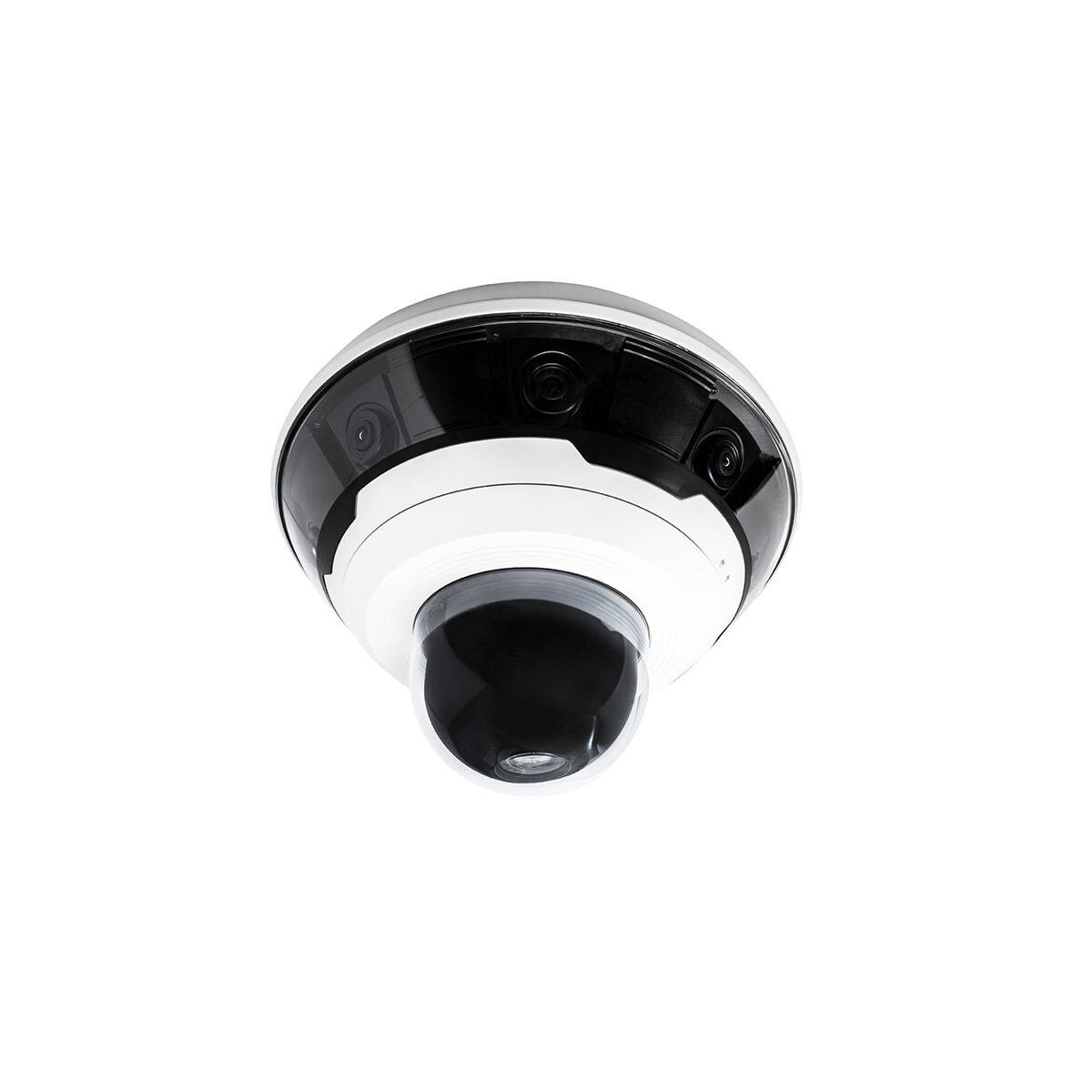

The ICIP-Pano-A820 camera combines eight (8) 2 megapixel sensors working in tandem to create a comprehensive 360° view and a high-speed PTZ camera to focus on a specific area of the 360° screen. With its all-in-one design, the camera provides a 360° panorama and provides region of interest details at the same time. In addition, the camera offers the Advanced Intelligence (AI) video system, a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for tripwire violations, intrusion detection, auto-tracking and abandoned or missing objects. Starlight sensors on the cameras allow for extreme performance in the most challenging low-light applications. Vivid color details are captured as in light as low as 0.005 lux, and the camera is a True WDR camera at 120 dB. Autotracking capabilities on the PTZ enable the user to choose between manual control or allow it to be automatically controlled by pre-defined rules. H.265 compression is employed on this camera as well. The ICIP-Pano-A820 can replace multiple single sensor cameras to provide a higher return on investment.

Specifications

Camera
Image Sensor: Panoramic: Eight 1/1.9 2 Megapixel progressive scan CMOS
Effective Pixels: 2 x 4096(H) x 1800(V) PTZ: One 1/1.9 4096(H) x 1800(V)
Scanning System: Progressive
Sync: N/A
Minimum Illumination: 0.005Lux/F2.2( Color1/3s30IRE) 0.03Lux/F2.2( Color1/30s30IRE) 0.003Lux/F2.2( B/W1/3s30IRE) 0.02Lux/F2.2( B/W1/30s30IRE)
S/N Ratio: More than 50dB
IR Distance: N/A
PIR Sensor Range: N/A
Lens
Lens Type: N/A
Mount Type: N/A
Focal Length: N/A
Max. Aperture: N/A
Angle of View: N/A
Focus Control: N/A
PTZ
Pan/Tilt Range: N/A
Manual Control Speed: N/A
Presets: N/A
PTZ Mode: N/A
Speed Setup: N/A
Power up Action: N/A
Idle Motion: N/A
Protocol: N/A
Time Task: N/A
OSD Menu: N/A
Wiper: N/A
Tracking Trigger Mode: N/A
Tracking Trigger Event: N/A
Intelligence
Smart Function: N/A
Video
Compression: N/A
Resolution: N/A
Frame Rate: N/A
Bit Rate: N/A
Day/Night: N/A
Backlight Compensation: N/A
White Balance: N/A
Gain Control: N/A
Noise Reduction: N/A
Digital Zoom: N/A
Mirror: N/A
Privacy Masking: N/A
Gamma Correction: N/A
Smear Effect: N/A
Iris Control: N/A
WDR: N/A
Digital Slow Shutter: N/A
Audio
Compression: N/A
Network
Ethernet: N/A
Protocol: N/A
Wifi: N/A
Interoperability: ONVIF / PSIA / CGI
Compatability: N/A
Streaming Method: Unicast / Multicast
Max. User Access: N/A
Smart Phone: N/A
Interface
Video Interface: 1 port (For PTZ Camera only)
RS232: N/A
RS485: N/A
Audio I/O: N/A
Alarm I/O: N/A
Factory Reset: N/A
Memory Slot: N/A
Electrical
Power Supply: N/A
Power Consumption: N/A
Enviromental
Operating Conditions: N/A
Operating Humidity: N/A
Ingress Protection: N/A
Vandal Resistance: N/A
Construction
Dimensions: N/A

Downloads
