ICIP-P2400Y-IR

(0) No Reviews yet
SKU: ICIP-P2400Y-IR
ITEM WEIGHT: 23

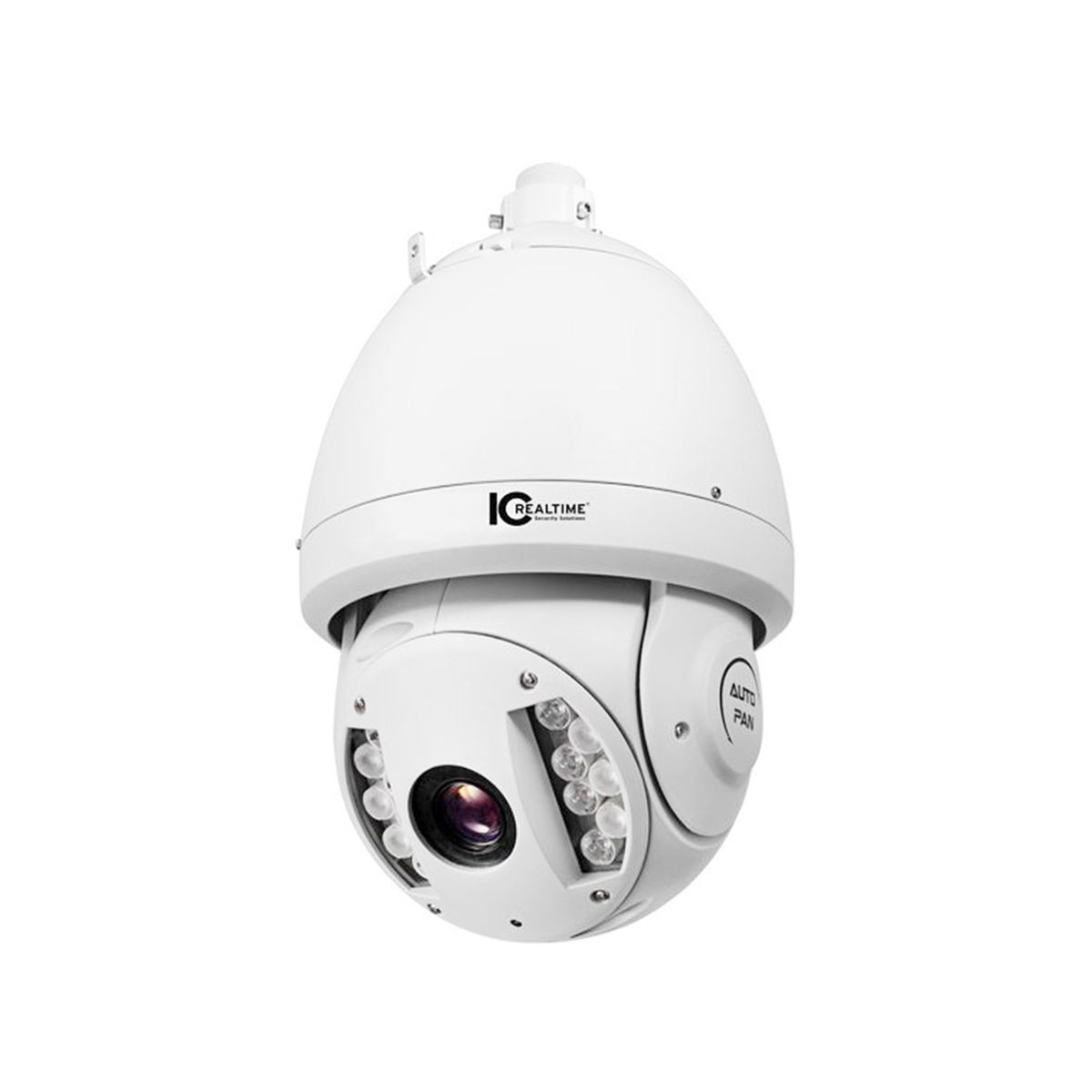

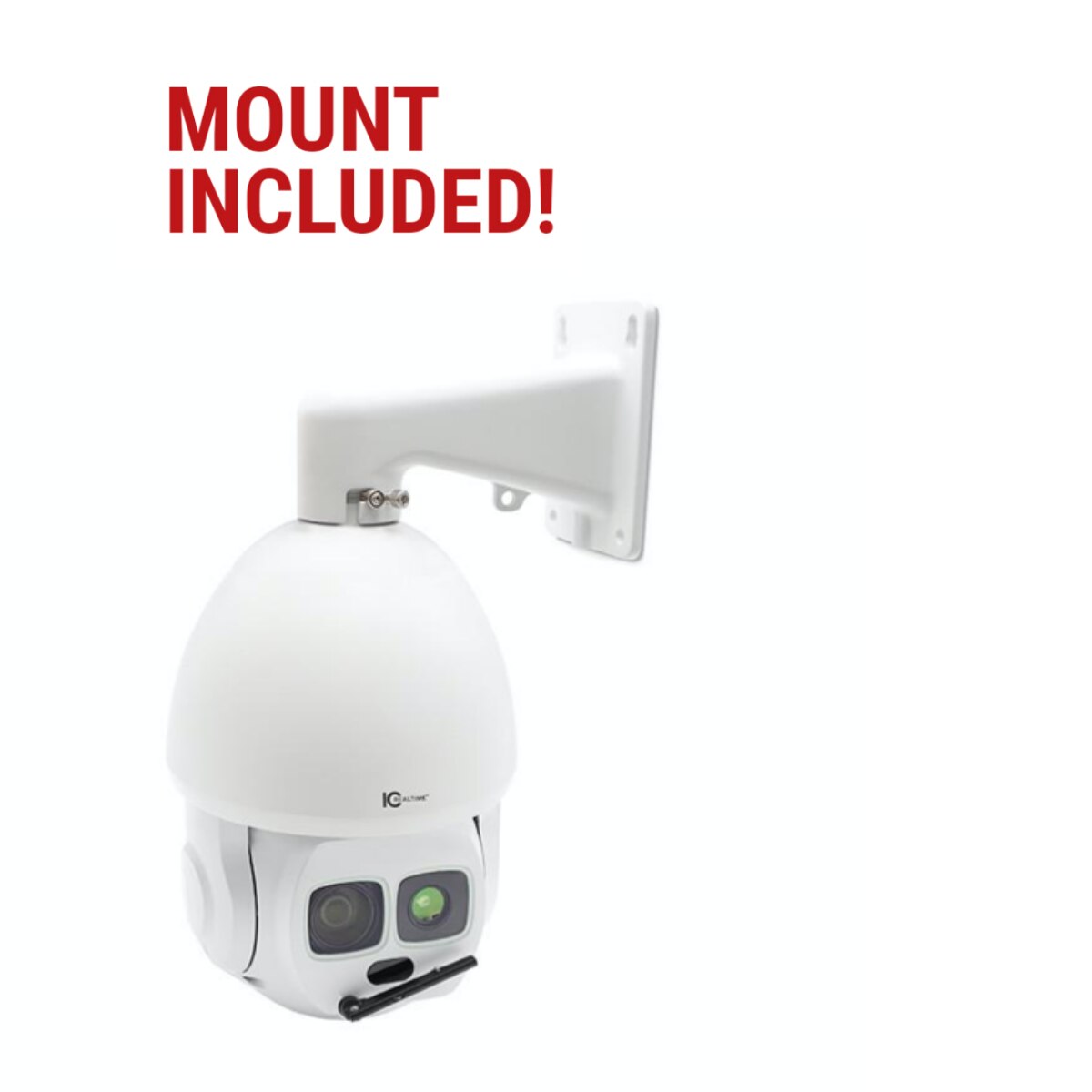

2MP IP Full Size PTZ 40X Optical Zoom 656 ft Smart IR Hi-POE Basic IVS Auto Object Tracking (Wall Mount Included)
1/2.8 CMOS Starvis | 2MP | 60fps@2MP
3.95mm to 177.7mm | motorized varifocal | AoV 70.3 to 1.8
Max. IR length 820ft | Smart IR | 6 IR LEDs
1ch audio in 1ch audio out | 7ch alarm in 2ch alarm out | 256GB mSD
IP67 | IK10 | 24VAC or PoE+ | Max. 25W
IVS | Auto Tracking | AGC | 120dB True WDR | HLC | BLC | Ultra DNR

Details

The ICIP-P2400Y-IR is a second generation of ICRealtime cameras with Starlight Technology, ultra-high wide dynamic range performance point-and-zoom camera with super long range IR night vision and built-in video analytics called IVS (Intelligent Video Analysis). This camera features the very best of long range optics and Starlight wide dynamic technology in order to give you maximum resolution at a maximum range (40× optical zoom) in the extreme light condition for large perimeter areas such as parking lots, large lots, and ports. In addition, the camera features a long range IR illuminator that turns offers illumination at up to 656'. This PTZ camera also utilizes 'Intelligent IR' so it will adjust it's IR intensity as needed, making it ideal for high detail discernment of faces, vehicles, and other objects over long distances in zero light. The camera also features powerful object tracking of vehicles and people as they move within defined boundaries. The video analytics feature tripwire, intrusion, scene change, face detection, and much more. With a wide variety of rule configuration menus, users can set up unique and powerful video analytic settings and alerts. When the camera recognizes a rule violation it can send out snapshots, messages via email, or trigger relays and alarms. This PTZ camera comes with Starlight Wide Dynamic Range, Ultra Digital Noise Reduction (2D/3D), Backlight Compensation, and white balance. This PTZ camera supports Hi-POE allowing installations with a single Ethernet cable. The camera includes endless 360 degree rotation, 300 presets, and Auto Pan, Auto Scan this PTZ can swiftly move from location to location with the click of a mouse using our 3D Intelligent Positioning control. Finally, the IP67 vandal proof housing is ready for harshest weather and is totally dust-proof.

Specifications

Camera
Image Sensor: 1/2.8 2 Megapixel STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V) 2 Megapixels
RAM/Rom: 1024M / 128M
Scanning System: Progressive
Electronic Shutter Speed: Supported
Minimum Illumination: Color: 0.05Lux@F1.6 B/W: 0.005Lux@F1.6 0Lux@F1.6 (IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 250m (820ft)
IR On/Off Control: Auto/Manual
IR LEDs: 6
Lens
Focal Length: 3.95-177.7mm
Max. Aperture: F1.6 - F4.95
Angle of View: H: 70.3 - 1.8 degrees
Optical Zoom: 45x
Focus Control: Auto/Manual
Close Focus Distance: 100 - 1000mm (3.94 - 39.37in)
DORI - Detect: 2345m (7694ft)
DORI - Observe: 938m (3077ft)
DORI - Recognize: 469m (1539ft)
DORI - Identify: 234m (768ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 endless; / Tilt: -20 ~ 90 & auto flip 180
Manual Control Speed: Pan: 0.1 ~ 200/s / Tilt: 0.1 ~ 120/s
Preset Speed: Pan: 300 degrees/s Tilt: 200 degrees/s
Presets: 300
PTZ Mode: 5 Pattern / 8 Tour / Auto Pan / Auto Scan
Speed Setup: Human-oriented focal Length / speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol: ICR-SD
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection / Heat Map
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 1080P (1920 x 1080) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main stream: 1080P / 1.3M / 720P(1 - 50/60fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 1080P / 1.3M / 720P / D1 / CIF (1 - 25/30fps)
Bit Rate: H.265/H.264: 448K - 8192Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB)
White Balance: Auto / ATW / Indoor / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Motion Detection: Support
Region of Interest: Support
Electronic Image Stabilization (EIS): Supported
Digital Zoom: 16X
Flip: 180
Privacy Masking: Up to 24 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.722 / G.726 / G.729 / MPEG2-L2
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD card 256GB
Interface
Video Interface: 1 port (BNC 1.0V[p-p] 75 Ohms)
RS485: 1
Audio I/O: 1/1 channel In/Out
Alarm I/O: 7/2
Memory Slot: Micro SD Card 256GB
Electrical
Power Supply: AC24V/3A( +/- 25%) PoE+(802.3at)
Power Consumption: 17W (25W IR On Heater On)
Enviromental
Operating Conditions: -40C ~ 70C (-40F ~ +158F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 209 x 337.4mm
Gross Weight: 9.1kg (20.06lb)
