ICIP-D8330-IR
Details

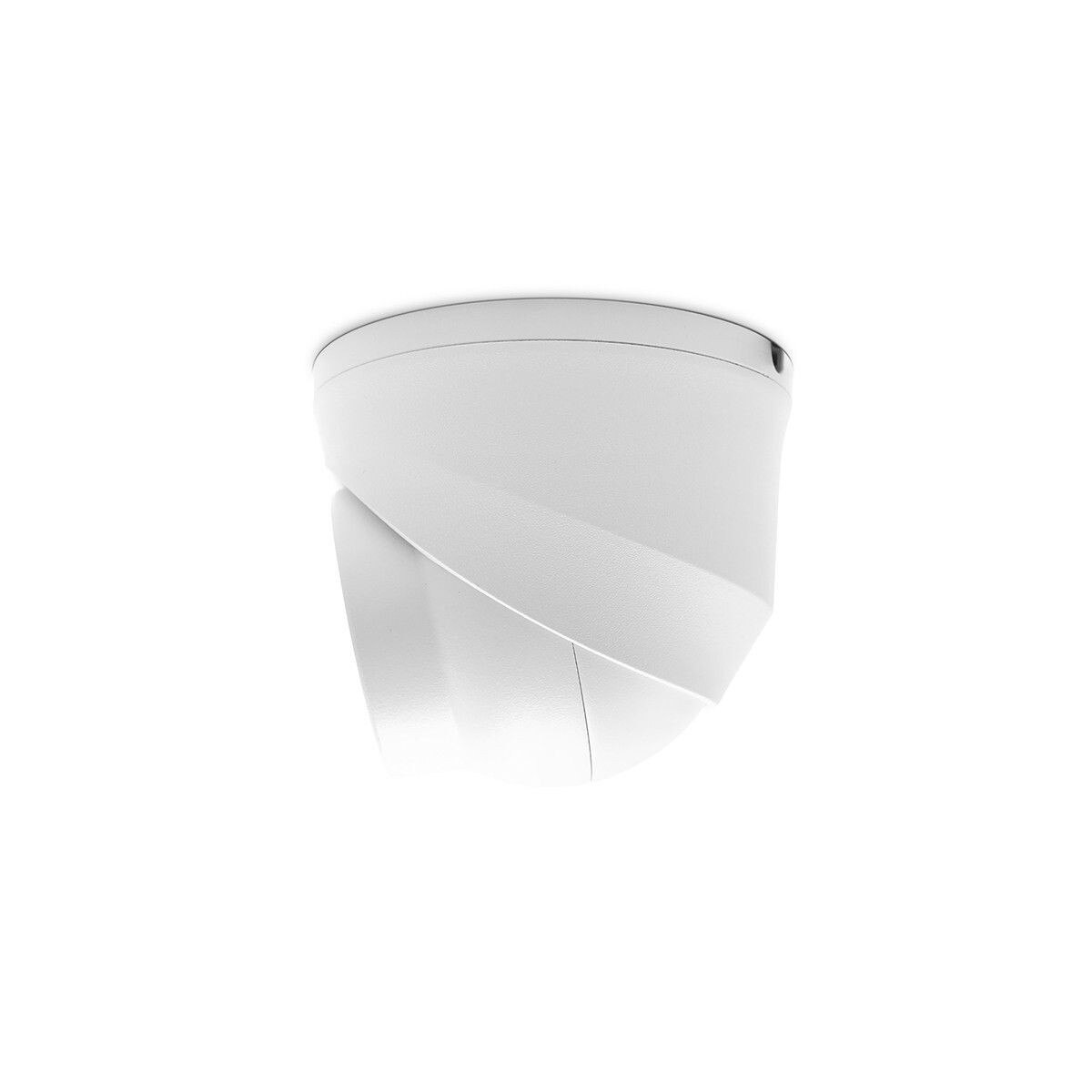

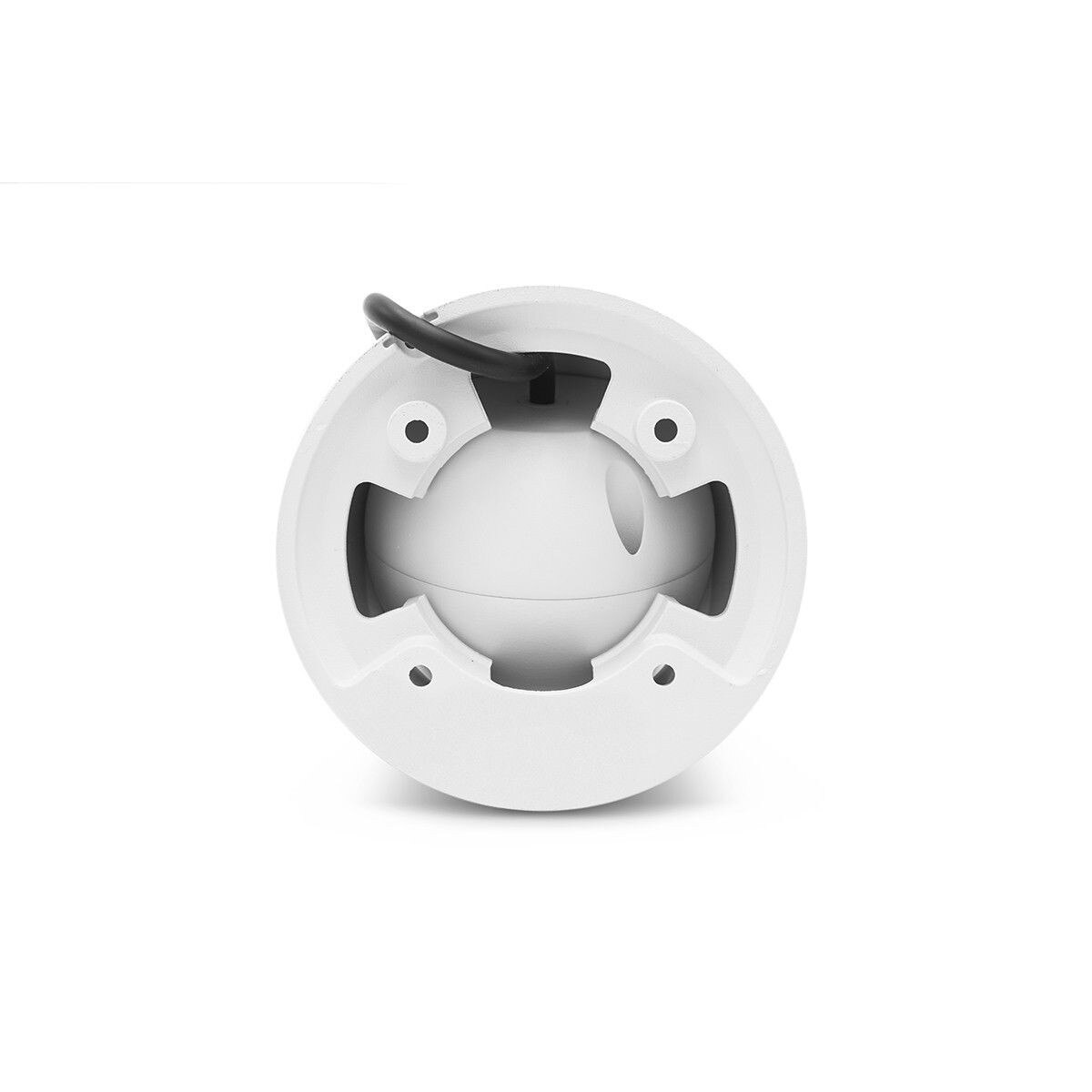

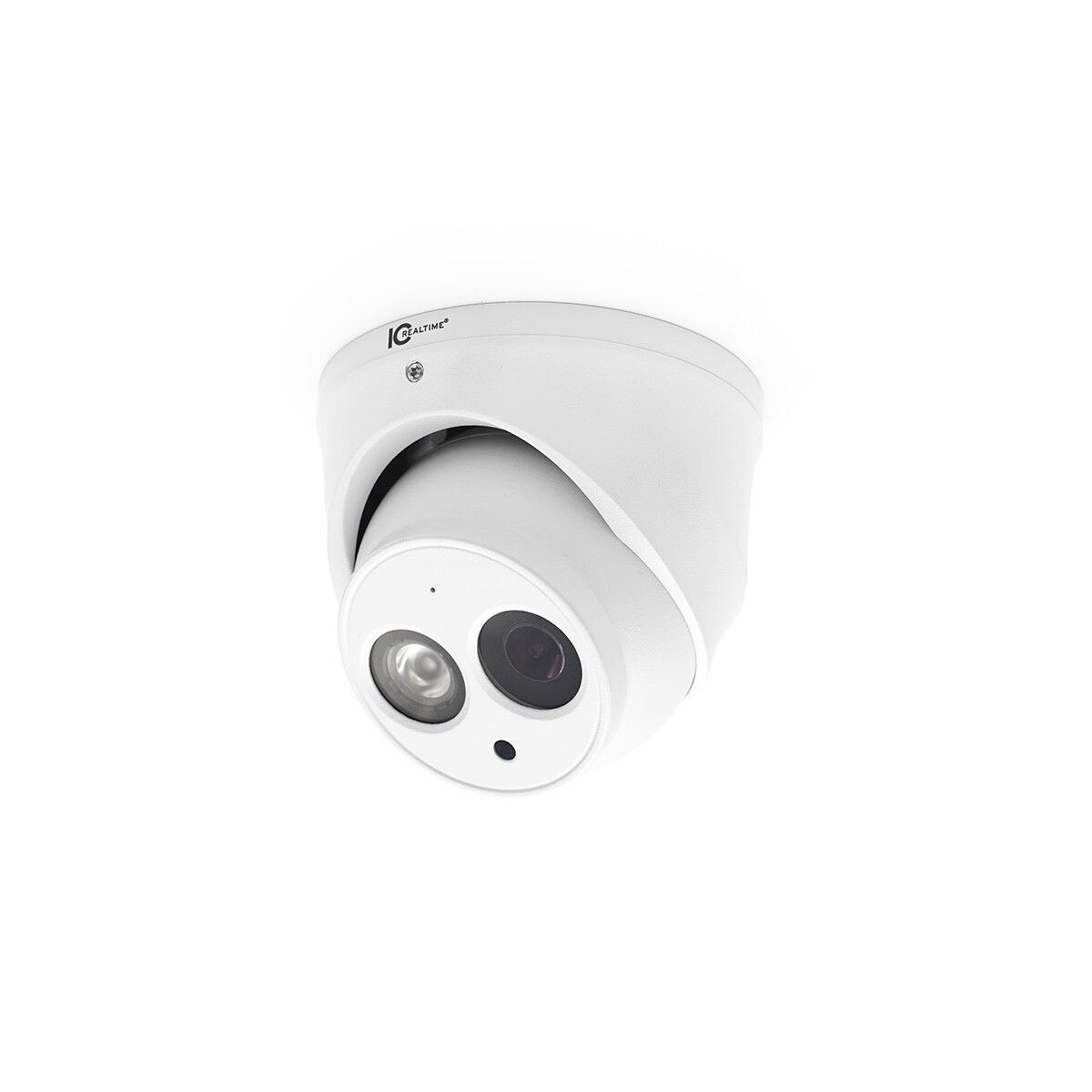

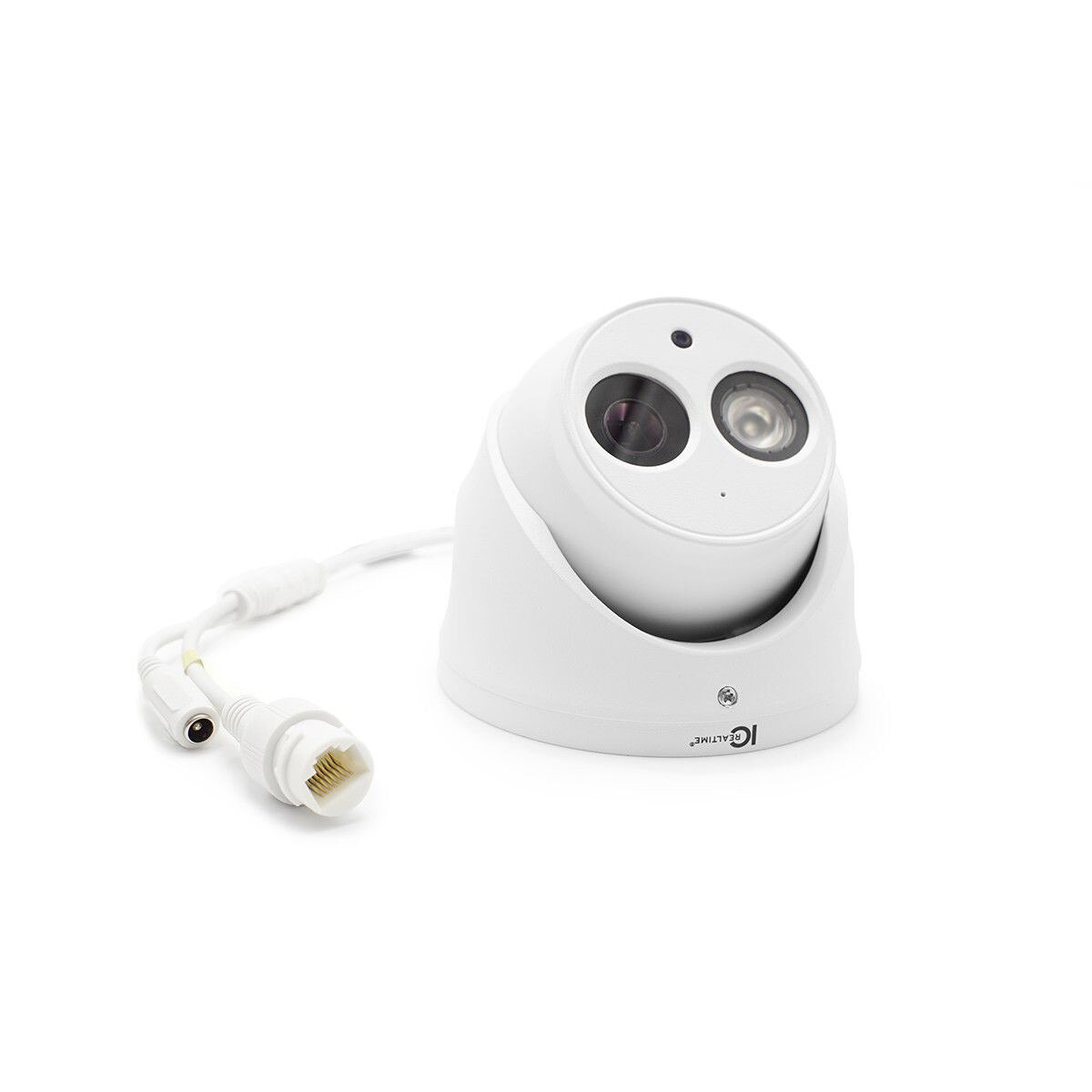

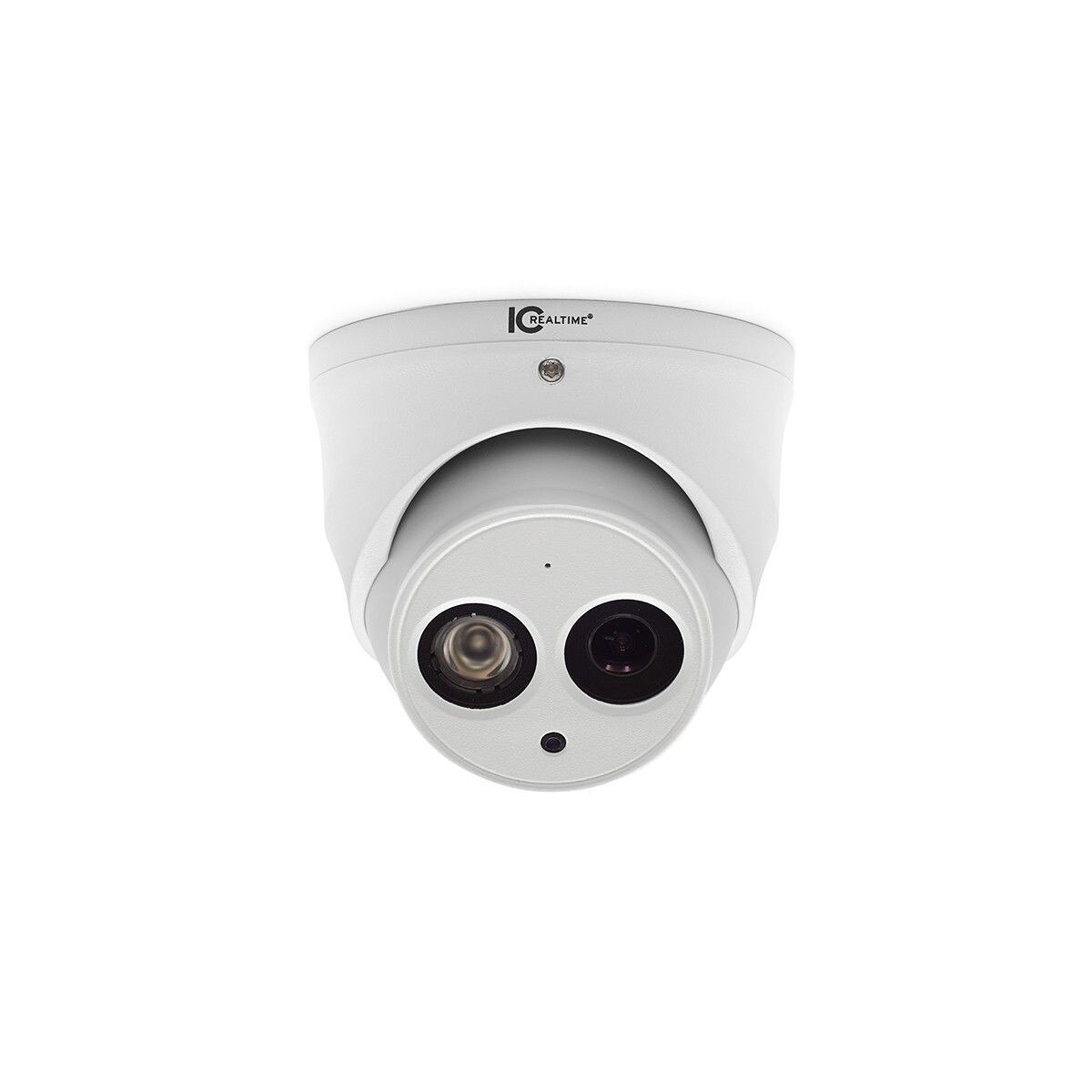

Ultra HD Surveillance is here - now you can capture your surveillance footage in stunning 4K resolution! The new ICIP-8000 series of 4K cameras paired with a compatible 4K series NVR will bring your surveillance system to new, unforeseen levels of clarity and resolution. The ICIP-D8330-IR is an 8MP (4K) Day/Night Dome camera. It utilizes a cutting edge 1/2.5'' 8MP CMOS sensor to deliver stunning 4K resolution at frame rates as high as 15FPS. On top of the sensor sits a fixed 2.8mm lens which delivers a handy, general purpose 112° Horizontal field of view. an IR LED that yields 164' (50 meters) of IR distance, allowing long range shots as well. This camera also represents the 'AI' line of smart cameras from ICRealtime. It's AI (Advanced Intelligence) suite of features includes: Tripwire, Intrusion, Missing/Abandoned Object, Face Detection. H265 compression is included standard as well to handle these extreme high resolutions.
Specifications
| Camera | |
| Image Sensor: | 1/2.5 8 Megapixel progressive scan STARVIS CMOS |
| Effective Pixels: | 3840(H) x 2160(V) |
| RAM/Rom: | 512MB / 32MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.06Lux/F1.6( Color1/3s30IRE) 0.3Lux/F1.6( Color1/30s30IRE) 0Lux/F1.6(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 50m (164ft) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 1 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H:112 degrees V:69 degrees |
| Focus Control: | Fixed |
| Close Focus Distance: | 900mm (35.43in) |
| DORI - Detect: | 69m (226ft) |
| DORI - Observe: | 28m (92ft) |
| DORI - Recognize: | 14m (46ft) |
| DORI - Identify: | 7m (23ft) |
| PTZ | |
| Pan/Tilt Range: | Pan:0 ~ 360 ; / Tilt:0 ~ 78 ; / Rotation:0 ~ 360 |
| Video | |
| Compression: | H.265+ / H.265 / H.264+ / H.264 |
| Resolution: | 4K (3840 x 2160) / 6M (3072 x 2048) / 5M (2560 x 1920) / 3M (2048 x 1536) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 4K(1 - 15fps) / 3M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 1080P(1 - 25/30fps) |
| Bit Rate: | H.264: 24K - 10240Kbps H.265: 14K - 9984Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Digital Zoom: | 16X |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| Audio | |
| Compression: | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| Interoperability: | ONVIF / PSIA / CGI/ Milestone |
| Compatibility: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users / 20 Users |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD Card 128GB |
| Interface | |
| Video Interface: | N/A |
| Audio I/O: | Built-in Mic |
| Memory Slot: | Micro SD Card 128GB |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | < 6W |
| Environmental | |
| Operating Conditions: | -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 106mm x 93.7mm (4.17in x 3.69in) |
| Gross Weight: | 0.65Kg (1.43lb) |
