ICIP-D8320-IR

(0) No Reviews yet
SKU: ICIP-D8320-IR
ITEM WEIGHT: 3
8MP IP Indoor/Outdoor Small Size Vandal Dome Fixed 2.8mm Lens (87 AOV) 98 ft Smart IR POE AI
1/2.5 CMOS Starvis | 8MP | 15fps@4K
2.8mm | fixed | AoV 112
Max. IR length 98ft | Smart IR | 18 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 128GB mSD
IP67 | IK10 | 12VDC or PoE | Max. 5.2W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR
Discontinued Item

Details

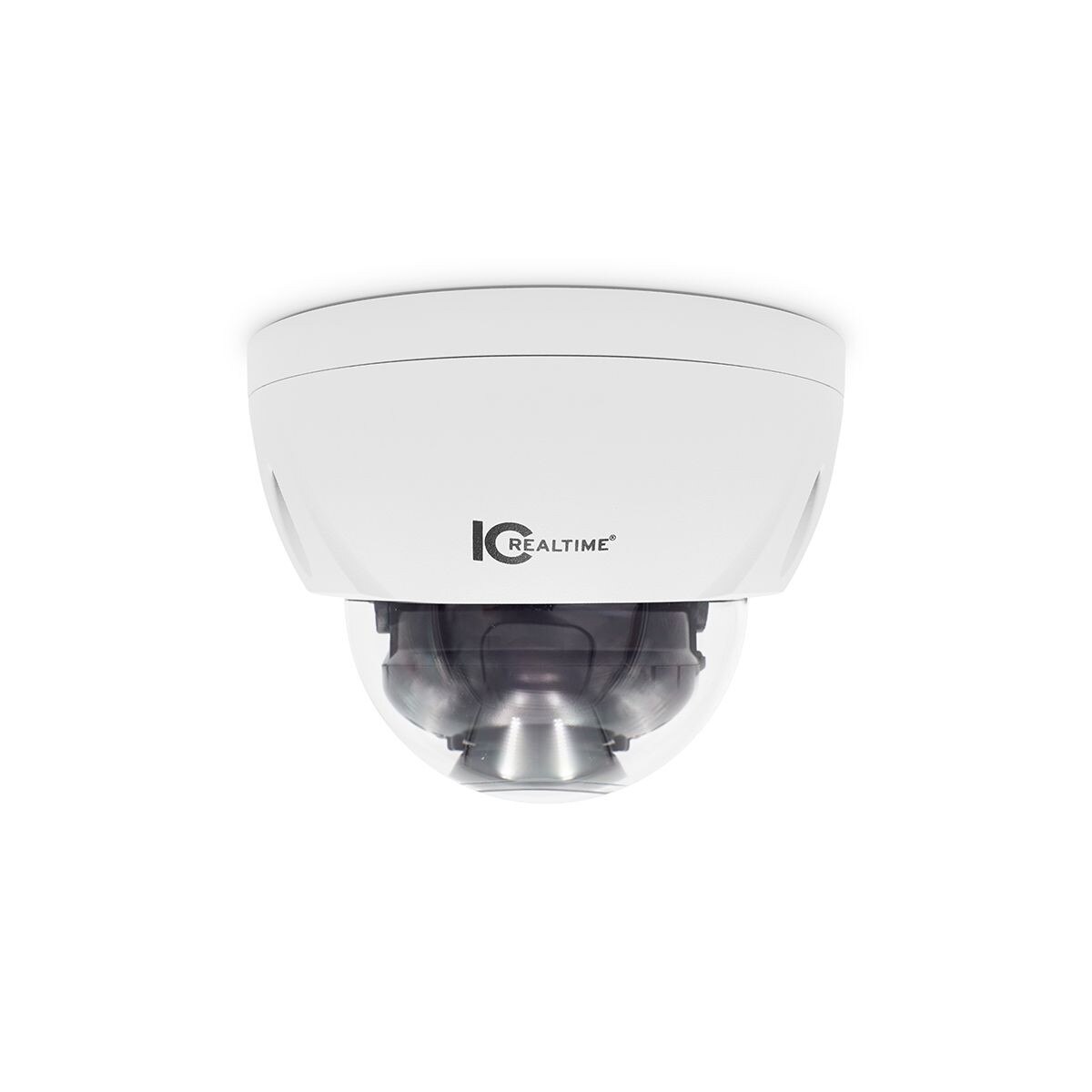

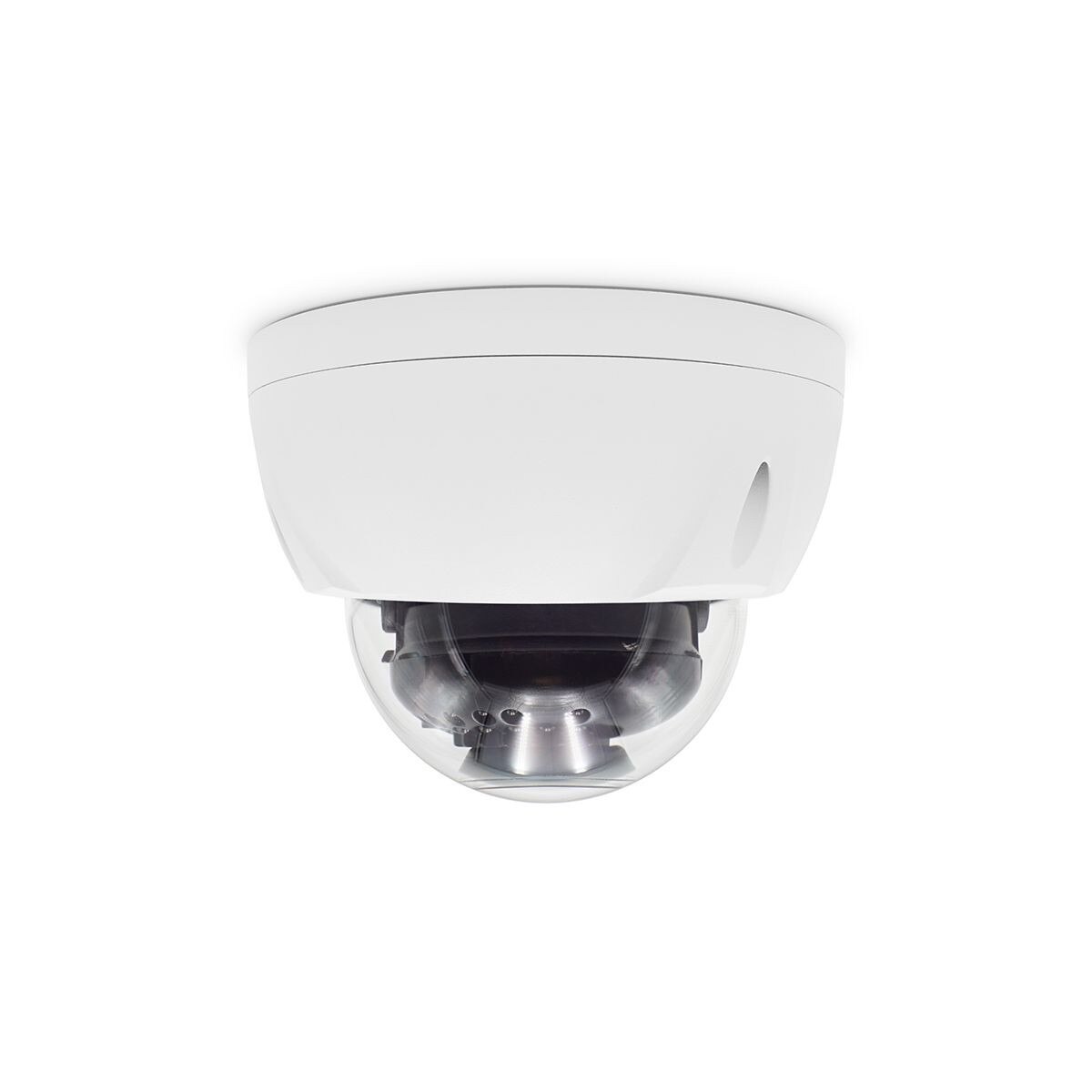

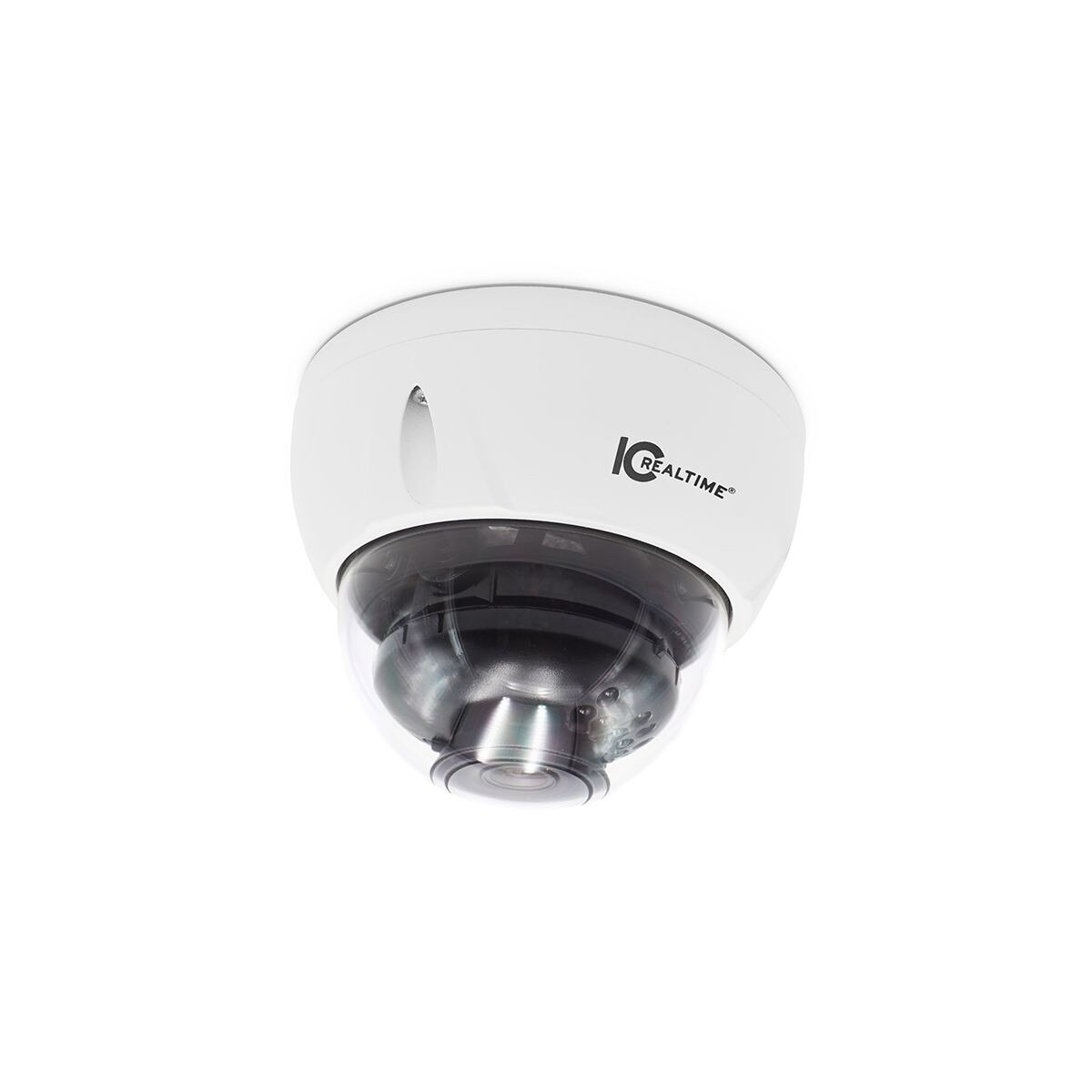

Ultra HD Surveillance is here - now you can capture your surveillance footage in stunning 4K resolution! The new ICIP-8000 series of 4K cameras paired with a compatible 4K series NVR will bring your surveillance system to new, unforeseen levels of clarity and resolution. The ICIP-D8320-IR is an 8MP (4K) Day/Night Dome camera. It utilizes a cutting edge 1/2.5'' 8MP CMOS sensor to deliver stunning 4K resolution at frame rates as high as 15FPS. On top of the sensor sits a fixed 4mm lens which delivers a handy, general purpose 87° Horizontal field of view. 24 IR LEDs are equipped and yield 98' (30 meters) of IR distance, allowing long range shots as well. This camera also represents the 'AI' line of smart cameras from ICRealtime. It's AI (Advanced Intelligence) suite of features includes: Tripwire, Intrusion, Missing/Abandoned Object, Face Detection. H265 compression is included standard as well to handle these extreme high resolutions.

Specifications

Camera
Image Sensor: 1/2.5 8 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 3840(H) x 2160(V)
RAM/Rom: 512MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.06Lux/F1.6( Color1/3s30IRE) 0.3Lux/F1.6( Color1/30s30IRE) 0Lux/F1.6(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m (98ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 18
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: H:112 degrees V:69 degrees
Focus Control: Fixed
Close Focus Distance: 900mm (35.43in)
DORI - Detect: 69m (226ft)
DORI - Observe: 28m (92ft)
DORI - Recognize: 14m (46ft)
DORI - Identify: 7m (23ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ; / Tilt:0 ~ 65 ; / Rotation:0 ~ 355
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 4K (3840 x 2160) / 6M (3072 x 2048) / 5M (2560 x 1920) / 3M (2048 x 1536) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 4K(1 - 15fps) / 3M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 1080P(1 - 25/30fps)
Bit Rate: H.264: 24K - 10240Kbps H.265: 14K - 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16X
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Off / On (4 Area Rectangle)
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users / 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB

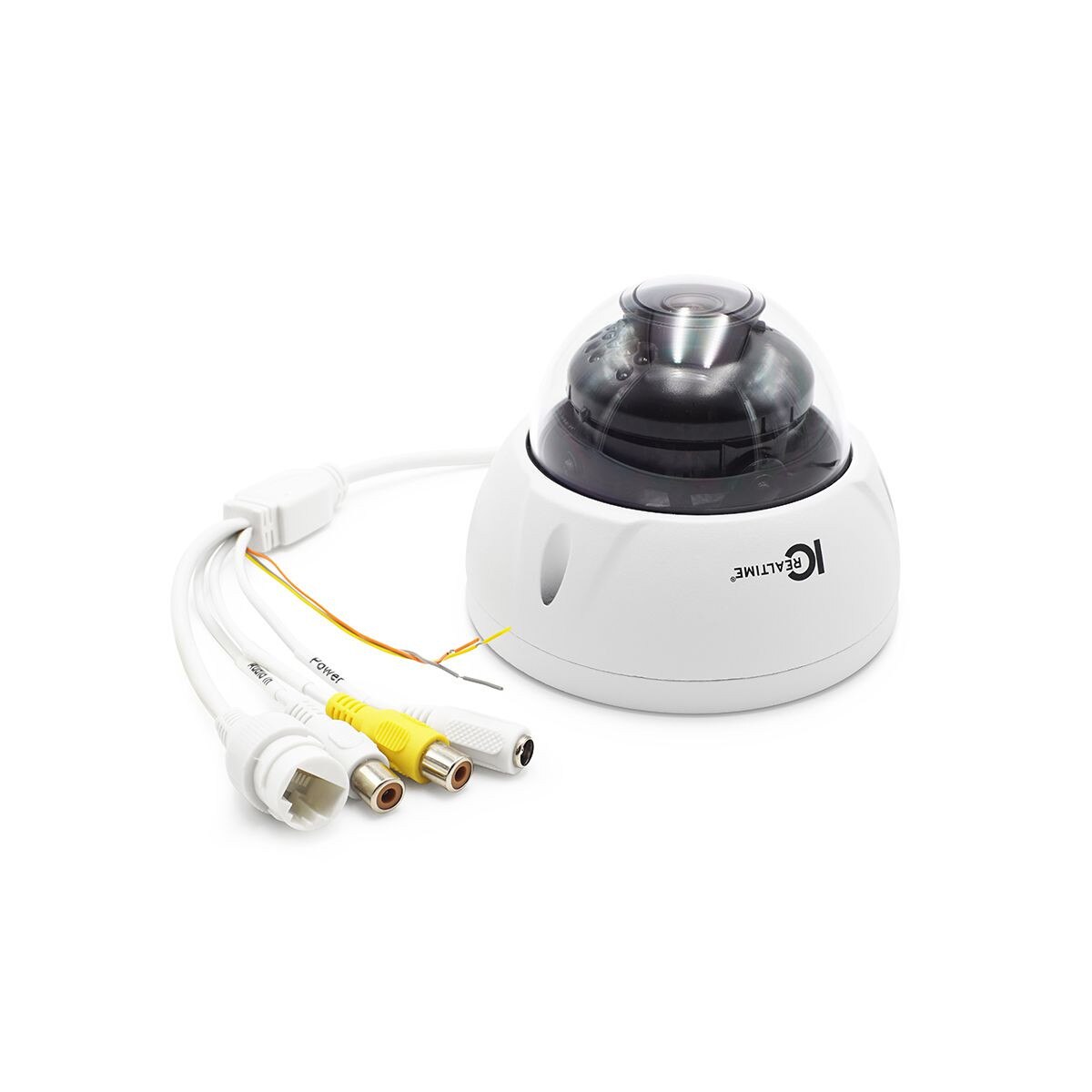

Interface
Video Interface: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 5.5W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 109.9mm x 81mm (4.33in x 3.19in)
Gross Weight: 0.53 kg (1.17lb)
