ICIP-D4001IR-I

(0) No Reviews yet
SKU: ICIP-D4001IR-I
ITEM WEIGHT: 2
4MP IP Indoor/Outdoor Small Size Vandal Dome Fixed 2.8mm Lens (104 AOV) 98 ft Smart IR POE AI
1/3 CMOS | 4MP | 30fps@4MP
2.8mm | fixed | AoV 104
Max. IR length 98ft | Smart IR | 18 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 128GB mSD
IP67 | IK10 | 12VDC or PoE | Max. 5W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

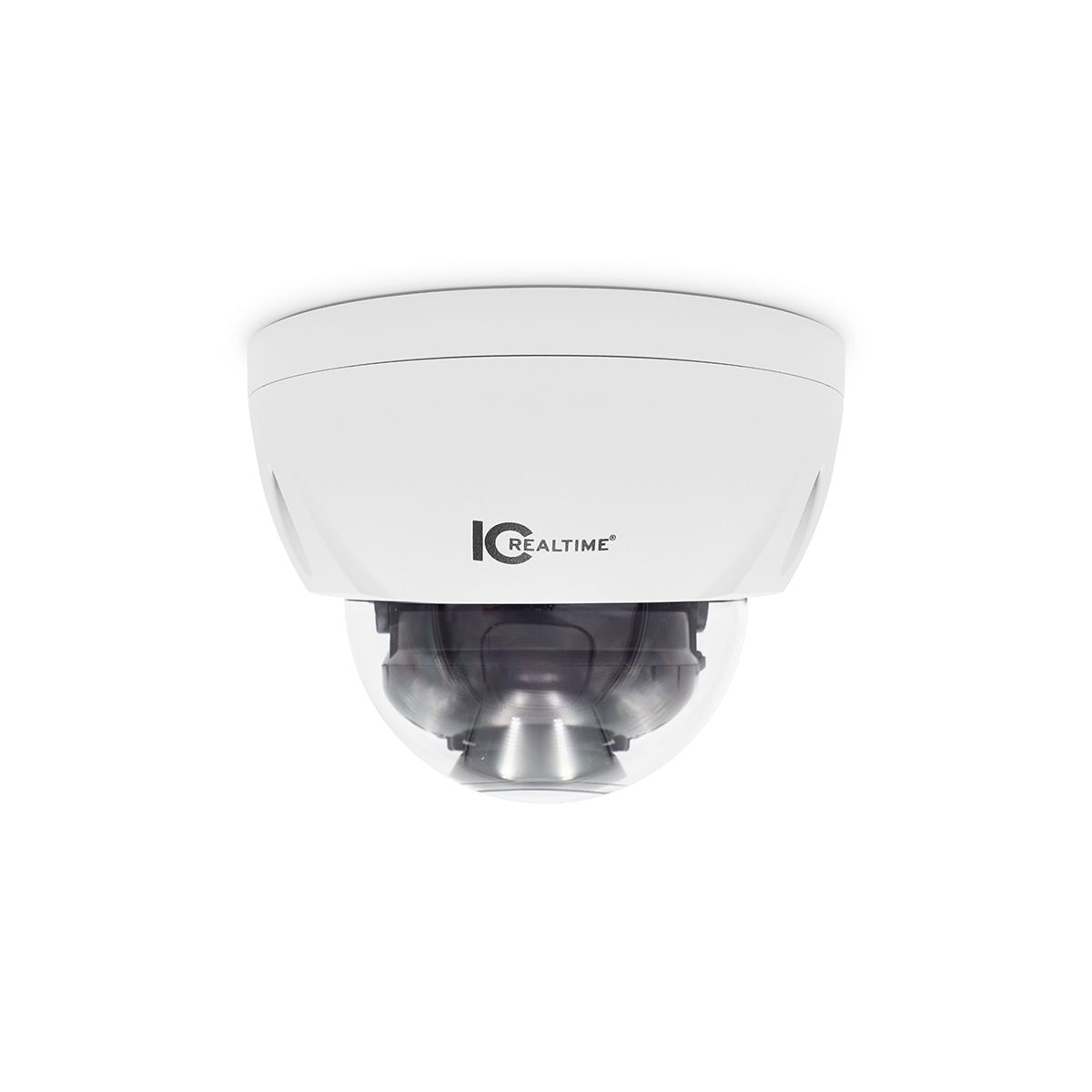

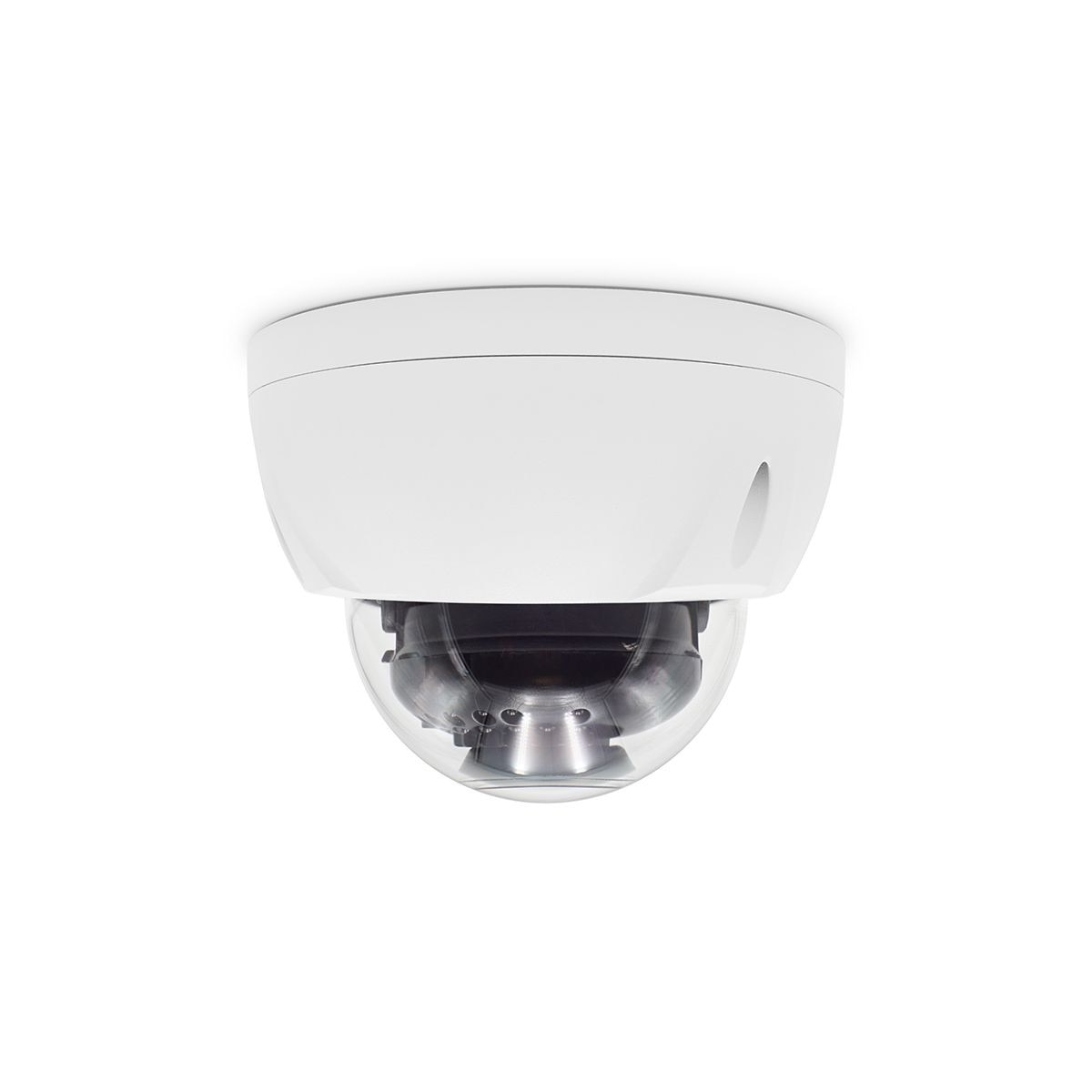

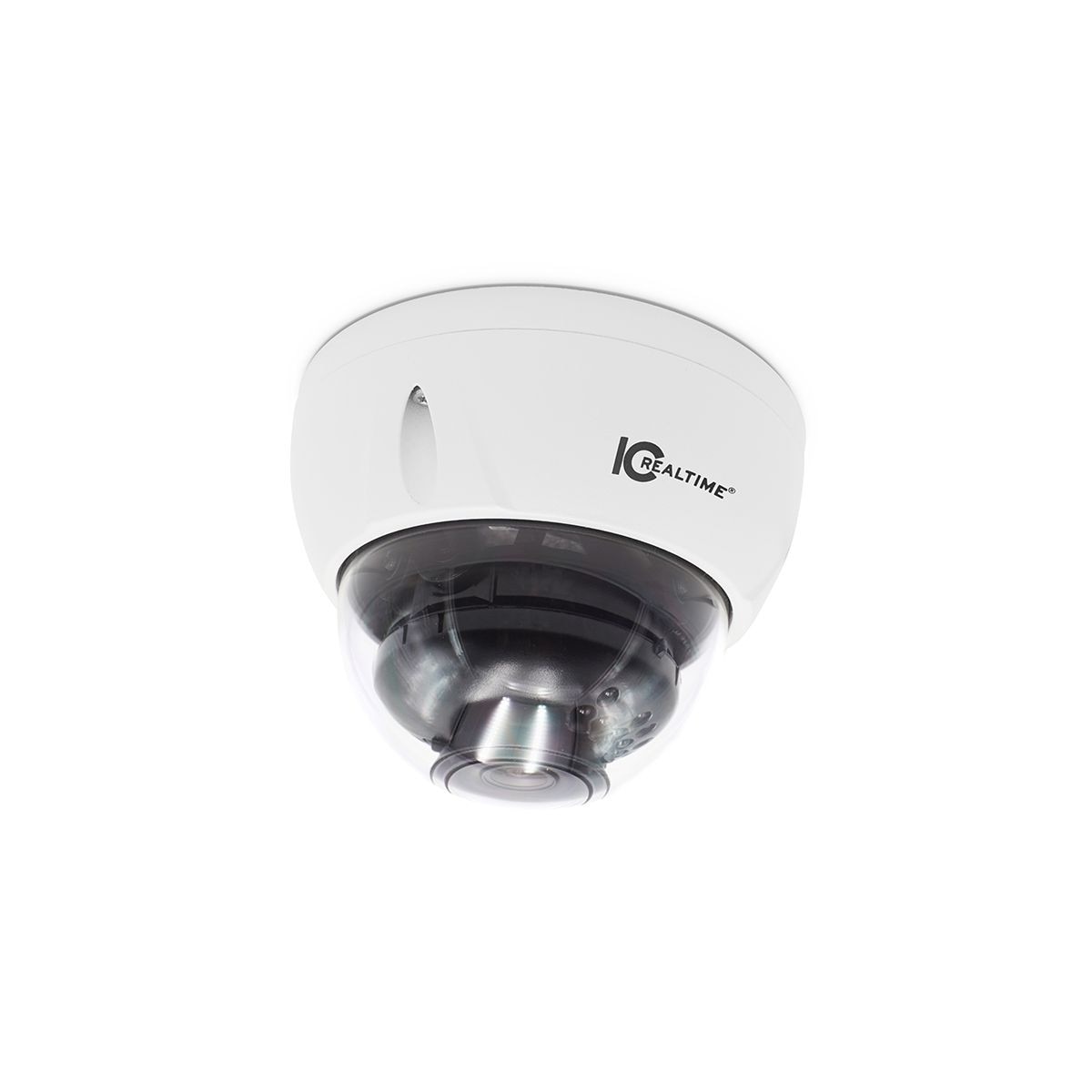

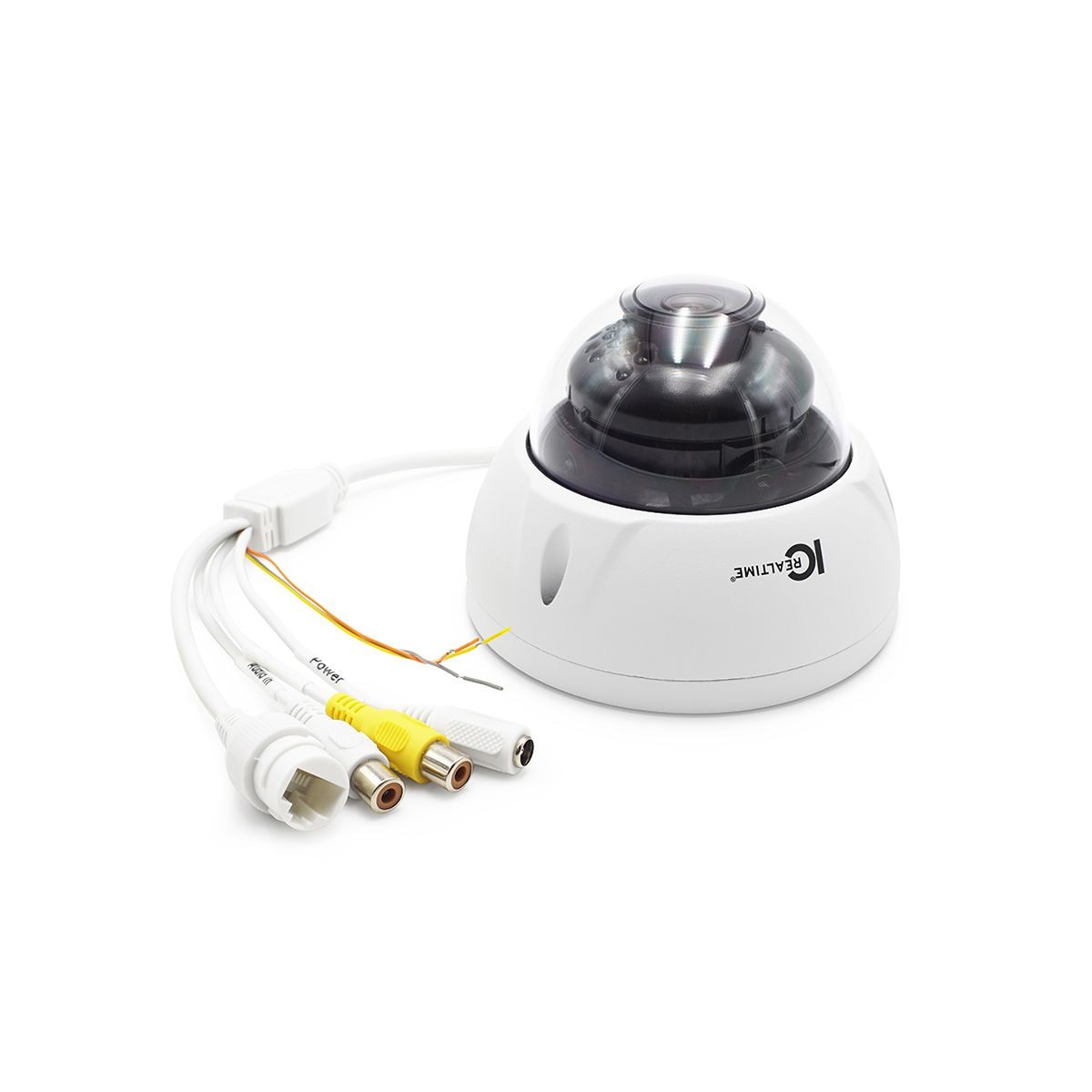

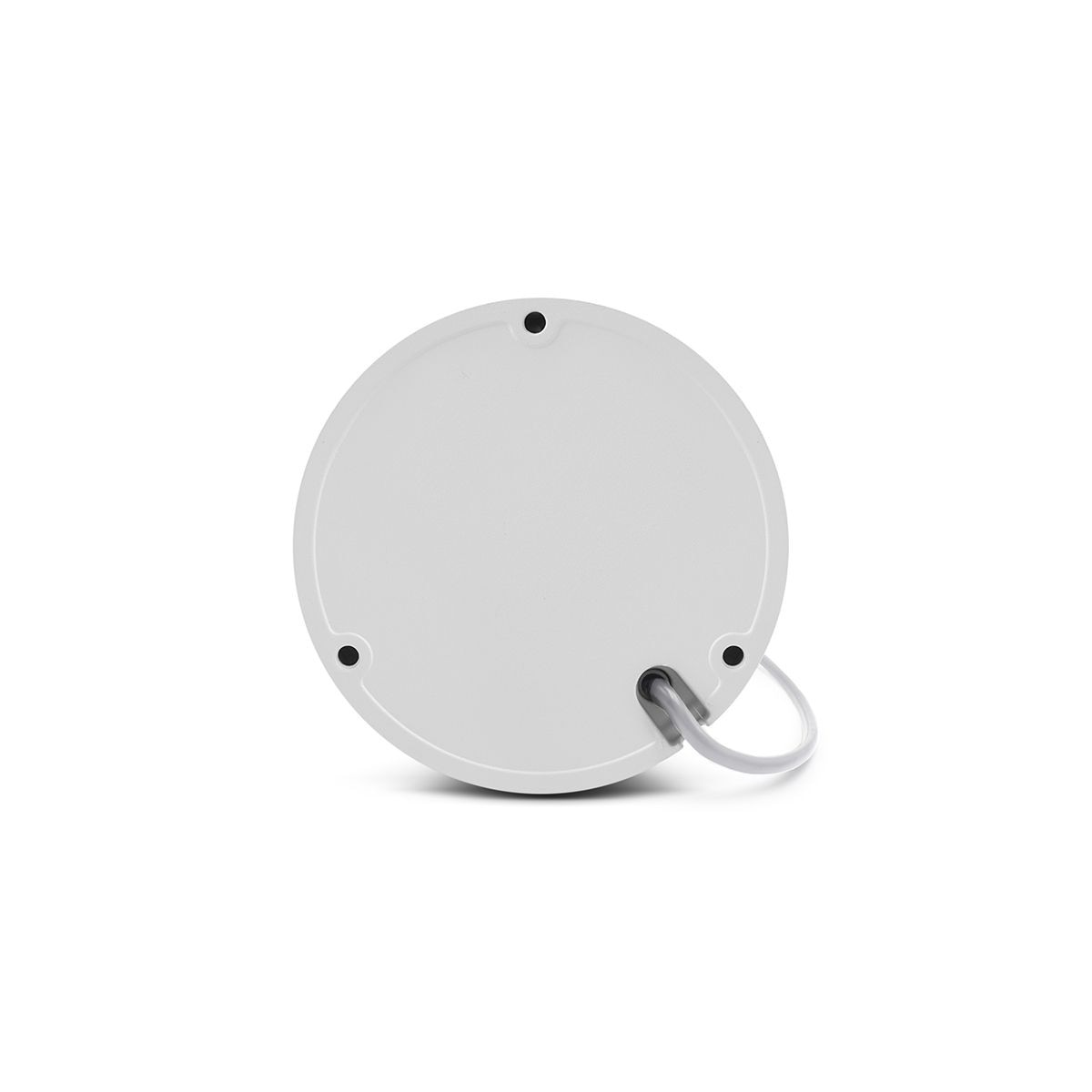

A little dome camera, packing some big brain power – the ICIP-D4001-IR-I. This small form factor dome camera adopts a 4MP, 1/3'' CMOS sensor enabling 4 Megapixel video at up to 20FPS. This sensor sits atop a 2.8mm fixed lens, and is paired with IR LEDs capable of supplying illumination up to 98'. The image sensor itself has a strong 120 dB dynamic range, making this dome camera a 'True WDR' camera. The real magic of this camera lies in it's AI (Advanced Intelligence) suite of features, which includes: Tripwire, Intrusion, Scene Change, and Face Detection. With all of the above features packed into a small form factor, this dome camera excels in a wide array of installation environments including: retail outlets, commercial business, public venues, and even public municipalities.

Specifications

Camera
Image Sensor: 1/3 4 Megapixel progressive scan CMOS
Effective Pixels: 2688(H) x 1520(V)
RAM/Rom: 512MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.06Lux/F1.6( Color1/3s30IRE) 0.4Lux/F1.6( Color1/30s30IRE) 0Lux/F1.6(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m (98ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 18
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: H: 104 degrees V: 55 degrees
Focus Control: Fixed
Close Focus Distance: 900mm (35.43in)
DORI - Detect: 56m (184ft)
DORI - Observe: 22m (72ft)
DORI - Recognize: 11m (36ft)
DORI - Identify: 6m (20ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ; / Tilt:0 ~ 64 ; / Rotation:0 ~ 355
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 4M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 720P(1 - 25/30fps)
Bit Rate: H.264: 24K - 10240Kbps H.265: 14K - 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16X
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Off / On (4 Area Rectangle)
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 5W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 109.9mm x 81mm (4.33in x 3.19in)
Gross Weight: 0.53 kg (1.17lb)
