ICIP-D2022-28-C
Details

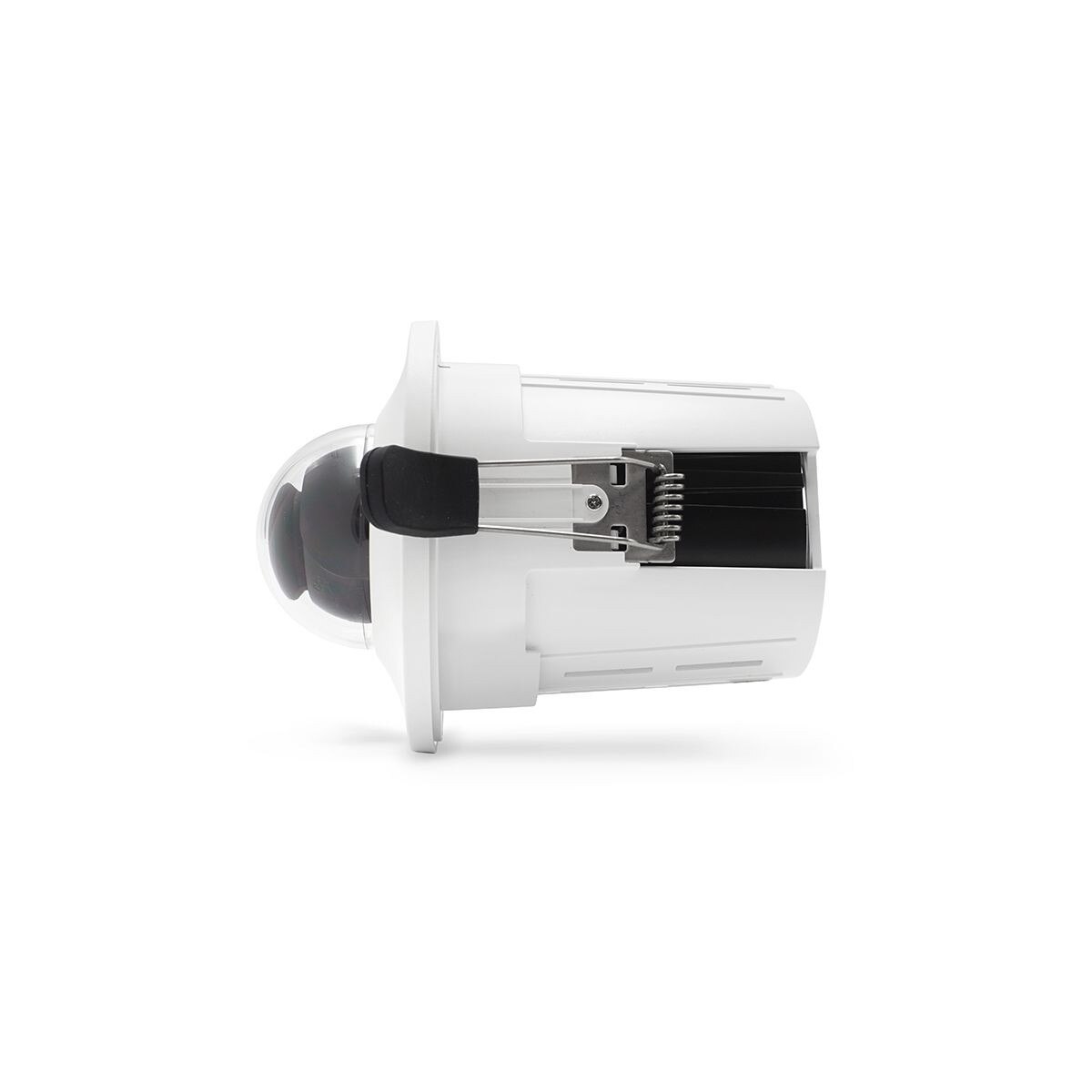

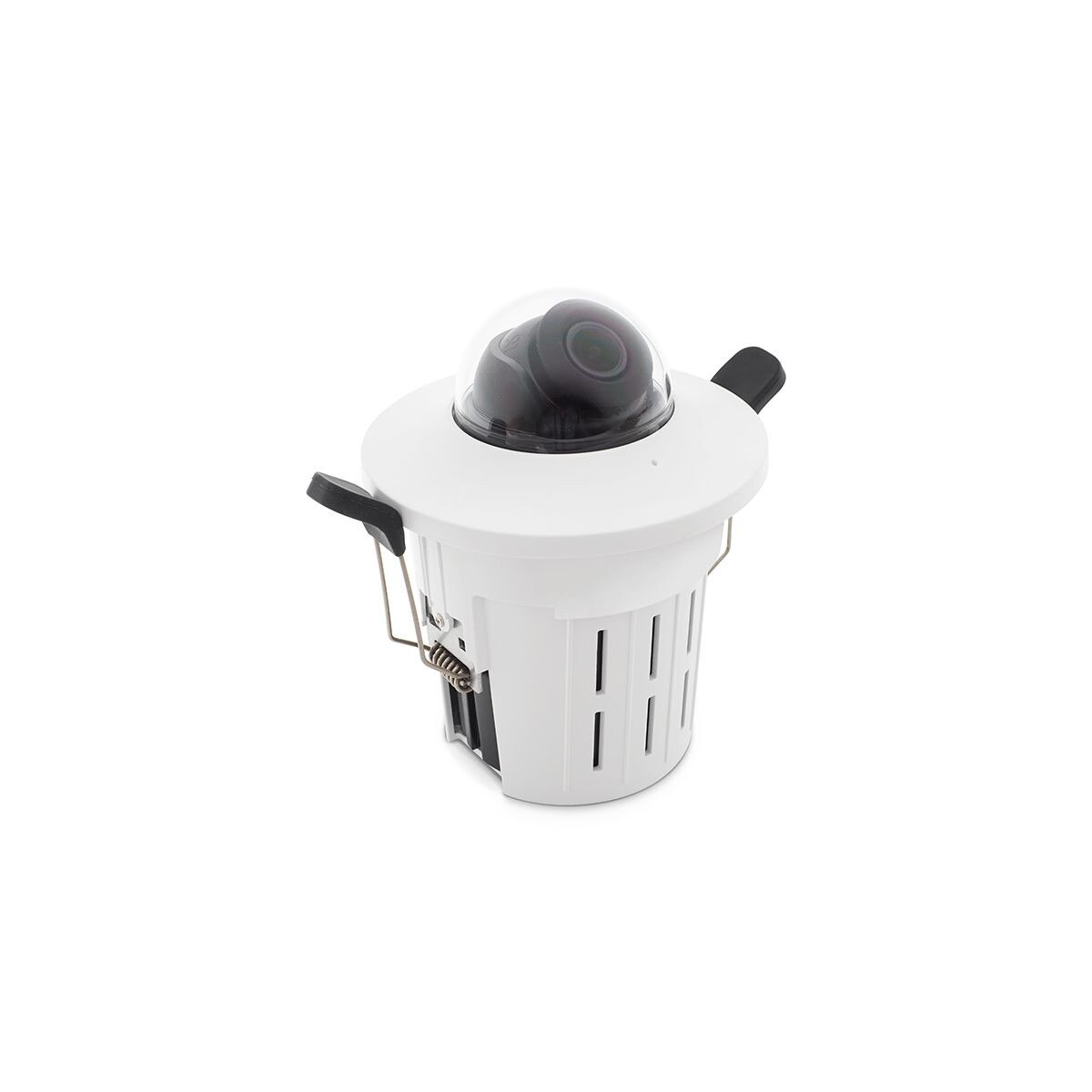

Perhaps one of our most discreet dome cameras, the ICIP-D2022-28-C recessed dome camera. Installation has never been easier with this small form factor dome camera, courtesy of it's spring loaded retention system. Besides the unique physical construction, this camera offers a full powered 1/2.8'' CMOS Starvis sensor, capable of 2MP at an impressive 60 FPS, and a 2.8mm lens supporting a wide angle field of vision. The camera itself also comes standard equipped with a built in microphone and support for a Micro SD card up to 128GB. The D2022-28-C camera also supports the IVS suite including tripwire, perimeter, and abandoned/missing object detection.
Specifications
| Camera | |
| Image Sensor: | 1/2.8 STARVIS CMOS |
| Effective Pixels: | 1920(H) x 1080(V) 2 Megapixels |
| RAM/Rom: | 256MB / 32MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.009Lux/F2.0(Color1/3s) 0.07Lux/2.0(Color1/30s) 0.005Lux/F2.0( B/W1/3s) 0.03Lux/2.0( B/W1/30s) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | N/A |
| Illumination On/Off Control: | N/A |
| Illumination LEDs: | N/A |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H: 110 degrees V: 60 degrees |
| Focus Control: | Fixed |
| DORI - Detect: | 44m (144ft) |
| DORI - Observe: | 17m (56ft) |
| DORI - Recognize: | 9m (30ft) |
| DORI - Identify: | 4m (13ft) |
| Video | |
| Compression: | H.265+ / H.265 / H.264+ / H.264 |
| Resolution: | 1080P (1920 x 1080) / SXGA (1280 x 1024) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 1080P(1 - 50/60fps) Sub Stream: D1(1 - 50/60fps) Third Stream: 720P(1 - 50/60fps) |
| Bit Rate: | H.265:12K - 6912Kbps H.264:32K - 10240Kbps |
| Day/Night: | Electronic |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Digital Zoom: | 16x |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| Audio | |
| Compression: | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Interoperability: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 Users |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD card 128GB |
| Interface | |
| Audio I/O: | Built-in Mic |
| Memory Slot: | Micro SD card 128GB |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | < 3.5W |
| Environmental | |
| Operating Conditions: | -10 C ~ +45 C (14 F ~ +113 F) / Less than 95% RH |
| Vandal Resistance: | IK08 |
| Construction | |
| Casing: | Plastic |
| Dimensions: | 93mm x 116.5mm (3.65in x 4.58in) |
| Gross Weight: | 0.37Kg (0.82lb) |
