ICIP D2004-28-C

(0) No Reviews yet
SKU: ICIP-D2004-28-C
ITEM WEIGHT: 2
4MP IP Indoor Recessed Mount Dome Fixed 2.8mm Lens (110 AOV) Built-In MIC POE AI
1/3 CMOS | 4MP | 30fps@4MP
2.8mm | fixed | AoV 110
IR Sensitive, No IR LEDs
built-in mic | 128GB mSD
IK08 | 12VDC or PoE | Max. 3.5W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

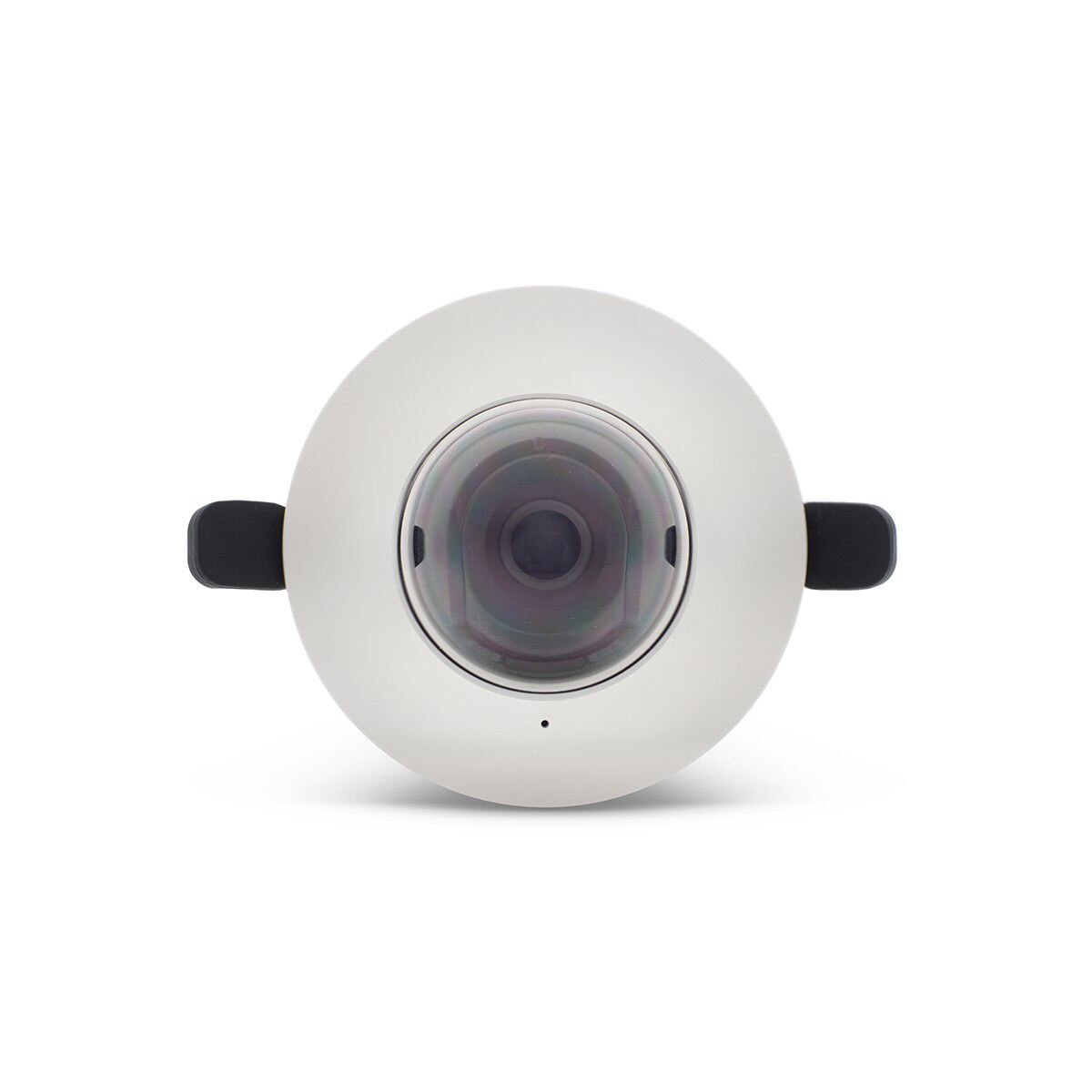

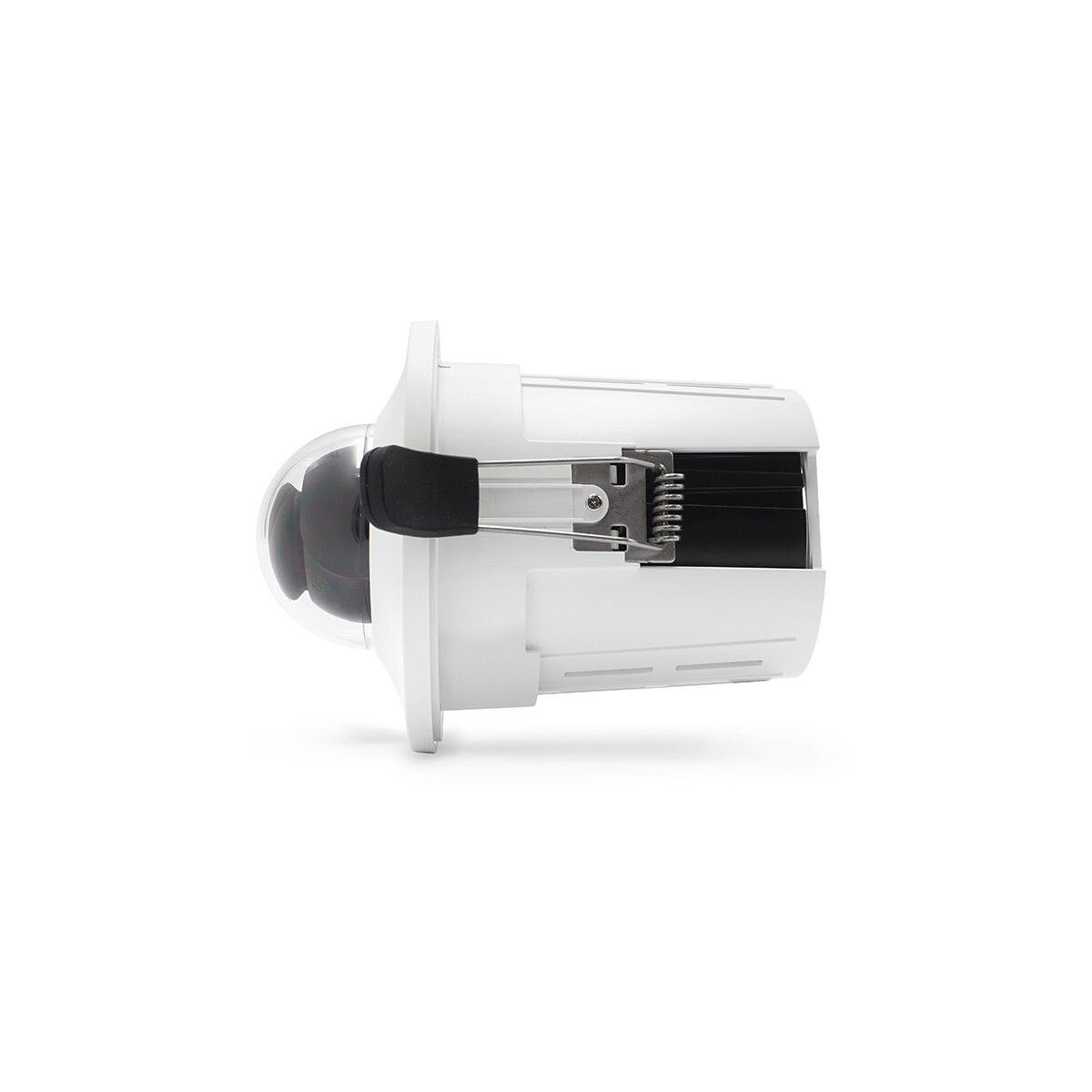

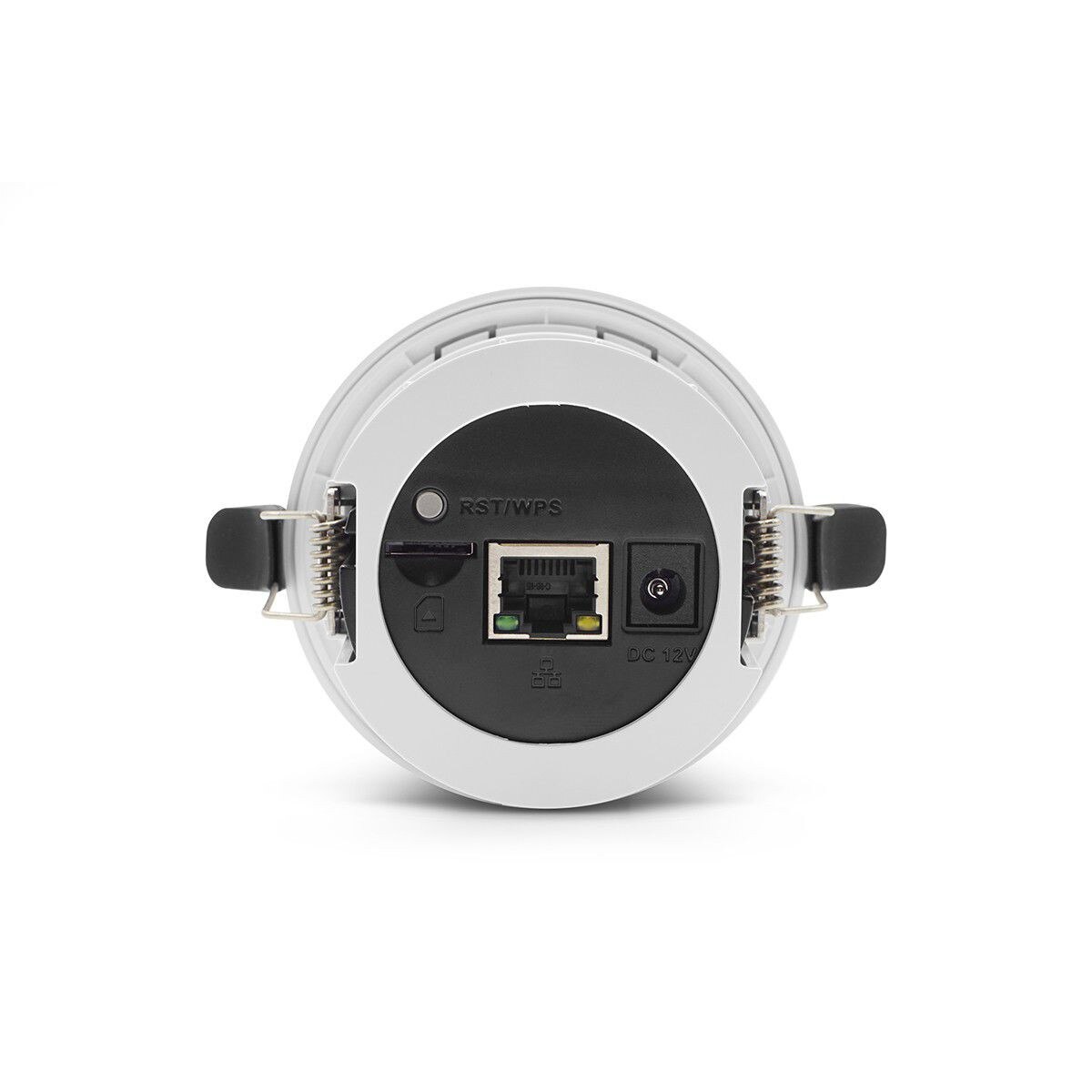

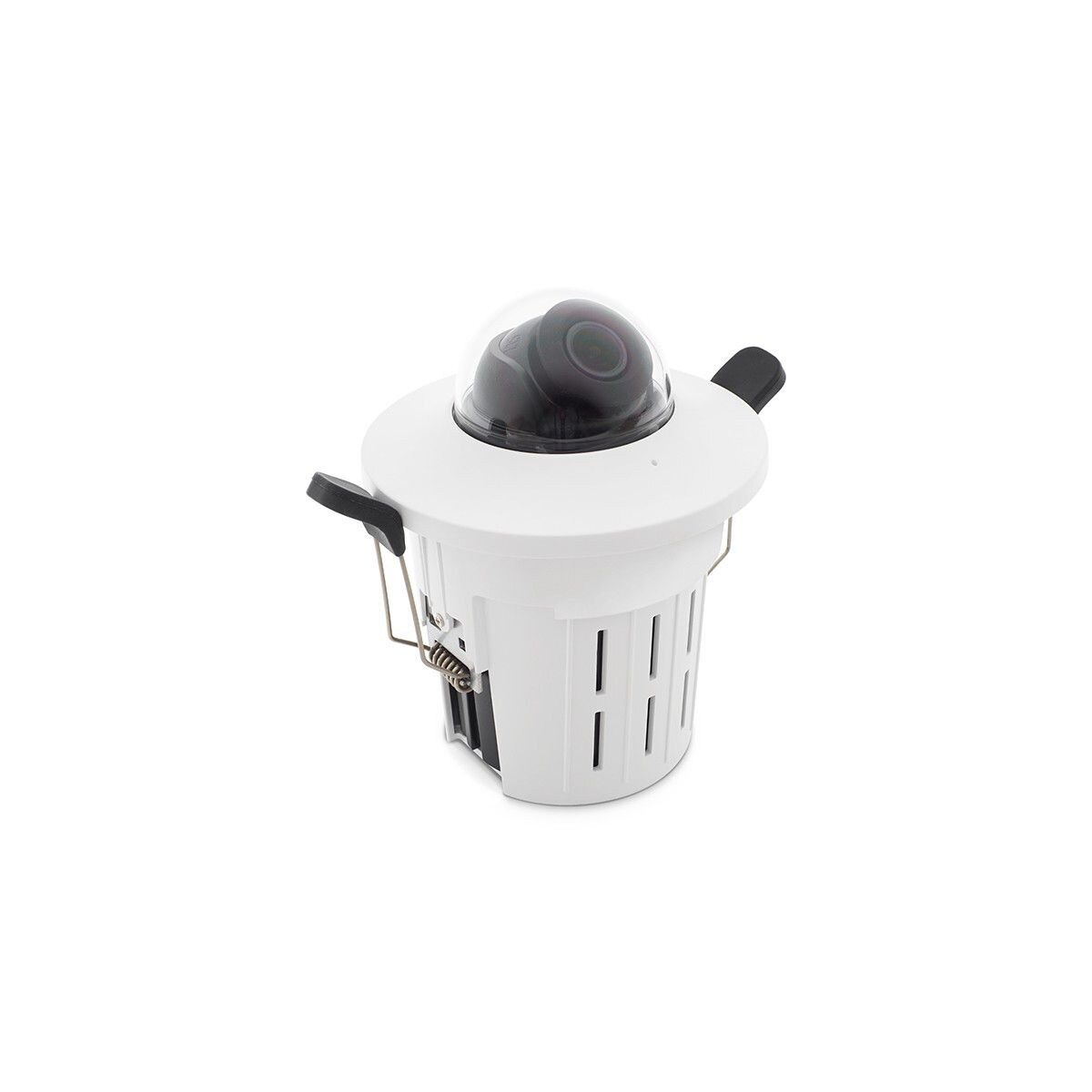

The camera to choose when aesthetics matter, the ICIP-D2004-28-C. A camera with a minimalistic footprint yet premier features and resolution. The ICIP-D2004-28-C is a recessed mount Dome camera, designed to be installed in ceiling mount applications. The recessed can allows for all of the camera components to be concealed inside the ceiling while leaving a small, sleek dome footprint exposed for the lowest profile dome camera possible. Inside the chassis is a 1/3'' 4MP CMOS based image sensor that supports True WDR (120 dB). The HD 4MP image itself is compressed on board is triple encoded into three separate streams, and supports both H.265 and H.264 compression for the highest fidelity of video while maintaining the lowest bitrate possible. A 2.8mm lens offers a 110 degree horizontal field of vision The real magic of this camera lies in it's AI (Advanced Intelligence) suite of features, which includes: Tripwire, Intrusion, Scene Change, and Face Detection.

Specifications

Camera
Image Sensor: 1/3 4 Megapixel progressive CMOS
Effective Pixels: 2688(H) x 1520(V)
RAM/Rom: 512MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.08Lux/F2.0( Color1/3s30IRE) 0.3Lux/2.0( Color1/30s30IRE) 0.04Lux/F2.0( B/W1/3s30IRE) 0.2Lux/2.0( B/W1/30s30IRE)
S/N Ratio: More than 50dB
IR Distance: N/A
IR On/Off Control: Auto/Manual
IR LEDs: N/A
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8 mm
Max. Aperture: F2.0
Angle of View: H: 110 degrees V:60 degrees
Focus Control: Fixed
DORI - Detect: 63m (207ft)
DORI - Observe: 25m (82ft)
DORI - Recognize: 13m (43ft)
DORI - Identify: 6m (20ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: (2688 x 1520) / (2560 x 1440) / (2304 x 1296) / 1080P (1920 x 1080) / SXGA (1280 x 1024) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream:4M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream:720P(1 - 25/30fps)
Bit Rate: H.265:12K - 6912Kbps H.264:32K - 10240Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Digital Zoom: 16x
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: N/A
Audio I/O: Built-in Mic
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 3.5W
Enviromental
Operating Conditions: -10 C ~ +45 C (14 F ~ +113 F) / Less than 95% RH
Vandal Resistance: IK08
Construction
Casing: Plastic
Dimensions: 93mm x 116.5mm (3.65in x 4.58in)
Gross Weight: 0.37Kg (0.82lb)
