ICIP-D2001-IR-D

(0) No Reviews yet
SKU: ICIP-D2001-IR-D
ITEM WEIGHT: 2

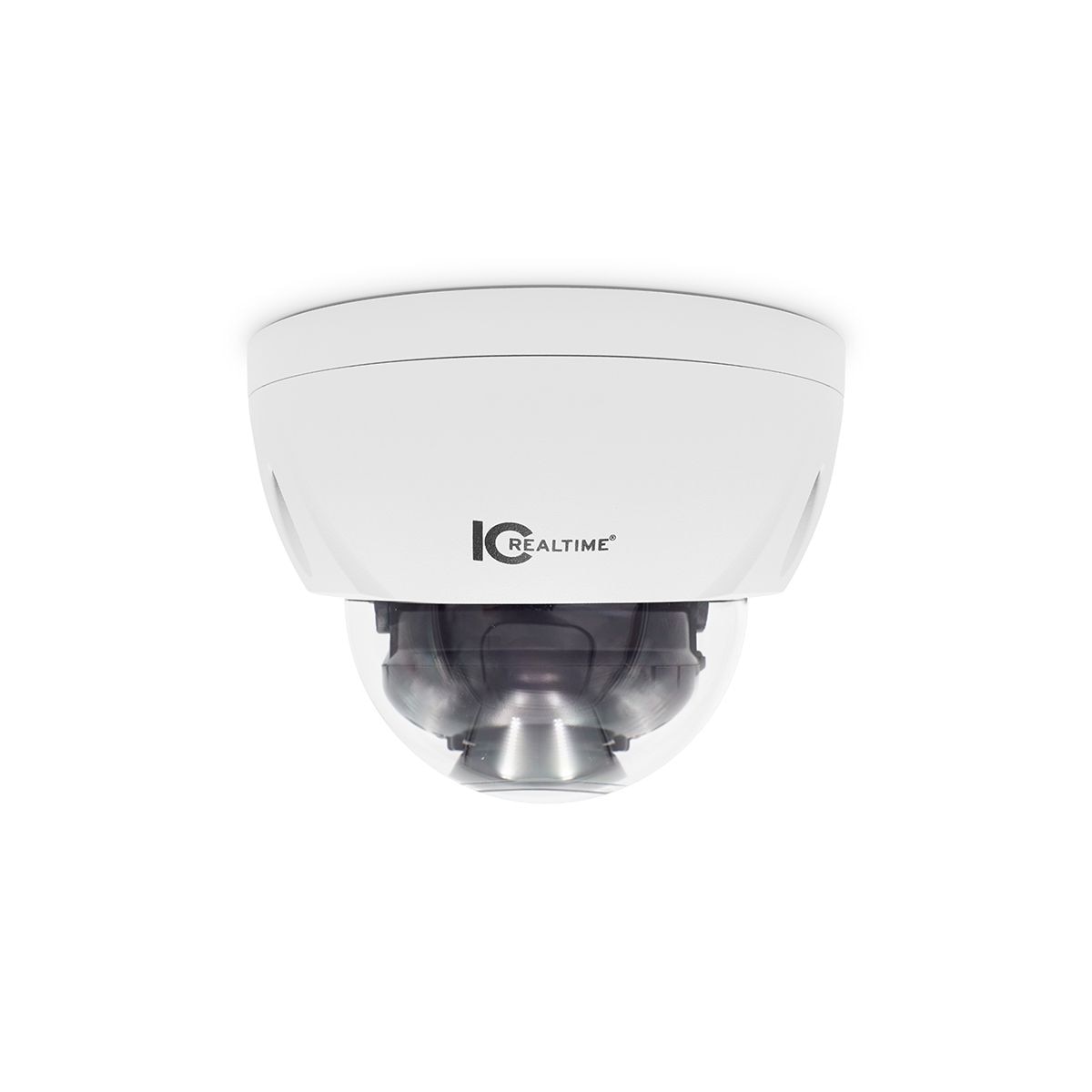

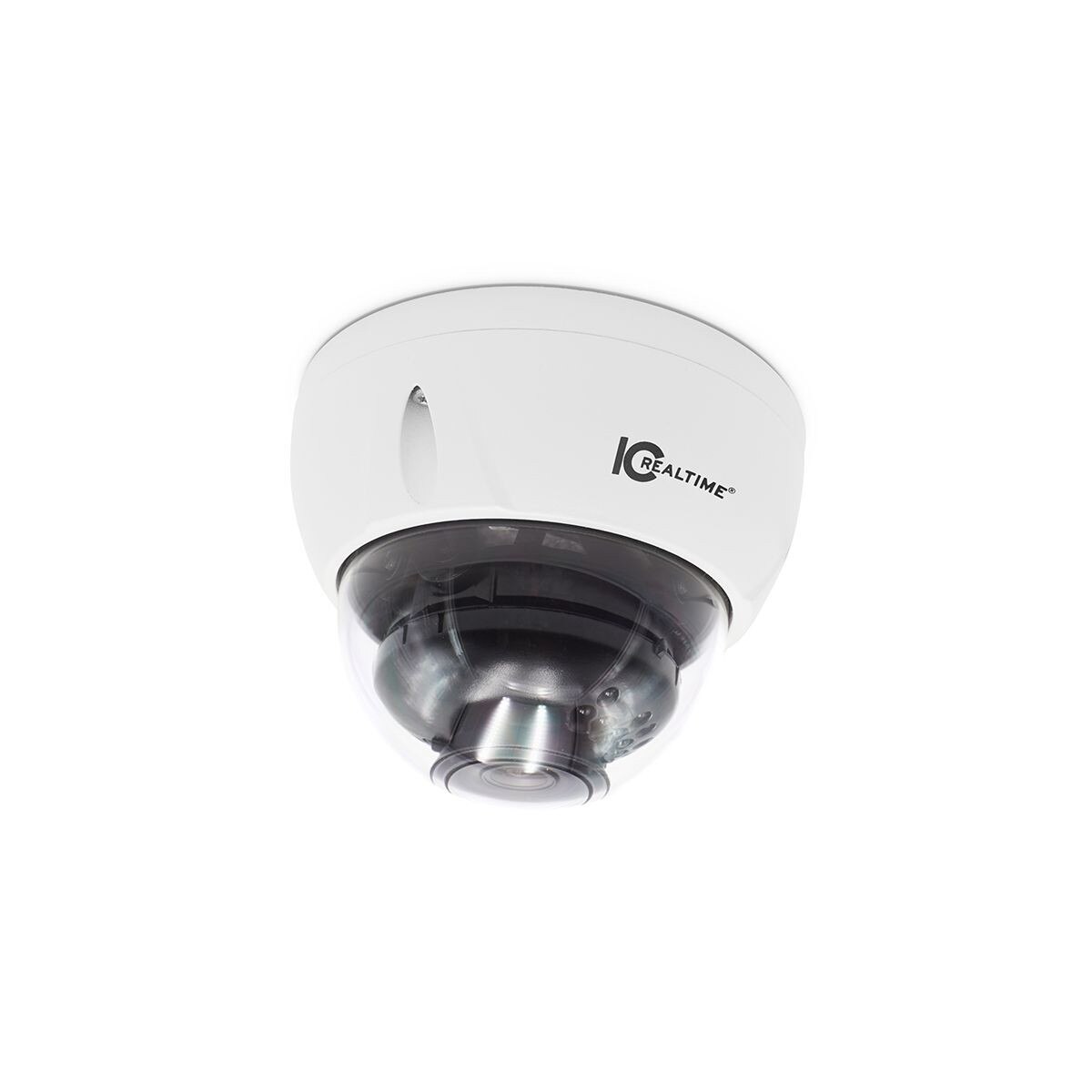

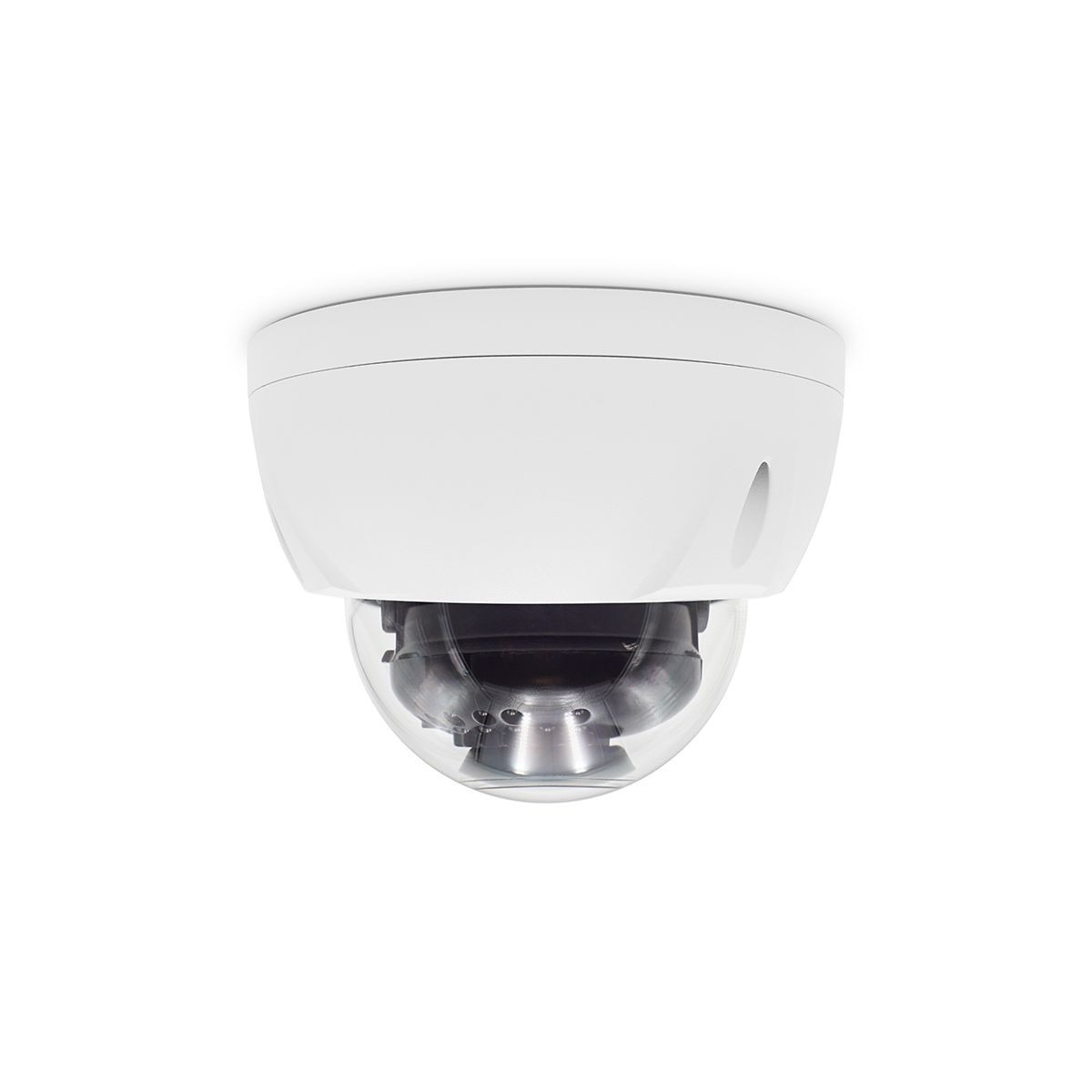

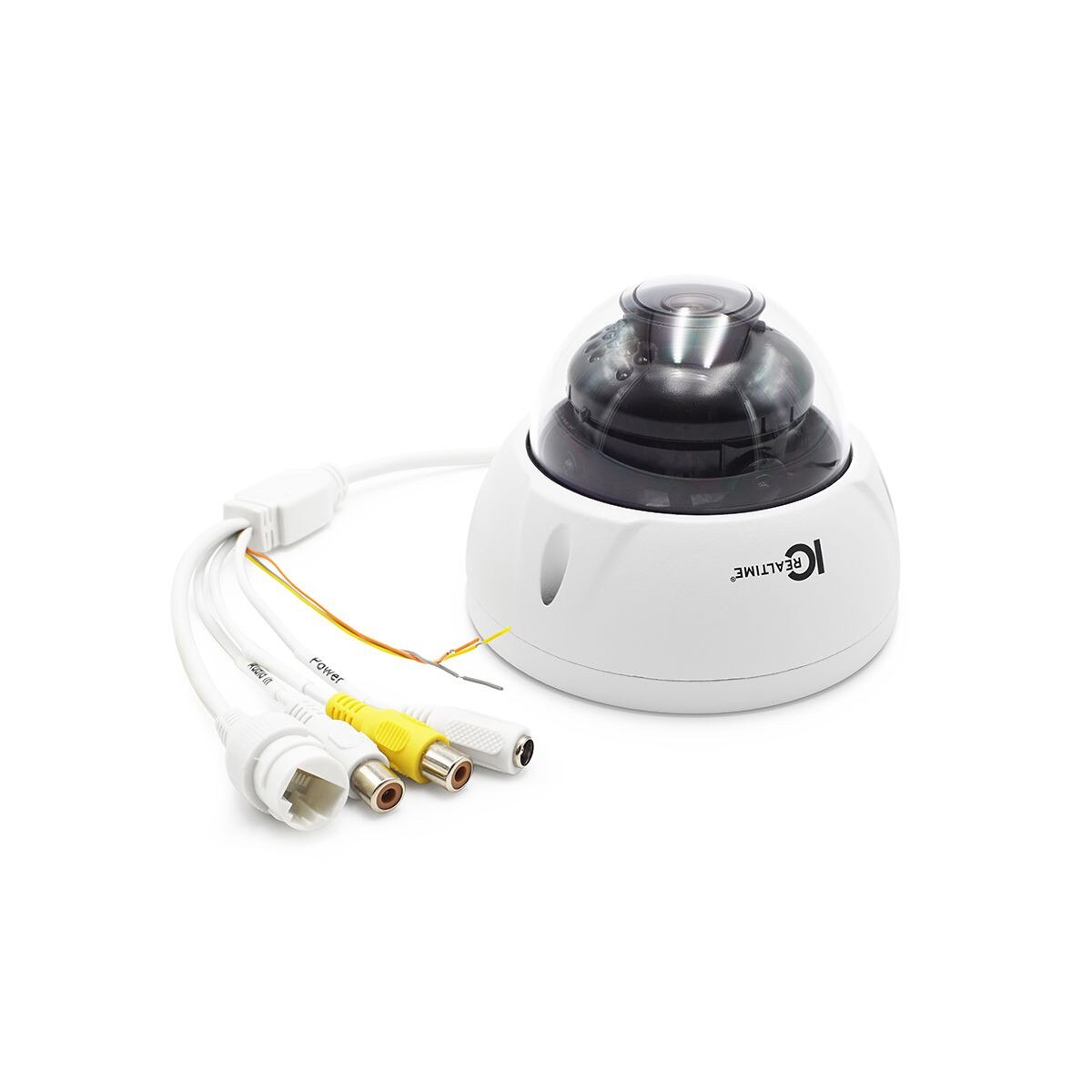

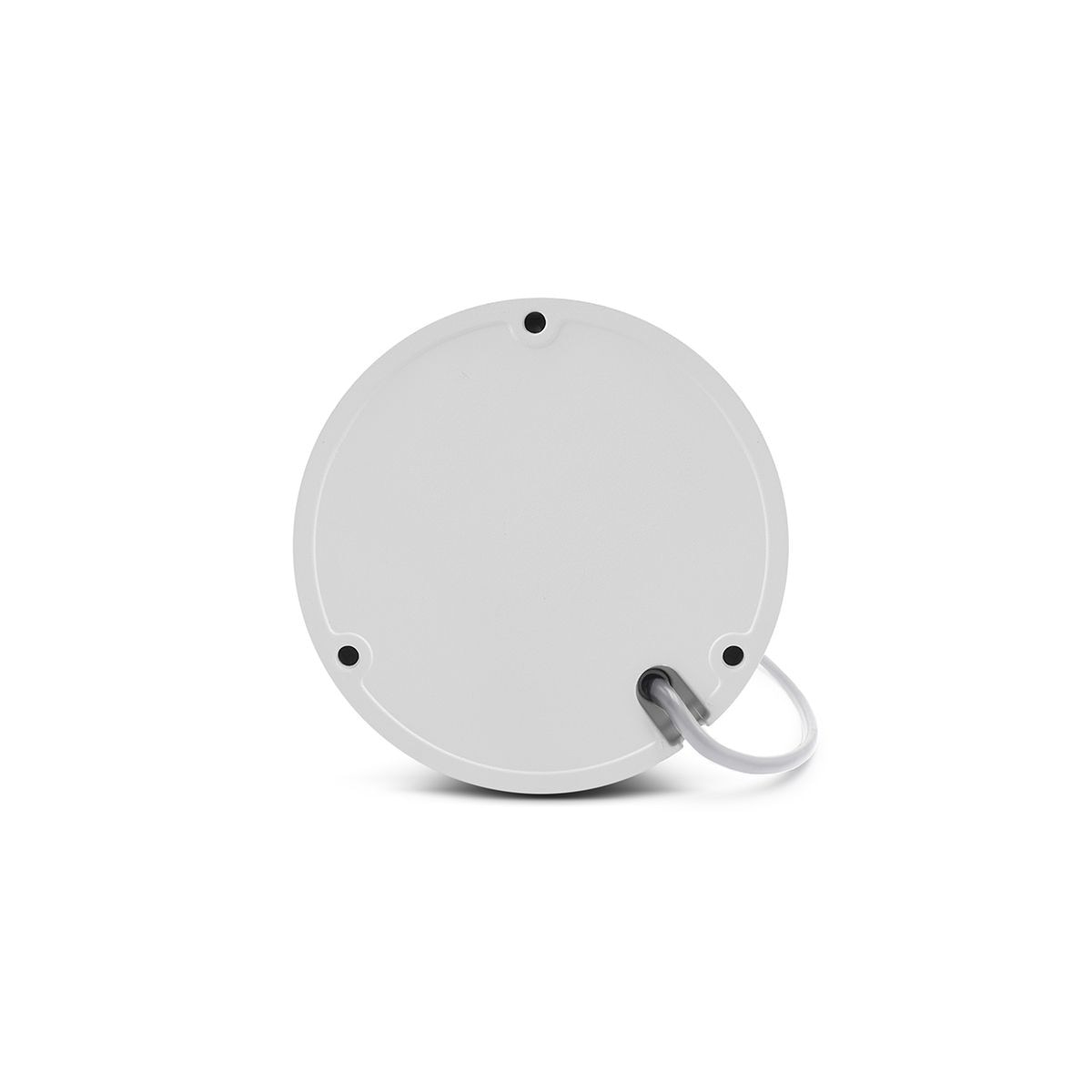

2MP IP Indoor/Outdoor Small Size Vandal Dome Fixed 3.6mm Lens (87 AOV) 98 ft IR POE
1/2.8 CMOS Starvis | 2MP | 60fps@2MP
3.6mm | fixed | AoV 87
Max. IR length 98ft | Smart IR | 18 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 128GB mSD
IP67 | 12VDC or PoE | Max. 5W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

Bigger is better, at least with image sensors! The ICIP-D2001-IR-D is a 2MP dome camera featuring our latest generation of 2.8'' progressive scan STARVIS CMOS. It adopts our popular small style dome housing, and supports IR illumination up to 98'. Due to the larger image sensor, this camera supports a large dynamic range (120 dB) and is considered a 'True' WDR camera. On top of the image sensor sits a fixed, 3.6mm lens which offers up a 87 degree horizontal field of view. This makes the camera well suited for interior and exterior applications on commercial as well as residential installations.

Specifications

Camera
Image Sensor: 1/2.8 2 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V)
RAM/Rom: 256MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.009Lux/F2.0( Color1/3s30IRE) 0.07Lux/2.0( Color1/30s30IRE) 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m(98ft)
IR On/Off Control: Auto/Manual
IR LEDs: 24
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 3.6 mm
Max. Aperture: F2.0
Angle of View: H: 87 degrees V:48 degrees
Focus Control: Fixed
DORI - Detect: 55m (180ft)
DORI - Observe: 22m (72ft)
DORI - Recognize: 11m (36ft)
DORI - Identify: 6m (20ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ; / Tilt:0 ~ 64 ; / Rotation:0 ~ 355
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 1080P(1 - 50/60fps) Sub Stream: D1(1 - 50/60fps) Third Stream: 1080P(1 - 25/30fps)
Bit Rate: H.264: 24 - 9472Kbps H.265: 14 - 5632Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16x
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 5W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 109.9mm x 81mm (4.33in x 3.19in)
Gross Weight: 0.53 kg (1.17lb)
