ICIP-B8121-IR

(0) No Reviews yet
SKU: ICIP-B8121-IR
ITEM WEIGHT: 4
12MP IP Indoor/Outdoor Full Size Bullet. Varifocal 4.1-16.4mm Motorized Lens (85° - 35°). 164 Feet Smart IR. PoE + Capab...
1/1.7 CMOS Starvis | 12MP | 20fps@12MP
4.1mm to 16.4mm | motorized varifocal | AoV 105 to 35
Max. IR length 164ft | Smart IR | 4 IR LEDs
1ch audio in 1ch audio out | 2ch alarm in 1ch alarm out | 128GB mSD
IP67 | IK10 | 12VDC or PoE | Max. 13W
IVS | AGC | WDR | HLC | BLC | SSA | 3DNR
Discontinued Item, USE IPEL-B12V-IRW1

Details

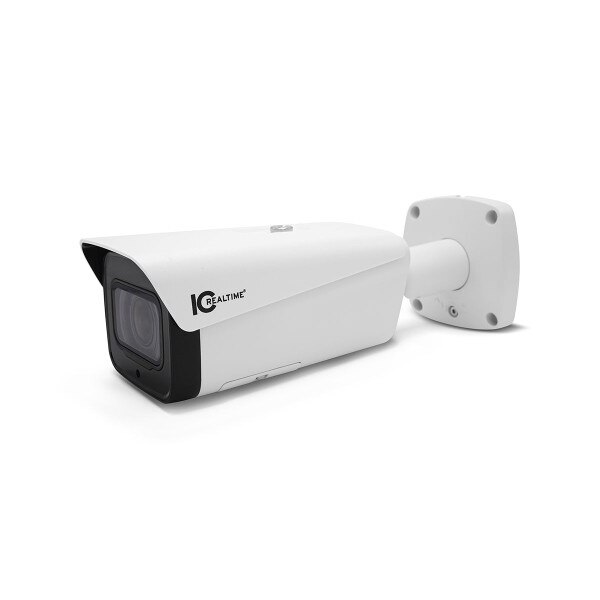

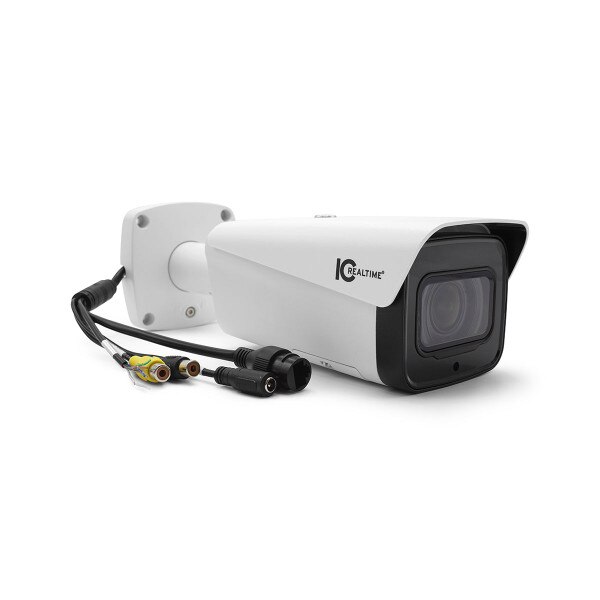

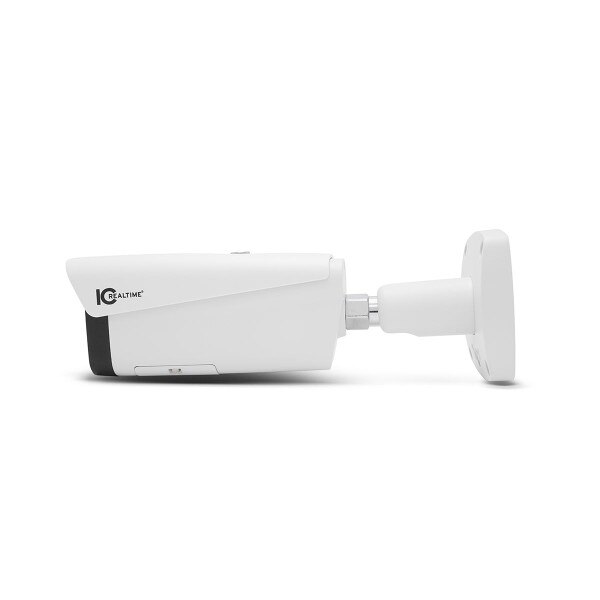

Ultra HD Surveillance is here - now you can capture your surveillance footage in stunning 4K resolution! The new ICIP-8000 series of 4K cameras paired with a compatible 4K series NVR will bring your surveillance system to new, unforeseen levels of clarity and resolution. The ICIP-B8121-IR is a 12MP (> 4K) Day/Night, Motorized Zoom Bullet Camera. It utilizes a cutting edge 1/1.7'' 12MP sensor to deliver stunning 4K resolution at frame rates as high as 30FPS (or a full 12MP at 20FPS!). On top of the sensor sits a 4.1mm ~ 16.4mm motorized zoom lens which delivers a 85° ~ 35° horizontal field of view. 4 high intensity IR illuminators are equipped and yield 164'' (50 meters) of IR distance, allowing long range shots as well. This camera also represents the 'AI' line of smart cameras from ICRealtime. It's AI (Advanced Intelligence) suite of features includes: Tripwire, Intrusion, Missing/Abandoned Object, Face Detection, People Counting, and Heat Mapping. H265 compression is included standard as well to handle these extreme high resolutions.

Specifications

Camera
Image Sensor: 1/1.7 12 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 4000(H) x 3000(V)
RAM/Rom: 1024MB / 128MB
Scanning System: Progressive
Electronic Shutter Speed: Supported
Minimum Illumination: 0.01Lux/F1.53(Color1/3s30IRE) 0.1Lux/F1.53(Color1/30s30IRE) 0Lux/F1.53(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 50m (164ft)
IR On/Off Control: Auto/Manual
IR LEDs: 4
Lens
Lens Type: Motorized /Auto Iris (HALL)
Mount Type: Board-in
Focal Length: 4.1-16.4mm
Max. Aperture: F1.53
Angle of View: H: 105 - 35 degrees V:77 - 26 degrees
Optical Zoom: 4x
Focus Control: Motorized
Close Focus Distance: 500mm (19.7in)
DORI - Detect: 115m (377ft) / 227m (909ft)
DORI - Observe: 46m (151ft) / 111m (364ft)
DORI - Recognize: 23m (75ft) / 55m (180ft)
DORI - Identify: 11m (36ft) / 28m (92ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection / People Counting / Heat Map
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 12M (4000 x 3000) / 4K (3840 x 2160) / 6M (3072 x 2048) / 5M (2560 x 1920) / 3M (2048 x 1536) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 342 x 240)
Frame Rate: Main Stream: 12M(1 - 20fps) / 4K(1 - 25/30fps) Sub Stream: D1 (1 - 25/30fps) Third Stream: 1080P(1 - 25/30fps)
Bit Rate: H.264: 24 - 16384Kbps H.265: 14 - 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR / SSA
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Electronic Image Stabilization (EIS): Supported
Smart IR: Supported
Digital Zoom: 16x
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (100/1000Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / IEEE 802.1x / Multicast / ICMP / IGMP / SNMP / TLS
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF Profile S&G / API
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: 1 port (For adjustment only)
Audio I/O: 1/1 channel In/Out
Alarm I/O: channel In: 5mA 5VDC / 1 channel Out: 1A 30VDC or 0.5A 50VAC
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: DC12V PoE+(802.3at)(Class 4)
Power Consumption: < 13W
Enviromental
Operating Conditions: -40 C ~ +60 C (-40 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 273.2mm x 95.0mm x 95.0mm (10.76in x 3.74in x 3.74in)
Gross Weight: 1.52Kg (3.35lb)
