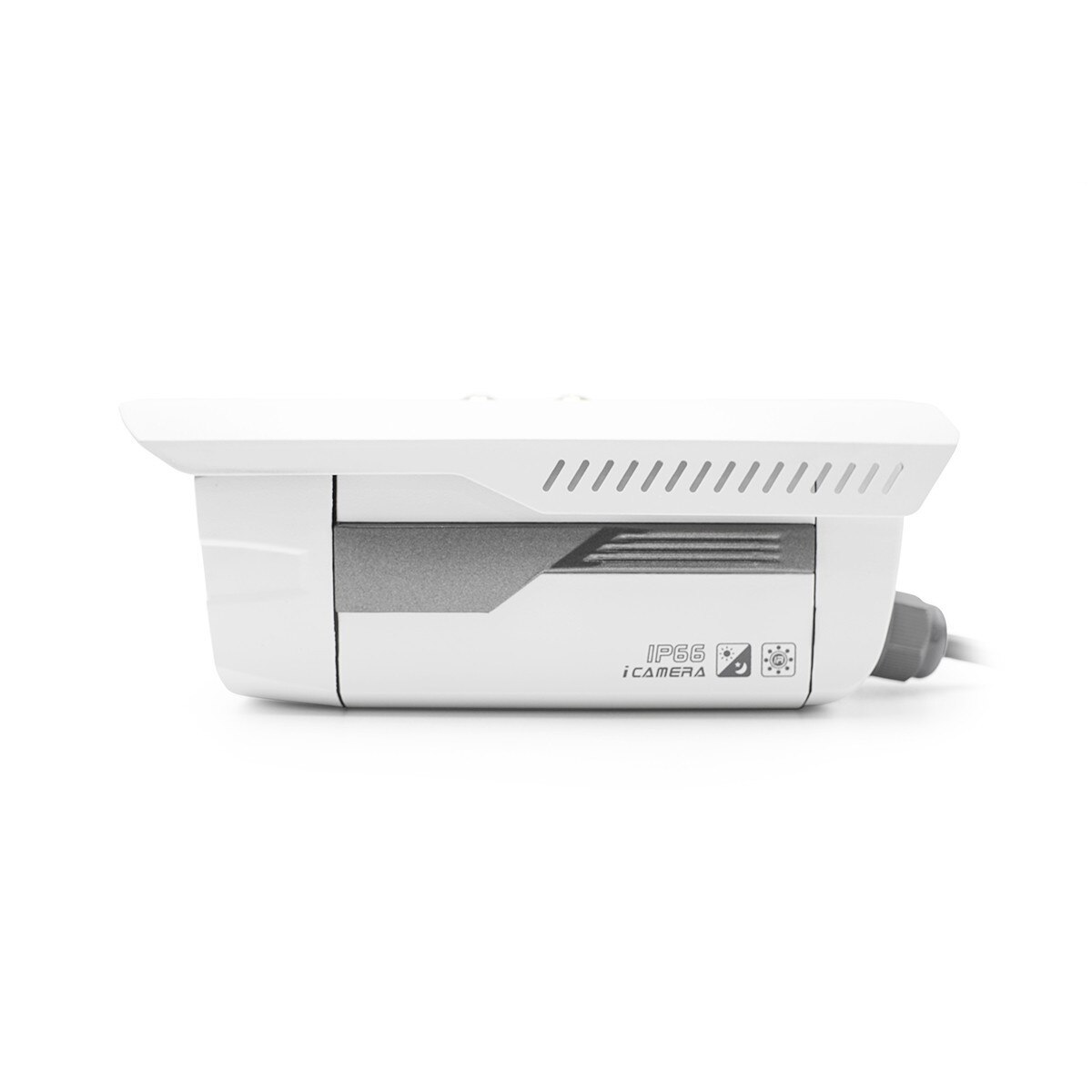

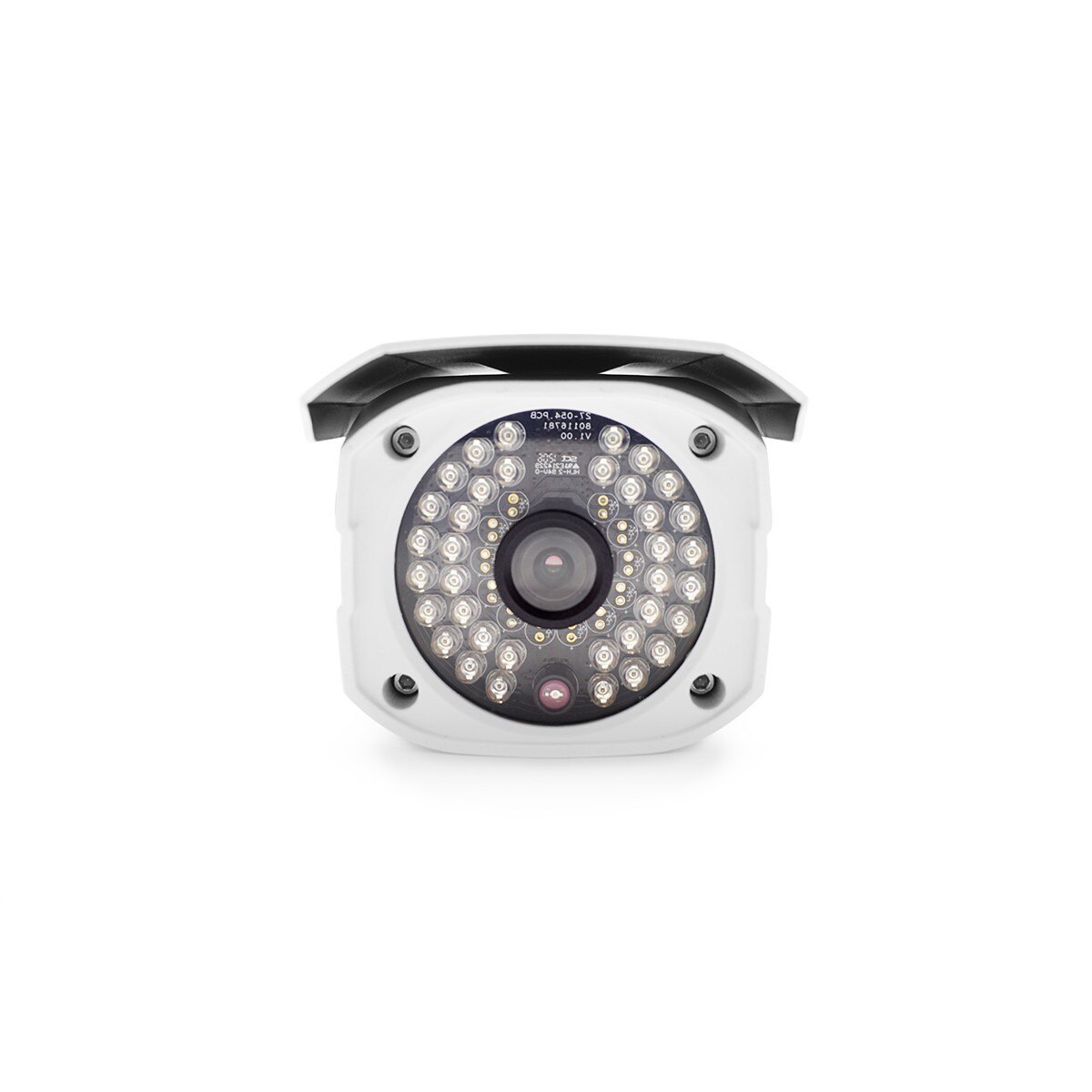

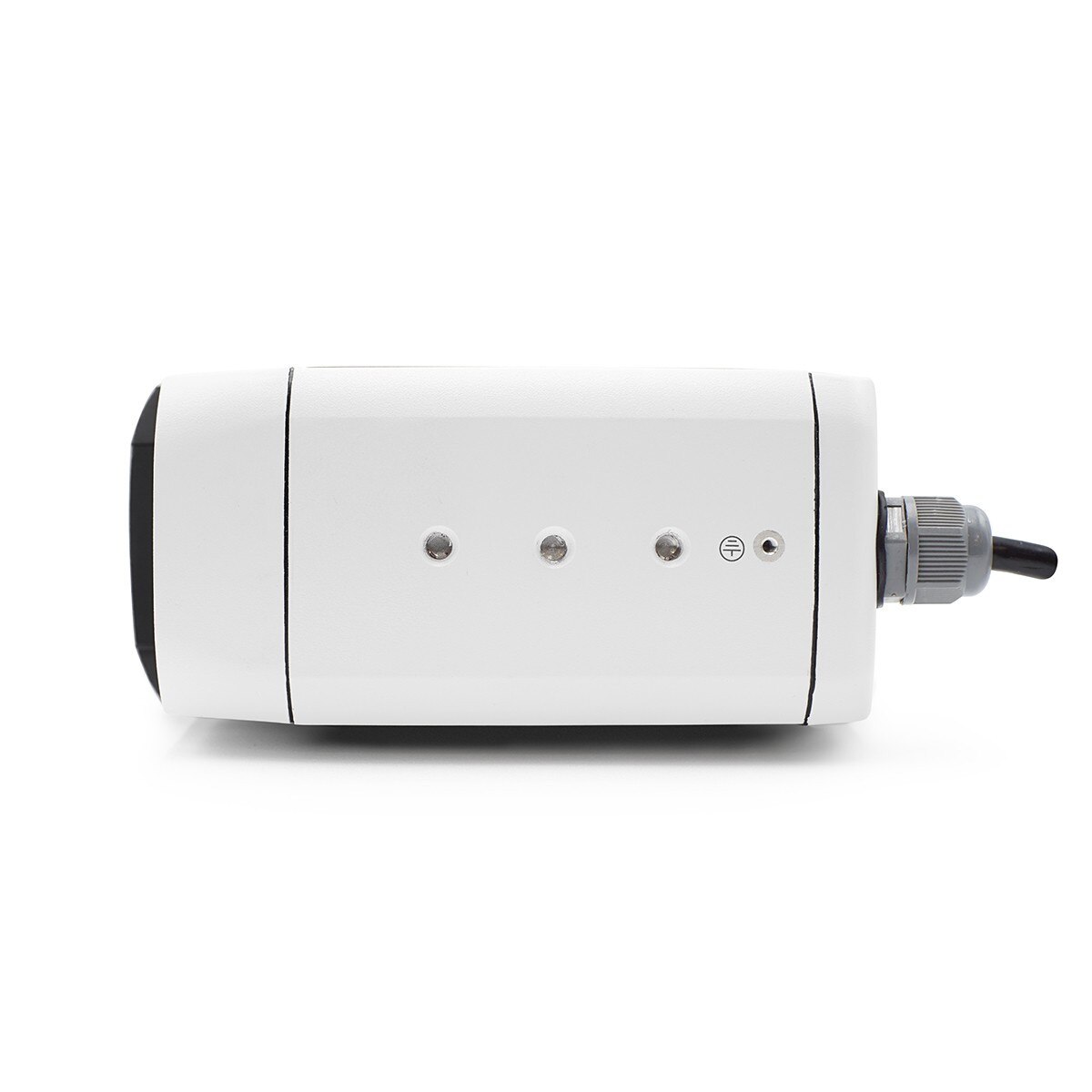

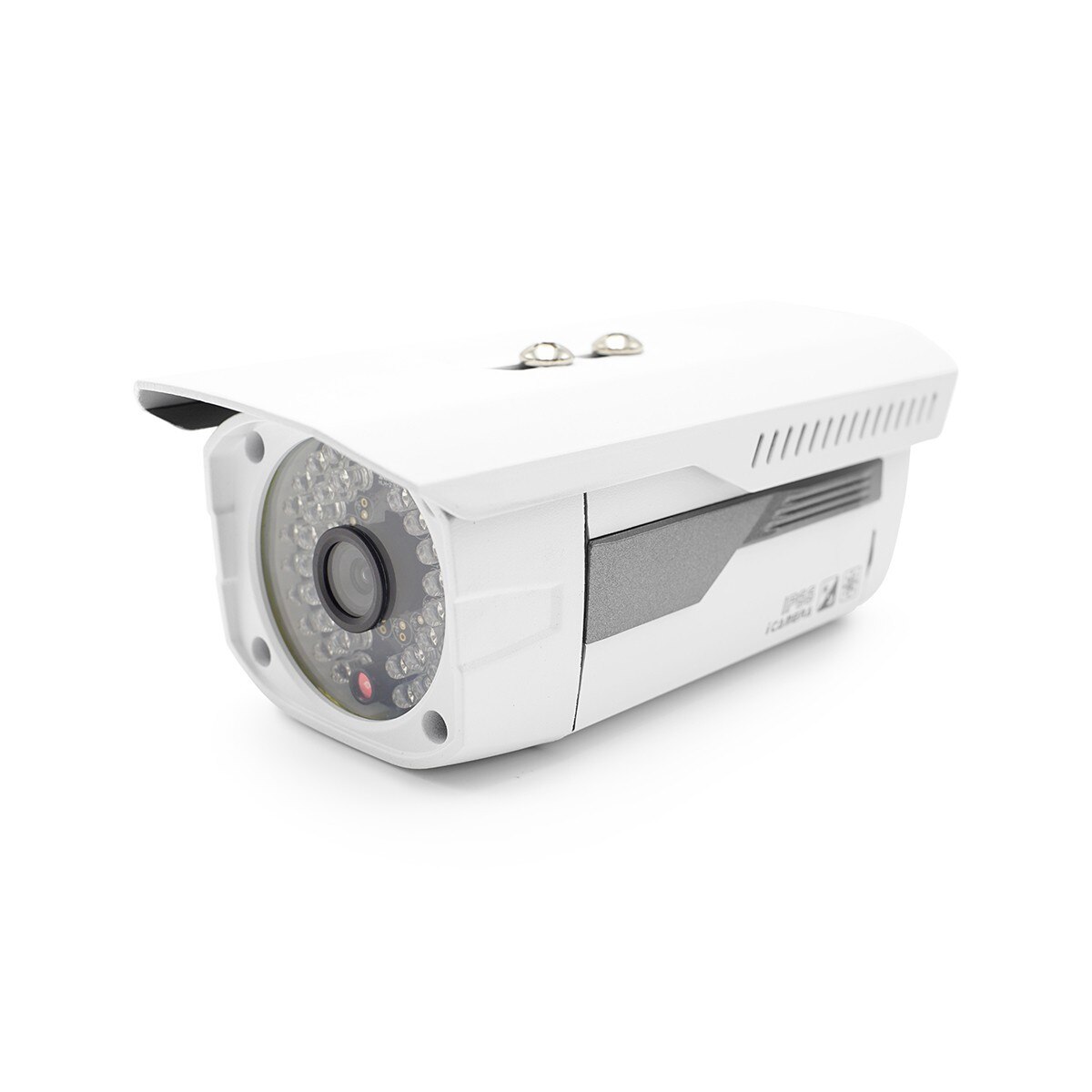

ICIP-B580
Details
D1 Quality CCD Box/Bullet Style Camera works seamlessly with IC Realtime NVRs, Hybrid DVRs and Management Software.
Specifications
| Camera | |
| Image Sensor: | 1/3" SONY Super HAD CCD |
| Effective Pixels: | 811(H)x508(V) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0LUX/F1.2(IR on), 0.1LUX/F1.2 |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | 60ft |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized/ Auto Iris(DC) |
| Mount Type: | M12-mount, 6mm/F1.2, FOV: 42° |
| Focal Length: | 3~9mm motorized |
| Max. Aperture: | F1.4 |
| Angle of View: | H: 86.5°~28.6° |
| Optical Zoom: | 4x |
| Focus Control: | Auto |
| Intelligence | |
| IVS: | Tripwire, Intrusion, Scene change, Missing/Abandoned, Audio detect |
| Advanced Intelligent Functions: | Face Detection |
| Video | |
| Compression: | H.264E |
| Streaming Capability: | 3 Streams |
| Resolution: | D1 (704 x 480) / HD1 (352 x 480) / CIF (352 x 240) /QCIF (176 x 128) / VGA (640 x 480) / QVGA (320 x240) / QQVGA (160 x 120) |
| Frame Rate: | Main Stream: D1 / HD1 / CIF / QCIF / VGA / QVGA /QQVGA (1~30fps) Extra Stream: D1 / HD1 / CIF / QCIF / VGA / QVGA /QQVGA (1~30fps) |
| Bit Rate: | 32K~4Mbps |
| Day/Night: | Yes |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Audio | |
| Compression: | PCM/ G.711a / AMR |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF Profile, API |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | 1 Input, 1 Output |
| Alarm I/O: | 2 Input / 1 Output |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af) |
| Power Consumption: | 5W |
| Environmental | |
| Operating Conditions: | -14°F~140°F / -25°C~+60°C, 10%~90% |
| Ingress Protection: | IP66 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 3.16" x 4.78" - 80.2mm x 121.5mm |
| Mounting Pan/Tilt/Rotation: | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
