ICIP-B3000AF-I
Details

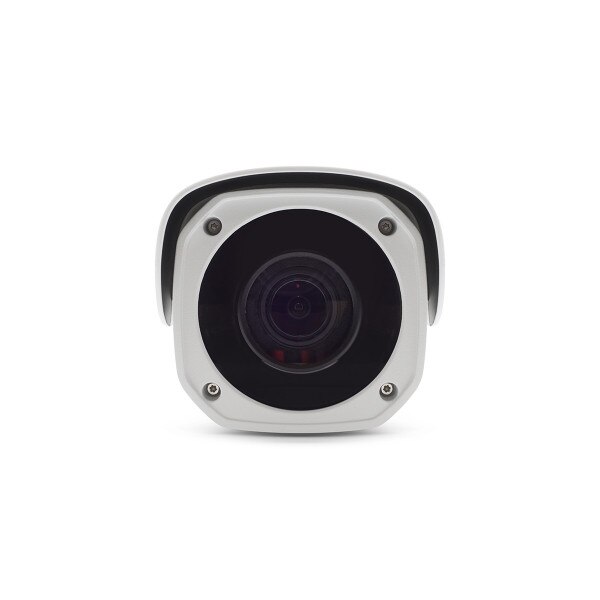

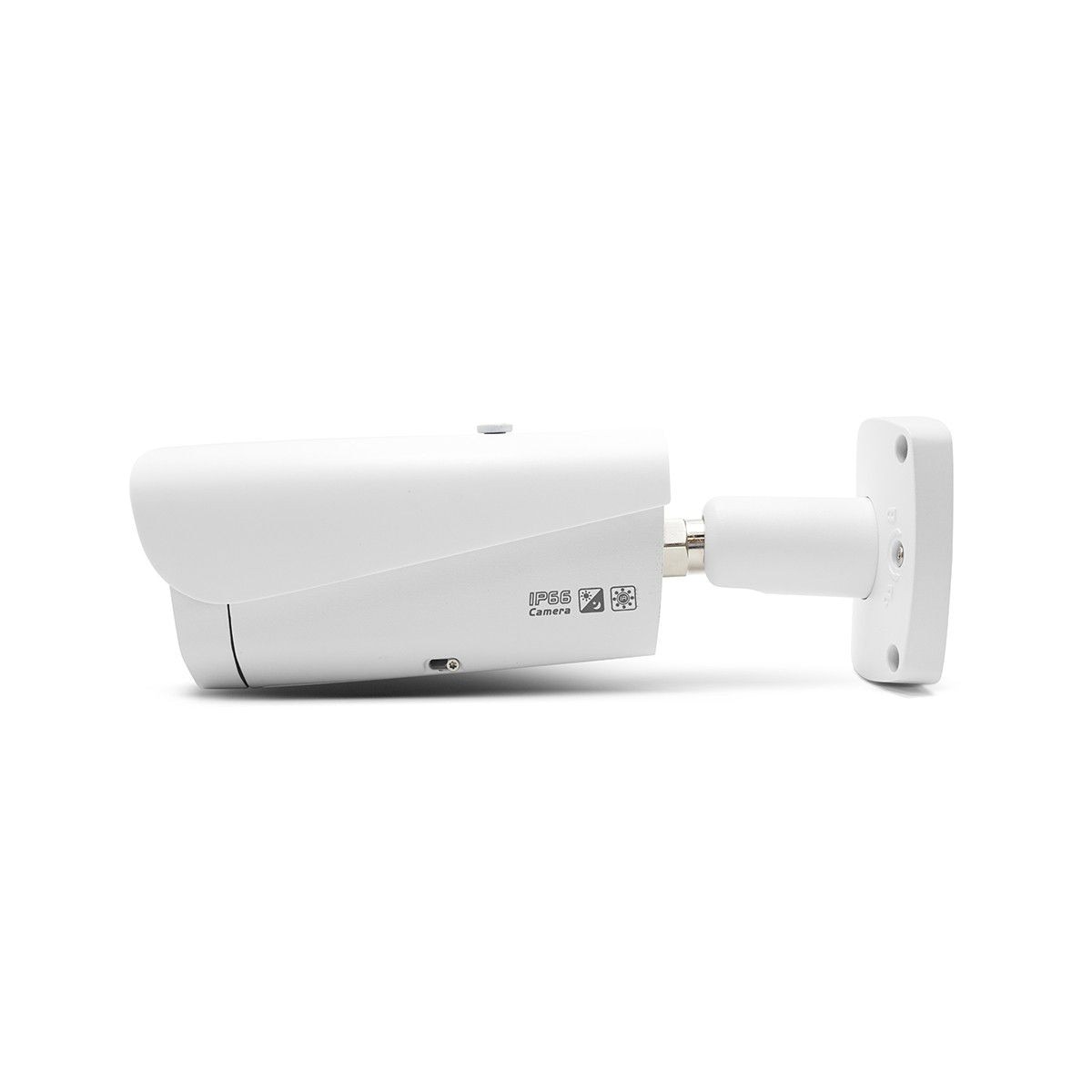

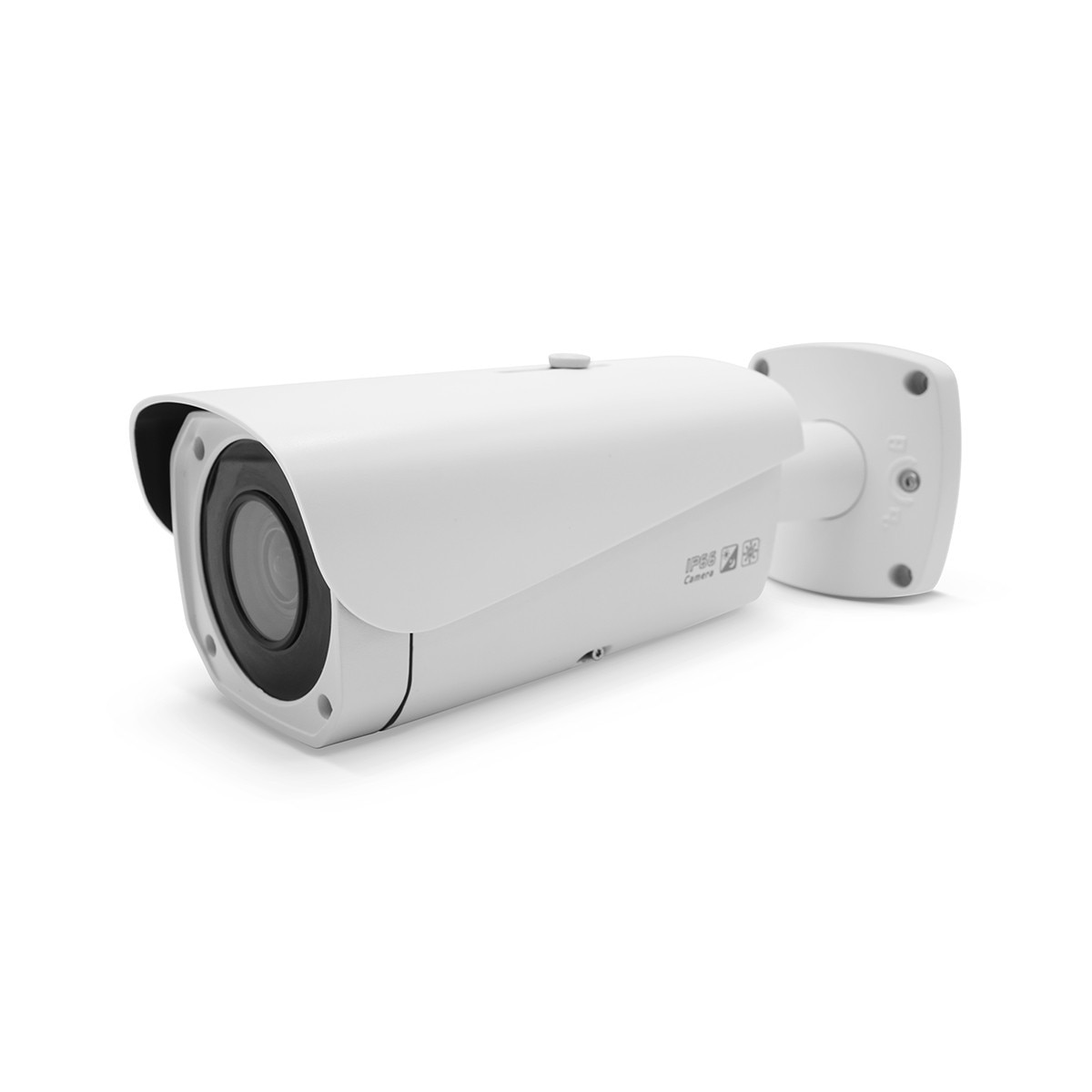

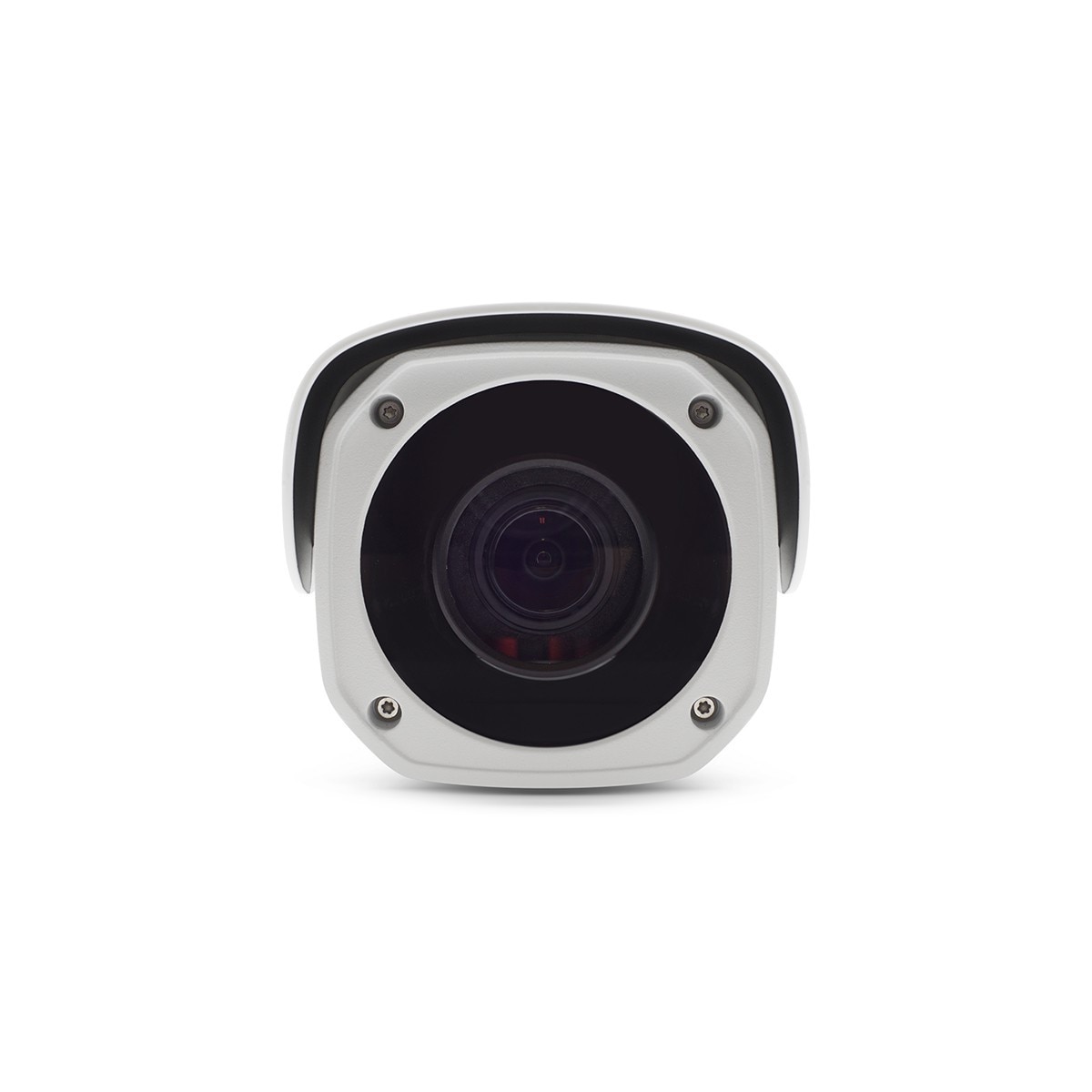

A weatherproof, day/night, smart 3 Megapixel bullet camera- the ICIPB3000AF-I. This sleek bullet design contains a high resolution, 3 Megapixel Aptina CMOS sensor, capable of outputting a crisp, clear image. The optics are located behind the removable black snout, which conceals the 3 -9mm motorized lens. This camera is IP 66 rated and highly weatherproof.
Specifications
| Camera | |
| Image Sensor: | 1/3” 3 Megapixel progressive scan Aptina CMOS |
| Effective Pixels: | 2048(H) x 1536(V) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0. 01Lux/F1.4( Color), 0Lux/F1.4(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 30m (100ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | Yes |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized/ Auto Iris(DC) |
| Mount Type: | Board-in |
| Focal Length: | 3mm~9mm |
| Max. Aperture: | F1.4 |
| Angle of View: | H: 86.5°, V:28.6° |
| Focus Control: | Motorized |
| Intelligence | |
| IVS: | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions: | Face Detection |
| Video | |
| Compression: | H.264 / MJPEG |
| Streaming Capability: | 3 Streams |
| Resolution: | 3M(2048× 1536) / 1080P(1920× 1080) / 720P(1280× 720) / D1(704× 576) / CIF(352× 288) |
| Frame Rate: | Main Stream: 3M/1080P (1~25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) Sub Stream2: 1080P/720P/D1(1 ~ 25/30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 24~9472Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Smart IR: | Support |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression: | G.711a / G.711Mu / PCM |
| Network | |
| Ethernet: | RJ-45 (10/100/1000Base-T) |
| Protocol: | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF, PSIA, CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users /20 Users |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |

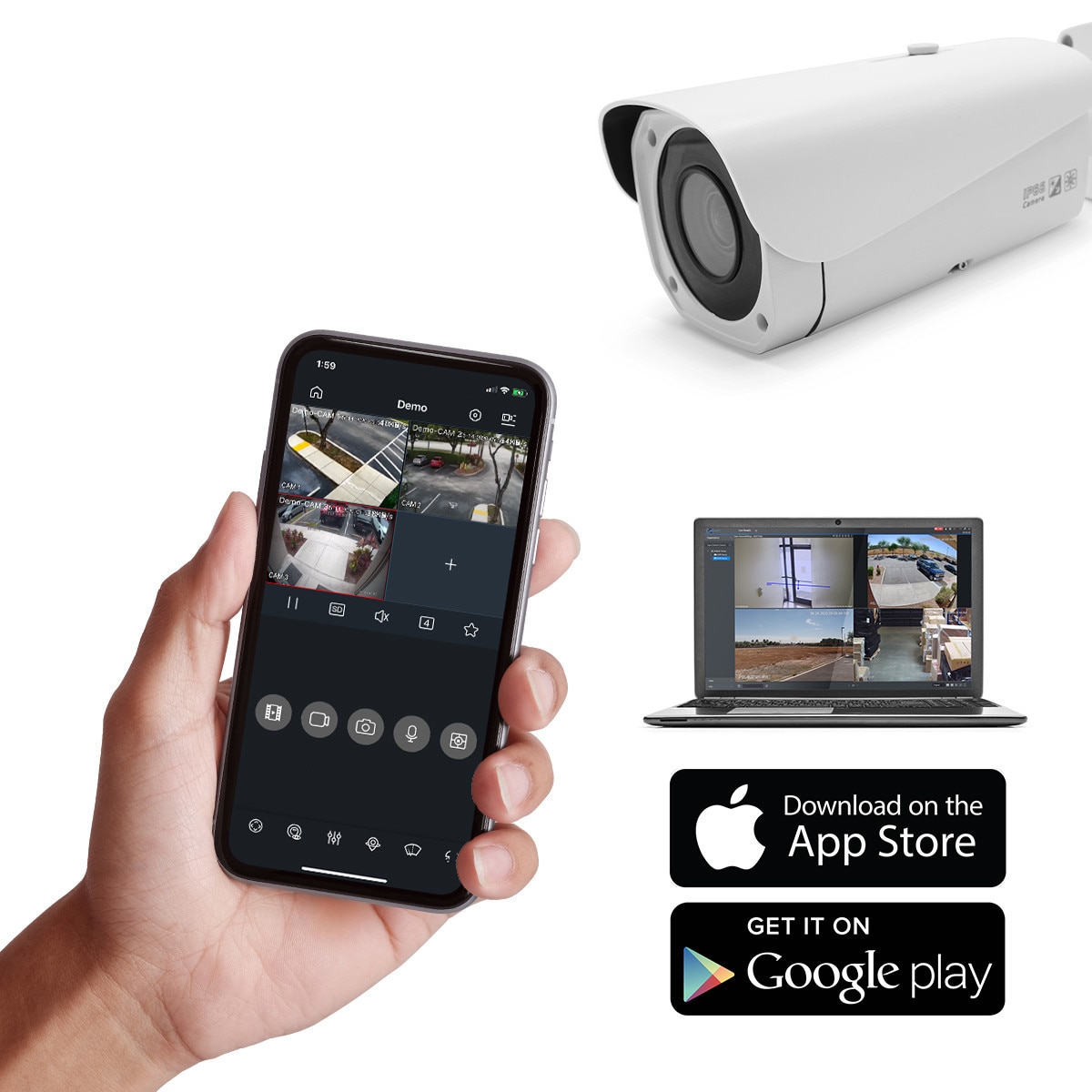

| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | 1/1 channel In/Out 3.5mm Jack |
| Alarm I/O: | 1/1 channel In/Out |
| Memory Slot: | N/A |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af) |
| Power Consumption: | <14W |
| Environmental | |
| Operating Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection: | IP66 |
| Vandal Resistance: | N/A |
| Construction | |
| Casing: | Metal |

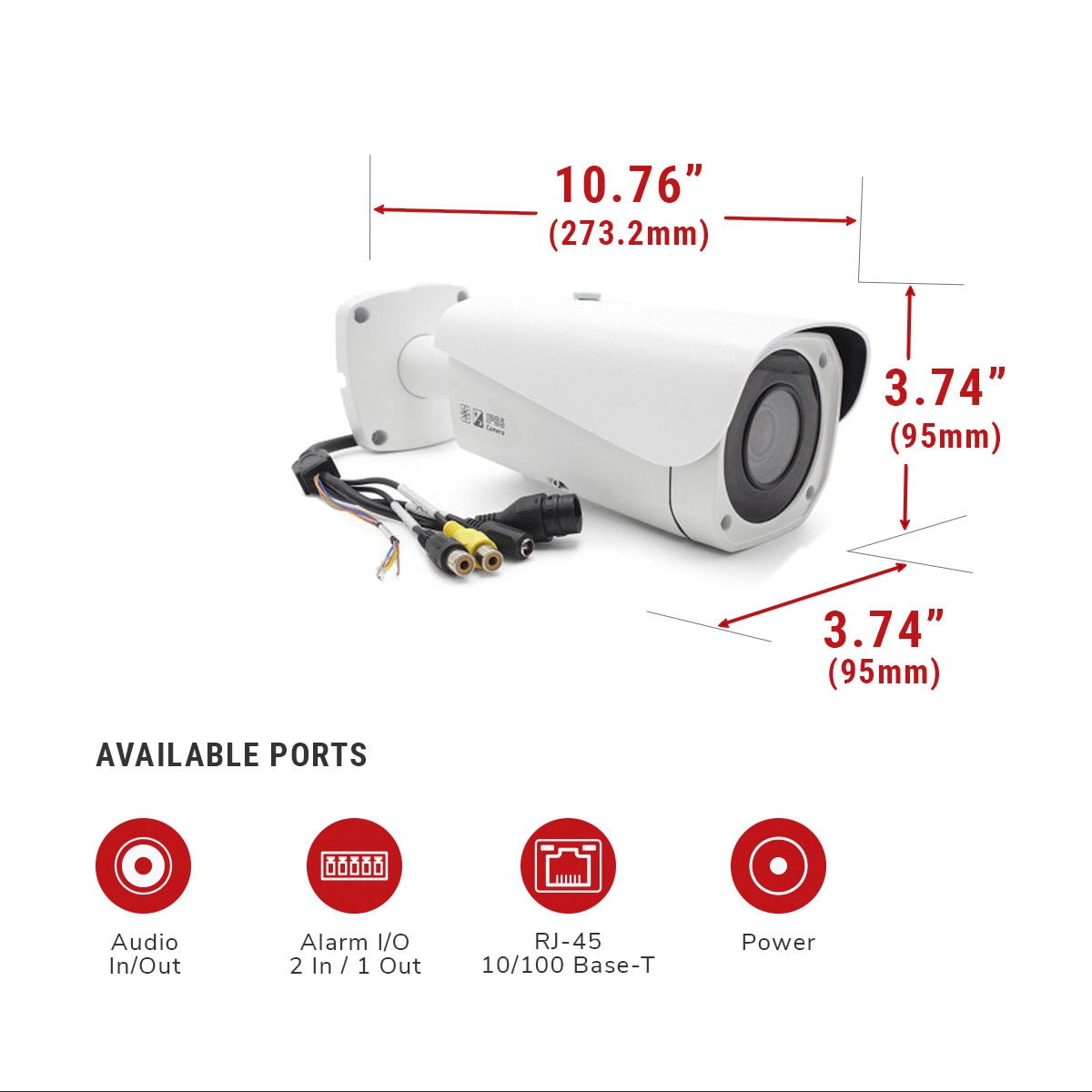

| Dimensions: | 268.1mm×95.1mm×95.1mm (10.56”×3.74”×3.74”) |
