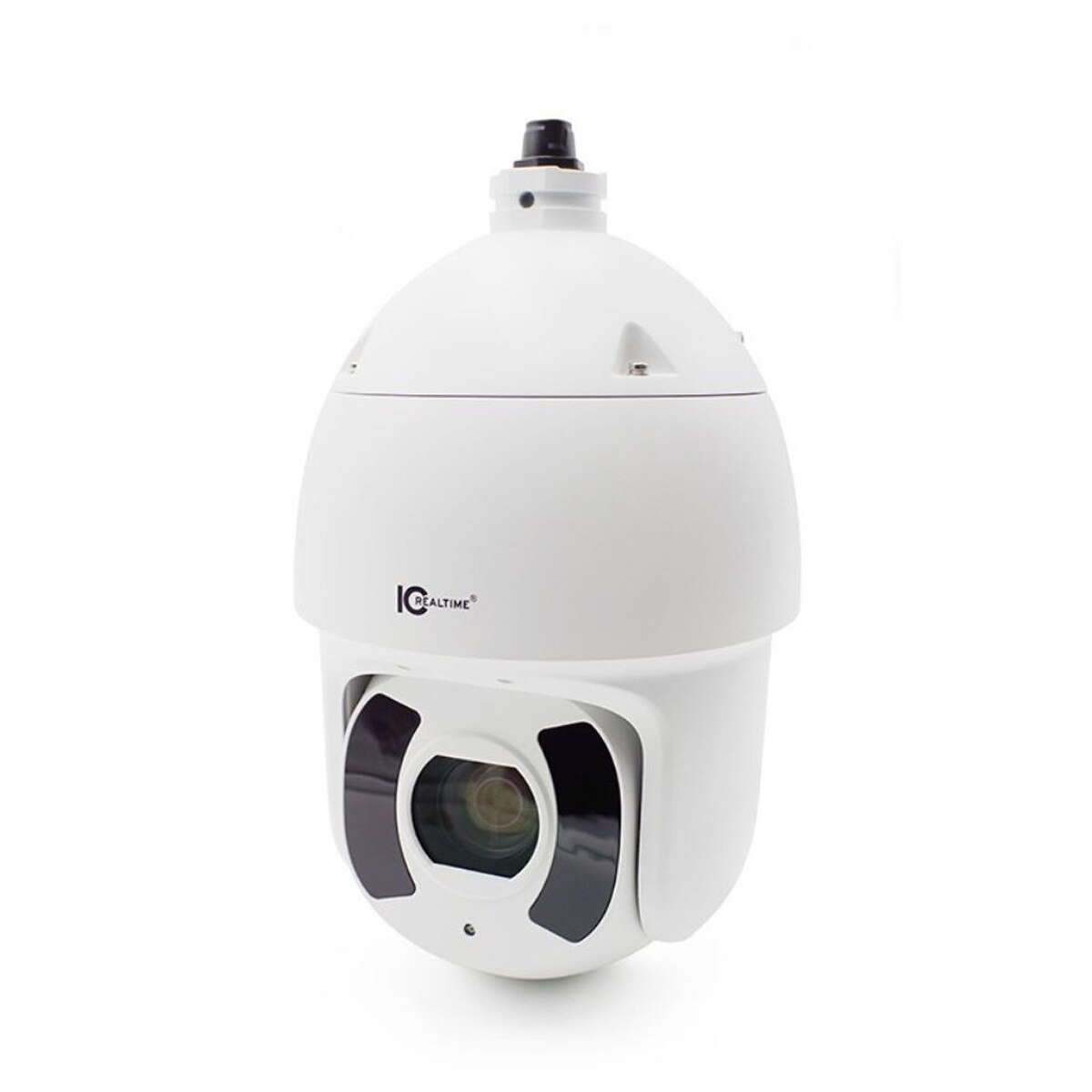

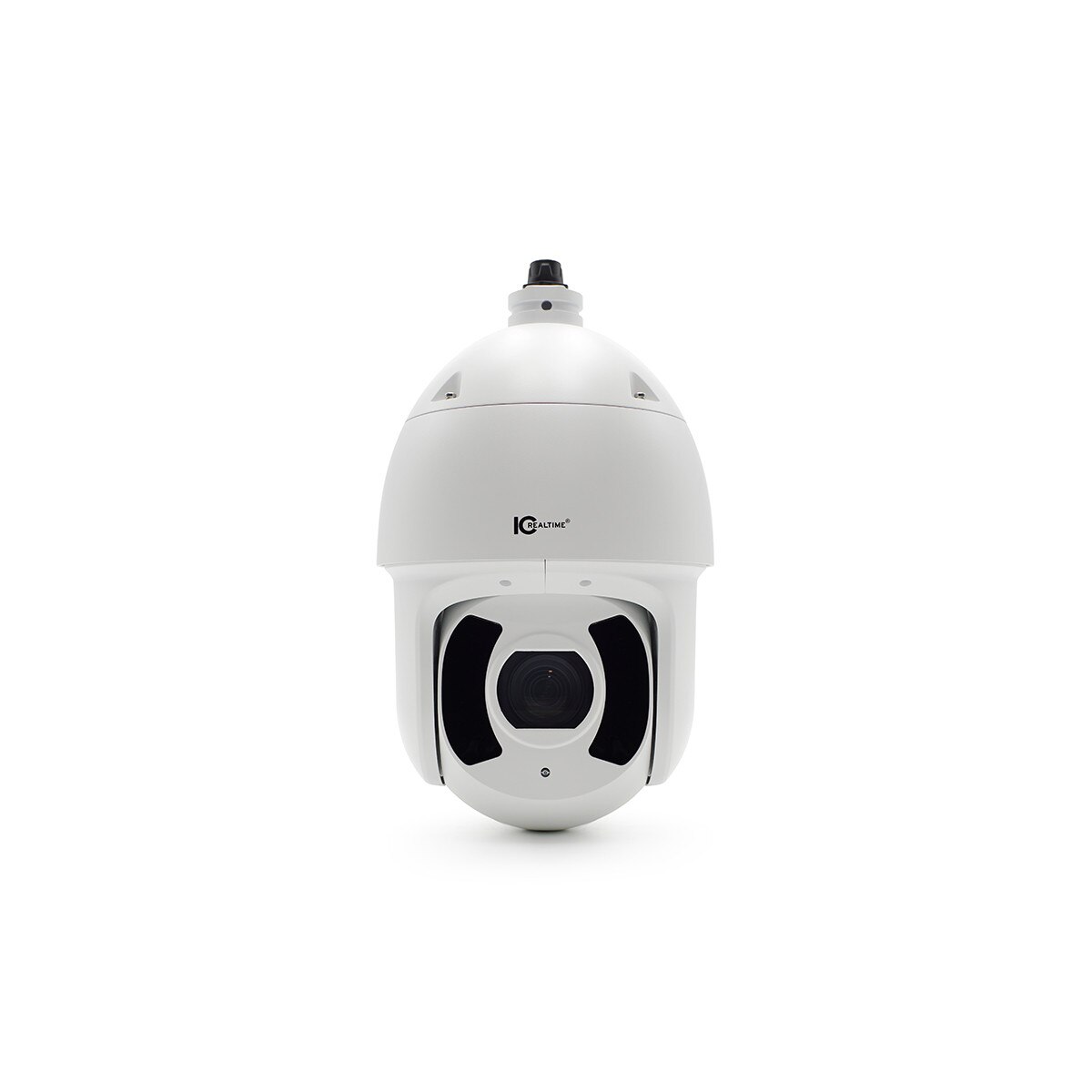

ICIP-2501HD-IR

(0) No Reviews yet
SKU: ICIP-2501HD-IR
ITEM WEIGHT: 25
2MP IP Full Size PTZ. 25X Optical Zoom. 656 Feet Smart IR. AI (Advanced Intelligence) On-Board Analytics. (Wall Mount In...
1/2.8” 2 Megapixel STARVIS™ CMOS
Max. 60fps@1080P | IR LEDs up to 656Ft
H.265 & H.264 triple-stream encoding
Auto tracking and IVS Support
44.8mm~120mm, 25x optical zoom
IP67 | IK100 | PoE+

Details

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the ICIP-2501HD-IR provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination up to 656ft with Starlight Technology, the camera is the perfect solution for dark, low light applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.

This PTZ also supports Auto Tracking with IVS Tripwire with Tripwire, Intrusion, Abandoned/Missing support as well as Face Detection, Heat Map. Other features include IP67 and IK10 protection and AC24V/ PoE+ power options.

Specifications

Camera
Image Sensor: 1/2.8" STARVIS™ CMOS
Effective Pixels: 1920(H) x 1080(V), 2 Megapixels
RAM/Rom: 128MB/ 1024MB
Scanning System: Progressive
Electronic Shutter Speed: Support
Minimum Illumination: Color: 0.005Lux@F1.6(30IRE);
B/W: 0.0005Lux@F1.6(30IRE);
0Lux@F1.6 (IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 200m (656ft)
IR On/Off Control: Auto/Manual
IR LEDs: 6
Lens
Focal Length: 4.8mm~120mm
Max. Aperture: F1.6 ~ F4.4
Angle of View: H: 62.8° ~ 2.6°
Optical Zoom: 25x
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
DORI - Detect: 5292 ft
DORI - Observe: 2119 ft
DORI - Recognize: 1060 ft
DORI - Identify: 528 ft
PTZ
Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control Speed: Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed: Pan: 240° /s; Tilt: 200° /s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup: Human-oriented focal Length/ speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power
failure
Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Protocol: ICR-SD, Pelco-P/D (Auto recognition)
Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Face Detection, Heat Map
Video
Compression: H.265+/H.265/H.264+/H.264
Resolution: 1080P(1920×1080)/720P(1280×720)/D1(704×576/70
4×480)/CIF(352×288/352×240)
Frame Rate: Main stream: 1080P/1.3M/ 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
Bit Rate: H.265/H.264: 448K ~ 8192Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D/3D)
Motion Detection: Support
Region of Interest: Support
Electronic Image Stabilization (EIS): Support
Digital Zoom: 16x
Flip: 180°
Privacy Masking: Up to 24 areas
Audio
Compression: G.711a/G.711Mu/AAC/G.722/G.726/G.729/ MPEG2-L2
Network
Ethernet: RJ-45 (10Base-T/100Base-TX)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Compatability: 20 users
Edge Storage: NAS (Network Attached Storage),Local PC for instant
recording, Micro SD card 256GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: IOS, Android
Interface
Video Interface: 1 port(BNC, 1.0V[p-p], 75Ω)
RS485: 1
Audio I/O: 1/1 channel In/Out
Alarm I/O: 7/2
Memory Slot: 256GB
Electrical
Power Supply: AC24V/3A(±25%), PoE+(802.3at)
Power Consumption: 17W, 25W(IR On, Heater On)
Enviromental
Operating Conditions: -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 209×337.4mm (8.2”x 13.2”)
Gross Weight: 9.1kg(20.06lb)
