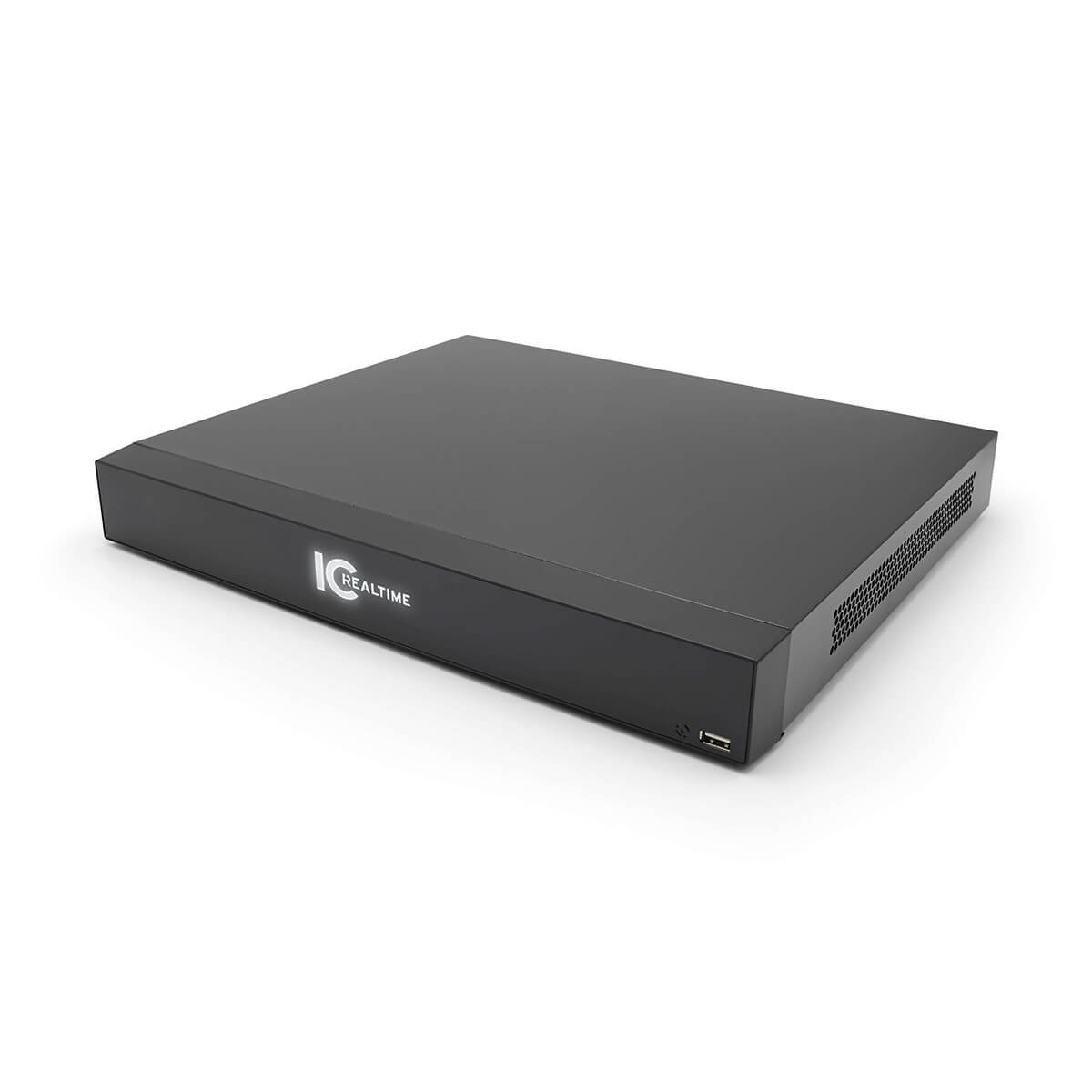

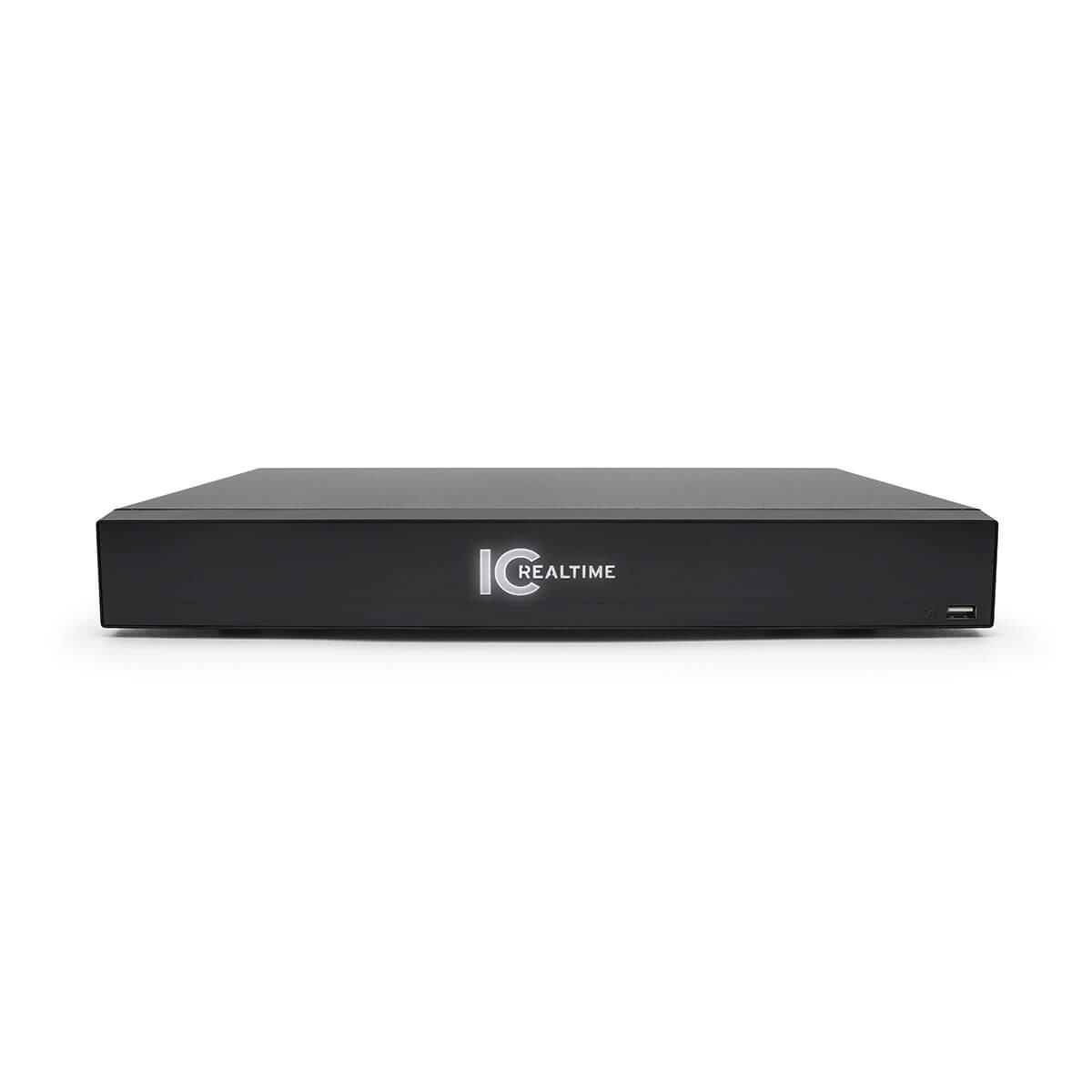

As the newest member of the IC Realtime Video Ecosystem, our top of the line FlexSmartAi MX1608 coax-based, 16 channel UHD4K HD-AVS video recorder is the most "inclusive" we have ever developed.

Not only are FlexSmartAi MX-AVRs commercial-grade security tools, IC Realtime also gave them cutting-edge tech. Like built-in facial recognition, "one wire" video+audio+control over coax, MX1608 also features easy "plug & play" installation with camera format auto-matching that senses & accommodates every major coax camera technology.

IC Realtime's FlexSmartAi MX-AVR series "Penta-Brid" digital video recorders, meaning they recognize & record all 16 coax video formats to bring easy "plug-n-play" camera installation to coax camera systems.

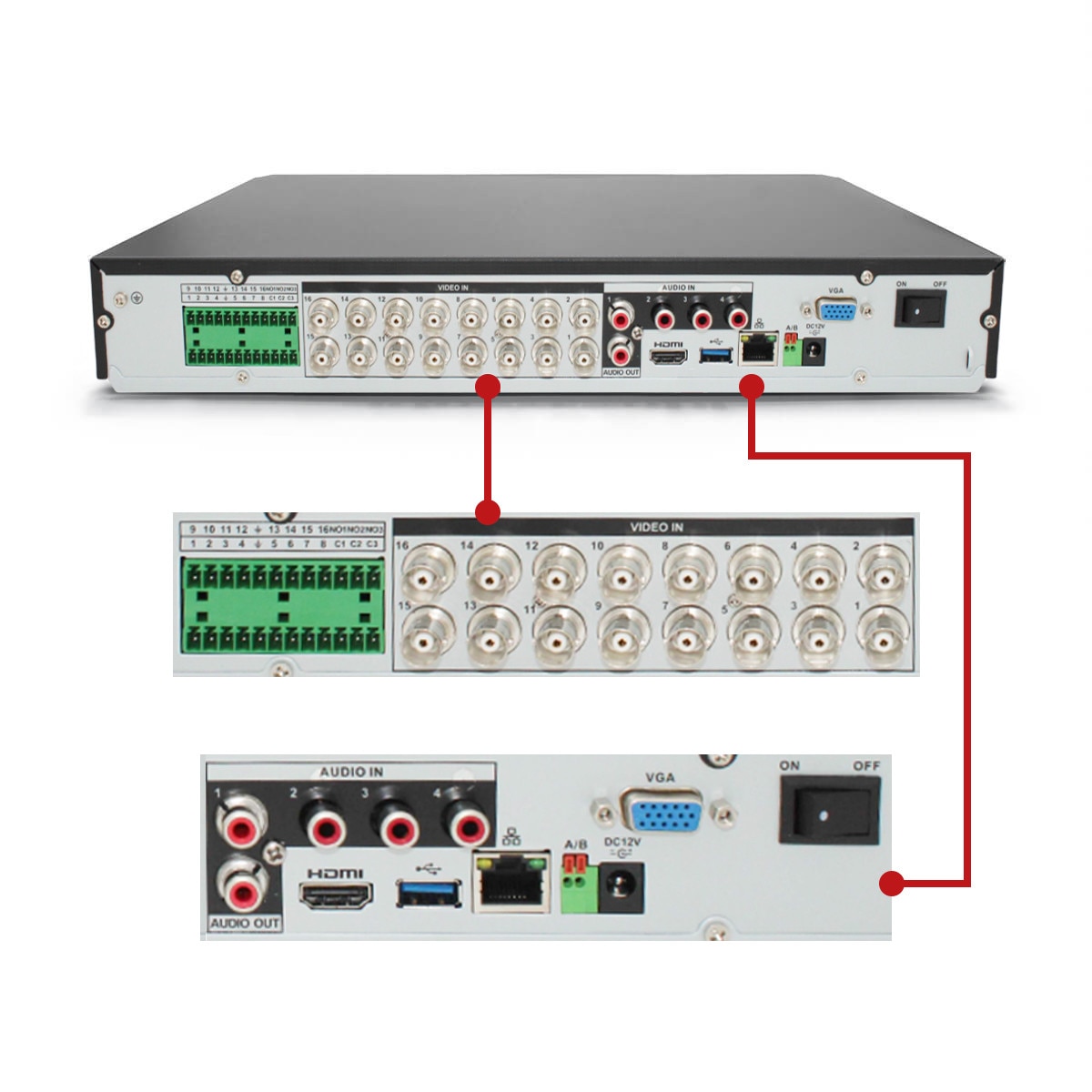

Their direct-connection rear coax camera ports auto-detect & switch to support AVS/HDCVI/AHD/TVI format cameras up to 5MP resolution.

This enables quick & easy existing coax camera system installs & upgrades even in mixed camera format systems. FlexSmartAi MX-AVRs are so 21st century they even accommodate older 20th century standard analog cameras under their CVBS (composite video baseband signal) settings.

When paired with IC Realtime's HD-AVS cameras, say goodbye to extra camera control or audio transmission wires. IC Realtime's HD-AVS system "piggy-backs" HD video, audio & camera control functions together on a single BNC camera cable for easy installation & full control of compatible HD-AVS cameras. For existing systems, the MX1608 includes a rear RS-485 control port that can be activated through MX1608's on-screen control panel to run older analog PTZs.

In the second decade of the 21st century, everybody expects more from today's security video recorders, and the FlexSmartAi MX1608 delivers on all fronts, starting with 50% more video channels and 4K HDMI output.

Our top of the line 16 channel MX1608 has the extra processing & thruput horsepower @ 128MB per second to deliver 4K UHD (3840 × 2160) HDMI performance for your most demanding applications.

Although technically a 16 channel recorder, the MX1608 AVR will actually record 24 video channels - 16 direct BNC + 8 IP - clearly excellent video security. MX1608 delivers 50% more camera capacity to record & display live video from 8 additional network IP cameras up to 6MP resolution. You heard right - it's like buying a 16 channel AVR & getting a 24 channel instead.

The FlexSmartAi MX1608 punches above its weight on video channels and camera flexibility and a genuine, commercial-grade video security tool with incredibly cutting-edge features.

The Video signal range is no longer an issue - the FlexSmartAi MX-AVR series coaxial video system supports long-distance transmission over both coax cable and Unshielded Twisted Pair (UTP). It offers up to 700m (2,200+ feet) for 4K/4MP, 800m (2,600+ feet) for 1080P, and 1200m (3,900_ feet) for 720P, meaning large area installations are no problem.

It's already clear the FlexSmartAi MX1608 is the perfect replacement for an older 16 channel analog DVR. Still, with 8 additional IP camera channels and an impressive set of advanced features, the MX1608 can be the core of new residential or commercial installations too.

Higher resolution cameras mean larger data streams, but no worries here either. IC Realtime's MX1608 supports high-resolution HD coax & IP video stream rates by incorporating a new AI-based compression that works with our Smart H.265+ video codec.

The MX1608's Smart H.265+ compression already reduces bit rate up to 90% compared with standard H.264, and now our advanced AI-based video compression delivers up to 50% more hard drive storage with no image degradation. The result is faster streaming and more days recording on each hard drive.

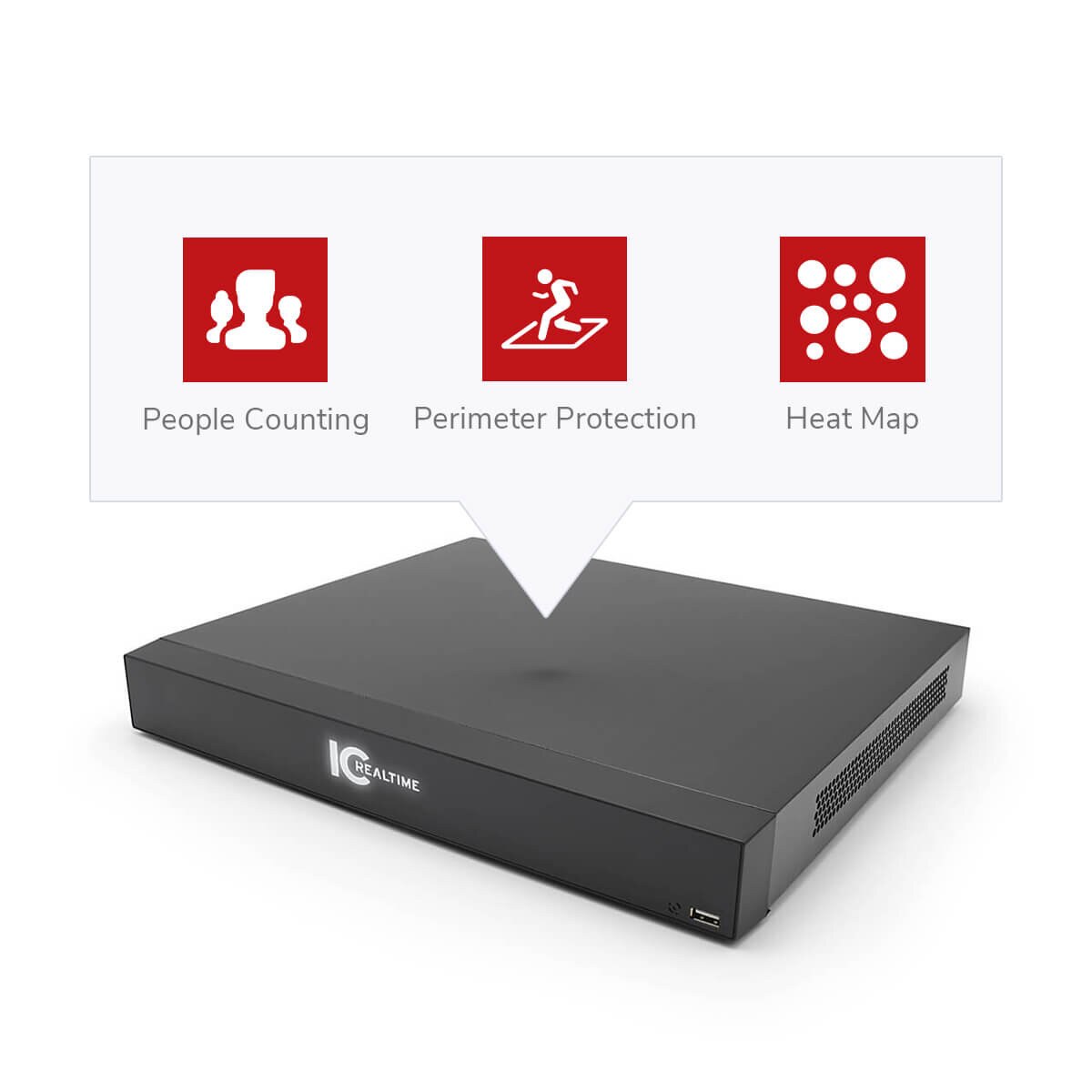

The built-in FlexSmartAi system enables advanced Intelligent Motion Detection (IMD) perimeter monitoring that uses a deep-learning algorithm for dependable IVS/trip-wire performance and fewer false alarms.

The IMD algorithm analyzes motion and ignoring random "pixel change" movements, like animal activity or leaves in the wind, but recognizing people and vehicle shapes, sending alarms only when human or vehicle intrusion is confirmed.

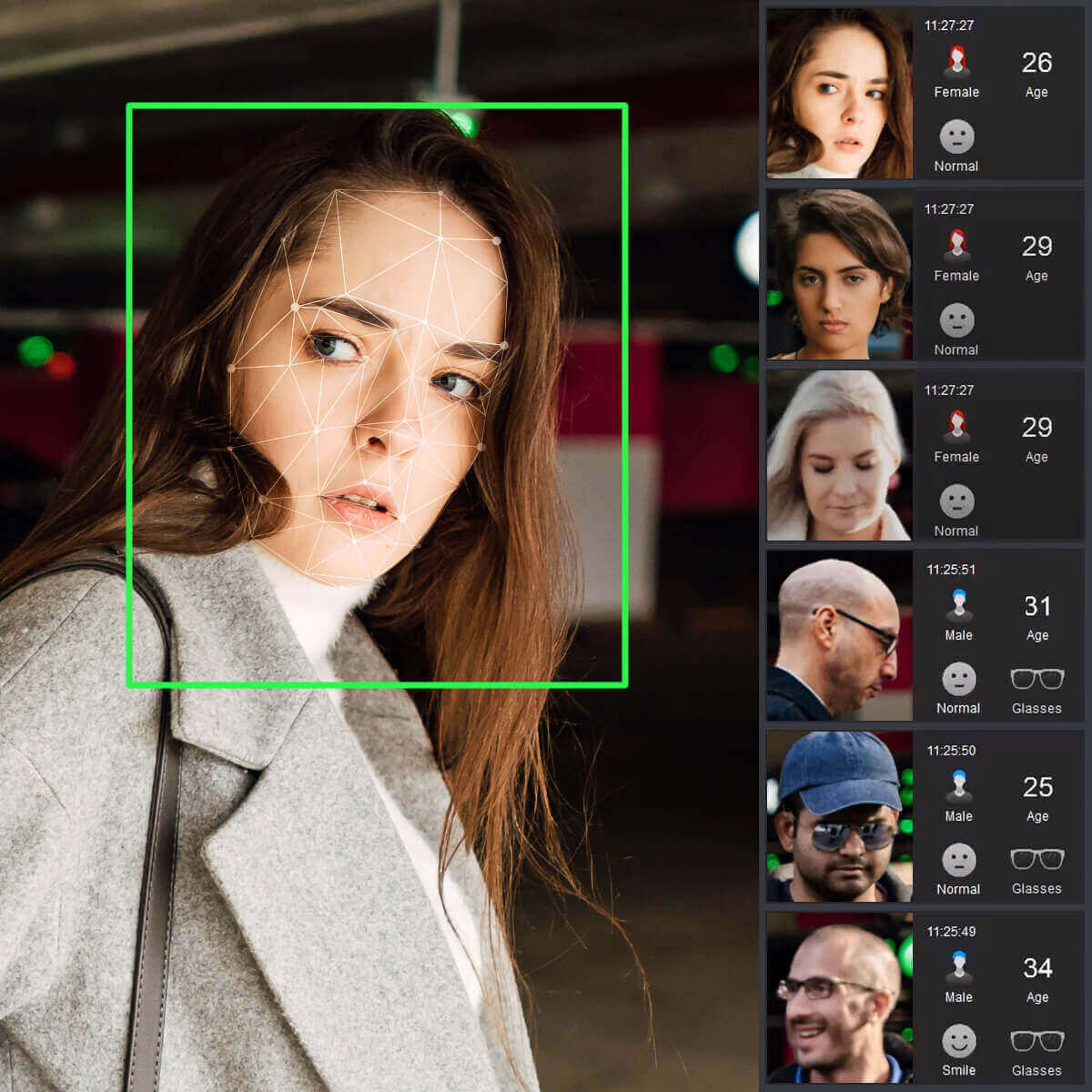

For a 21st-century video security in even the most sensitive locations, FlexSmartAi MX1608 delivers Real-Time Face Recognition on any two of its 16 BNC channels to discern facial features. This includes gender, age, expression, glasses, mustache, mouth/mask, and can capture & record faces with metadata.

The MX1608 can internally store a total of 10,000 face images in up to 10 built-in facial recognition databases. Each database face record can be updated with name, gender, birthday, address, or certificate types/numbers, to identify individuals in the database. Once set for recognition, FlexSmartAi MX-AVR series AVRs can issue a "STRANGER" alert if a scanned face is not found.

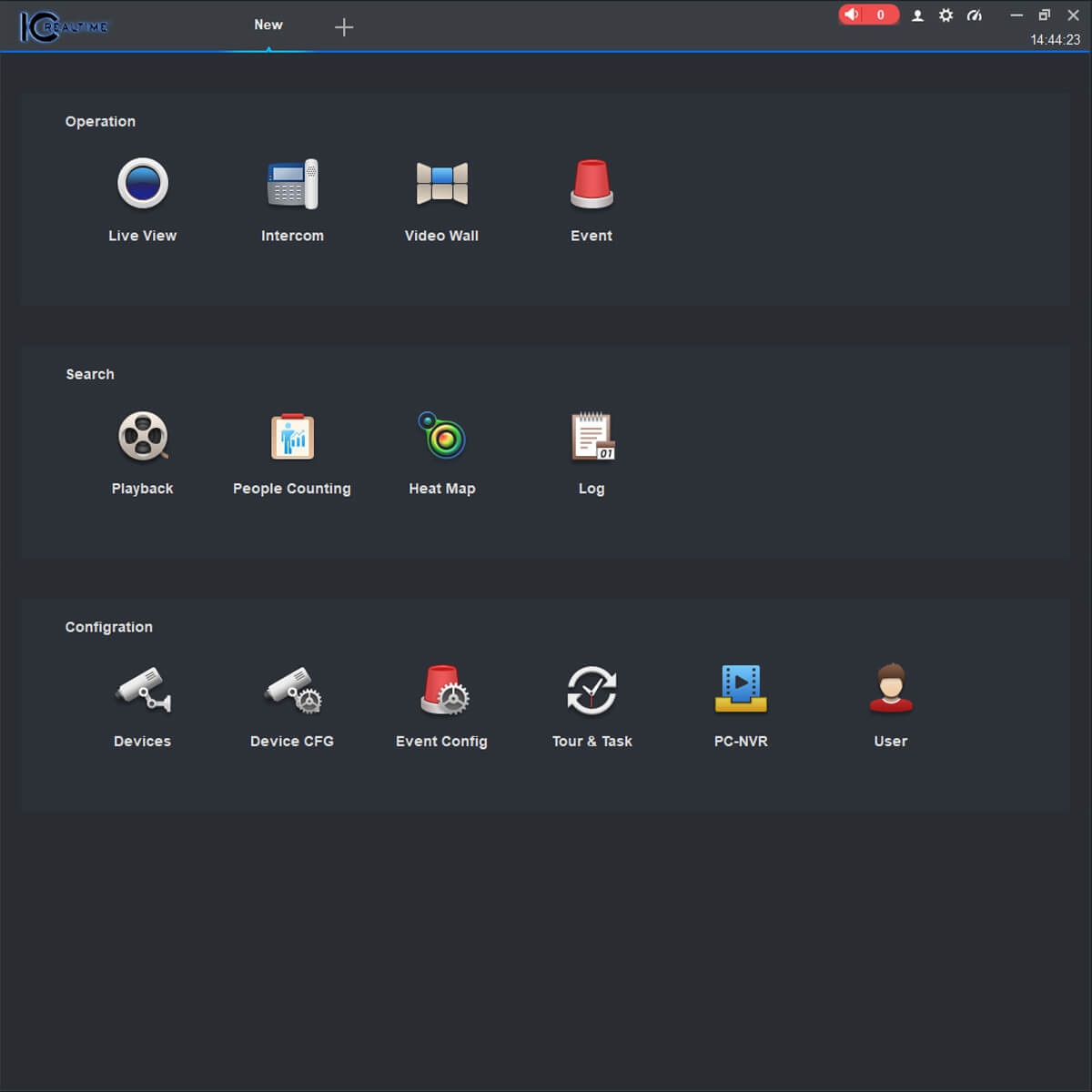

Of course, MX1608 works flawlessly with our free Android & iPhone (IoS) apps, with other video devices through our free PC & Mac based ICRSS central station software and - as part of the IC Realtime Video Ecosystem - directly with the Dash line phone apps too. Once your MX1608 is online, download & install either of the apps, scan the unit's code, and voila!

And speaking of IC Realtime's Dash series and Video Ecosystem, to really bring an MX1608 based system up to 21st century standards, at least 2 of the 8 network cameras should be a Dash Ringer video doorbell camera and a Flooder Yard Light Intercom camera.

As part of the IC Realtime Video Ecosystem, our FlexSmartAi MX-AVR series represents the next generation of high speed, adaptable AI-enhanced coax video recorders.

The FlexSmartAi MX1608 is the perfect upgrade for residential or small commercial 16 channel installations. With cross-format camera auto-switching, built-in facial recognition, and IVS rule detection capabilities, the MX1608 makes the perfect replacement for any outdated 16 channel analog DVR.

If you're looking for the best easy install choice for new or existing 16 channel BNC/coax based camera systems, with the added benefit of 8 extra IP channels, FlexSmartAi MX1608 delivers.

Use FlexSmartAi MX-AVR series MX1608 on your next 16 channel coax based video security job to bring it into the 21st century, on time & in-budget - and in 4k resolution.
