IC Realtime has always sold more 8 channel recorders than any other channel capacity. The reason is simple: eight video channels typically fit the bill perfectly for the majority of jobs. They are the perfect balance between cost and coverage for small to medium-sized commercial and residential installations. Eight video channels enable essential coverage for areas like the front & back doors, the loading dock or garage & driveway, with a couple of channels left over for the dog kennel, dock or pool area, or the walk-in freezer door. Because eight-channel video recorders have been the backbone of the security camera business for the last few decades, the new MX0804-AI2 is great news for our video security partners that maintain existing systems.

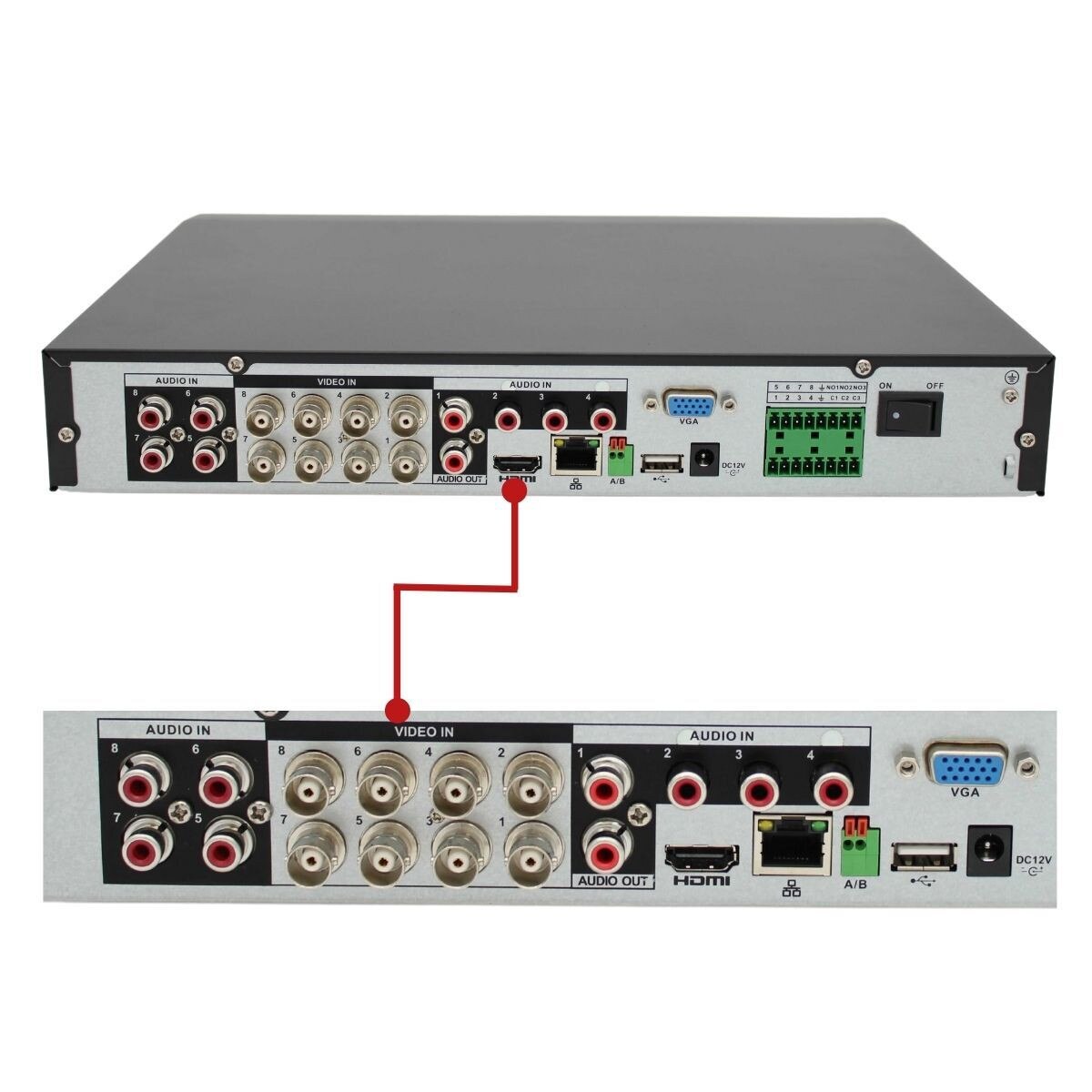

HDVR-MX0804-AI2-1U5MP-AI2 is IC Realtime's newest version of our best-selling eight-channel, AI +BNC/coax-based High Definition Video Recorder (HDVR) that’s been upgraded to 64Mbs throughput. You get eight direct-connect BNC video channels + 4 IP video channels - so it's like ordering an 8 channel Recorder & getting a 12 channel in the box! You can even switch any or all of the 8 coax channels from coax to IP to accommodate future replacements of coax cameras with IP cameras. Designated "Penta-Brid" because they auto-switch to record all five coax video formats, the BNC ports on MX0804-AI2 adapt automatically to live view & record AVS/HDCVI/AHD/TVI format HD cameras up to 5MP resolution, enabling quick & easy upgrades even in camera systems with mixed camera formats. The MX0804-AI2  even accommodates legacy non-HD standard resolution analog video cameras under their CVBS (Composite Video Baseband Signal) settings, bringing easy "plug-n-play" installation to coax camera systems.

HDVR-MX0804-AI2-1U5MP-AI2 is perfect for cost-conscious new coax installations. It quickly brings existing BNC/coax systems up to 21st century standards by offering the newest video tech advantages like H.265 compression and Ai-assisted "smart" systems. IC Realtime engineered in the MX0804-AI2 's Ai-assisted detection capabilities, full 1080p HD video resolution, HDMI and VGA simultaneous monitor output, along with upgraded video storage capacity to future-proof new coax-based installations. This single recorder is the perfect HD upgrade/replacement for existing BNC/coax security camera systems because it gives complete compatibility, updates features, and adds IP camera capability.
Are you servicing a small BNC-based camera site that needs to keep its current working BNC/Coax cameras online, but also needs to replace & upgrade its recorder? And wants to be the capability to replace old cameras with new HD cameras over time as they fail or as the budget allows? Got a client with an out-of-date BNC coax video security system that needs upgrading, but they don't see a compelling reason yet? Or that can't afford to have their business disrupted to tear out & re-wire the whole system to CAT 5/ 6 to add IP cameras? That's where IC Realtime's MX-0804-AI2 fits the job perfectly.

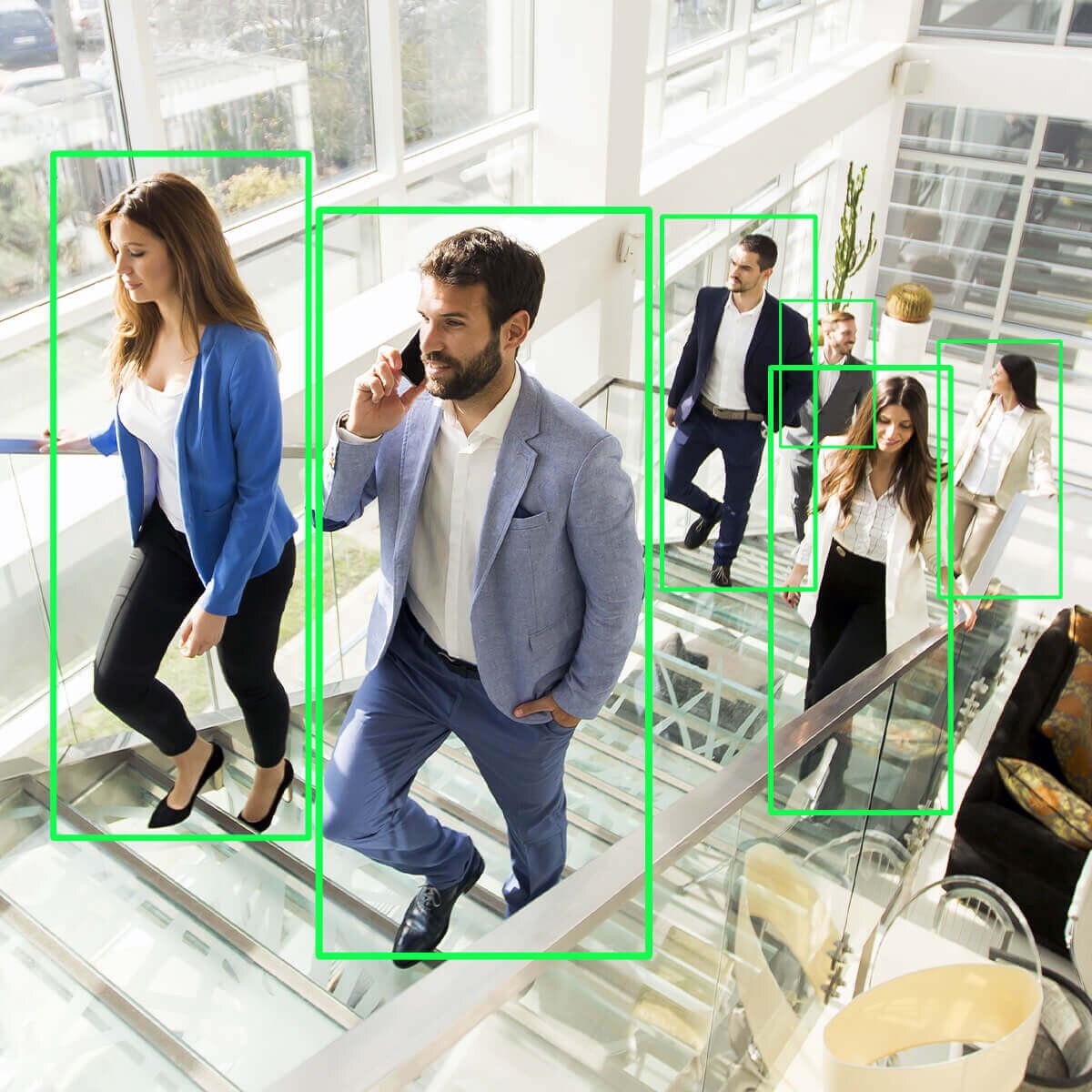

With eight direct BNC/coax HD camera channels and the capacity to record four additional network channels, MX0804-AI2 easily accommodates today's IP & wifi-based cameras, like our ICHome Dinger video doorbell, or up to 4 local or remote Guardi, Orb or Flooder yard light WIFI InterCams™. Being built by American video security powerhouse IC Realtime means the MX0804-AI2  comes from the factory equipped with advanced video security tech like built-in facial recognition with on-board facial image database, advanced IMD programmable "tripwire" intrusion zones. Intelligent Motion Detection (IMD) perimeter monitoring uses a deep-learning algorithm for dependable IVS/ Tripwire performance and fewer false alarms. The IMD algorithm continually analyzes video motion, ignoring random "pixel change" movements but recognizing people and vehicle shapes, sending alarms only when human or vehicle intrusion is confirmed.

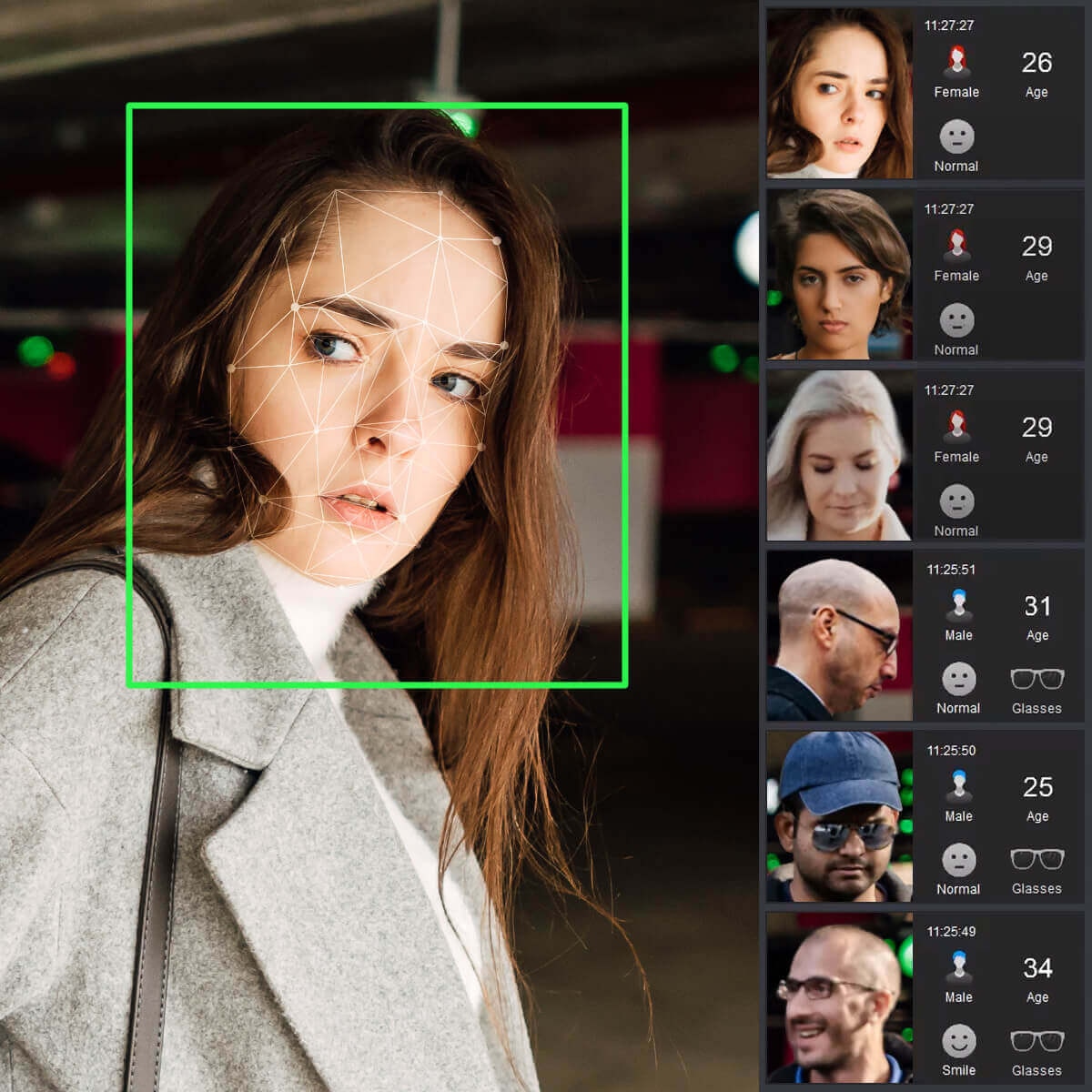

Real-Time Face Recognition can be set up on any one of MX0804-AI2 's eight BNC channels to discern facial features including gender, age, expression, glasses, mustache, mouth/mask, and can capture & record faces with metadata tags to enable AI-assisted searches for recording retrieval & review. Up to 10,000 facial images can be stored in-unit within up to 10 built-in facial recognition databases. These facial records can be updated with name, gender, birthday, address, or certificate types/numbers, to identify individuals. Once set up for recognition, the MX0804-AI2 's FlexSmartAi can issue a "STRANGER" alert if a scanned face isn't found in the database, to differentiate them from family members & employees.

When paired with IC Realtime's HD-AVS cameras, the MX0804-AI2 lets you say goodbye to extra camera control or audio transmission wires. IC Realtime's HD-AVS system "piggy-backs" HD video, audio & camera control functions together on a single BNC camera cable for "one wire" easy installation & full control of compatible HD-AVS cameras. For existing systems, the MX0804-AI2 also includes a rear panel RS-485 camera control port that can be activated through MX0804-AI2 's on-screen control panel to run older analog PTZs. MX0804-AI2 supports long-distance 1080P signal transmission over both coax cable and Unshielded Twisted Pair (UTP) up to 800m (2,600+ feet). Higher resolution cameras mean more massive data streams, but no worries here either. IC Realtime's MX0804-AI2  supports high-resolution HD coax & IP video stream rates by incorporating a new AI-based compression. Working with our Smart H.265+ video codec that reduces bit rate up to 90% compared with standard H.264, this Ai-based compression delivers faster streaming. MX0804-AI2  works flawlessly with our free Android & iPhone (iOS) apps and being ONVIF 21.06 compatible, it also plays well with other video devices and really shines when accessed through our extraordinary (and completely free) PC & Mac based ICRSS central station software.

With the capability to add four extra network channels or switch all 12 available channels to IP, cross-format BNC camera auto-switching, built-in facial recognition, and Ai-enhanced detection capabilities, the MX0804-AI2  makes the perfect replacement for any outdated eight-channel analog DVR. As part of the IC Realtime Video Ecosystem, our MX0804-AI2 series represents the latest generation of adaptable AI-enhanced coax video recorders. If you're looking for the industry’s best eight-channel coax recorder - IC Realtime's FlexSmartAi HDVR-MX0804-1U5MP-AI2 is the answer.
