HDVR-MX0402-1U5MP-AI1
Details
As the newest members of the IC Realtime Video Ecosystem, our FlexSmartAi MX0402 coax-based four-channel HD video recorders are the most "inclusive" we have ever developed.
Not only are FlexSmartAi MX-AVRs commercial-grade security tools, IC Realtime also gave them cutting-edge tech. Like built-in facial recognition, "one wire" video+audio+control over coax, MX0402 also features easy "plug & play" installation with camera format auto-matching that senses & accommodates every major coax camera technology.
IC Realtime's FlexSmartAi MX-AVR series are "Penta-Brid" digital video recorders, so they recognize & record all 5 video formats to bring easy "plug-n-play" camera installation to coax camera systems. Their direct-connection rear coax camera ports auto-detect & switch to support AVS/HDCVI/AHD/TVI format cameras up to 5MP resolution or IP cameras up to 6MP. This means quick & easy existing coax camera system installs & upgrades, even in mixed camera format systems.
FlexSmartAi MX-AVRs are so 21st century they even accommodate older 20th-century standard analog video cameras under their CVBS (composite video baseband signal) settings.
When paired with IC Realtime's HD-AVS cameras, say goodbye to extra camera control or audio transmission wires. IC Realtime's HD-AVS system "piggy-backs" HD video, audio & camera control functions together on a single BNC camera cable for easy installation & full control of compatible HD-AVS cameras. For existing systems, the MX0402 includes a rear panel RS-485 control port cameras that can be activated through MX0402's control panel to run older analog PTZs.
In the second decade of the 21st century, everybody expects more from today's security video recorders, and the FlexSmartAi MX0402 delivers on all fronts, starting with 50% more video channels.
Although technically a 4 channel recorder, the MX0402 AVR actually records 6 video channels at full 1080p. So the MX0402 delivers 50% more camera capacity, enabling it to record & display live video from 2 additional network IP cameras up to 6MP resolution for clearly excellent video security. You heard right - 4 direct + 2 IP - so it's like buying a 4 channel AVR & getting a 6 channel.
The FlexSmartAi MX0402 not only punches above its weight on video channels and camera format flexibility, it's also a genuine, commercial-grade video security tool with seriously cutting-edge features.
Video signal range is no longer an issue. The FlexSmartAi MX-AVR series coaxial video system supports long-distance transmission over both coax cable and Unshielded Twisted Pair (UTP) up to 800m (2,600+ feet) for 1080P, and 1200m (3,900_ feet) for 720P, meaning large area installations are no problem.
It's already clear the FlexSmartAi MX0402 is the perfect replacement for an older 4 channel analog DVR, but with 2 additional IP camera channels and an impressive set of advanced features, the MX0402 can be the core of new residential or small commercial installations too.
Higher resolution cameras mean larger data streams, but no worries here either. IC Realtime's MX0402 supports high-resolution HD coax & IP video stream rates by incorporating a new AI-based compression that works with our Smart H.265+ video codec.
The MX0402's Smart H.265+ compression already reduces bit rate up to 90% compared with standard H.264. The result is faster streaming and more days recording on each hard drive.

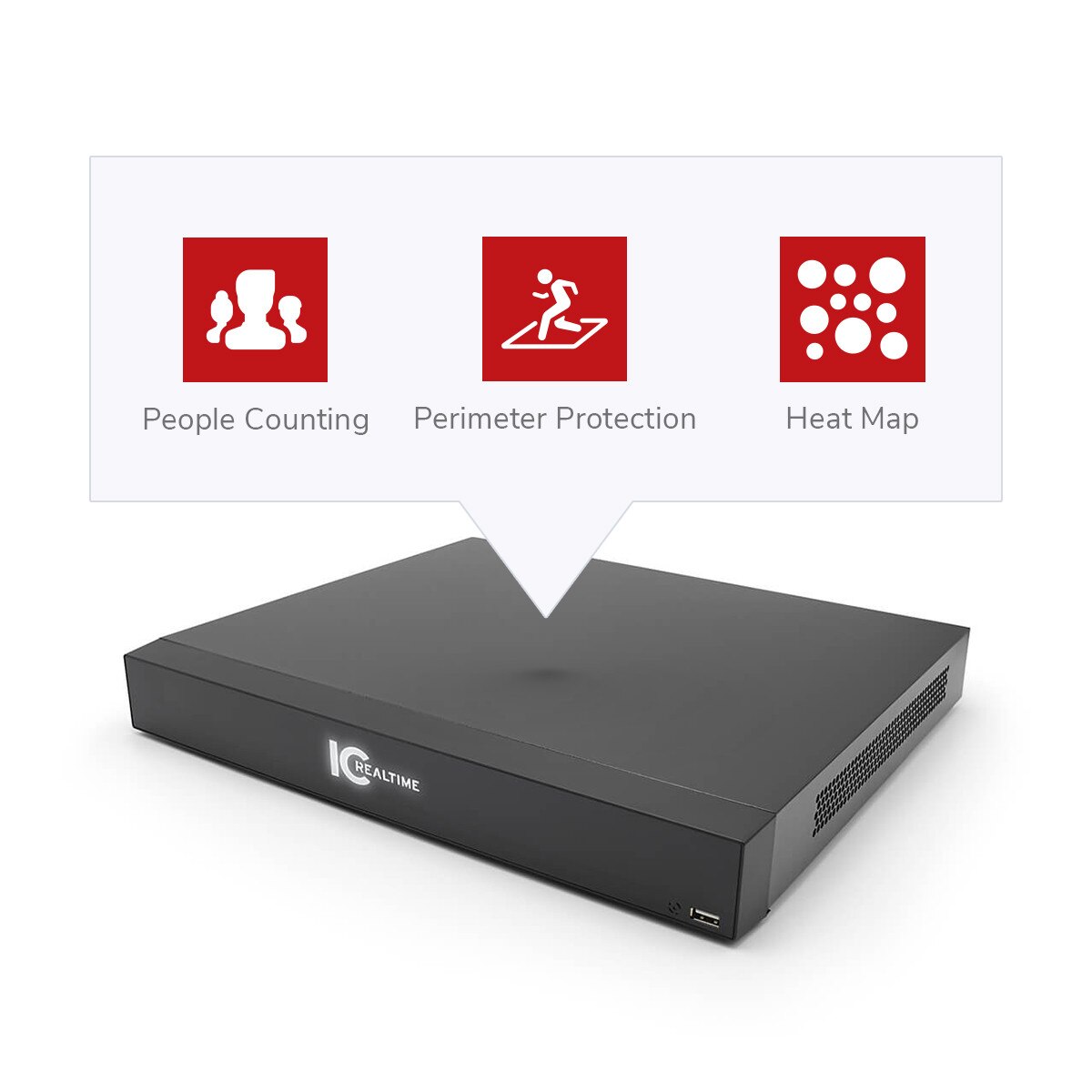

The built-in FlexSmartAi system enables advanced Intelligent Motion Detection (IMD) perimeter monitoring that uses a deep-learning algorithm for dependable IVS/trip-wire performance and fewer false alarms.

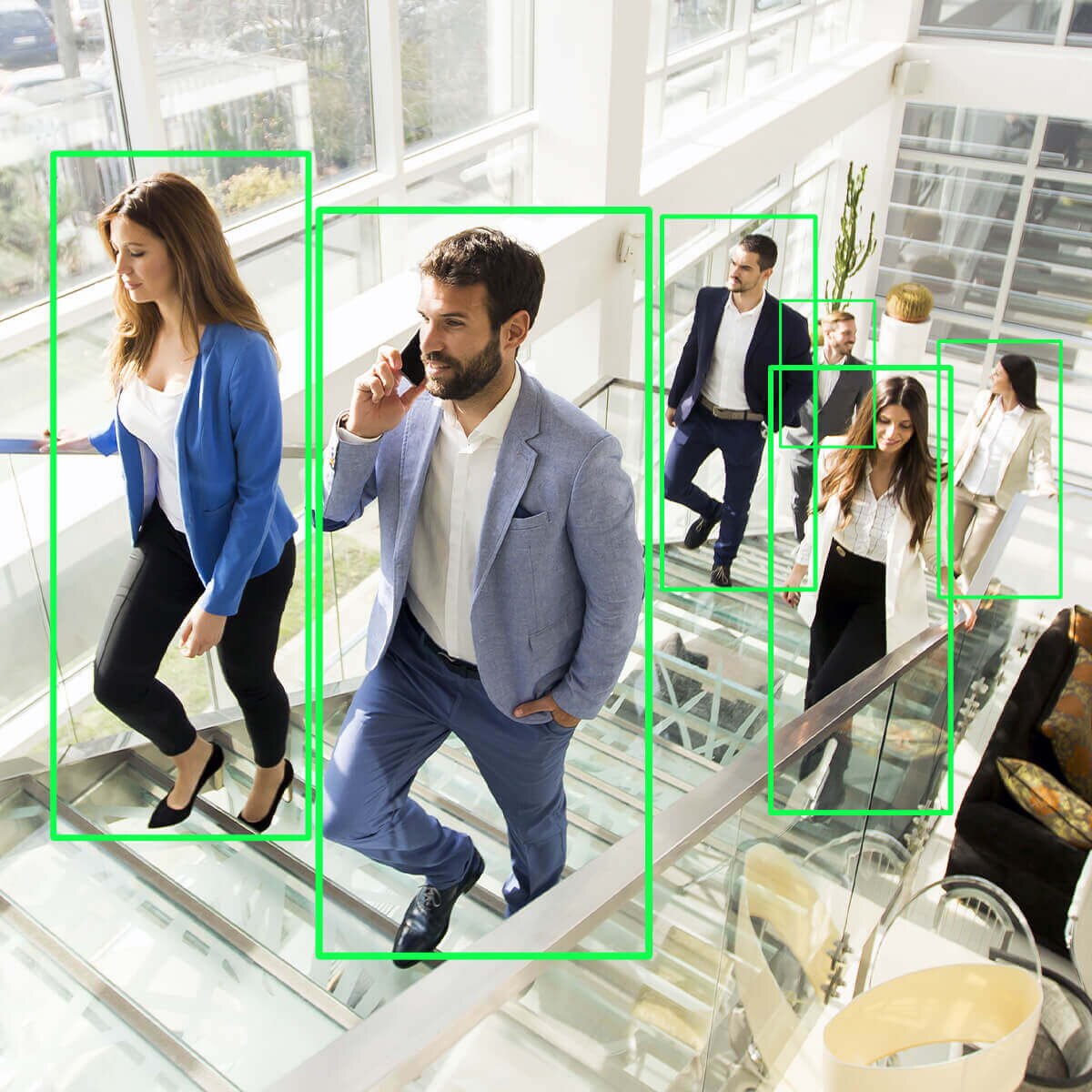

The IMD algorithm analyzes motion and ignoring random "pixel change" movements, like animal activity or leaves in the wind, but recognizing people and vehicle shapes, sending alarms only when human or vehicle intrusion is confirmed.

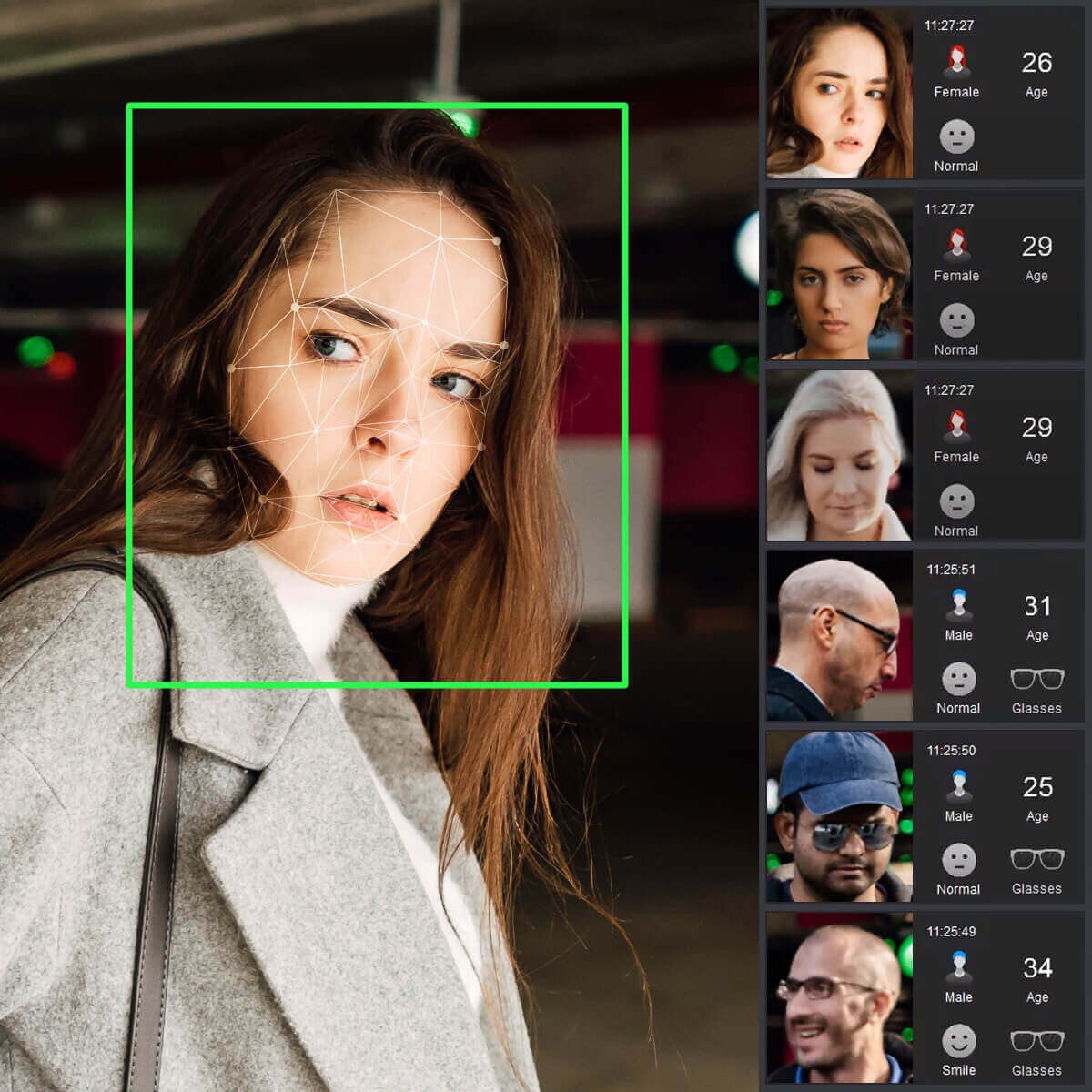

For 21st-century video security in even the most sensitive locations, FlexSmartAi MX0402 delivers Real-Time Face Recognition on any one of its 4 BNC channels to discern facial features, including gender, age, expression, glasses, mustache, mouth/mask, and can capture & record faces with metadata.
The MX0402 can internally store a total of 10,000 face images in up to 10 built-in facial recognition databases. Each database face record can be updated with name, gender, birthday, address, or certificate types/numbers, to identify individuals in the database. Once set for recognition, FlexSmartAi MX-AVR series AVRs can issue a "STRANGER" alert if a scanned face is not found.

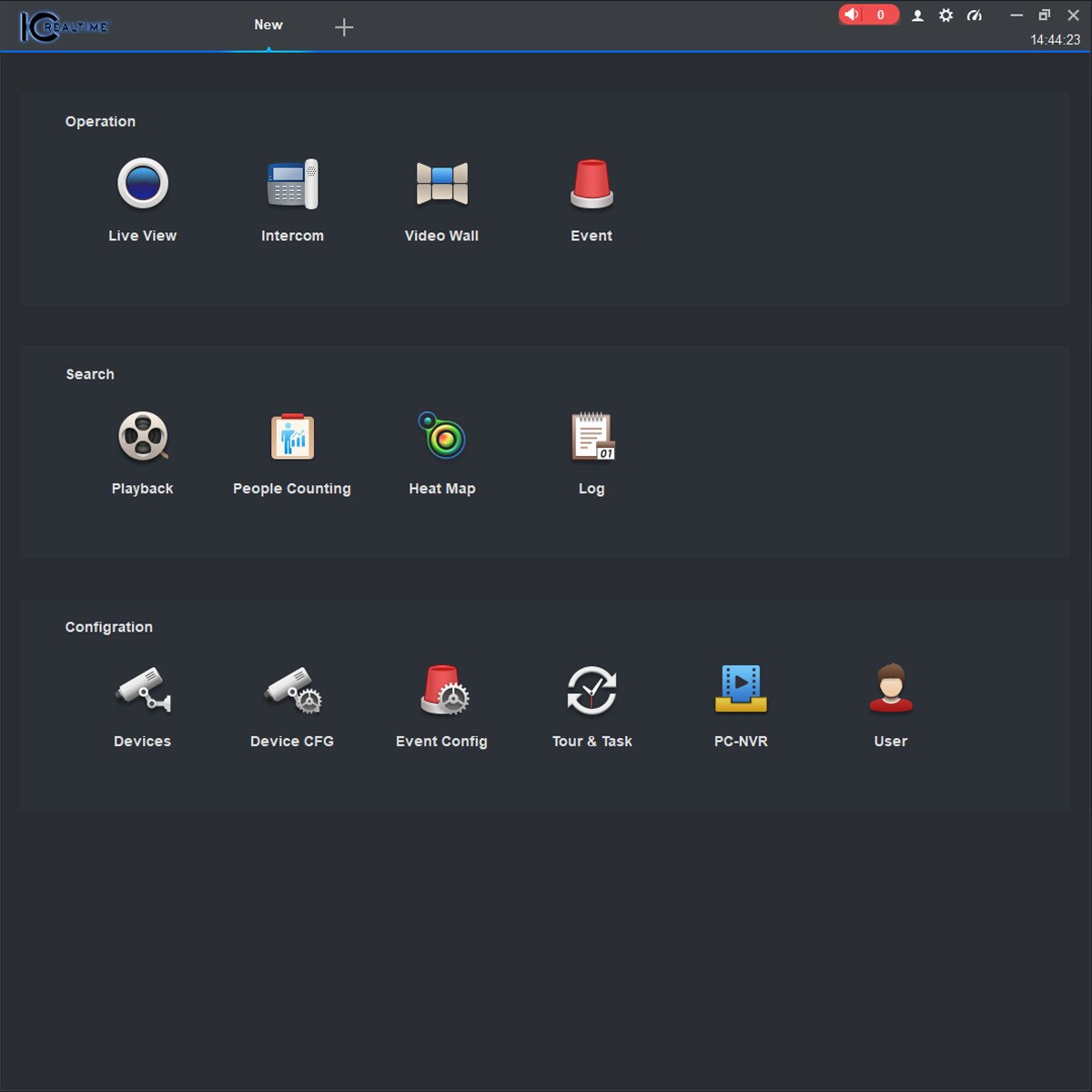

Of course, MX0402 works flawlessly with our free Android & iPhone (IoS) apps, with other video devices through our free PC & Mac based ICRSS central station software and - as part of the IC Realtime Video Ecosystem - directly with the Dash line phone apps too. Once your MX0402 is online, download & install either of the apps, scan the unit's code in, and voila!
As part of the IC Realtime Video Ecosystem, our FlexSmartAi MX-AVR series represents the next generation of high speed, adaptable AI-enhanced coax video recorders. The FlexSmartAi MX0402 is the perfect upgrade for residential or small commercial 4 channel installations. With cross-format camera auto-switching, built-in facial recognition, and IVS rule detection capabilities, the MX0402 makes the perfect replacement for any outdated 4 channel analog DVR.
If you're looking for an easy install choice for new or existing 4 channel BNC/coax based camera systems, with the added benefit of 2 extra IP channels, FlexSmartAi MX0402 delivers.
Use FlexSmartAi MX-AVR series MX0402 on your next 4 channel coax based video security job to bring it into the 21st century, on time & in-budget.
See the complete IC Realtime linw of advanced video security equipment, including our new coax-based FlexSmartAi MX-AVR series HD-AVS video recorders and high-resolution HD-AVS cameras.
Not only are FlexSmartAi MX-AVRs commercial-grade security tools, IC Realtime also gave them cutting-edge tech. Like built-in facial recognition, "one wire" video+audio+control over coax, MX0402 also features easy "plug & play" installation with camera format auto-matching that senses & accommodates every major coax camera technology.
IC Realtime's FlexSmartAi MX-AVR series are "Penta-Brid" digital video recorders, so they recognize & record all 5 video formats to bring easy "plug-n-play" camera installation to coax camera systems. Their direct-connection rear coax camera ports auto-detect & switch to support AVS/HDCVI/AHD/TVI format cameras up to 5MP resolution or IP cameras up to 6MP. This means quick & easy existing coax camera system installs & upgrades, even in mixed camera format systems.
FlexSmartAi MX-AVRs are so 21st century they even accommodate older 20th-century standard analog video cameras under their CVBS (composite video baseband signal) settings.
When paired with IC Realtime's HD-AVS cameras, say goodbye to extra camera control or audio transmission wires. IC Realtime's HD-AVS system "piggy-backs" HD video, audio & camera control functions together on a single BNC camera cable for easy installation & full control of compatible HD-AVS cameras. For existing systems, the MX0402 includes a rear panel RS-485 control port cameras that can be activated through MX0402's control panel to run older analog PTZs.
In the second decade of the 21st century, everybody expects more from today's security video recorders, and the FlexSmartAi MX0402 delivers on all fronts, starting with 50% more video channels.
Although technically a 4 channel recorder, the MX0402 AVR actually records 6 video channels at full 1080p. So the MX0402 delivers 50% more camera capacity, enabling it to record & display live video from 2 additional network IP cameras up to 6MP resolution for clearly excellent video security. You heard right - 4 direct + 2 IP - so it's like buying a 4 channel AVR & getting a 6 channel.
The FlexSmartAi MX0402 not only punches above its weight on video channels and camera format flexibility, it's also a genuine, commercial-grade video security tool with seriously cutting-edge features.
Video signal range is no longer an issue. The FlexSmartAi MX-AVR series coaxial video system supports long-distance transmission over both coax cable and Unshielded Twisted Pair (UTP) up to 800m (2,600+ feet) for 1080P, and 1200m (3,900_ feet) for 720P, meaning large area installations are no problem.
It's already clear the FlexSmartAi MX0402 is the perfect replacement for an older 4 channel analog DVR, but with 2 additional IP camera channels and an impressive set of advanced features, the MX0402 can be the core of new residential or small commercial installations too.
Higher resolution cameras mean larger data streams, but no worries here either. IC Realtime's MX0402 supports high-resolution HD coax & IP video stream rates by incorporating a new AI-based compression that works with our Smart H.265+ video codec.
The MX0402's Smart H.265+ compression already reduces bit rate up to 90% compared with standard H.264. The result is faster streaming and more days recording on each hard drive.
The built-in FlexSmartAi system enables advanced Intelligent Motion Detection (IMD) perimeter monitoring that uses a deep-learning algorithm for dependable IVS/trip-wire performance and fewer false alarms.
The IMD algorithm analyzes motion and ignoring random "pixel change" movements, like animal activity or leaves in the wind, but recognizing people and vehicle shapes, sending alarms only when human or vehicle intrusion is confirmed.
For 21st-century video security in even the most sensitive locations, FlexSmartAi MX0402 delivers Real-Time Face Recognition on any one of its 4 BNC channels to discern facial features, including gender, age, expression, glasses, mustache, mouth/mask, and can capture & record faces with metadata.
The MX0402 can internally store a total of 10,000 face images in up to 10 built-in facial recognition databases. Each database face record can be updated with name, gender, birthday, address, or certificate types/numbers, to identify individuals in the database. Once set for recognition, FlexSmartAi MX-AVR series AVRs can issue a "STRANGER" alert if a scanned face is not found.
Of course, MX0402 works flawlessly with our free Android & iPhone (IoS) apps, with other video devices through our free PC & Mac based ICRSS central station software and - as part of the IC Realtime Video Ecosystem - directly with the Dash line phone apps too. Once your MX0402 is online, download & install either of the apps, scan the unit's code in, and voila!
As part of the IC Realtime Video Ecosystem, our FlexSmartAi MX-AVR series represents the next generation of high speed, adaptable AI-enhanced coax video recorders. The FlexSmartAi MX0402 is the perfect upgrade for residential or small commercial 4 channel installations. With cross-format camera auto-switching, built-in facial recognition, and IVS rule detection capabilities, the MX0402 makes the perfect replacement for any outdated 4 channel analog DVR.
If you're looking for an easy install choice for new or existing 4 channel BNC/coax based camera systems, with the added benefit of 2 extra IP channels, FlexSmartAi MX0402 delivers.
Use FlexSmartAi MX-AVR series MX0402 on your next 4 channel coax based video security job to bring it into the 21st century, on time & in-budget.
See the complete IC Realtime linw of advanced video security equipment, including our new coax-based FlexSmartAi MX-AVR series HD-AVS video recorders and high-resolution HD-AVS cameras.
Specifications
| System | |
| Main Processor: | Embedded Processor |
| Operating System: | Embedded LINUX |
| Display | |
| Display Interface: | 1 HDMI ,1 VGA |
| Display Resolution: | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| OSD: | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Display Split: | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 Main+ Extra screen (only coax channels are supported on extra screen) |
| Intelligence | |
| IVS: | (Coax Channels Only) Tripwire & Intrusion |
| Advanced Intelligent Functions: | (Coax Channels Only) Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle Intelligent Motion Detect (iMD): Motion detection alarm with human and vehicle recognition. Face Recognition |
| Video | |
| Supported Camera Types: | IP, Coax |
| IP Camera Input: | 4+2 Channel, each channel up to 6MP |
| HDAVS input: | AVS: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps AHD/ TVI: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps CVBS |
| Trigger Events: | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection: | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
| Playback: | 1/4 |
| Search Mode: | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode: | USB Device/Network |
| Resolution: | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Audio | |
| Compression: | AAC(only for the 1st channel), G.711A, G.711U, PCM |
| Two-way Talk: | Reuse audio in/out, RCA |
| Recording | |
| Record Compression: | AI Coding/H.265+/H.265/H.264+/H.264 |
| Record Resolution: | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Record Bit Rate: | 32Kbps–6144Kbps Per Channel |
| Record Mode: | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval: | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Incoming Bandwith: | 32Mbps |
| Throughput: | 24Mbps |
| Storage | |
| Internal HDD: | 1 SATA Port, up to 6TB capacity |
| eSATA: | N/A |
| Network | |
| Ethernet: | 1 RJ-45 Port (100 MB) |
| Protocol: | HTTP, HTTPS, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, SNMP, P2P, IP Search (Supports IC Realtime and ONVIF devices) |
| Compatibility: | IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Max. User Access: | 128 Users |
| Web Viewer: | IE, Firefox, Chrome, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android |

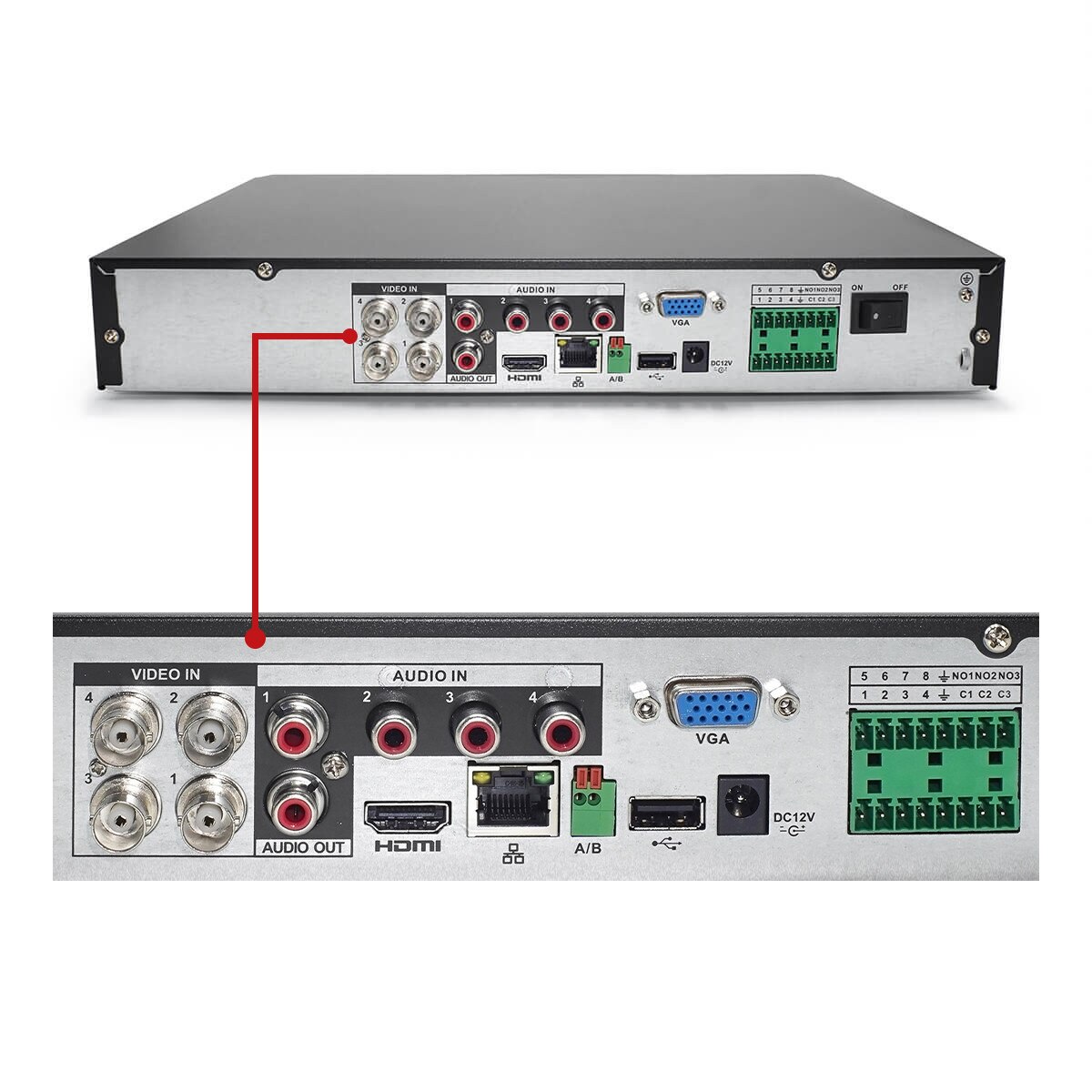

| Interface | |
| RS232: | N/A |
| RS485: | 1 Port, for PTZ Control |
| USB: | 2 USB 2.0 |
| Alarm I/O: | 8/3 |
| Electrical | |
| Power Supply: | DC 12V/1.5A |
| Power Consumption: | <4W (Without HDD) |
| Environmental | |
| Operating Conditions: | -10C ~ +55C (+14F ~ +131F), 10%~ 90% RH |
| Construction | |
| Installation: | Desktop installation |
| Dimensions: | Mini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.10'' × 2.17") |
