IC Realtime's ultra-compatible HD over Coax HDAVS series has emerged as the industry favorite for new installations and upgrades for camera systems wired with coaxial / BNC cable because of its installation simplicity, outstanding video & audio performance, and industry-leading cross-format compatibility at both the camera and AVR recorder level. Now we are proud to expand our Pentabrid AVR coax video recorder family with the "BNC Big Boy" of the HDAVS recorder world, the 32 channel EL3200-2U5MP-AI1.

While network cable-based IP video systems now dominate new installations in the security camera world, thousands of legacy coaxial cable-based camera systems are installed worldwide. IC Realtime continues to support these systems and innovate & improve coaxial technology. We recognize that new coax-based systems maintain a lead over IP in significant fields like cross-platform BNC video format compatibility, camera-level security, and reduced video latency. Our HDAVS systems can offer significant cost & job time advantages when upgrading existing coax cable-based camera systems, providing IP-level features without re-wiring.

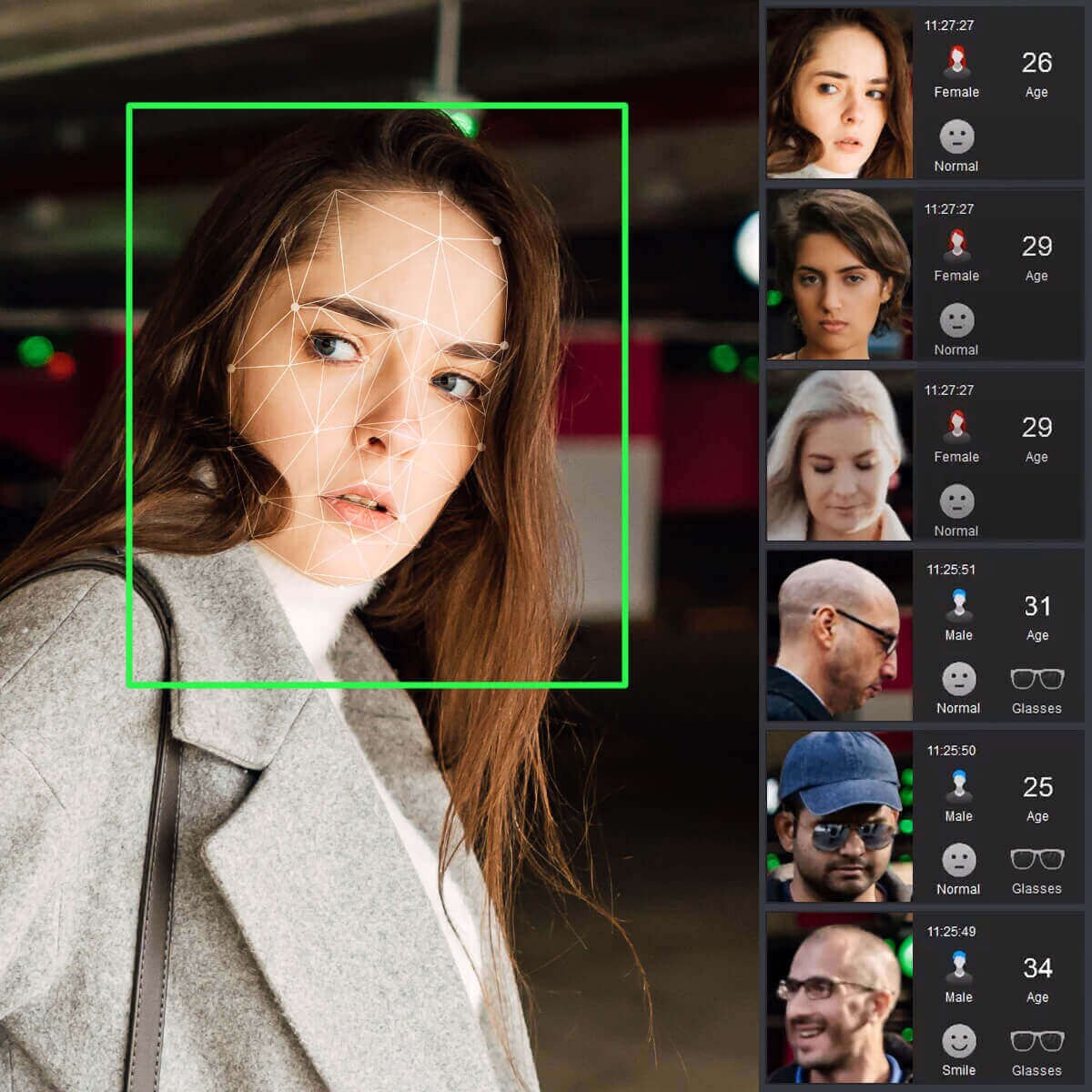

EL3200 is IC Realtime's first 32 channel HDAVS unit that supports facial recognition, and it adds Ai functionality options to our built-in high-performance IMD and IVS Perimeter Protection systems, including FlexSmartAi enhanced human, face, and vehicle recognition skills that reduce false alerts by up to 90%. EL3200's built-in facial database can be accessed on any 2 of its BNC channels simultaneously. Facial recognition can even be used to trigger alerts, including snapshots and emails when non-database "stranger" faces are identified while storing up to 10.000 facial records in its built-in facial database.

Our new EL3200 maintains our industry-best coax video format compatibility with auto-recognition of AVS, TVI, AHD, and even legacy conventional analog video signals. No configuration and format struggles - EL3200 just adapts & records for easy coax camera system upgrades. EL3200 can even record IP camera streams right off its dual 1000 Mbps RJ45 network connections for true Pentabrid cross-platform compatibility. EL3200 represents the newest generation of IC Realtime's Advanced Video Recorders (AVR) family. It can both handle coax cameras up to 5MP and IP cameras up to 8MP as well as being ONVIF 16.12 and CGI conformant.

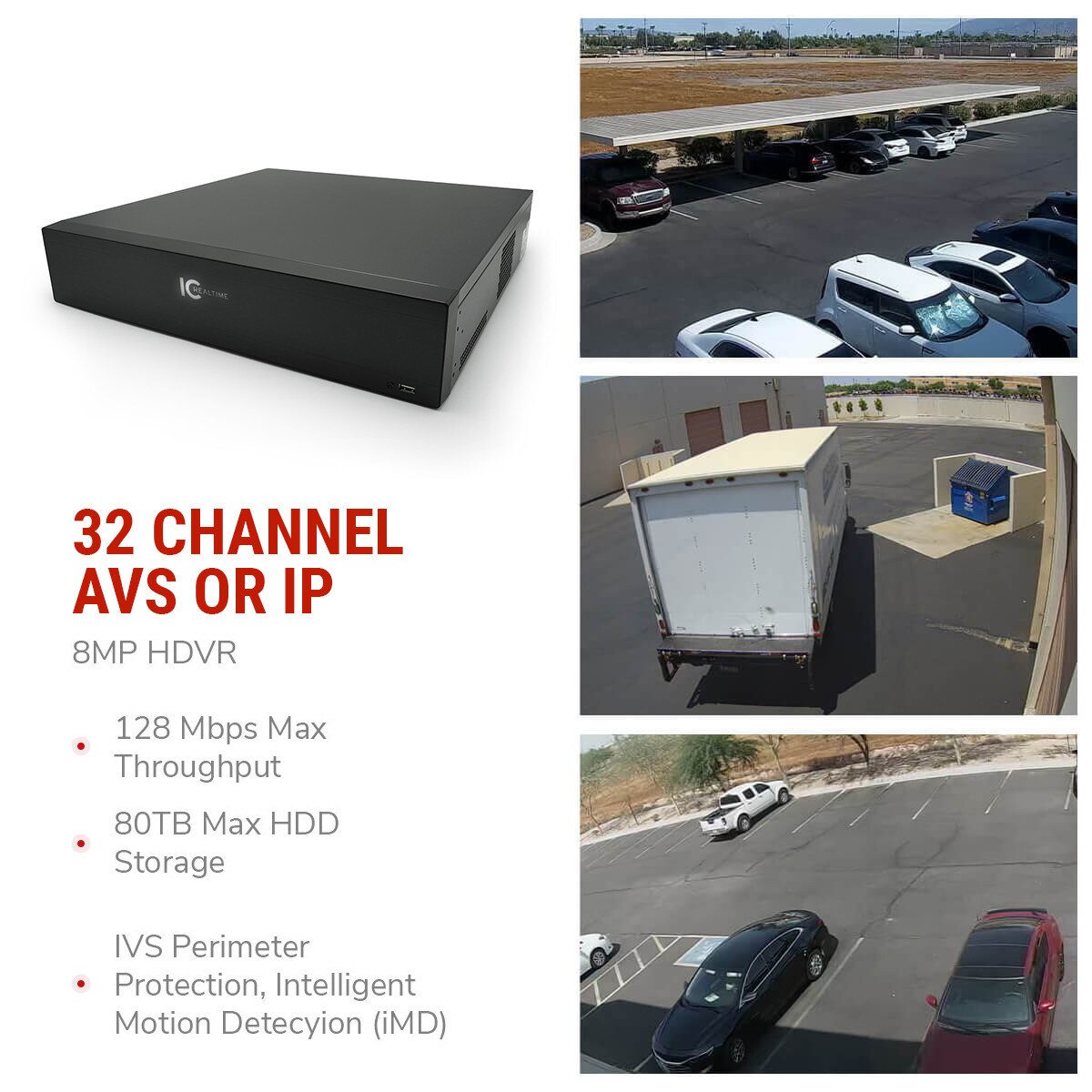

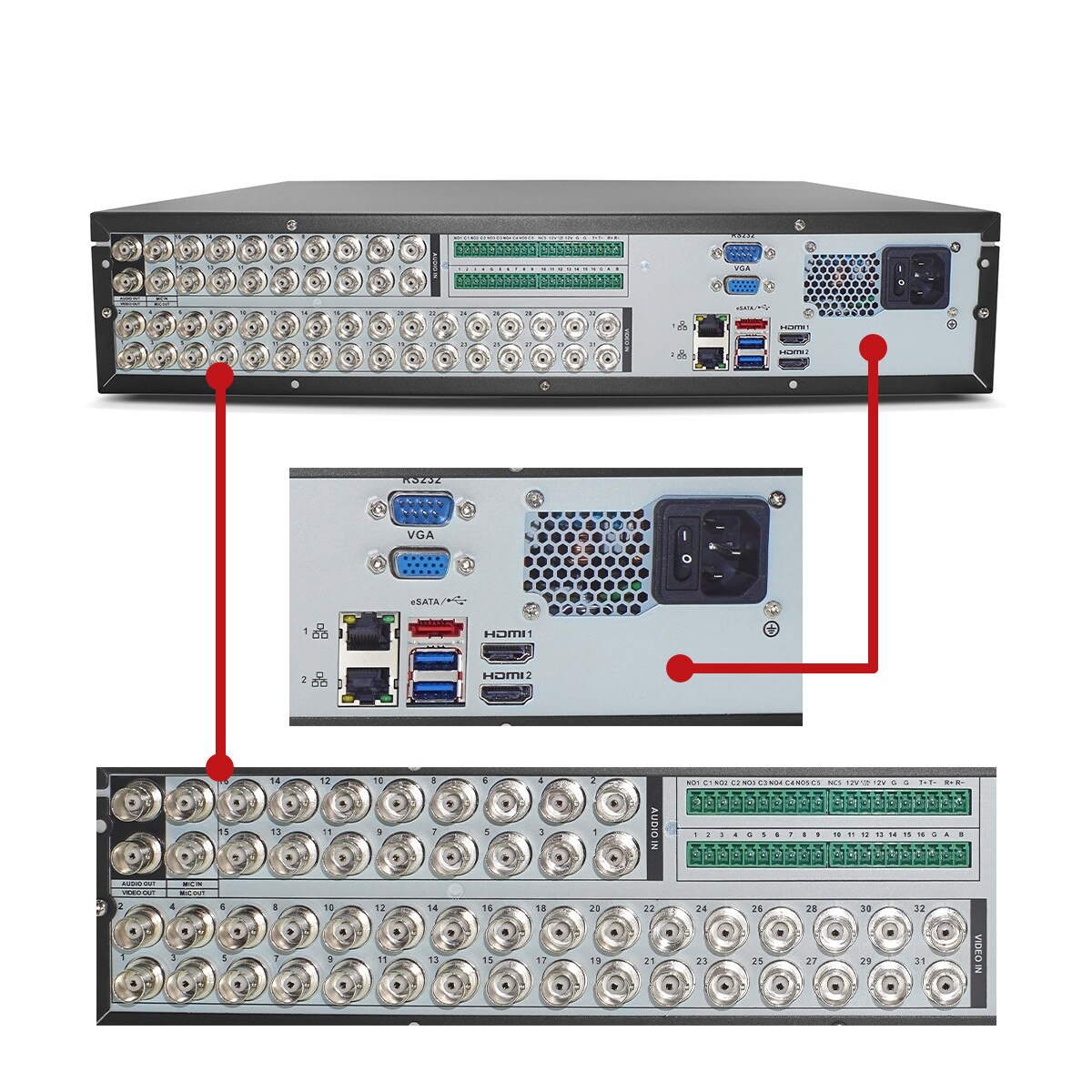

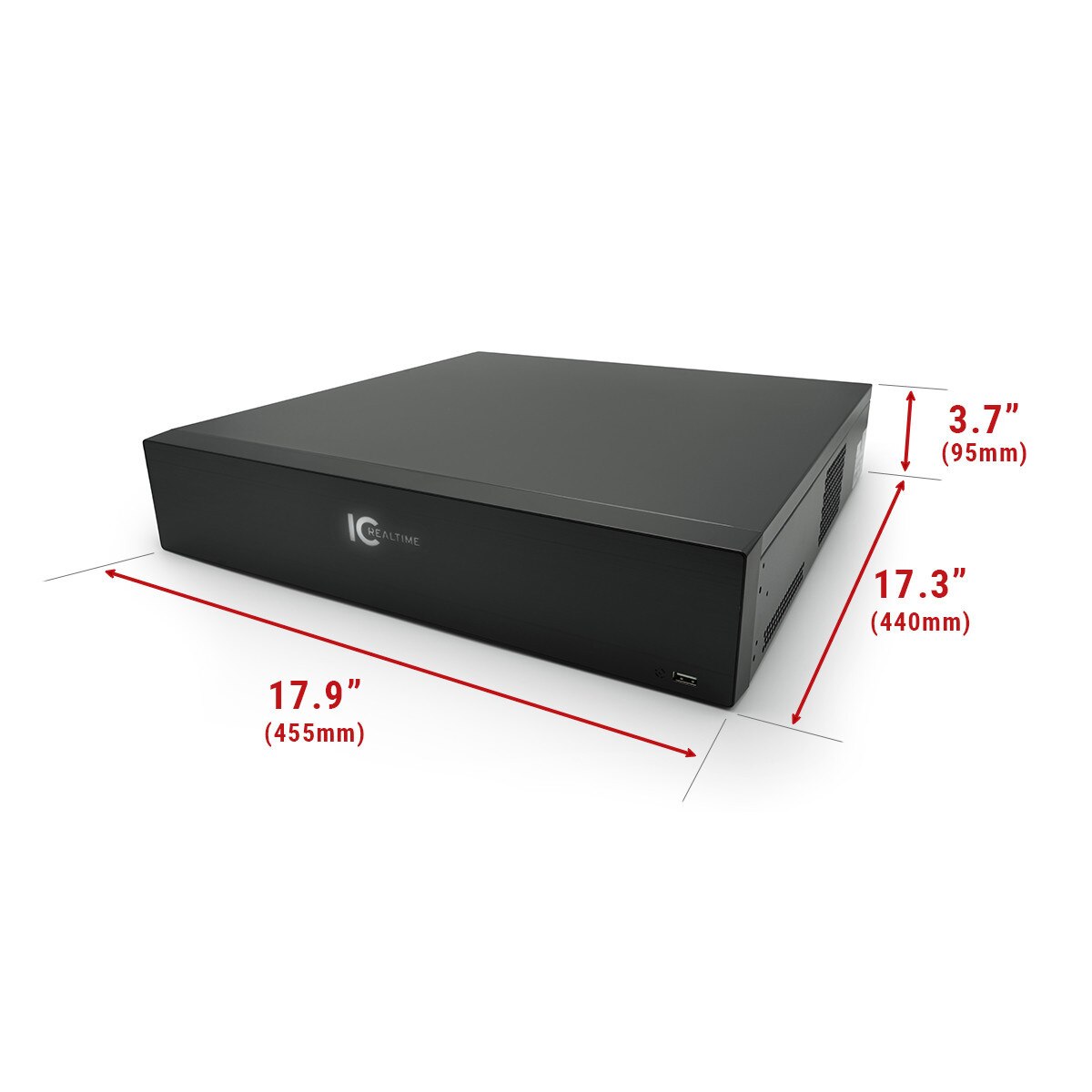

A big 32 channel capacity AVR in a 2U rack-mountable case (rack ears included) needs big on-chassis video storage, and EL3200 delivers with 8 internal SATA hard drive bays with up to 10TB drive capacity each for a whopping 80TB of internal storage capacity. There is even an eSATA port for external storage on the AVR's backplane, along with 2 of the EL3200's four USB ports (2 USB 2.0 + 2 USB 3.0), and an RS485 port for legacy PTZ control.  The EL3200 can handle 16 alarm inputs and 6 relay outputs, has 16 BNC audio input ports & a BNC output port for legacy external audio installations, and has two-way talk ports for interactive audio.
The EL3200 also has more video monitor output compatibilities than any other of our recorders, with dual HDMI ports - one of which is 4KUHD monitor compatible at 3840 x 2160 - and both a VGA and a standard analog "TV" monitor output for total legacy system monitor options.

With our new EL3200-2U5MP-AI1, IC Realtime has proven once again that we support our dealers & integrators in the field by continuing to build BNC camera systems with state-of-the-art video & audio performance and multi-format legacy system upgrade support. With a 10 Year Limited Warranty, cutting-edge features, and cross-platform format support, our HDAVS system is the world leader in complete plug & play coax/BNC video system compatibility at the recorder & camera level.
If you are ready to experience Pentabrid compatibility and offer cost-effective coax compatible upgrades to your legacy video system operators, call your local IC Realtime distributor or one of our Factory Product Specialist reps and see the world's best coax gear for yourself.
