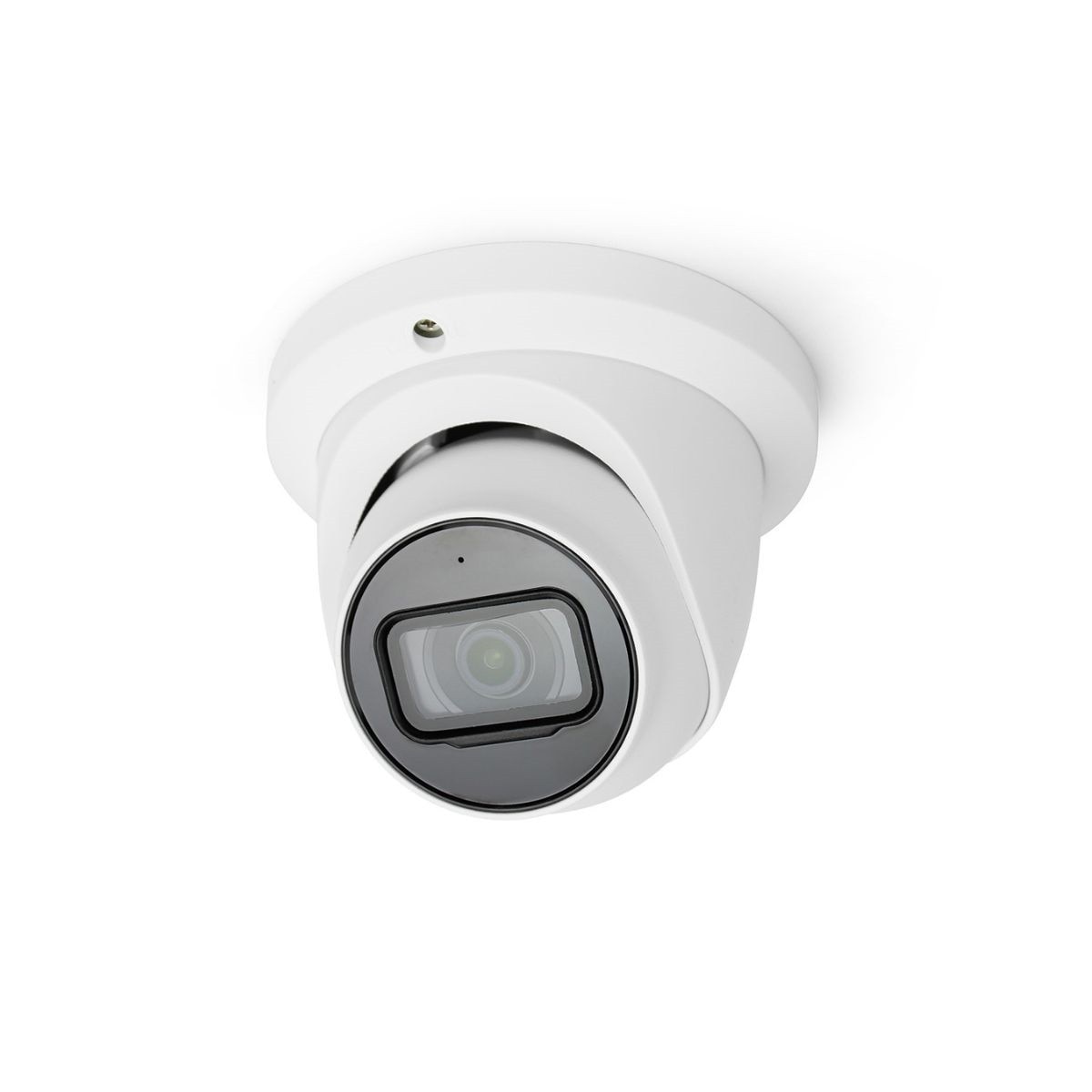

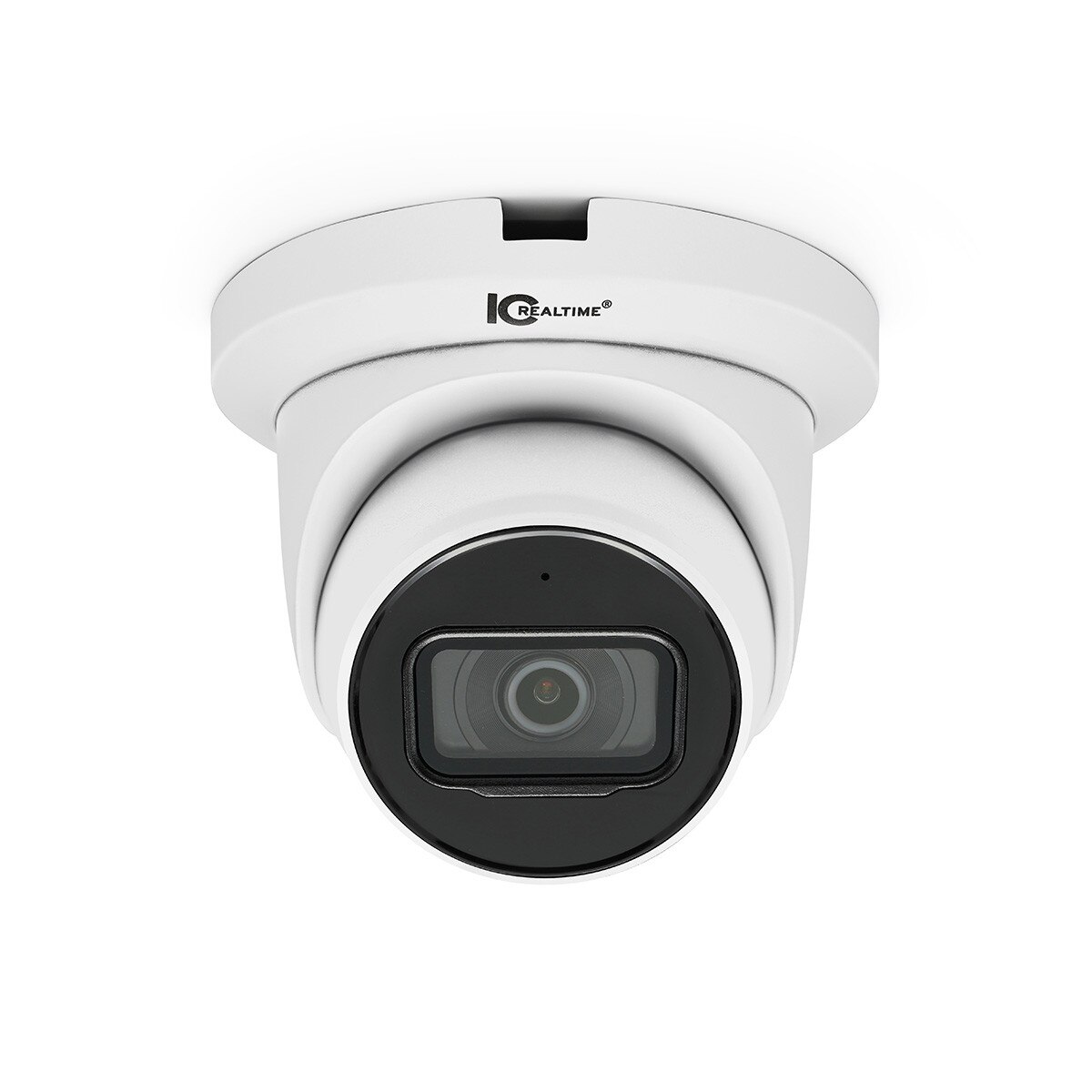

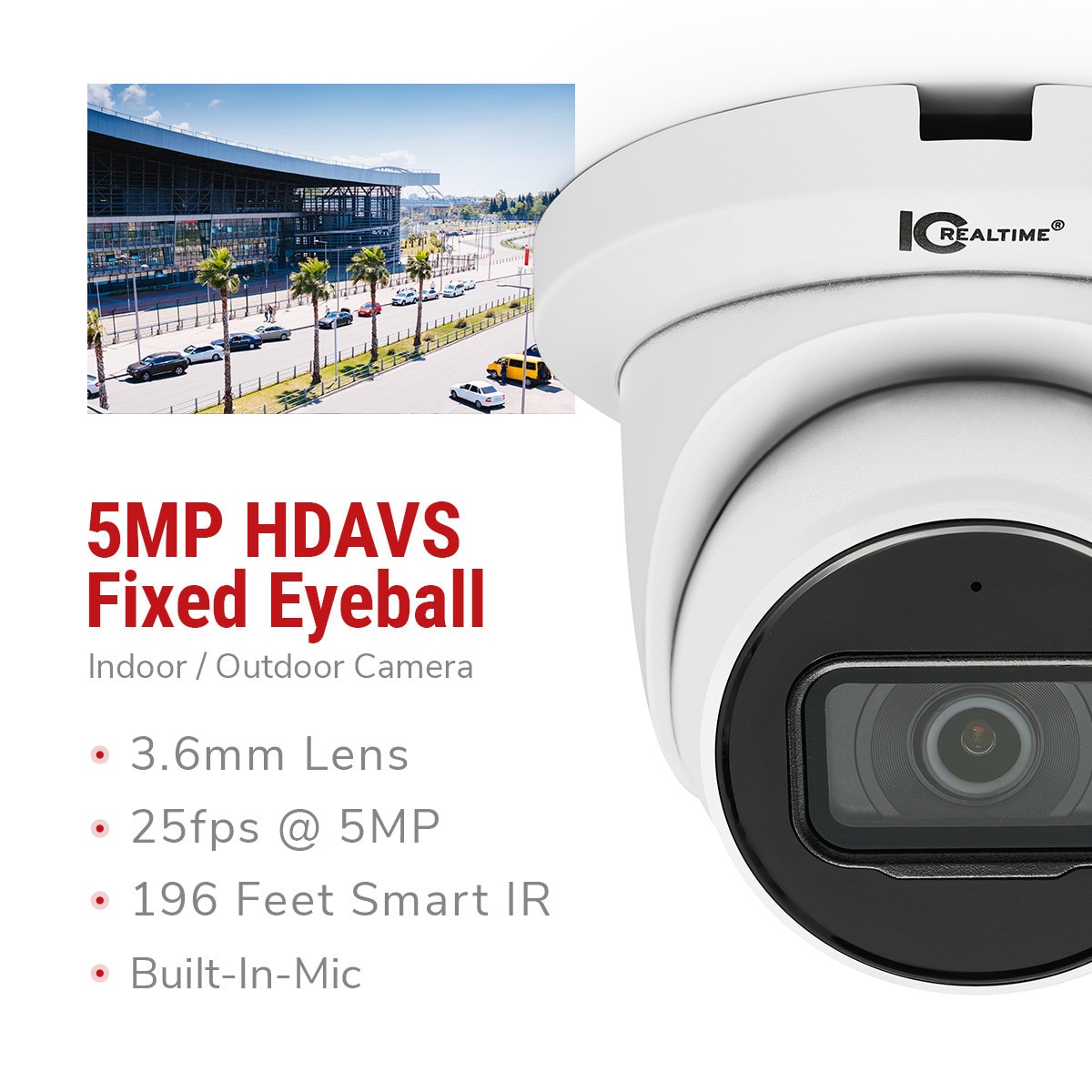

IC Realtime's new HDEG-E50F-IR-M1 may be the perfect 5MP eyeball dome camera for new or legacy coax camera installations. This Starlight & night vision champ has video output format switching right on the camera's BNC & power pigtail, making this multi-format camera the ideal replacement or upgrade coax camera.

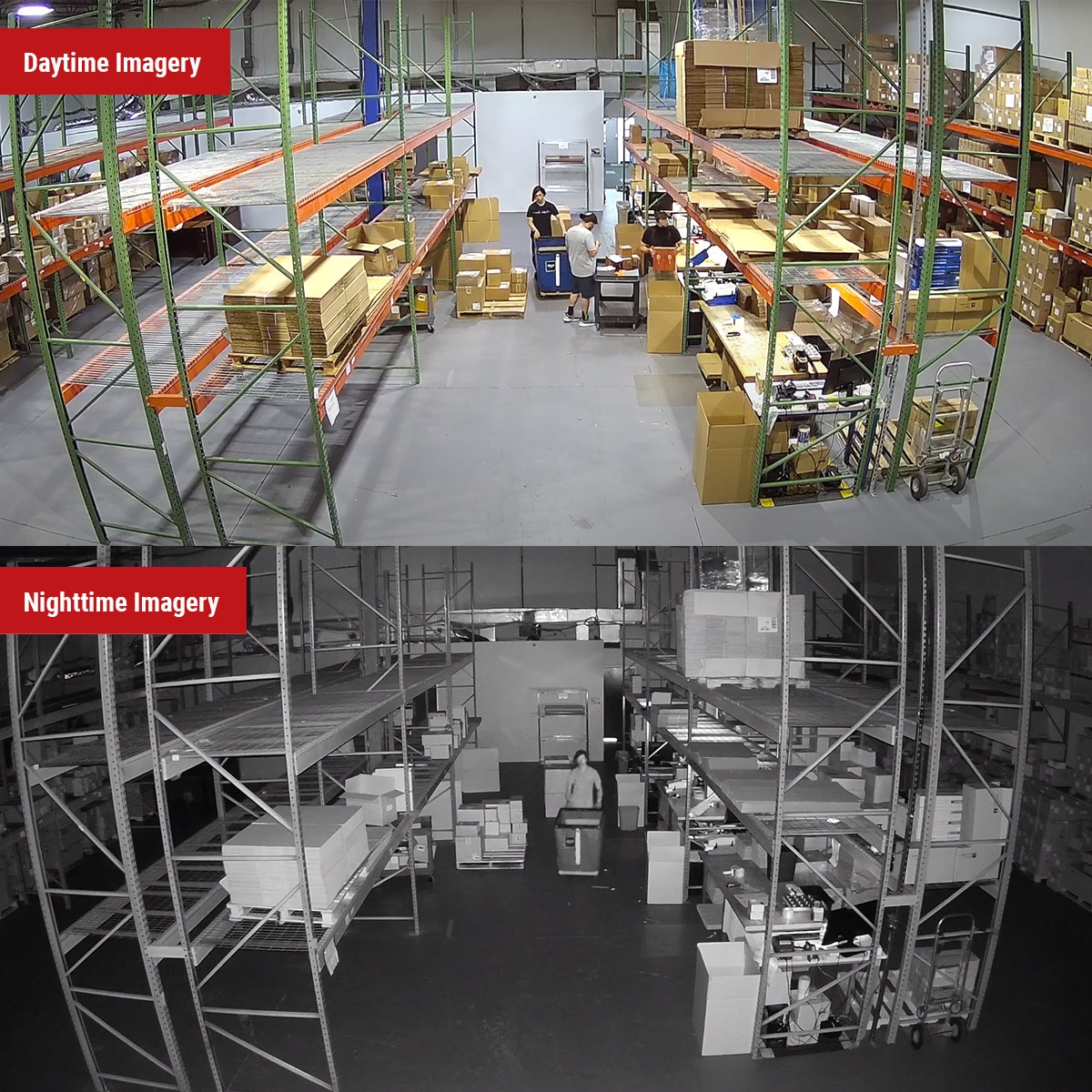

With a 2880 × 1620 Starlight video chip, 120dB dynamic range and a built-in audio pickup mic, the HDEG-E50F delivers broadcast quality audio pickup & ultra detailed 5MP @ 30FPS color video down to 0.001 lux, followed by 195+ feet of SmartIR night vision in total darkness. When used as a BNC camera system replacement/upgrade, the HDEG-E50F delivers TVI/AHD and analog (CVBS) recorder video format matching. This makes it a perfect fit for legacy coax DVRs, with future-proof widescreen video & audio capabilities already built-in & standing by.

HDEG-E50F's multi-format legacy system compatibility lets you replace an existing coax camera now and get amazing video detail and light management even using older DVRs. Once the head-end DVR is upgraded to a widescreen IC Realtime HDVR, you can unlock the camera's built-in HD widescreen 16:9 coverage with a single finger. Just switch the camera's format switches, power cycle, and voila! - full widescreen, high detail HD video.

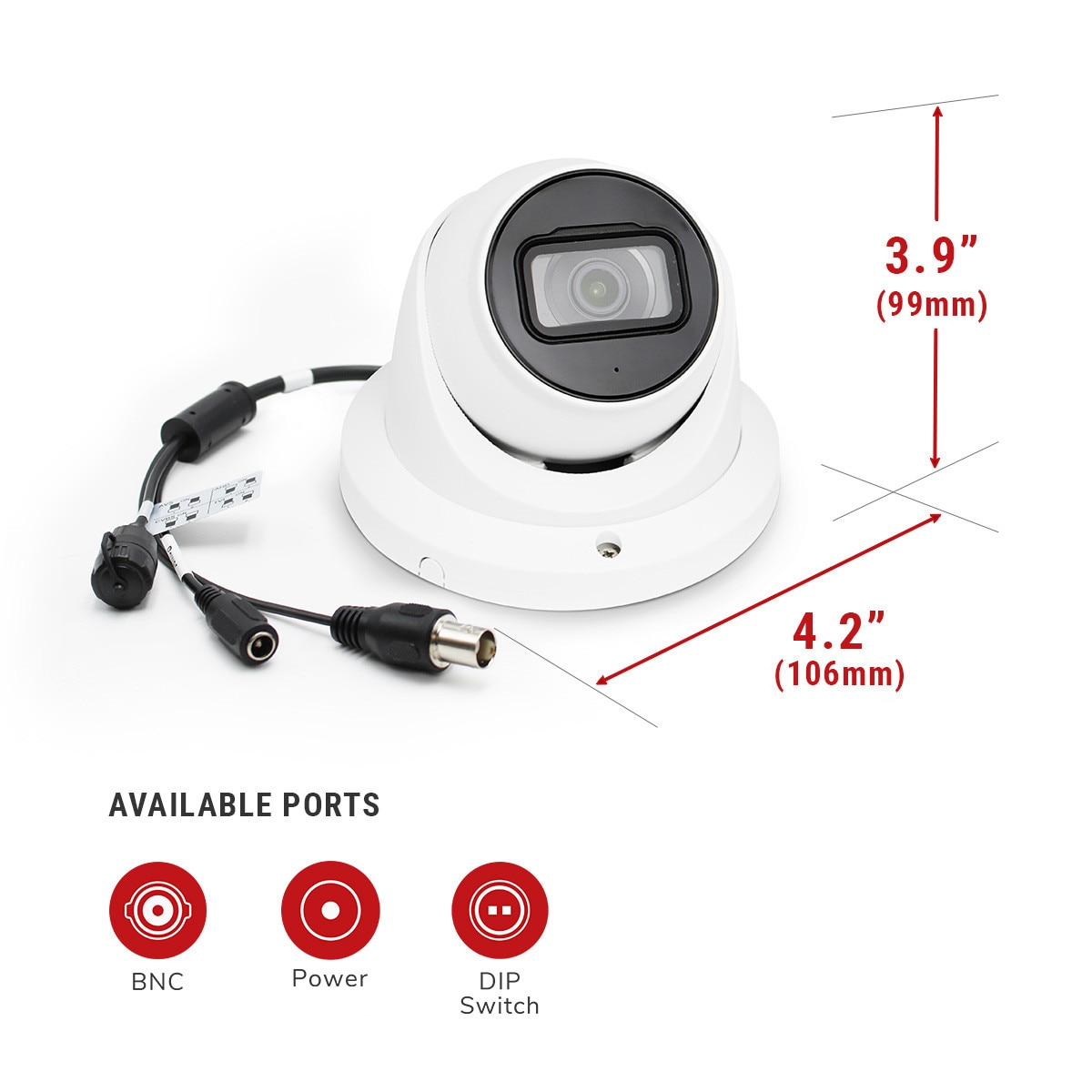

If you are a plant maintenance professional or AV integrator working in the coax cable video world, HDEG-E50F's video format adaptability is backed up by real-world toughness. A full metal cam ball and shroud/base with an IP67 weather rating mean long service life and dependable HD video quality. Low power draw (12VDC @ under 6W) and wide ±30% voltage tolerance deliver increased reliability even in challenging environments.

IC Realtime's HDAVS coax system centers around auto-format switching Pentabrid HDVR recorders and a selection of state-of-the-art HDAVS cameras that can match existing recorder video formats then switch into "new camera" mode when the recorder is upgraded. By utilizing existing coaxial video & power wire infrastructure, video specialists and clients can concentrate resources on more capable cameras & recorders and not waste time & client budgets pulling new wires.

Thousands of coax-based video camera systems are still in service all over the country. IC Realtime knows that the professionals that support these legacy systems and the clients who depend on them are a core part of our industry. Our new HDEG-E50F-IR-M1 eyeball dome camera represents our ongoing commitment to cutting-edge camera technology that leverages existing coax infrastructure to deliver dependable, cost-effective, cutting-edge video & audio capabilities.

Note:For compatibility purposes, this camera may come default on 4MP/ 2MP resolution. When equipped with an appropriate HDVR, you can set the camera to the maximum resolution via the OSD interface.
