HD4-TD27
Details

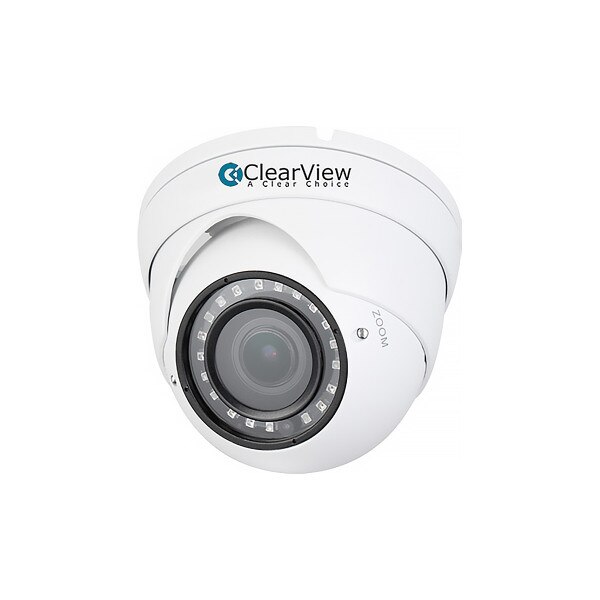

The HD4-TD27 from Clearview features a 1/3" CMOS capable of 30fps in 4MP resolution over coax. This Dome style camera has a 2.7-13.5mm vari-focal lens with a 5x optical zoom and is also switchable to CVBS standard definition.
The HD4-TD27 supports Smart IR with an IR range up to 98 feet with IP67 Weather Proof protection. These features make this camera a great choice for most residential and business applications.
The HD4-TD27 supports Smart IR with an IR range up to 98 feet with IP67 Weather Proof protection. These features make this camera a great choice for most residential and business applications.
Specifications
| Camera | |
| Image Sensor: | 1/3" CMOS |
| Effective Pixels: | 2688(H)×1520(V), 4.1MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.03Lux/F1.3, 30IRE, 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 30m (98feet) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 20 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Vari-focal lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-13.5mm |
| Max. Aperture: | F1.3 |
| Angle of View: | H: 98°~26° |
| Focus Control: | Manual |
| Close Focus Distance: | 200mm 7.87' |
| DORI - Detect: | 64m(210ft)/ 222m(728ft) |
| DORI - Observe: | 26m(84ft)/ 89m(291ft) |
| DORI - Recognize: | 13m(42ft)/ 44m(146ft) |
| DORI - Identify: | 6m(21ft)/ 22m(73ft) |
| PTZ | |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 4MP (2560×1440) |
| Frame Rate: | 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D |
| Smart IR: | Auto / Manual |
| Interface | |
| Video Interface: | 1-channel BNC HD AVS high definition video output / CVBS video output (Can switch) |
| Audio I/O: | N/A |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | 12V DC ±25% |
| Power Consumption: | Max 4.6W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F) |
| Storage Conditions: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 119mm×97.4mm (4.69"×3.83") |
| Gross Weight: | 0.69kg (1.52lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
