HD4-B150
Details

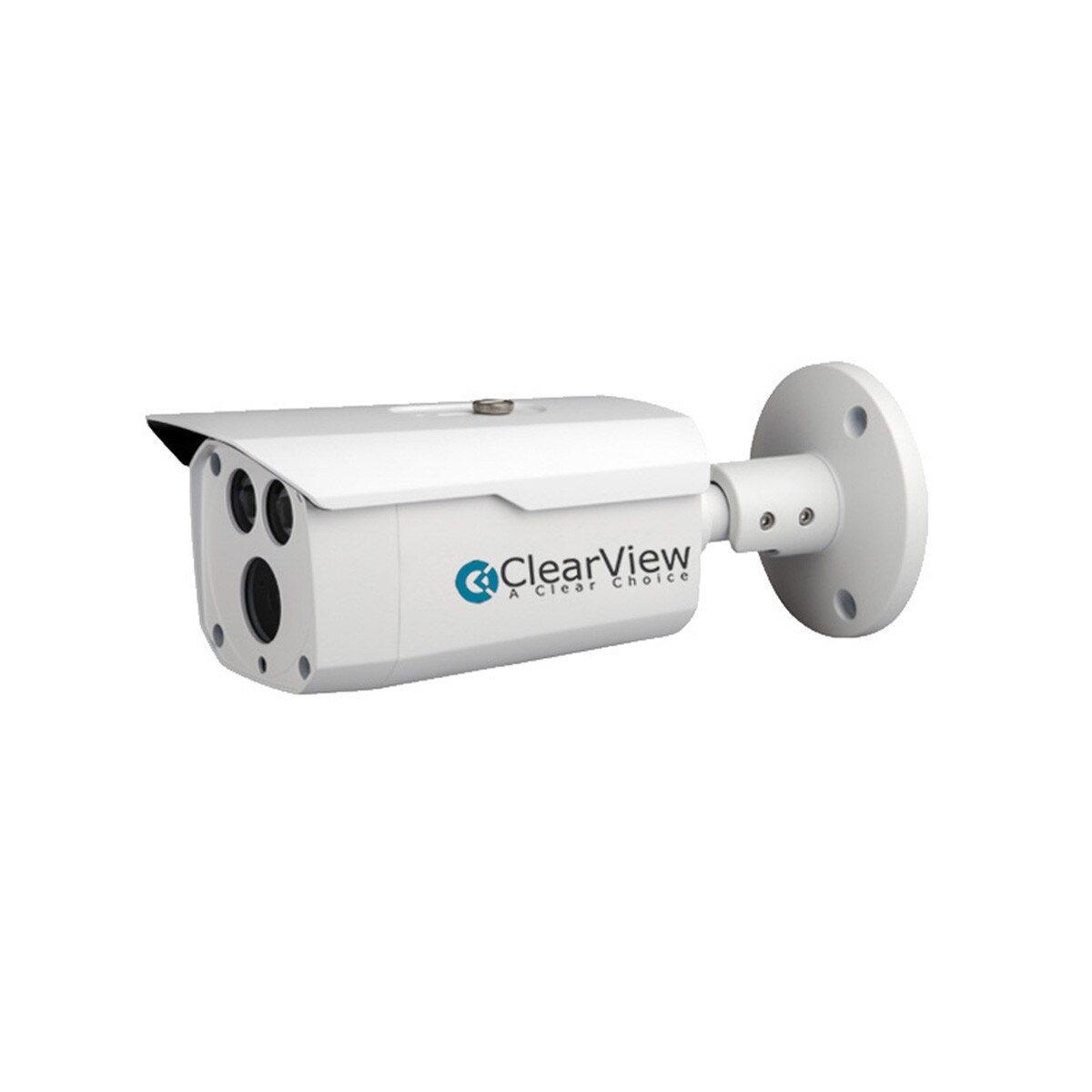

Clearview’s HD4-B150 features a 1/3" CMOS capable of 25fps in 4MP resolution over coax (25/30fps@1080P, 25/30fps@720P). The camera has a 3.6mm fixed lens and is also switchable to CVBS standard definition.
The HD4-B150 supports Smart IR with an IR range up to 262 feet. This camera also features true 120dB WDR for enhanced pictures with varying light conditions and IP67 Weather Proof protection. These features make this camera a great choice for most residential and business applications.
The HD4-B150 supports Smart IR with an IR range up to 262 feet. This camera also features true 120dB WDR for enhanced pictures with varying light conditions and IP67 Weather Proof protection. These features make this camera a great choice for most residential and business applications.
Specifications
| Camera | |
| Image Sensor: | 1/3" CMOS |
| Effective Pixels: | 2688(H)×1520(V), 4.1MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.01Lux/F1.5, 0Lux IR on, 30IRE |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 80m (262feet) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 3.6mm |
| Max. Aperture: | F1.5 |
| Angle of View: | H: 79° (48.6°/32.9°) |
| Focus Control: | N/A |
| Close Focus Distance: | 1500mm (1700mm, 4000mm)59.06'' (66.93'', 157.48'') |
| DORI - Detect: | 80m(262ft) |
| DORI - Observe: | 32m(105ft) |
| DORI - Recognize: | 16m(52ft) |
| DORI - Identify: | 8m(26ft) |
| PTZ | |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 4MP (2560×1440) |
| Frame Rate: | N/A |
| Bit Rate: | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D/3D |
| Smart IR: | Auto / Manual |
| Interface | |
| Video Interface: | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output |
| Audio I/O: | N/A |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | 12V DC ±25% |
| Power Consumption: | Max 6W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F) |
| Storage Conditions: | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | N/A |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 241.8mm×90.4mm×90.3mm (9.52"×3.56"×3.56") |
| Gross Weight: | 0.77kg (1.70lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 360° Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
