HD4-B100

(0)No Reviews yet
SKU: HD4-B100
Jump to Product Specs

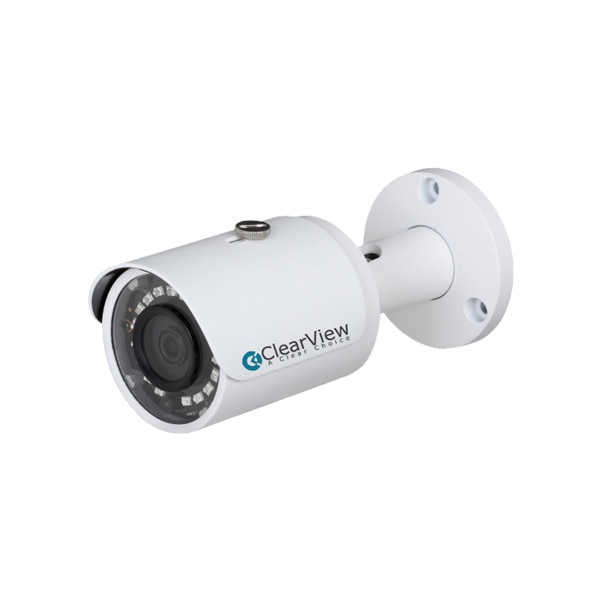

IR Mini Bullet, 2.8mm Lens, 4.1mp l (2560×1440) video resolution / 90+ Foot IR Nightvision, Dual BNC AVS + Analog video ...
1/3" CMOS | 4MP@25fps
Max. IR length 30m | Smart IR
HD AVS and CVBS dual-output
3.6mm fixed lens
120dB WDR | BLC | HLC |AGC
IP67 | DC12V
Discontinued Item

Details

Experience high definition 4MP video with the simplicity of using existing cabling infrastructure with HD AVS. The HD4-B100 is a 4MP HD AVS dome camera that features a 3.6mm lens and IP 67 weather proof rating. It offers a Max. IR length of 30m with a multi-language OSD and HD/ CVBS switchable output.

Specifications

Camera
Image Sensor: 1/3" CMOS
Effective Pixels: 2688(H)×1520(V), 4.1MP
Scanning System: Progressive
Minimum Illumination: 0.01Lux/F1.5, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
Illumination Distance: Up to 30m (98feet)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 18
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.6mm
Max. Aperture: F1.5
Angle of View: H: 79° (99.7°/48.6°)
Focus Control: N/A
Close Focus Distance: 1500mm (900mm, 1700mm)
59.06'' (35.43'', 66.93'')
DORI - Detect: 80m(262ft)
DORI - Observe: 32m(105ft)
DORI - Recognize: 16m(52ft)
DORI - Identify: 8m(26ft)
PTZ
OSD Menu: Multi-language
Video
Resolution: 4MP (2560×1440)
Frame Rate: 25fps@4MP,
25/30fps@1080P,
25/30fps@720P
Day/Night: Auto (ICR) / Manual
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto / Manual
Gain Control: AGC
Noise Reduction: 2D/3D
Smart IR: Auto / Manual
Interface
Video Interface: 1-channel BNC HD AVS high definition video output & 1-channel BNC CVBS video output
Audio I/O: N/A
Alarm I/O: N/A
Electrical
Power Supply: 12V DC ±25%
Power Consumption: Max 4.9W (12V DC, IR on)
Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F
Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection: IP67
Vandal Resistance: N/A
Construction
Casing: Aluminum
Dimensions: 164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Gross Weight: 0.44kg (0.97lb)
Mounting Pan/Tilt/Rotation: Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
