HD2-WD20
Details

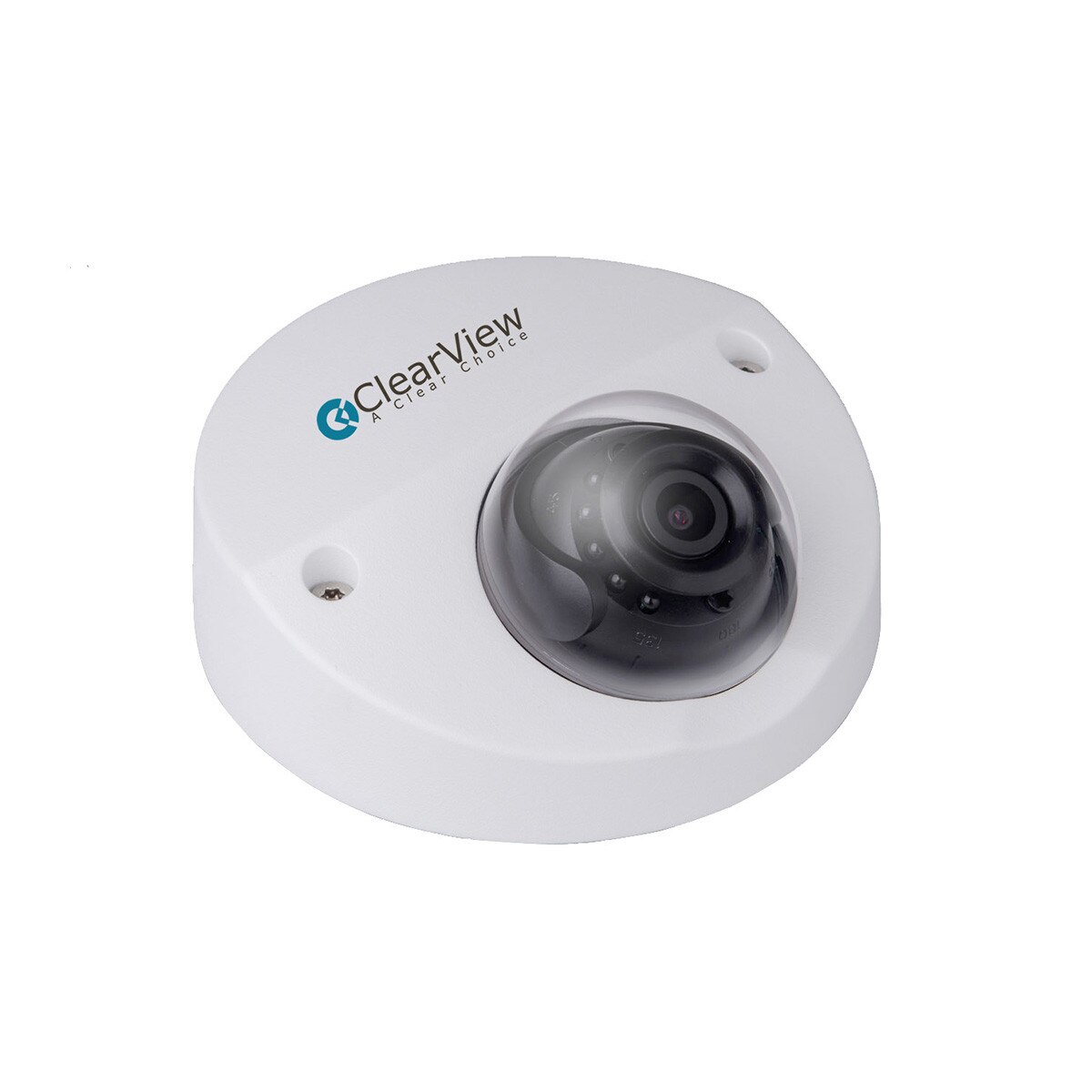

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HD AVS. The HD2-WD20 is a 1080P HD AVS dome camera that features a 3.6mm fixed lens, a IK10 vandal proof and IP 67 weather proof rating. It offers a Max. IR length of 20m with a multi-language OSD and HD/ CVBS switchable output.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920(H)×1080(V), 2MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 20m (66feet) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 8 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 3.6mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 86.9° (110°) |
| Focus Control: | N/A |
| Close Focus Distance: | 1200mm (500mm) 47.2'' (19.7'') |
| DORI - Detect: | 55m(180ft) |
| DORI - Observe: | 22m(72ft) |
| DORI - Recognize: | 11m(36ft) |
| DORI - Identify: | 6m(20ft) |
| PTZ | |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 1080P (1920×1080) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| Smart IR: | Auto / Manual |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Audio I/O: | 1ch in & Built-in Mic |
| Electrical | |
| Power Supply: | 12V DC ±30% |
| Power Consumption: | Max. 4.3W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F) |
| Storage Humidity: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 106mm×50.3mm (4.17"×1.98") |
| Gross Weight: | 0.45kg (0.99lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 60° Tilt: 0° ~ 80° Rotation: 0° ~ 360° |
