HD2-VD27-MS

(0)No Reviews yet
SKU: HD2-VD27-MS
Jump to Product Specs
 Starlight, 120dB true WDR, 3DNR
Max 30fps@1080P
 HD and SD dual-output
 2.7-12mm motorized lens...
1/2.8" CMOS |Max 30fps@1080P
2.7-12mm motorized lens
HD AVS and CVBS dual-output
120dB true WDR | 3DNR
IP67| IK10
AC24V/DC12V | Max 12.5W
Discontinued Item

Details

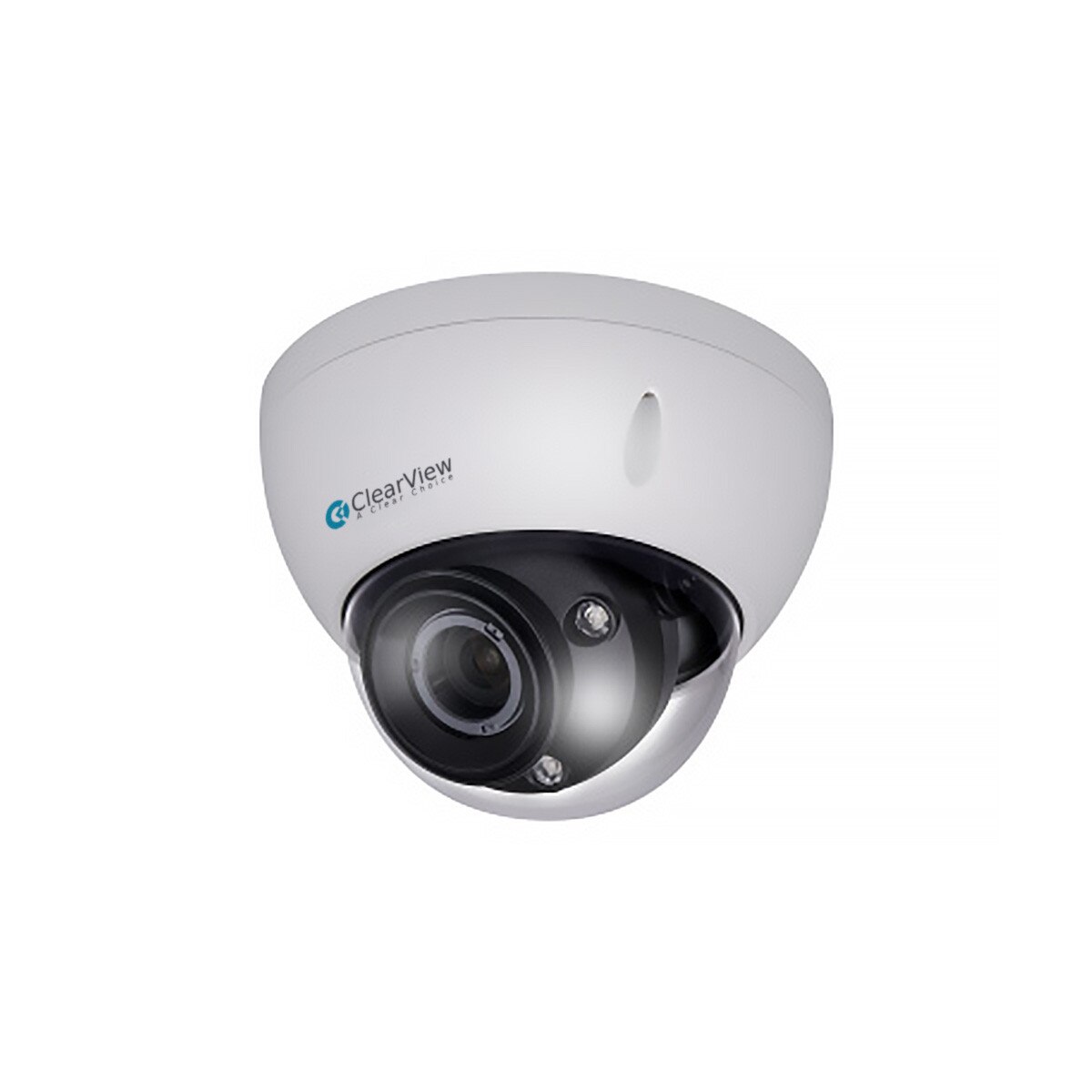

The HD2-VD27-MS is a 1080p HD-AVS/CVBS Dual output Dome style camera. It has a 2MP motorized 2.7-12mm lens and Starlight IR distance up to 164 feet with Smart IR support. It is also IP67 weatherproof  and IK10 vandal proof rated.

Specifications

Camera
Image Sensor: 1/2.8" CMOS
Effective Pixels: 1945(H)×1097(V), 2.1MP
Scanning System: Progressive
Minimum Illumination: 0.005Lux/F1.4, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
Illumination Distance: Up to 50m (164feet)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 3
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Lens Type: Motorized lens / Auto iris
Mount Type: Board-in
Focal Length: 2.7-12mm
Max. Aperture: N/A
Angle of View: H: 95°~36°
Focus Control: F1.4
Close Focus Distance: 300mm
11.81'
DORI - Detect: 48m(159ft)/ 133m(437ft)
DORI - Observe: 19m(64ft)/ 53m(175ft)
DORI - Recognize: 10m(32ft)/ 27m(87ft)
DORI - Identify: 5m(17ft)/ 13m(44ft)
PTZ
OSD Menu: Multi-language
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Day/Night: Auto (ICR) / Manual
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto / Manual
Gain Control: AGC
Noise Reduction: 2D / 3D
Smart IR: Auto / Manual
Interface
Video Interface: 1-channel BNC HD AVS high definition video output & 1-channel BNC CVBS video output,
CVBS tester out
Audio I/O: 1-channel audio in
Alarm I/O: 1-channel alarm in & 1-channel alarm out
Electrical
Power Supply: AC 24V±25% / DC 12V±25%
Power Consumption: Max 12.5W (12V DC, IR on)
Environmental
Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F)
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Aluminum
Dimensions: 159.1mm×117.9mm (6.26"×4.64")
Gross Weight: 1.20kg (2.65lb)
