HD2-TD27Z
Details

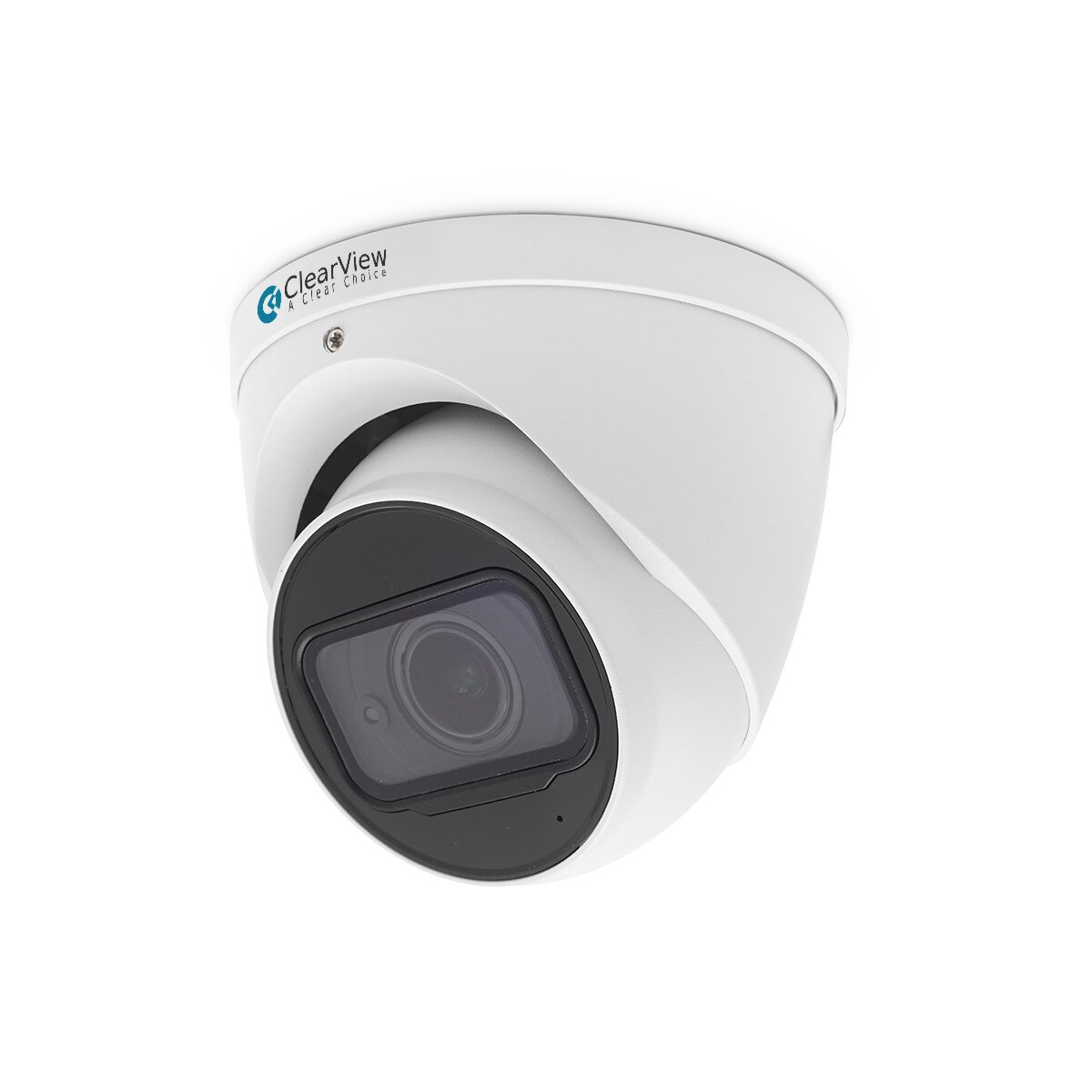

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HD AVS. The HD2-TD27Z is a 1080P HD AVS eyeball camera that features a 2.7-12mm motorized lens, a Built-in mic and IP 67 rating. It offers a Max. IR length of 60m with a multi-language OSD and HD/ CVBS switchable output.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920(H)×1080(V), 2MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005Lux/F1.8, 30IRE, 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 60m (197feet) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-12mm |
| Max. Aperture: | F1.8 |
| Angle of View: | H: 101.7°~32.3° |
| Focus Control: | Motorized |
| Close Focus Distance: | 200mm7.87 |
| DORI - Detect: | 47m(153ft)/ 137m(448ft) |
| DORI - Observe: | 19m(61ft)/ 55m(179ft) |
| DORI - Recognize: | 9m(31ft)/ 27m(90ft) |
| DORI - Identify: | 5m(15ft)/ 14m(45ft) |
| PTZ | |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 1080P (1920×1080) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D |
| Smart IR: | Support |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Audio I/O: | Built-in mic |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | 12V DC ±30% |
| Power Consumption: | Max 8.2W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F) |
| Storage Conditions: | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 122mm×104mm (4.8"×4.1") |
| Gross Weight: | 0.72kg (1.59lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
