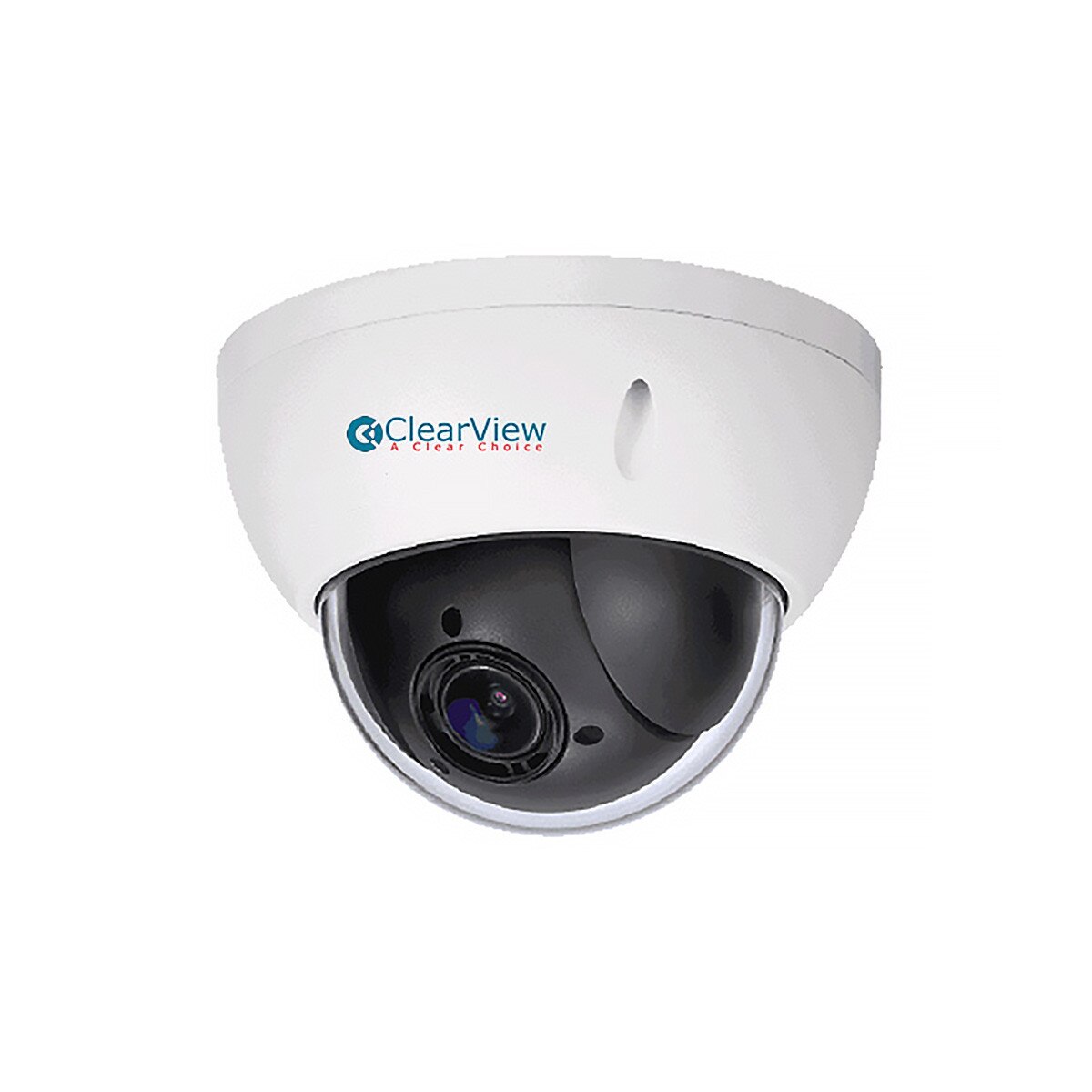

HD2-PTZ-4
Details
The HD2-PTZ-4 is a 1080p HD-AVS (CVBS switchable) PTZ featuring a 4x optical zoom and accurate pan/tilt/zoom performance in a compact package, the HD2-PTZ-4 camera can provide large monitoring range and great detail.
The camera delivers 1080P resolution at 25/30 fps, with 4x optical zoom. This PTZ is also IP66 weatherproof and IK10 vandal proof rated.
The camera delivers 1080P resolution at 25/30 fps, with 4x optical zoom. This PTZ is also IP66 weatherproof and IK10 vandal proof rated.
Specifications
| Camera | |
| Image Sensor: | 1/2.7” CMOS |
| Effective Pixels: | 1920(H) x 1080(V), 2 Megapixels |
| Scanning System: | Progressive |
| Minimum Illumination: | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 |
| S/N Ratio: | More than 55dB |
| Illumination Distance: | N/A |
| Illumination On/Off Control: | N/A |
| Illumination LEDs: | N/A |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Focal Length: | 2.7mm~11mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 112.5° ~ 30° |
| Optical Zoom: | 16x |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 100mm~ 1000mm |
| DORI - Detect: | 120m(394ft) |
| DORI - Observe: | 48m(157ft) |
| DORI - Recognize: | 24m(79ft) |
| DORI - Identify: | 12m(39ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° ~ 355°; Tilt: 0° ~ 90° |
| Manual Control Speed: | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s |
| Preset Speed: | Pan: 100° /s; Tilt: 60° /s |
| Presets: | 300 |
| PTZ Mode: | 8 Tour |
| Speed Setup: | Human-oriented focal Length/ speed adaptation |
| Power up Action: | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion: | Activate Preset/Tour if there is no command in the specified period |
| Protocol: | DH-SD, Pelco-P/D (Auto recognition) |
| OSD Menu: | Support |
| Video | |
| Resolution: | 1080P(1920×1080)/720P(1280×720) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto,ATW,Indoor,Outdoor,Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | Ultra DNR (2D/3D) |
| Digital Zoom: | 16x |
| Flip: | 180° |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output/ CVBS standard definition video output (switchable) |
| Electrical | |
| Power Supply: | DC 12V/1.5A |
| Power Consumption: | 10W |
| Environmental | |
| Operating Conditions: | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 122 (mm) x 89 (mm |
| Gross Weight: | 0.65kg(1.43lb) |
