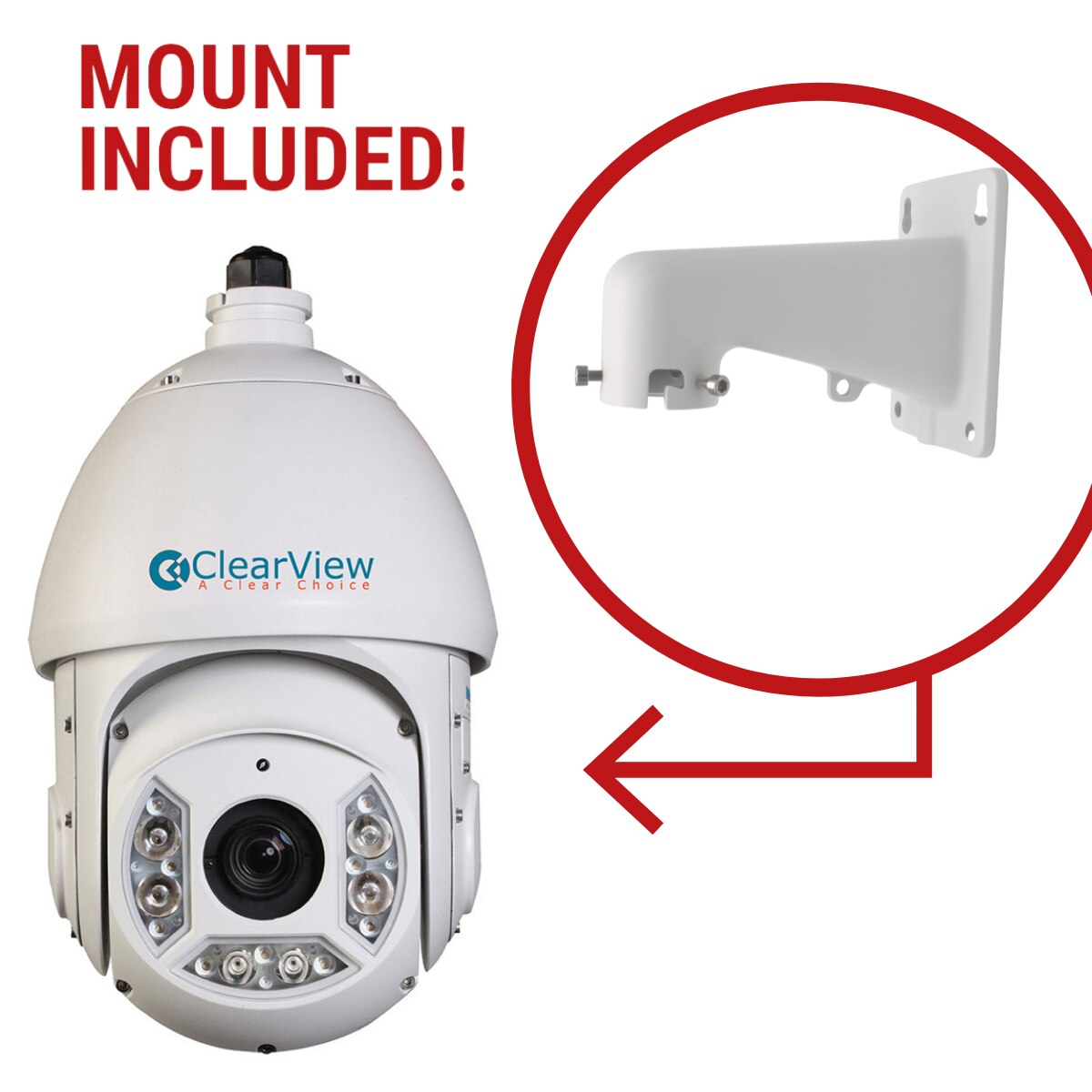

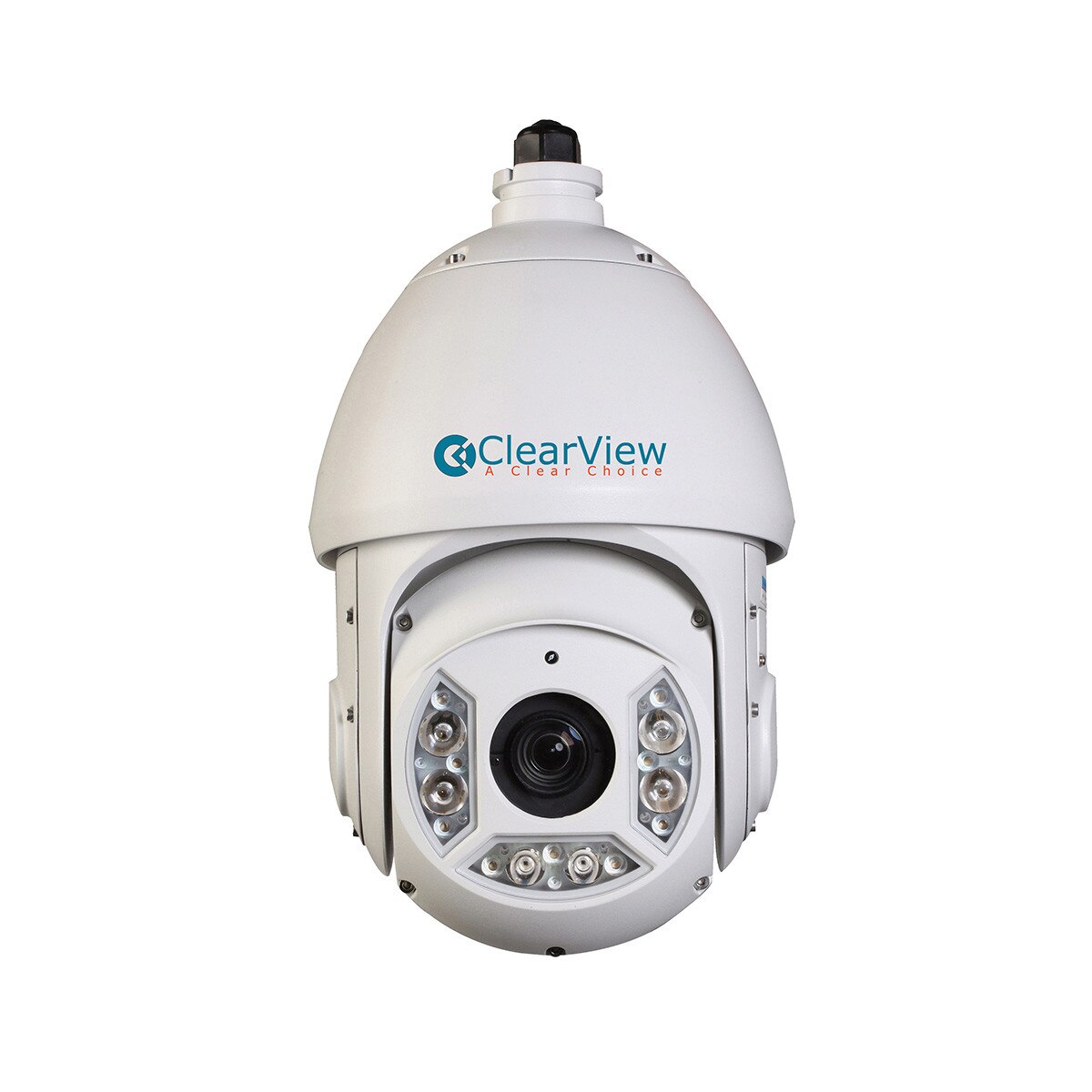

HD2-PTZ-20X-IR
Details
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the HD2-PTZ-20X-IR camera can provide large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 25x optical zoom with an incredible IR distance of 492 feet due to Starlight Technology. This PTZ also features IP66 protection, and 120dB true WDR, and switchable to CVBS standard definition, making it able to meet most of the requirements for video surveillance applications
Specifications
| Camera | |
| Image Sensor: | 1/2.8” STARVIS™ CMOS |
| Effective Pixels: | 1920(H) x 1080(V), 2 Megapixels |
| Scanning System: | Progressive |
| Minimum Illumination: | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) |
| S/N Ratio: | More than 55dB |
| Illumination Distance: | Distance up to 150m (492ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 6 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Focal Length: | 4.8mm~120mm |
| Max. Aperture: | F1.6 ~ F4.4 |
| Angle of View: | H: 62.8° ~ 2.6° |
| Optical Zoom: | 25x |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 100mm~ 1000mm |
| DORI - Detect: | 1613m(5259ft) |
| DORI - Observe: | 646m(2119ft) |
| DORI - Recognize: | 323m(1060ft) |
| DORI - Identify: | 161m(528ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° |
| Manual Control Speed: | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
| Preset Speed: | Pan: 240° /s; Tilt: 200° /s |
| Presets: | 300 |
| PTZ Mode: | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
| Speed Setup: | Human-oriented focal Length/ speed adaptation |
| Power up Action: | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion: | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol: | DH-SD, Pelco-P/D (Auto recognition) |
| OSD Menu: | Support |
| Video | |
| Resolution: | 1080P(1920×1080) / 720P(1280×720) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | Ultra DNR (2D/3D) |
| Flip: | 180° |
| Privacy Masking: | Up to 24 areas |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output/ CVBS standard definition video output (switchable |
| Audio I/O: | 1 channel in |
| Alarm I/O: | 2/1 |
| Electrical | |
| Power Supply: | AC24V/3A(±10%) |
| Power Consumption: | 13W, 23W (IR on) |
| Environmental | |
| Operating Conditions: | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection: | IP66 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 205(mm) x 336(mm) |
| Gross Weight: | 8.3kg(18.30lb) |
