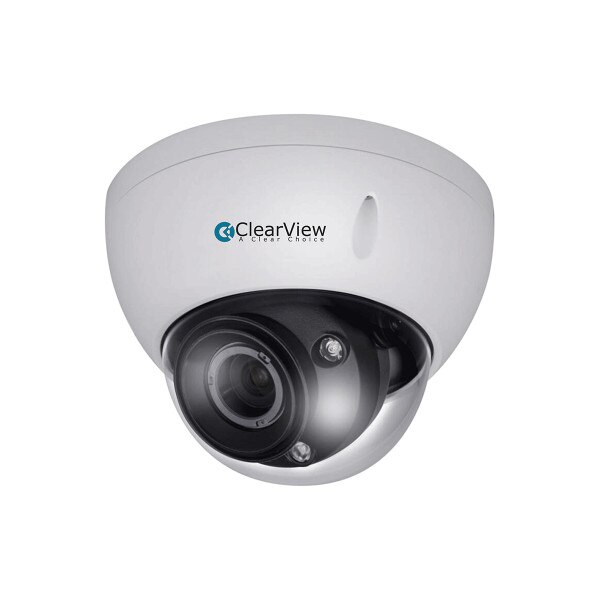

HD2-D27-M
Details
Clearview’s HD2-D27-M features a 1/2.8" CMOS capable of 30fps in 1080P resolution and a 2.7-13.5mm motorized lens. The camera is also switchable to CVBS standard definition mode and includes an audio-in interface.
The camera also features Starlight technology for enhanced low light support and long distance Smart IR support with a distance of up to 98 feet. These features including an IP67 and IK10 protection rating makes this a great choice for most residential and business applications.
The camera also features Starlight technology for enhanced low light support and long distance Smart IR support with a distance of up to 98 feet. These features including an IP67 and IK10 protection rating makes this a great choice for most residential and business applications.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920(H)×1080(V), 2MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 30m (98 feet) |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-13.5mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 108.7°~28.7° |
| Focus Control: | Auto / Manual |
| DORI - Detect: | 44m(144ft)/ 153m(502ft) |
| DORI - Observe: | 18m(59ft)/ 61m(200ft) |
| DORI - Recognize: | 9m(30ft)/ 31m(102ft) |
| DORI - Identify: | 5m(16ft)/ 15m(49ft) |
| Video | |
| Resolution: | 1080P (1920×1080) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| Smart IR: | Auto / Manual |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Audio I/O: | 1 |
| Electrical | |
| Power Supply: | 12V DC ±30% |
| Power Consumption: | Max. 4.7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | 30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH* Start up should be done at above -30°C (-22°F) |
| Storage Conditions: | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 122mm×88.9mm (4.8"×3.5") |
| Gross Weight: | 0.49kg (1.08lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 355° Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
