HD2-B27-MS
Details

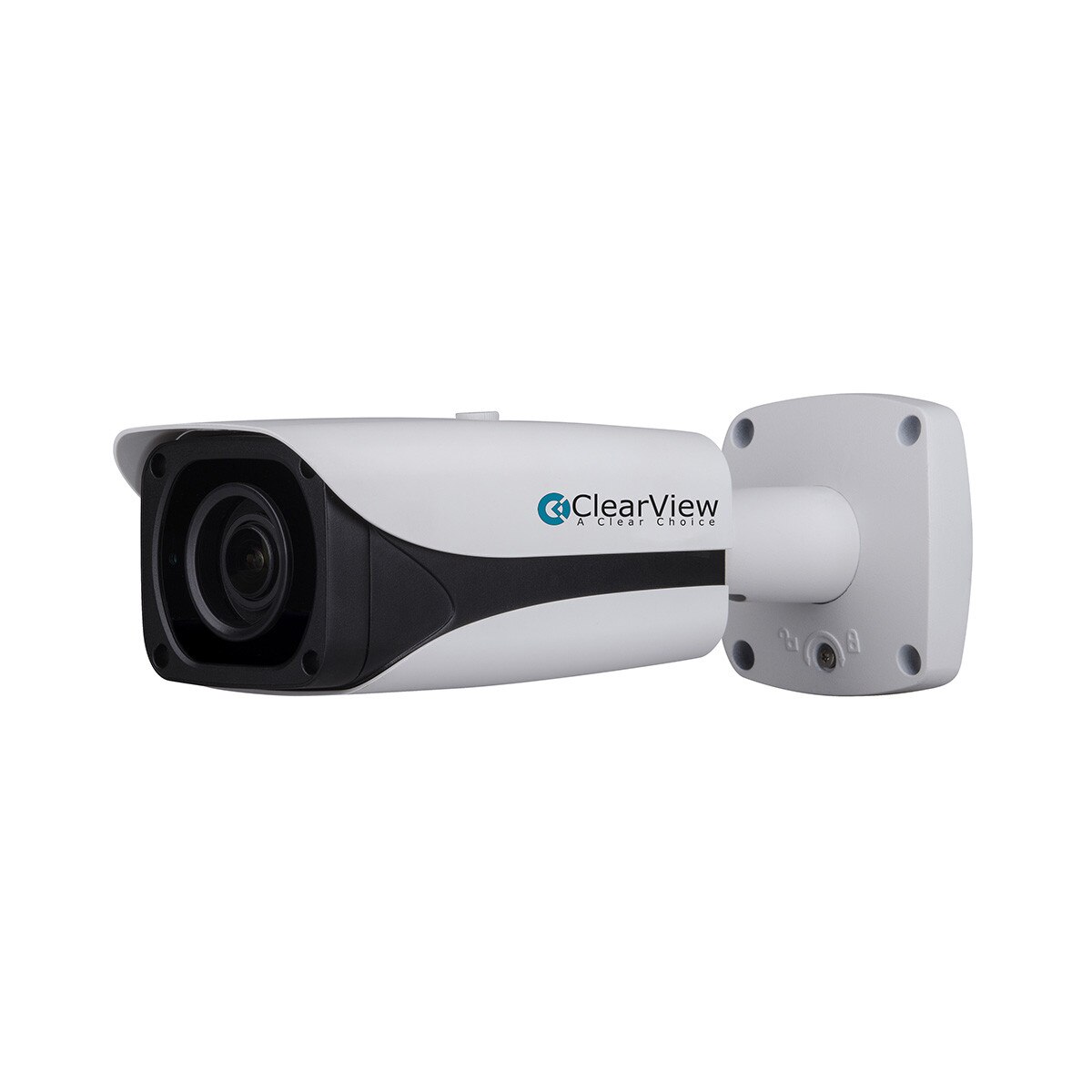

The HD2-B27-MS is a 2.0 Megapixel HD-AVS/Analog Dual output IR Bullet cameras with 2.7~12mm Motorized Zoom Lens. The camera is capable of 328ft Starlight Smart IR and features WDR, Dual Voltage 12VDC/24VAC, RCA Audio In Jack. For protection, it is IP67 weatherproof as well as IK10 vandal proof rated.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1945(H)×1097(V), 2.1MP |
| Scanning System: | Progressive |
| Minimum Illumination: | PAL: 1.3s~1/30000s NTSC: 1s~1/30000s |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 100m (328feet) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized lens / Auto iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-12mm |
| Max. Aperture: | F1.4 |
| Angle of View: | H: 95°~36° |
| Focus Control: | Auto / Manual |
| Close Focus Distance: | 300mm/11.8" |
| DORI - Detect: | 48m(159ft)/ 133m(437ft) |
| DORI - Observe: | 19m(64ft)/ 53m(175ft) |
| DORI - Recognize: | 10m(32ft)/ 27m(87ft) |
| DORI - Identify: | 5m(17ft)/ 13m(44ft) |
| Video | |
| Resolution: | 1080P (1920×1080) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| Smart IR: | Auto / Manual |
| Iris Control: | Auto iris |
| WDR: | 120dB |
| Interface | |
| Video Interface: | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video outputCVBS tester ou |
| Audio I/O: | 1-channel audio in |
| Alarm I/O: | 1-channel alarm in & 1-channel alarm out |
| Electrical | |
| Power Supply: | AC 24V±25% / DC 12V±25% |
| Power Consumption: | Max 22.9W (12V DC, IR & heater on) |
| Environmental | |
| Operating Conditions: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F) |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 273.2mm×95.0mm×95.0mm (10.76"×3.74"×3.74") |
| Gross Weight: | 1.52kg (3.35lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotation: 0° ~ 360° |
