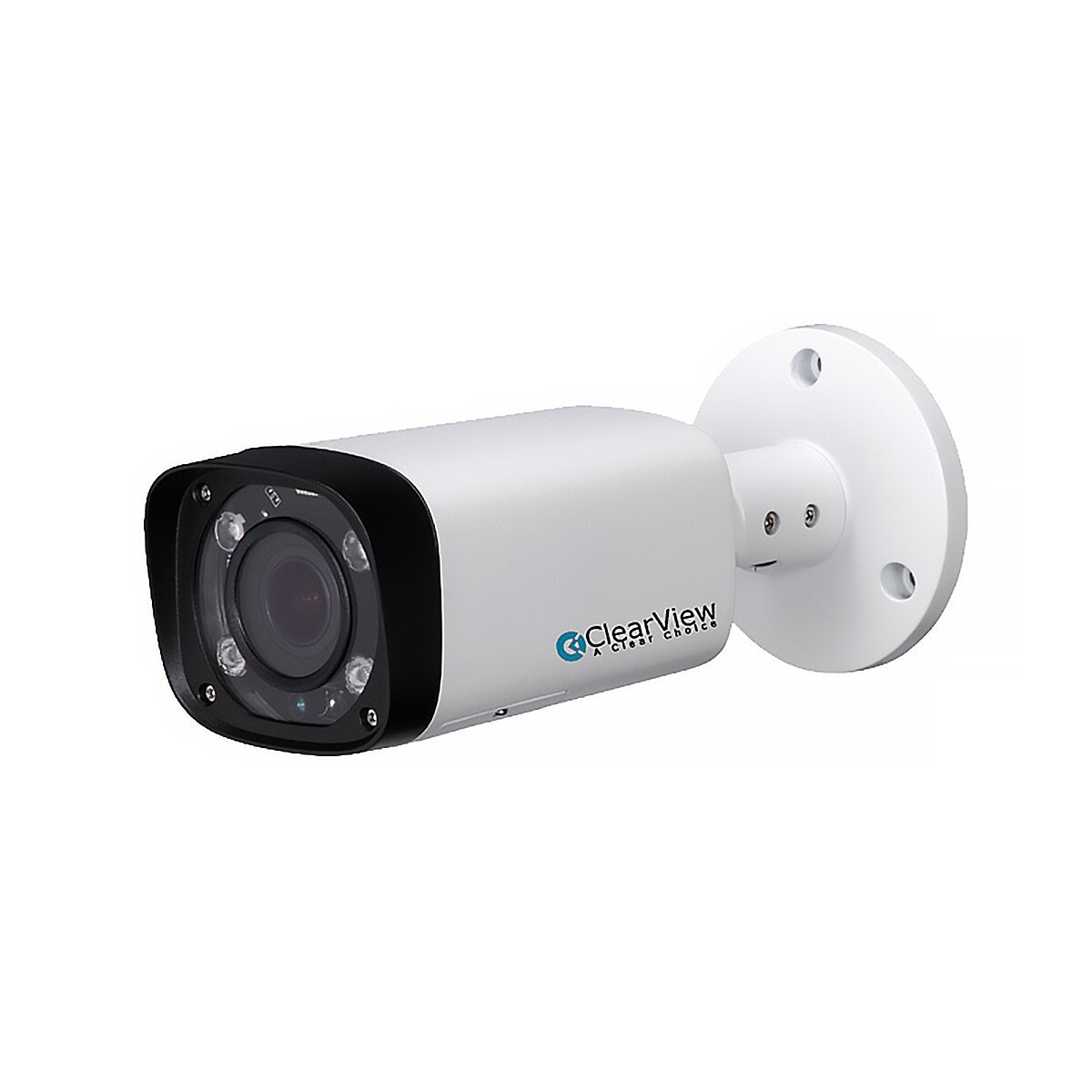

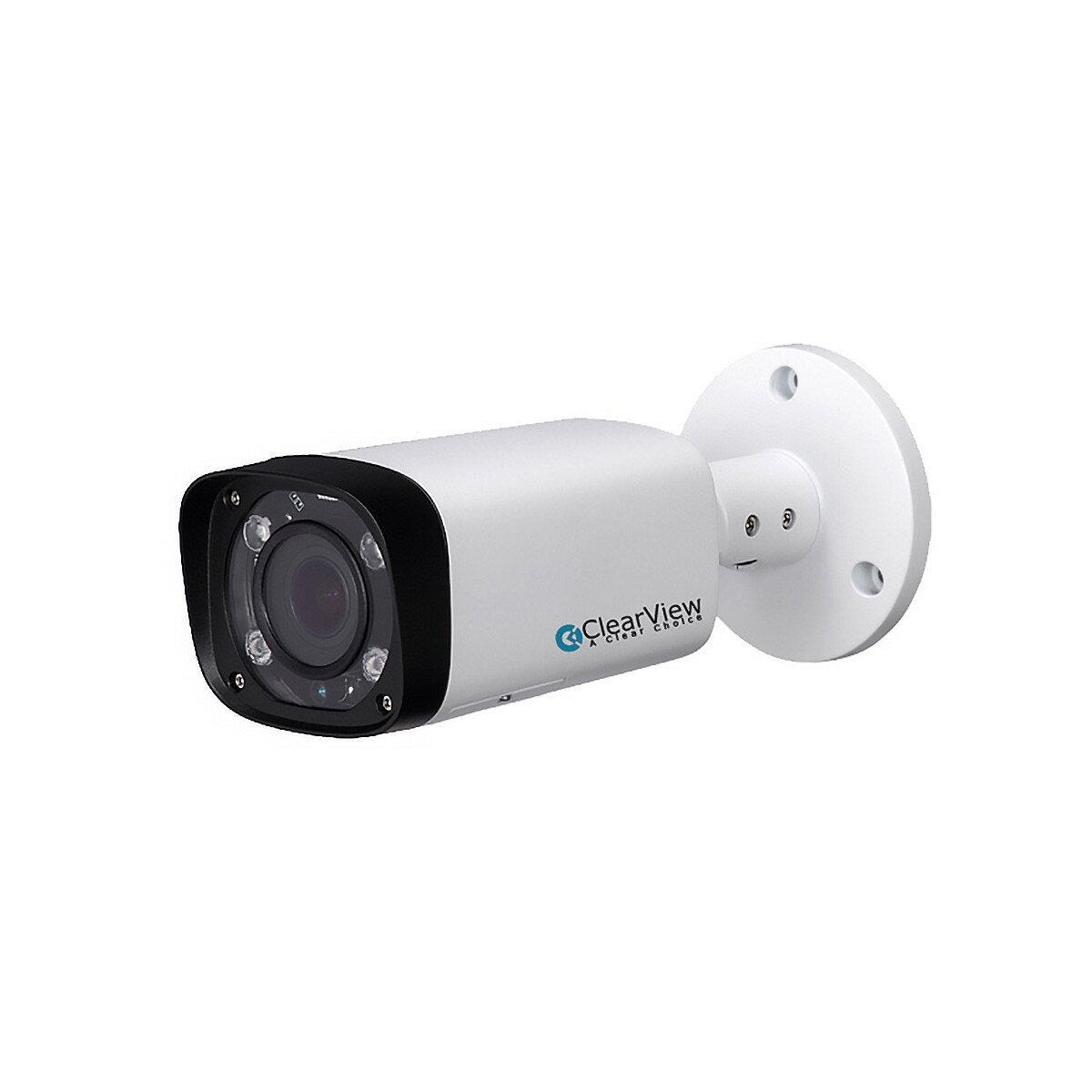

HD2-B27
Details
The HD2-B27 features a 1/2.9" CMOS capable of 30fps in 1080P resolution and a 2.7-13.5mm Vari-focal lens. The camera is also switchable to CVBS standard definition mode.
The camera also features Smart IR support with a distance of up to 197 feet. These features including an IP67 protection rating makes this a great choice for most residential and business applications
The camera also features Smart IR support with a distance of up to 197 feet. These features including an IP67 protection rating makes this a great choice for most residential and business applications
Specifications
| Camera | |
| Image Sensor: | 1/2.9" CMOS |
| Effective Pixels: | 1920(H)×1080(V), 2MP |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.02Lux/F1.3, 30IRE, 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 60m (197feet) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Vari-focal lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-13.5mm |
| Max. Aperture: | F1.3 |
| Angle of View: | H: 104°~28° |
| Focus Control: | Manual |
| DORI - Detect: | 46m(150ft) / 159m(520ft) |
| DORI - Observe: | 18m(60ft) / 63m(208ft) |
| DORI - Recognize: | 9m(30ft) / 32m(104ft) |
| DORI - Identify: | 5m(15ft) / 16m(52ft) |
| Video | |
| Resolution: | 1080P (1920×1080) |
| Frame Rate: | 25/30fps@1080P, 25/30/50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D |
| Smart IR: | Auto / Manual |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Electrical | |
| Power Supply: | 12V DC ±25% |
| Power Consumption: | Max 7.7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions: | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56" |
| Gross Weight: | 0.68kg (1.50lb) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° ~ 360° Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
