HD1-B30
Details

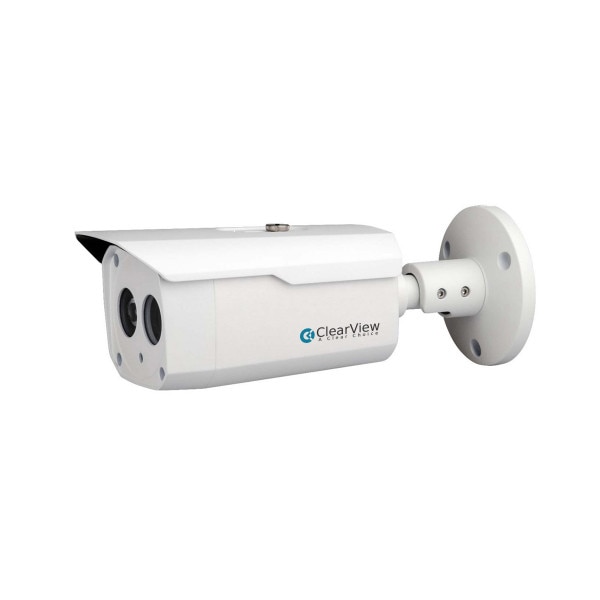

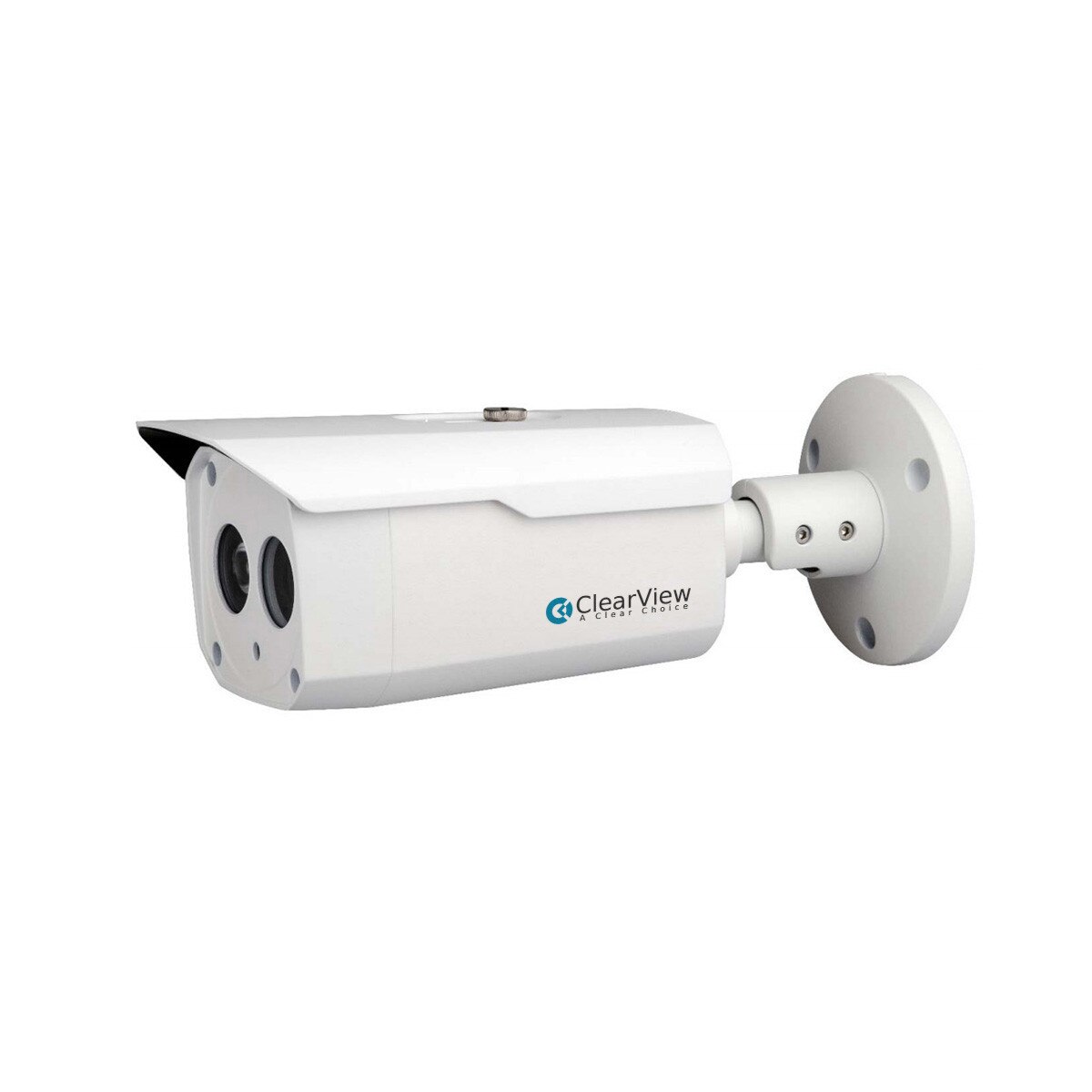

1.3 Megapixel 720P HD Indoor/Outdoor OSD Sealed-Box 164' IR Night-Vision 3.6mm lens Camera. Switchable from AVS to CVBS.
Specifications
| Camera | |
| Image Sensor: | 1/3" 1.3Megapixel CMOS |
| Effective Pixels: | 1305(H)×977(V) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.01Lux/F1.6, 0Lux IR on |
| Illumination Distance: | 164 feet (50m) |
| Illumination LEDs: | Yes |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Mount Type: | M12 |
| Focal Length: | 3.6mm |
| Angle of View: | H: 72.3º(89º/46º/34.8º) |
| PTZ | |
| OSD Menu: | Support |
| Video | |
| Resolution: | 720P |
| Frame Rate: | 25/30/50/60fps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Noise Reduction: | 2D/3D |
| Smart IR: | Support |
| Interface | |
| Video Interface: | 1-channel BNC HD-AVS high definition video output/ CVBS standard definition video output (Can switch) |
| Electrical | |
| Power Supply: | DC12V±20% |
| Power Consumption: | Max 4.2W |
| Environmental | |
| Operating Conditions: | -30°C~+60°C / Less than 95%RH (no condensation) |
| Ingress Protection: | IP67 |
| Construction | |
| Dimensions: | 241.8mm×90.2mm×83.7mm |
