HD-PTZ-20X
Details

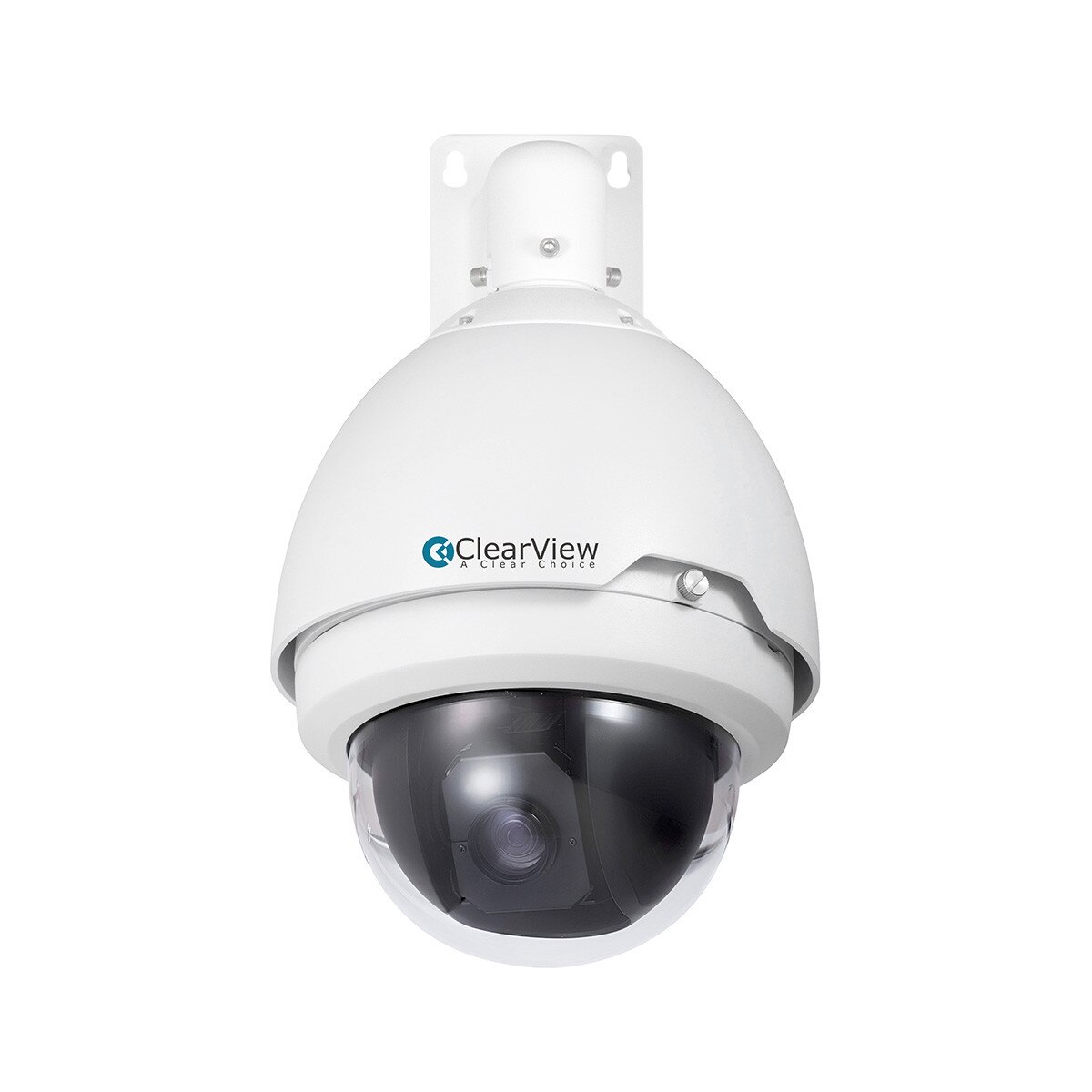

The HD-PTZ-20X from Clearview features a 1/3” Exmor CMOS capable of 50/60fps in 720P resolution over coax. This PTZ also supports a powerful 20x optical zoom.
This PTZ is protected with an IK10 Vandal Proof and IP66 Weather Proof rating. With smooth control, high quality image and excellent protection, these features make this camera an excellent choice for most video surveillance applications
This PTZ is protected with an IK10 Vandal Proof and IP66 Weather Proof rating. With smooth control, high quality image and excellent protection, these features make this camera an excellent choice for most video surveillance applications
Specifications
| Camera | |
| Image Sensor: | 1/3” Exmor CMOS |
| Effective Pixels: | 1280(H) x 960(V) |
| Scanning System: | Progressive |
| Minimum Illumination: | Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4 |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | N/A |
| Illumination On/Off Control: | N/A |
| Illumination LEDs: | N/A |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Focal Length: | 4.7mm~94mm |
| Max. Aperture: | F1.4 ~ F2.6 |
| Angle of View: | H: 54.1°~ 3.2° |
| Optical Zoom: | 20X |
| Focus Control: | Auto / Manual |
| Close Focus Distance: | 100mm~ 1000mm |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° ~ 360°endless;Tilt: -2° ~ 90°,auto flip 180° |
| Manual Control Speed: | Pan: 0.1° ~300° /s;Tilt: 0.1° ~250° /s |
| Preset Speed: | Pan:400° /s;Tilt: 300° /s |
| Presets: | 80(DH-SD), 255(Pelco-P/D) |
| PTZ Mode: | 5 Pattern, 8 Tour,Auto Pan,Auto Scan |
| Speed Setup: | Human-oriented focal length/ speed adaptation |
| Power up Action: | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion: | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
| Protocol: | DH-SD, Pelco-P/D (Auto recognition) |
| Time Task: | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time |
| Video | |
| Resolution: | 720P |
| Frame Rate: | 25/30/50/60fps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR(Digital WDR) |
| White Balance: | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 2D/3D |
| Privacy Masking: | Up to 24 areas |
| Interface | |
| Video Interface: | 1-channel BNC HD AVS high definition video output |
| RS485: | 1 |
| Audio I/O: | 1 channel In |
| Alarm I/O: | 2/1channel In/Out |
| Electrical | |
| Power Supply: | AC 24V/2.2A(±10%) |
| Power Consumption: | 9.5W,21W(Heater on) |
| Environmental | |
| Operating Conditions: | -40ºC ~ 60ºC/ Less than 90% RH |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 222(mm) x 322(mm) |
