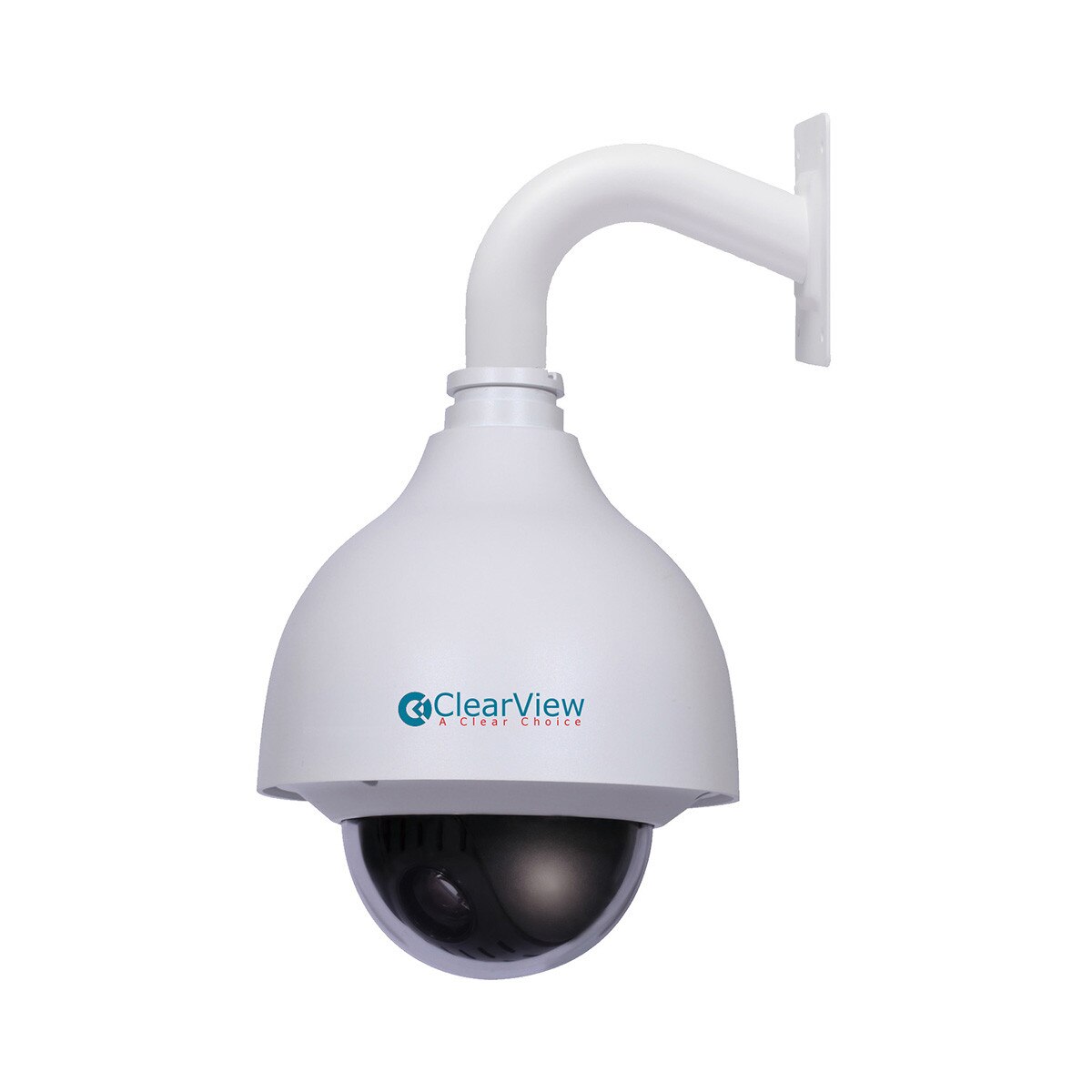

720P 12x PTZ HD AVS Camera
1/3” 1Megapixel Exmor CMOS
Powerful 12x optical zoom
Max25/30/50/60fps@720P...
1/3” 1Megapixel Exmor CMOS | 25/30/50/60fps@720P
Powerful 12x optical zoom
HD AVS and CVBS dual-output
DWDR | Ultra DNR (2D/3D)
IP66 | IK10
AC24V/1.5A(±10%) | 10W
Discontinued Item

Details

Experience high definition 720P video and PTZ control over coax with the simplicity of using existing cabling infrastructure with HD AVS. HD-PTZ-12X-R is a 1MP HD AVS PTZ camera that features a 1/3" Exmor CMOS, 12x Optical 5.1mm~61.2mm motorized lens, IP66 Weather proof and IK10 Vandal proof rating. It offers  DWDR, 3D DNR, a multi-language OSD and HD/ CVBS switchable output.

Specifications

Camera
Image Sensor: 1/3” Exmor CMOS
Effective Pixels: 1280(H) x 720(V), 1 Megapixels
Scanning System: Progressive
Minimum Illumination: Color: 0.05Lux@F1.6; B/W:0.005Lux@F1.6
S/N Ratio: More than 50dB
Illumination Distance: N/A
Illumination On/Off Control: N/A
Illumination LEDs: N/A
IR Wavelength: 850 nm
Camera Illumination Type: IR
Lens
Focal Length: 5.1mm~61.2mm
Max. Aperture: F1.6 ~ F3.0
Angle of View: H: 51.3° ~ 4.6°
Optical Zoom: 12X
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
PTZ
Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180°
Manual Control Speed: Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
Preset Speed: Pan: 300° /s; Tilt: 200° /s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup: Human-oriented focal Length/ speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol: DH-SD, Pelco-P/D (Auto recognition)
OSD Menu: Support
Video
Resolution: 720P(1280×720)
Frame Rate: 25/30/50/60fps@720P
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto,ATW,Indoor,Outdoor,Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D/3D)
Interface
Video Interface: 1-channel BNC HD AVS high definition video output/ CVBS standard definition video output (switchable)
RS485: 1
Audio I/O: 1 channel in
Alarm I/O: 2/1
Electrical
Power Supply: AC24V/1.5A(±10%)
Power Consumption: 10W,19W (Heater on)
Environmental
Operating Conditions: -40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection: IP66
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 186.0(mm) x 234(mm)
Gross Weight: 4.3kg(9.48lb)
