ELM-700BL

(0) No Reviews yet
SKU: ELM-700BL
ITEM WEIGHT: 2

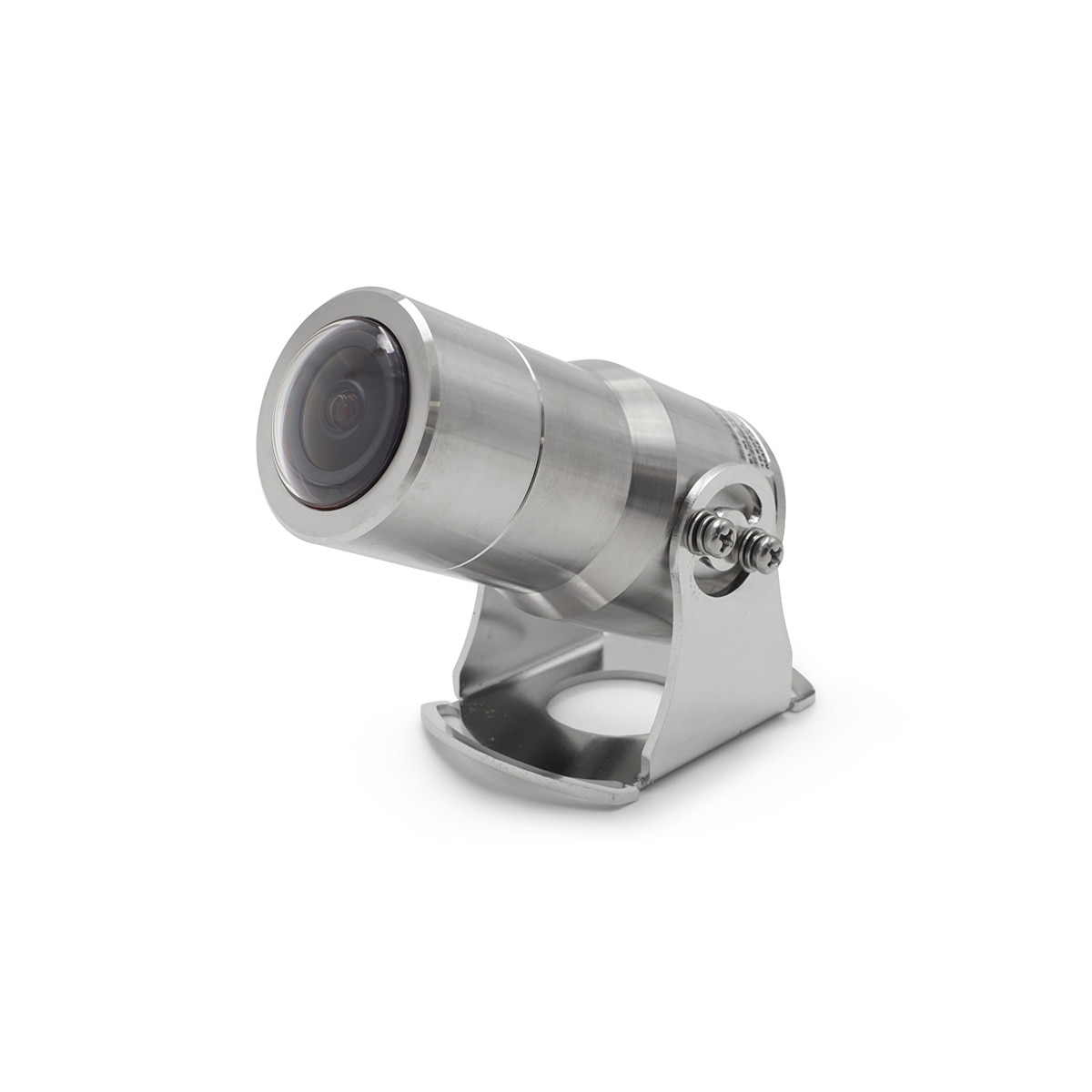

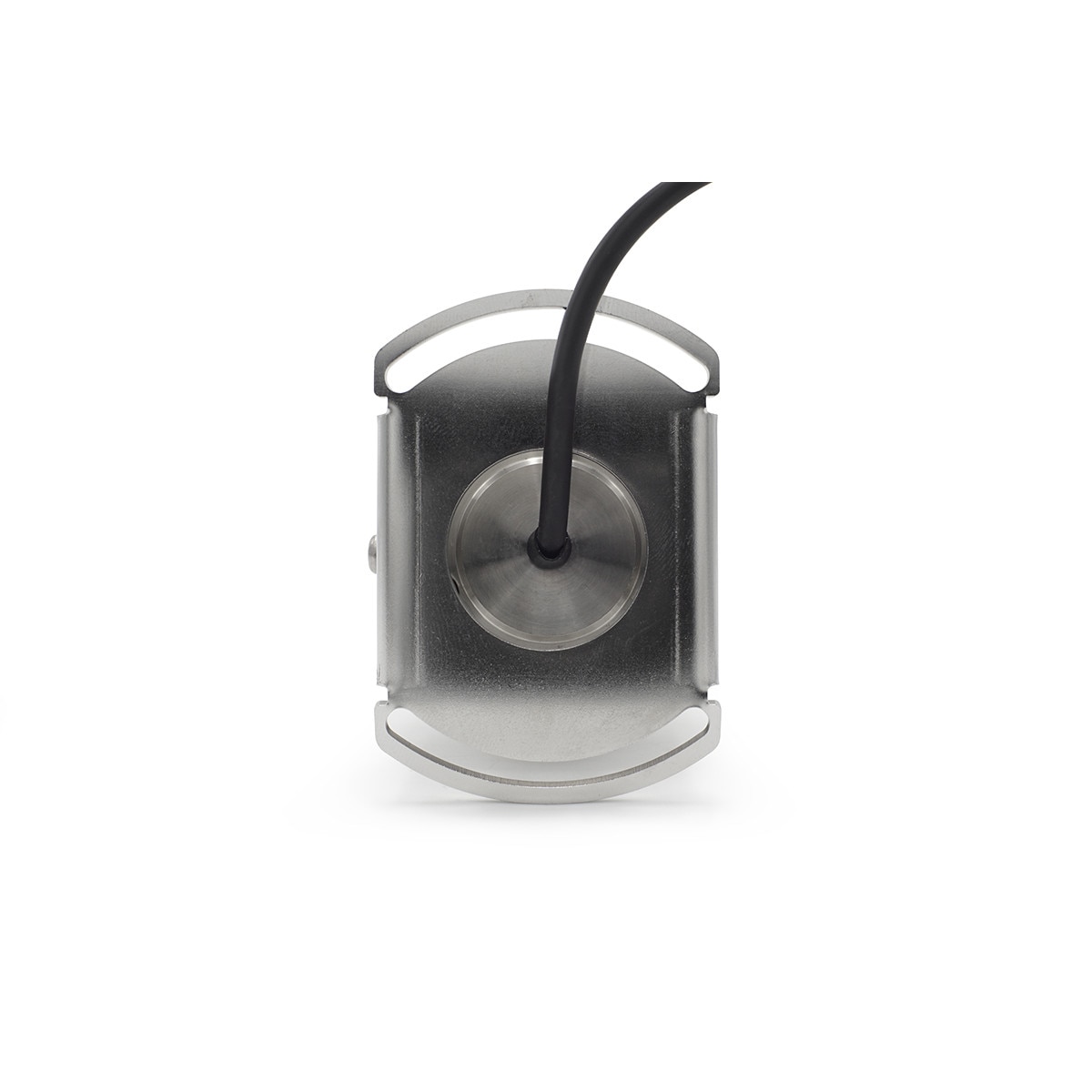

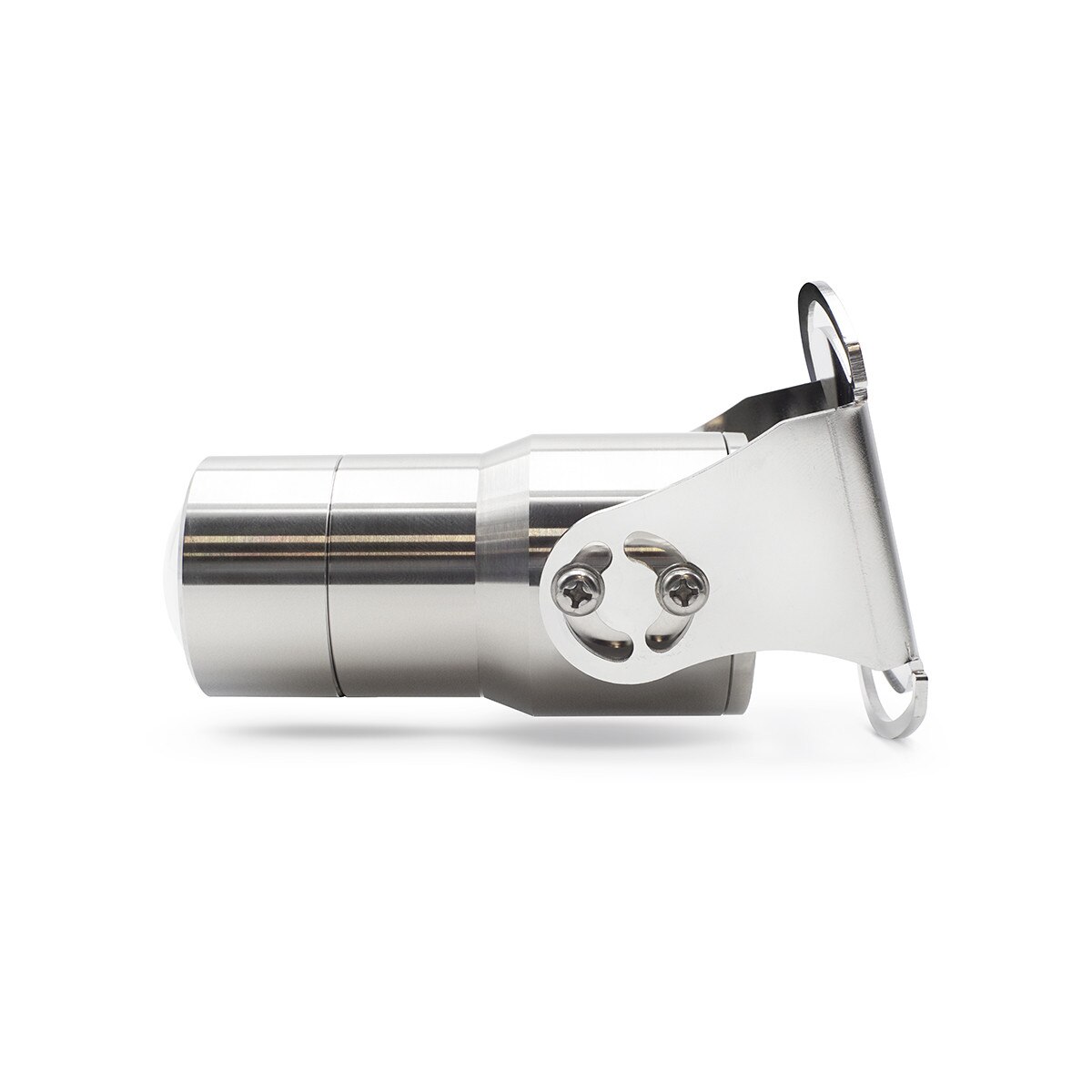

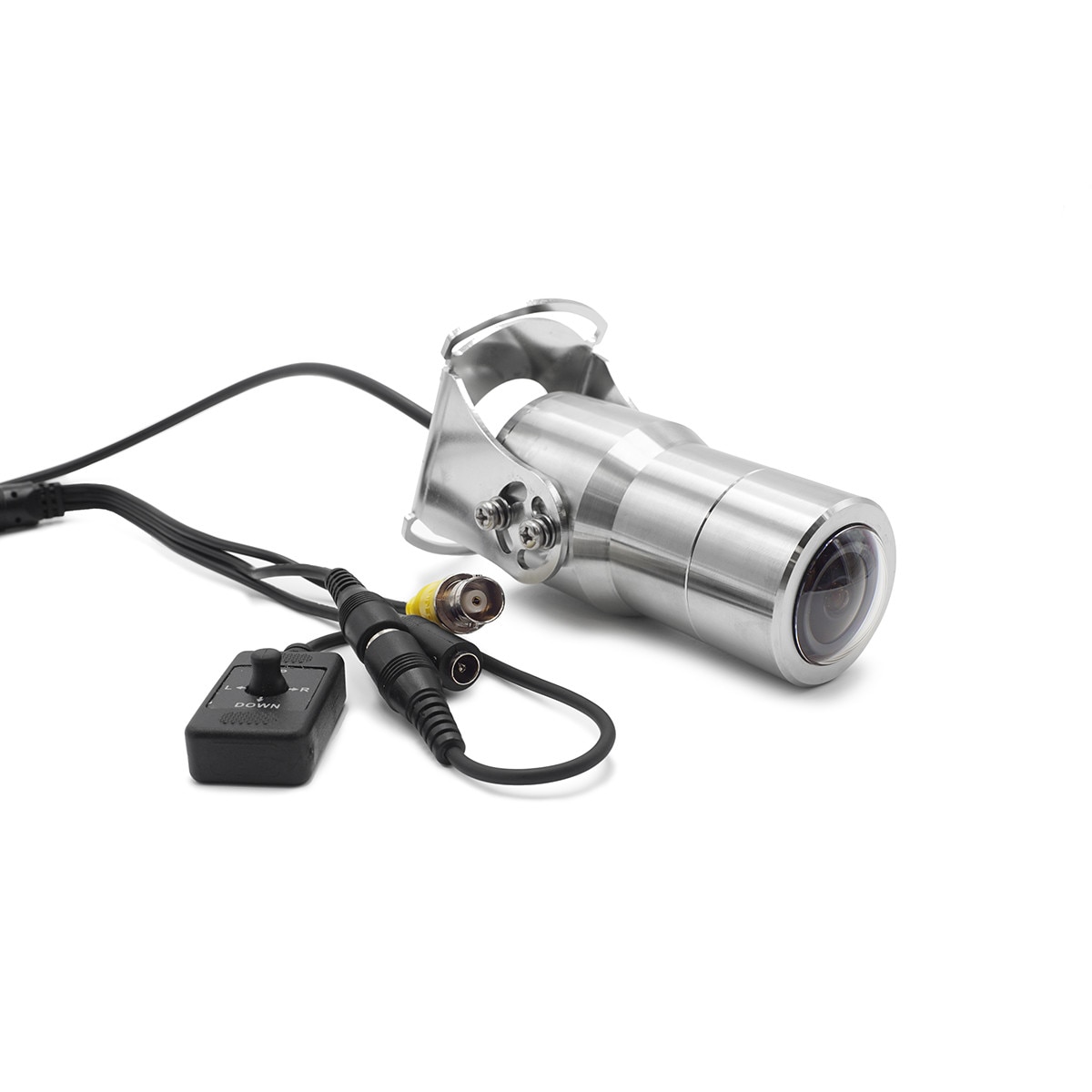

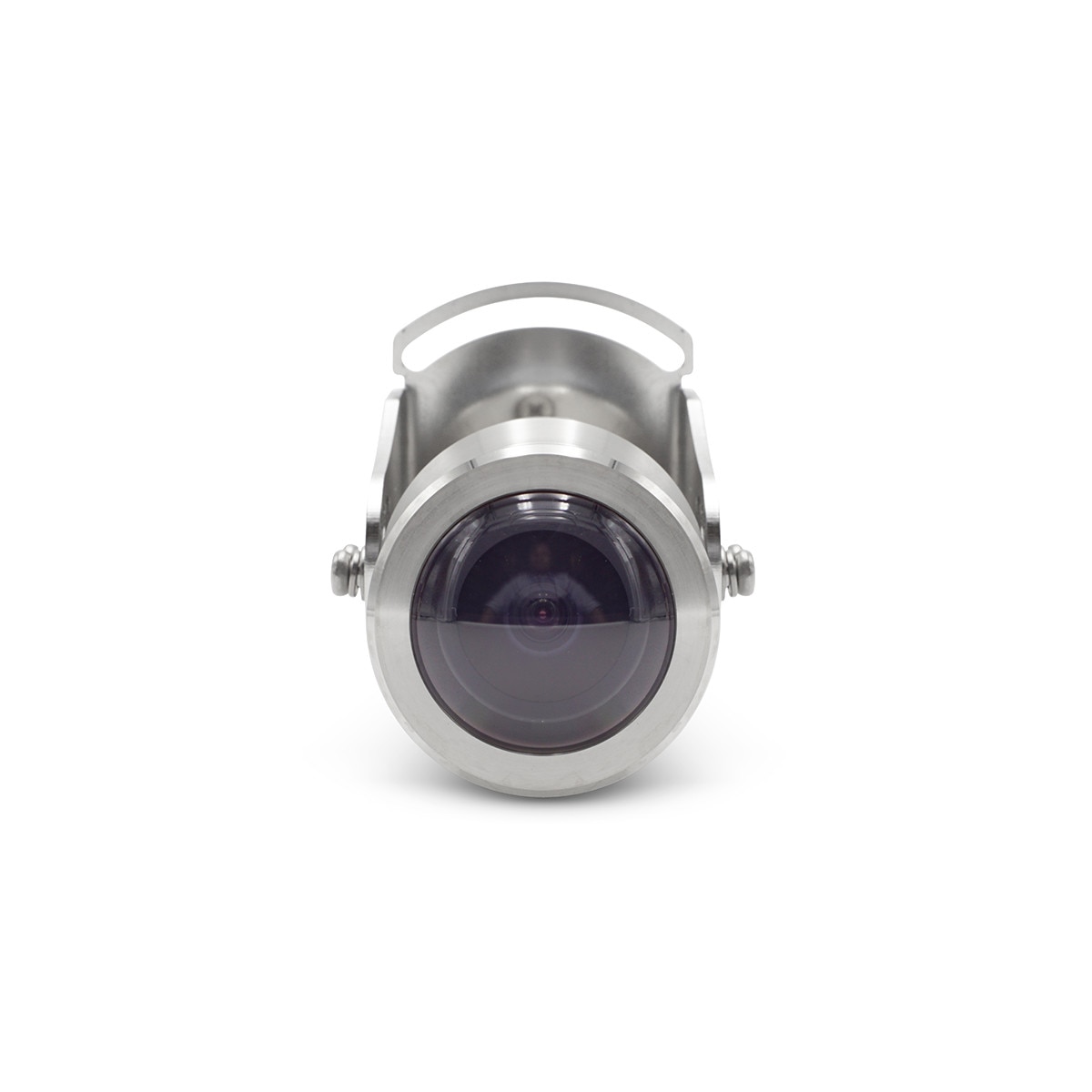

700TVL Marine Mid-Size Bullet Camera
1/3 Sony Super HAD II Color CCD | 700HTVL
2.2mm | fixed | AoV 170
IR Sensitive, No IR LEDs
Economic Design | No Audio | No Alarm
IP68 | 12VDC | Max. 3.6W
AGC
Discontinued Item

On Back Order

Details

The rugged stainless steel (AISI 316) ELM-700BL is designed to resist the harshest environments. Salt-mist and chemicals can corrode ordinary cameras but the ELM-700BL is specifically designed to maintain its structural integrity and internal electronics under these aggresive and corrosive conditions. The EL-700BL's waterproof and compact body make it ready to capture high-resolution footage no matter what the environment. The ELM-700BL is perfect for marine applications such as ships, yachts, marinas, or wherever there are caustic or corrosive elements.

Specifications

Camera
Image Sensor: 1/3" Sony Super HAD II Color CCD (960H)
Effective Pixels: NTSC - 976 x 494
PAL - 976 x 582
Scanning System: 2:1 Interlace
Minimum Illumination: 0.0001 Lux (Sens-up on)
S/N Ratio: > 52dB (AGC off)
IR Distance: n/a
PIR Sensor Range: n/a
Lens
Mount Type: n/a
Focal Length: Fixed 2.2mm Lens
PTZ
Pan/Tilt Range: n/a
Manual Control Speed: n/a
Preset Speed: n/a
Presets: n/a
PTZ Mode: n/a
Speed Setup: n/a
Power up Action: n/a
Idle Motion: n/a
Time Task: n/a
Wiper: n/a
Tracking Trigger Mode: n/a
Tracking Trigger Event: n/a
Intelligence
Smart Function: n/a
Video
Resolution: 700 TV Lines
Gain Control: Automatic
Gamma Correction: 0.45 Approx.
Audio
Compression: n/a
Network
Ethernet: n/a
Protocol: n/a
Wifi: n/a
Compatability: n/a
Max. User Access: n/a
Smart Phone: n/a
Interface
Video Interface: Composite Video 1.0Vp-p/75Ω
RS232: n/a
Audio I/O: n/a
Alarm I/O: n/a
Factory Reset: n/a
Memory Slot: n/a
Electrical
Power Supply: DC12V 300mA
Power Consumption: 1.0 Watt
Enviromental
Operating Conditions: -10 ℃ ~ +50 ℃
Ingress Protection: n/a
Vandal Resistance: n/a
Construction
Dimensions: 49mm X 114mm(L)
