EL-700
Details

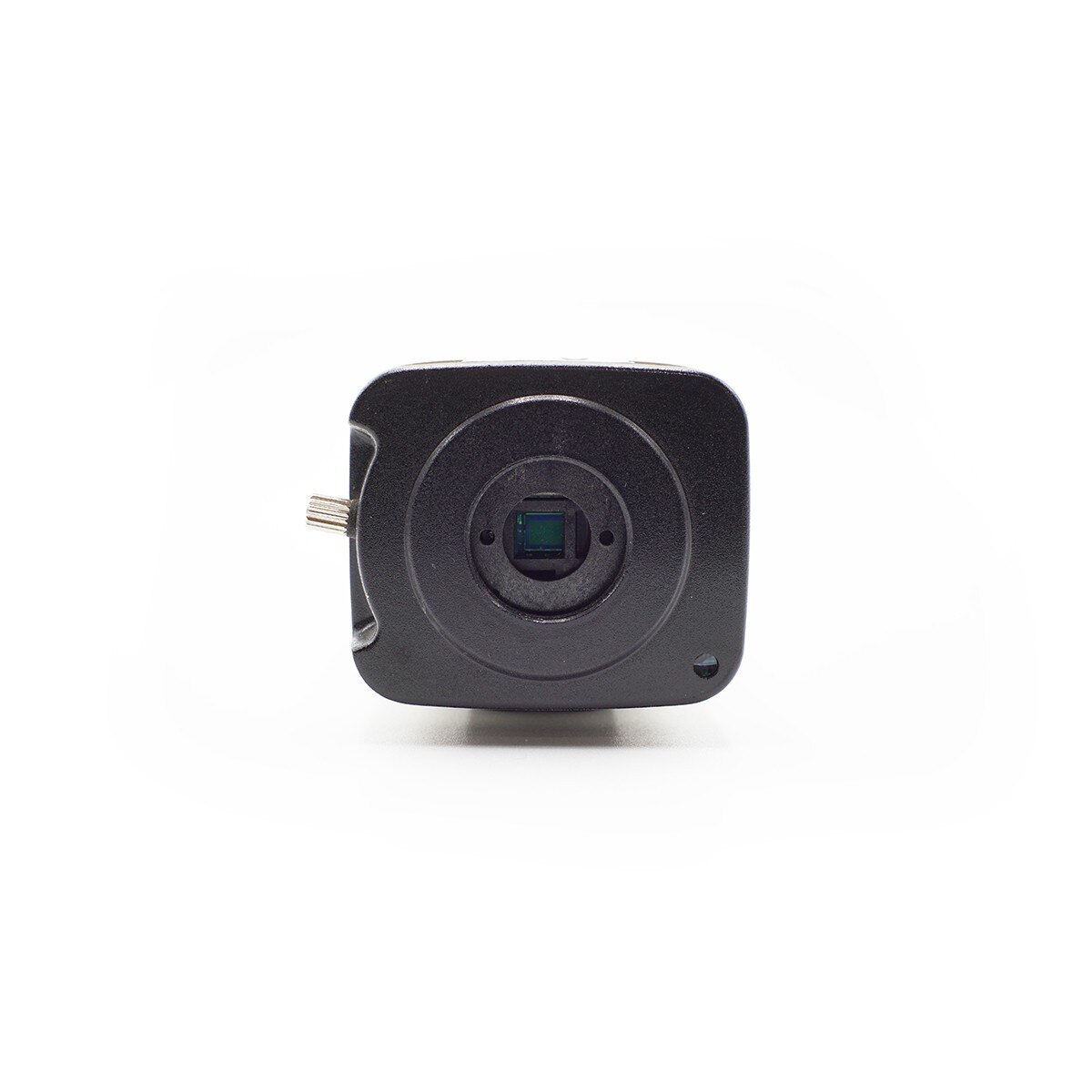

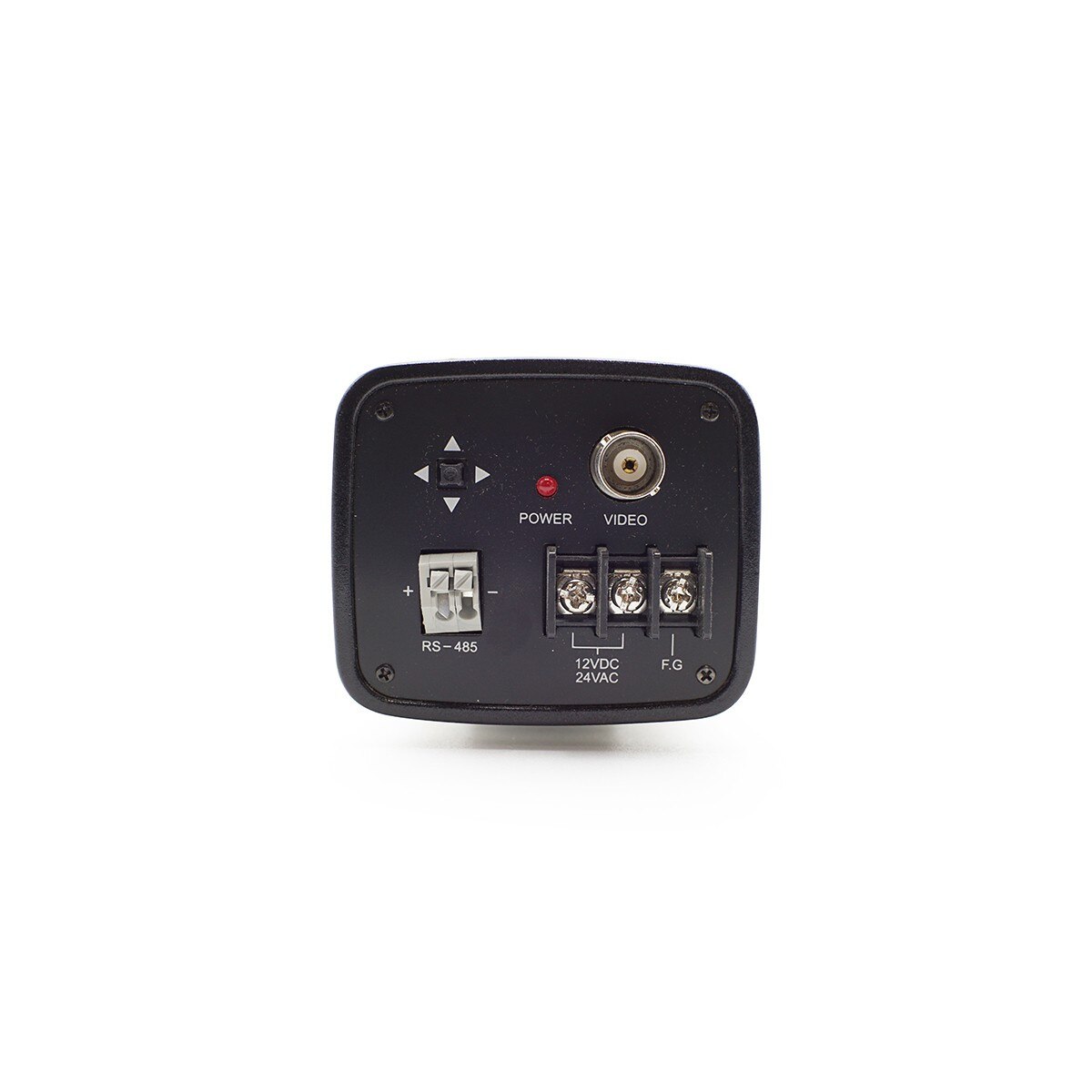

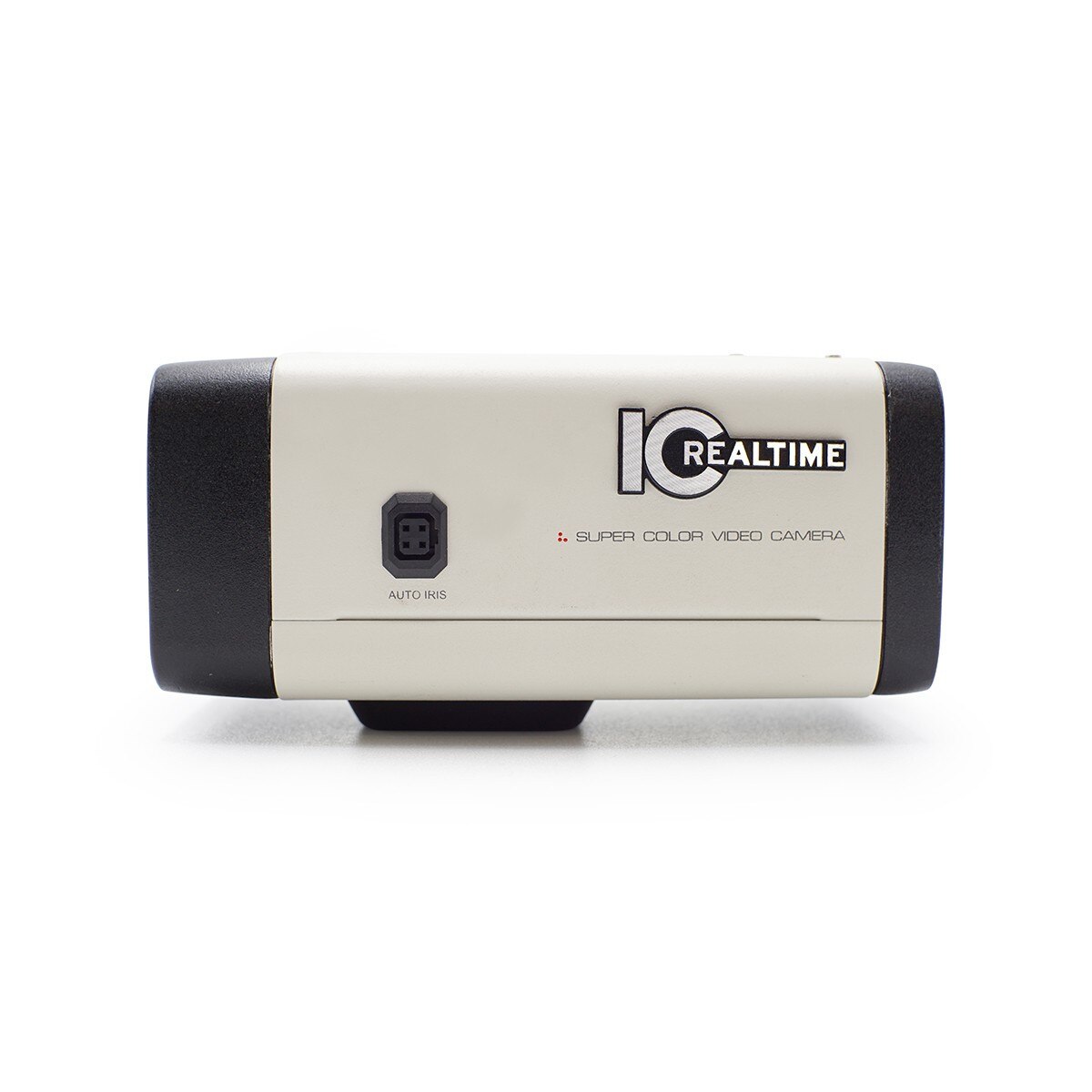

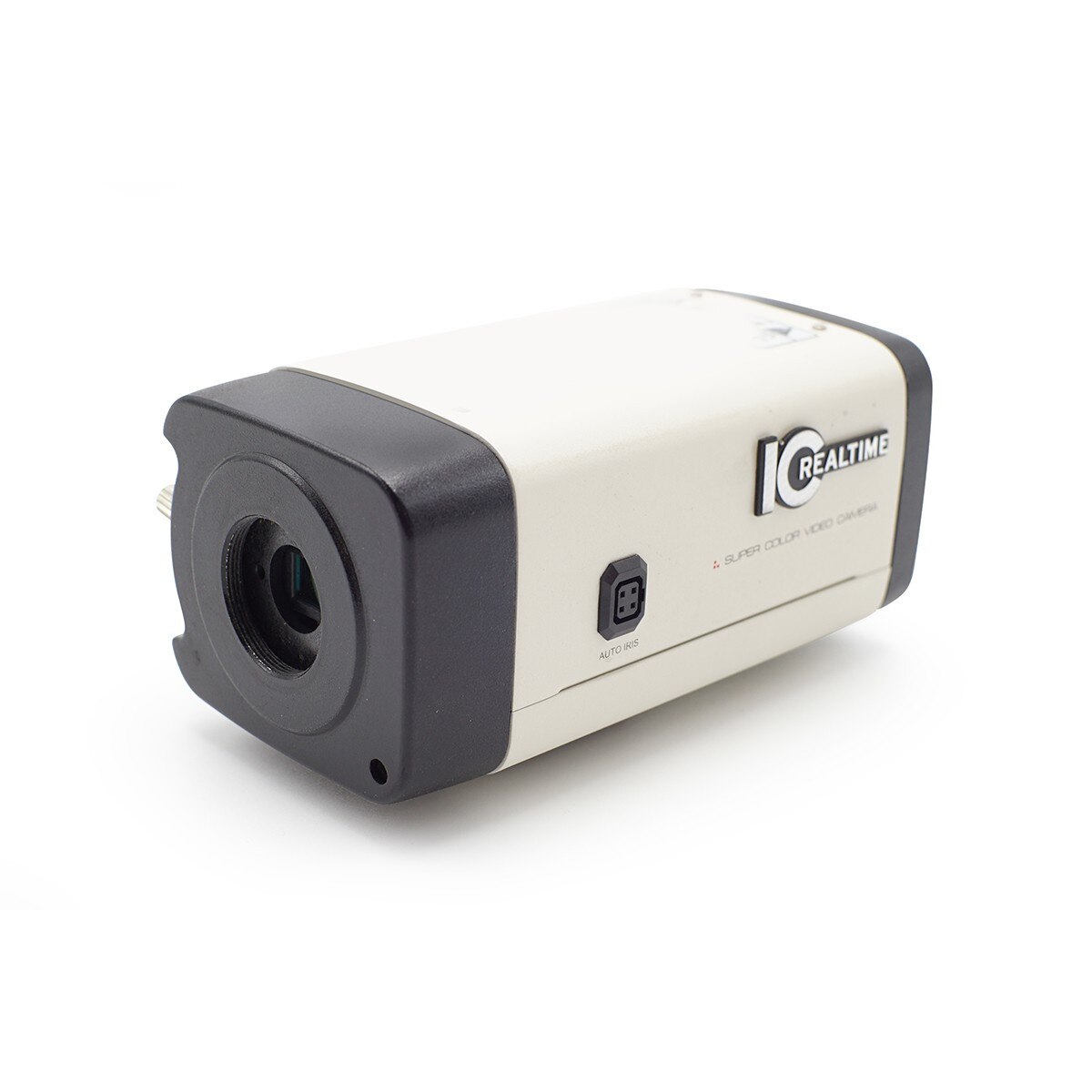

The EL700 is a full bodied 'box' type camera. It accepts both 12VDC and 24VAC, and even has reverse polarity protection built in. Beyond this, the camera touts a high resolution, 1/3'' Sony Super HAD II imager, capable of producing 600TVL images. The DSP chip on the camera also offers up a full-featured OSD (on-screen display), which enables rich control over exposure settings. With some setting adjustments, and a strong zoom lens, we see these cameras utilized for LPR (license plate recognition) frequently.
*Lens not included.
Specifications
| Camera | |
| Image Sensor: | 1/3" Sony Super HAD CCD |
| Effective Pixels: | NTSC : 768 (H) x 494 (V) / PAL : 752 (H) x 582 (V) |
| Scanning System: | 2:1 Interlace |
| Sync: | Internal / Line Lock |
| Minimum Illumination: | 0.3 Lux / F1.2 (50IRE, AGC High, DNR High) / 0.0002 Lux (Sens-up x 128 Max) |
| S/N Ratio: | 50dB (AGC Off) |
| Illumination Distance: | n/a |
| PIR Sensor Range: | n/a |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | n/a |
| Focal Length: | n/a |
| Max. Aperture: | n/a |
| Angle of View: | n/a |
| Focus Control: | n/a |
| PTZ | |
| Pan/Tilt Range: | n/a |
| Manual Control Speed: | n/a |
| Preset Speed: | n/a |
| Presets: | n/a |
| PTZ Mode: | n/a |
| Speed Setup: | n/a |
| Power up Action: | n/a |
| Idle Motion: | n/a |
| Protocol: | n/a |
| Time Task: | n/a |
| OSD Menu: | n/a |
| Wiper: | n/a |
| Tracking Trigger Mode: | n/a |
| Tracking Trigger Event: | n/a |
| Video | |
| Resolution: | 600 TVL Day, 650 TVL Night |
| Backlight Compensation: | Low, Middle, High, Off Selectable |
| Gain Control: | Low, Middle, High, Off Selectable |
| Noise Reduction: | Low, Middle, High, Off Selectable |
| Digital Zoom: | n/a |
| Mirror: | ON / OFF |
| Privacy Masking: | ON / OFF (4 Zone) |
| Audio | |
| Compression: | n/a |
| Network | |
| Ethernet: | n/a |
| Protocol: | n/a |
| Wifi: | n/a |
| Compatibility: | n/a |
| Max. User Access: | n/a |
| Smart Phone: | n/a |
| Interface | |
| Video Interface: | 1.0Vp-p Composite. 75 Ohms |
| RS232: | n/a |
| Audio I/O: | n/a |
| Alarm I/O: | n/a |
| Factory Reset: | n/a |
| Memory Slot: | n/a |
| Electrical | |
| Power Supply: | 12VDC (200mA) / 24VAC (110mA) |
| Power Consumption: | 14 ° F~122 ° F (-10 ° C ~+ 50 ° C) |
| Environmental | |
| Operating Conditions: | 14 ° F~122 ° F (-10 ° C ~+ 50 ° C) |
| Operating Humidity: | 30% to 80% RH |
| Ingress Protection: | n/a |
| Vandal Resistance: | n/a |
| Construction | |
| Dimensions: | 2.05" Height (52mm) x 2.44" Width (62mm) x 5.00" (127mm) Length |
