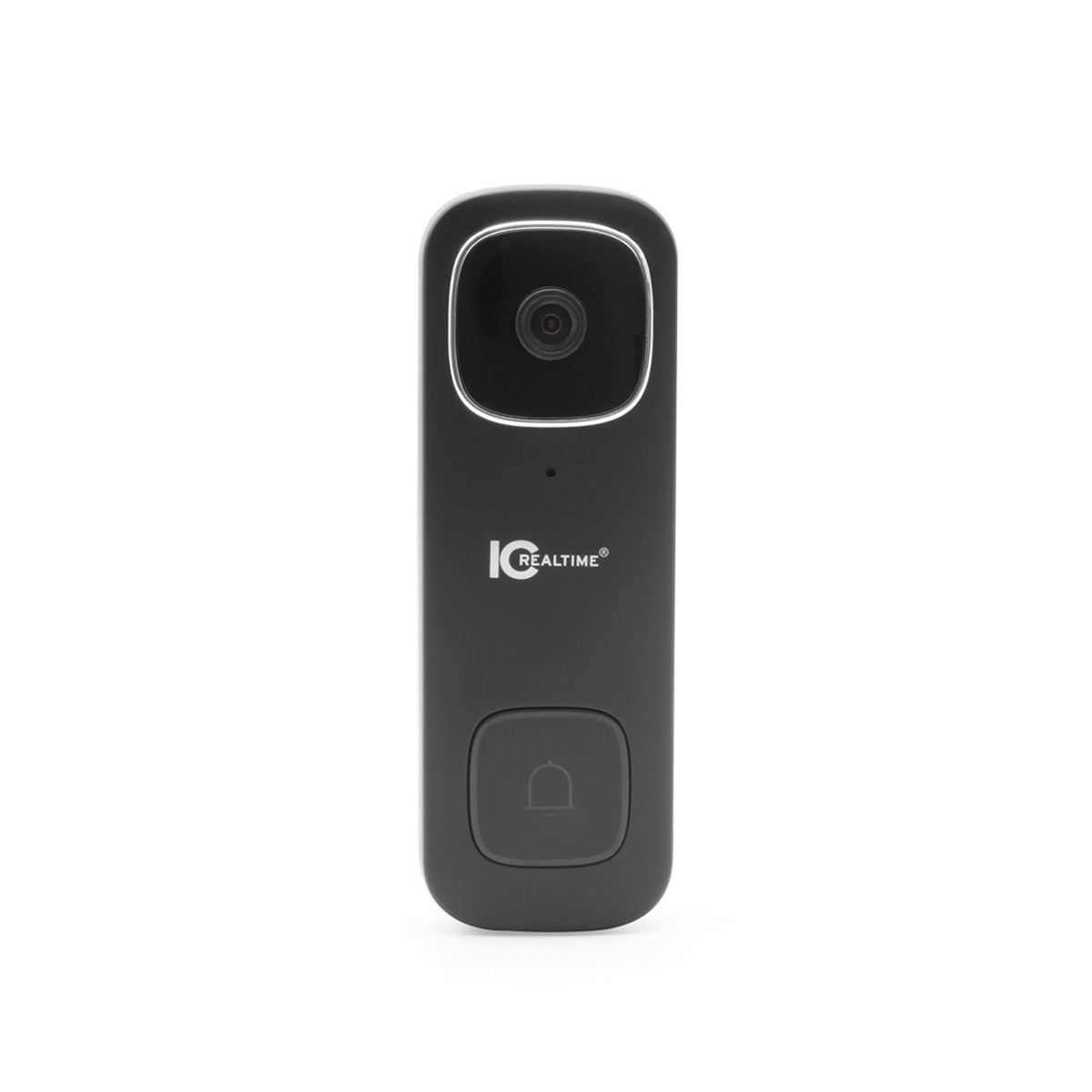

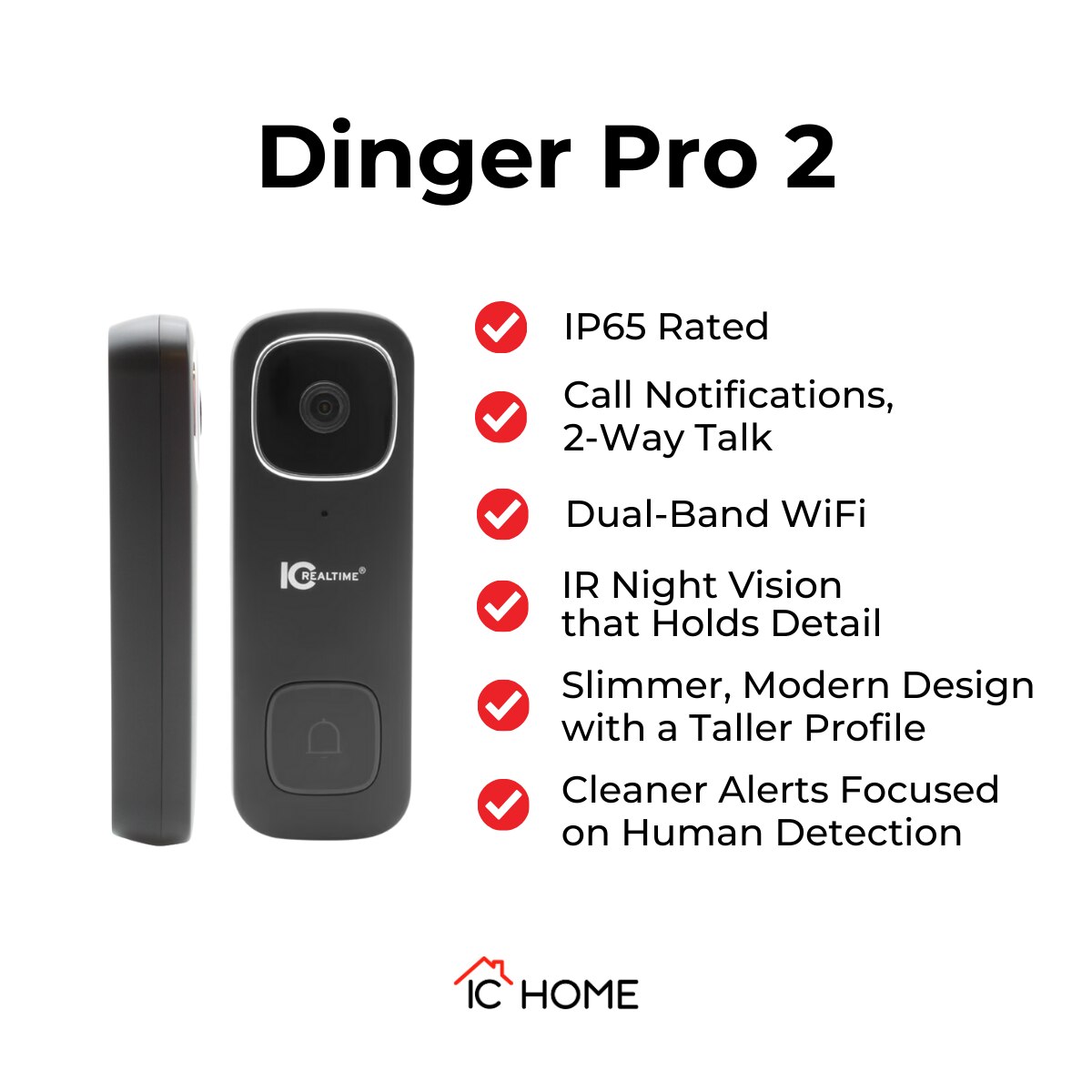

DINGER PRO 2
Details

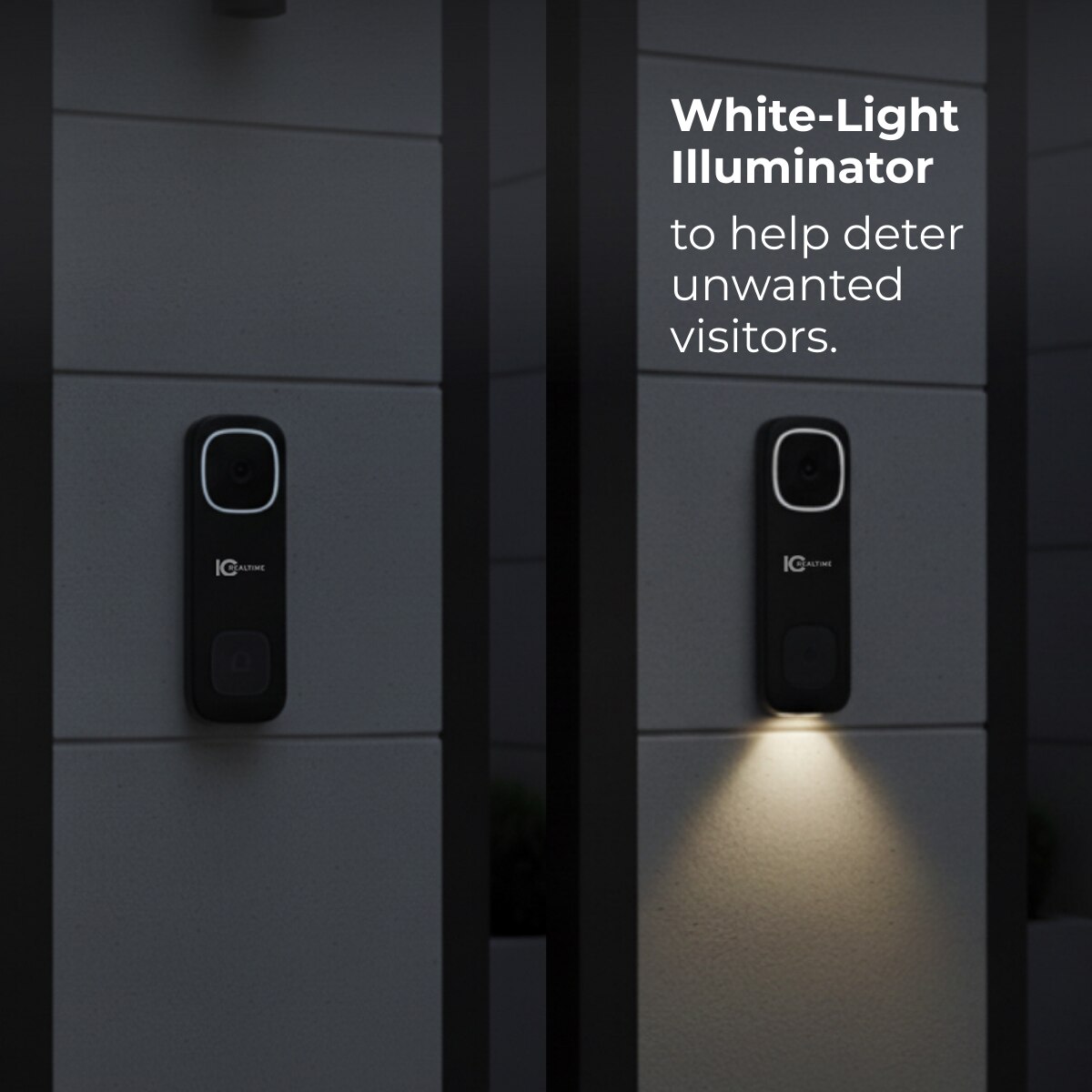

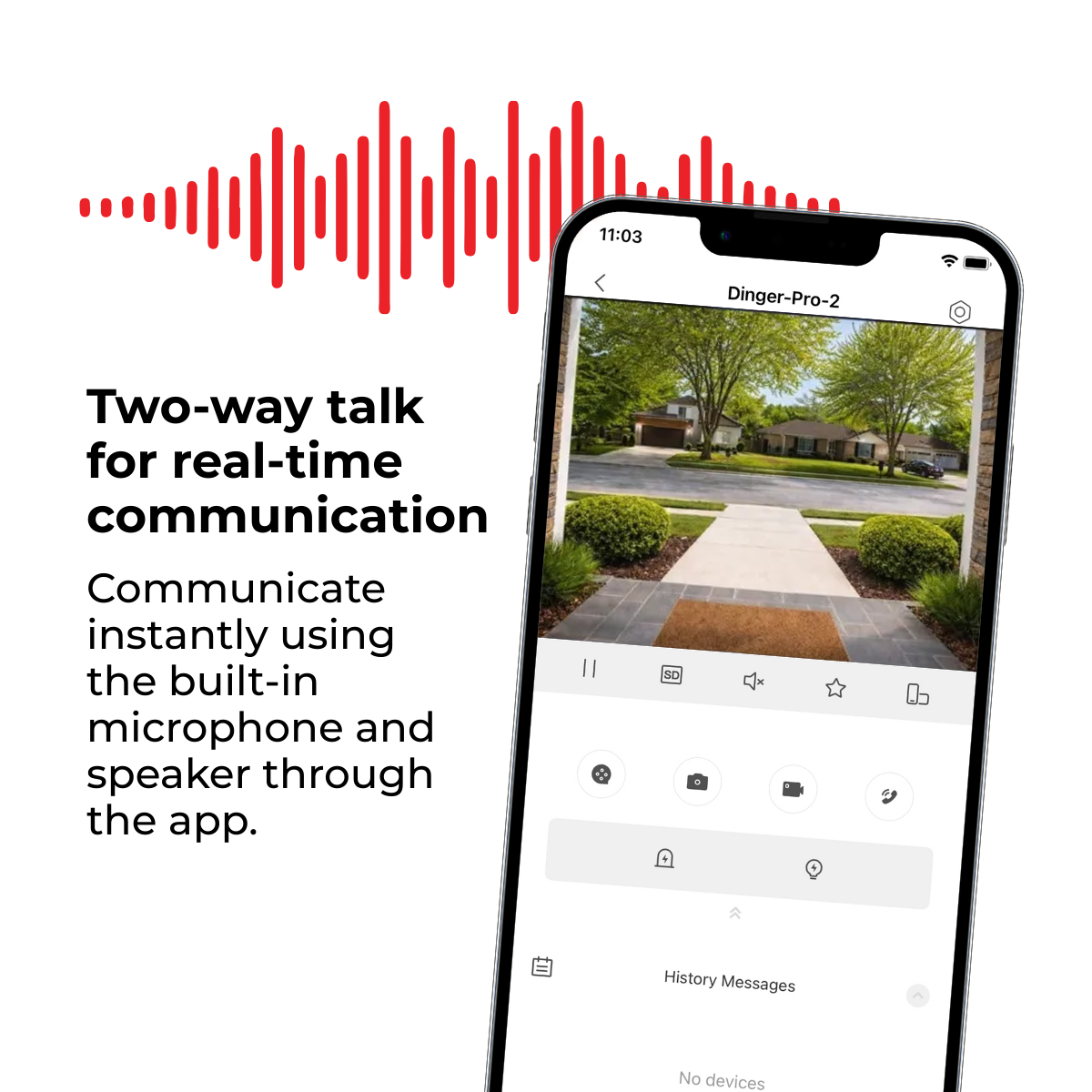

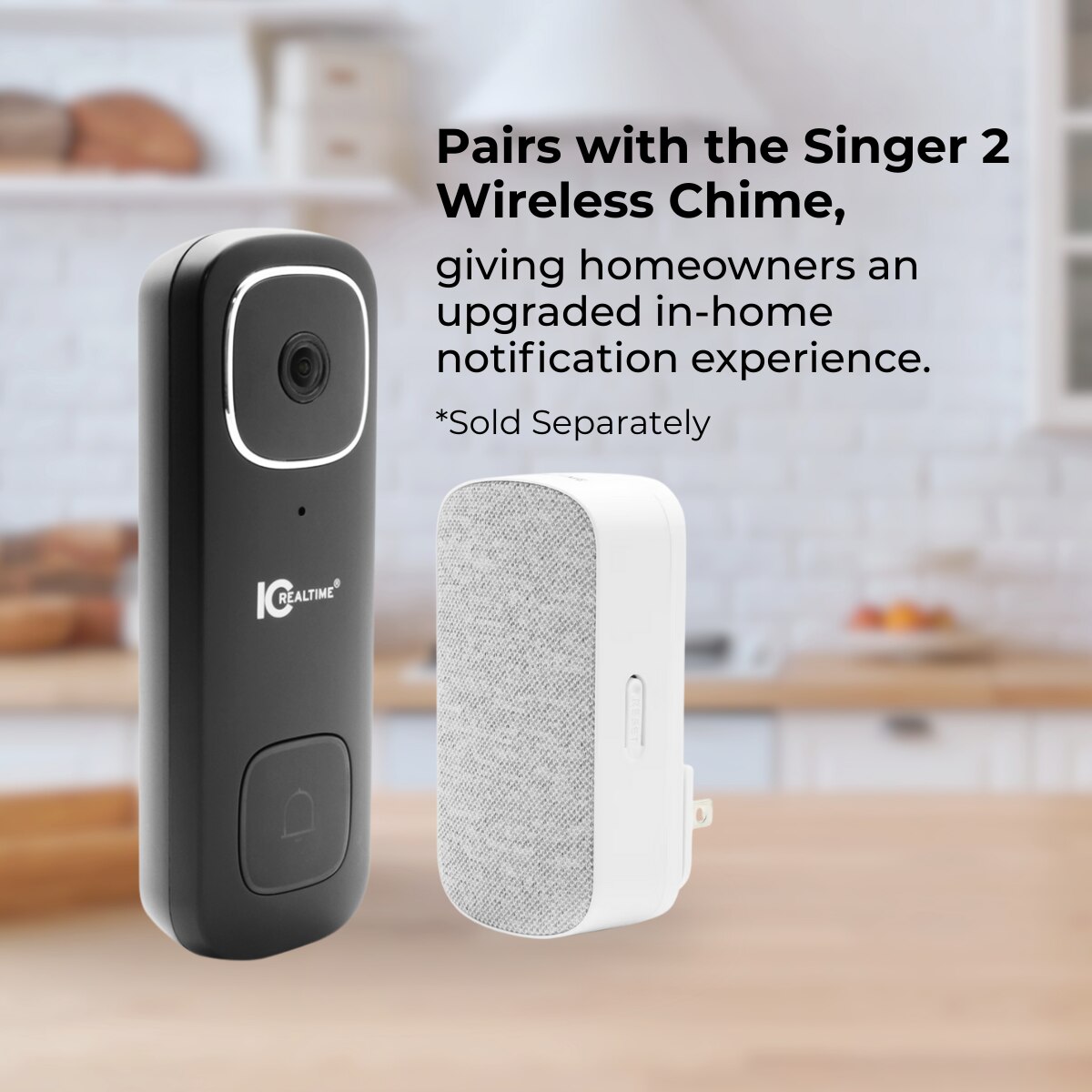

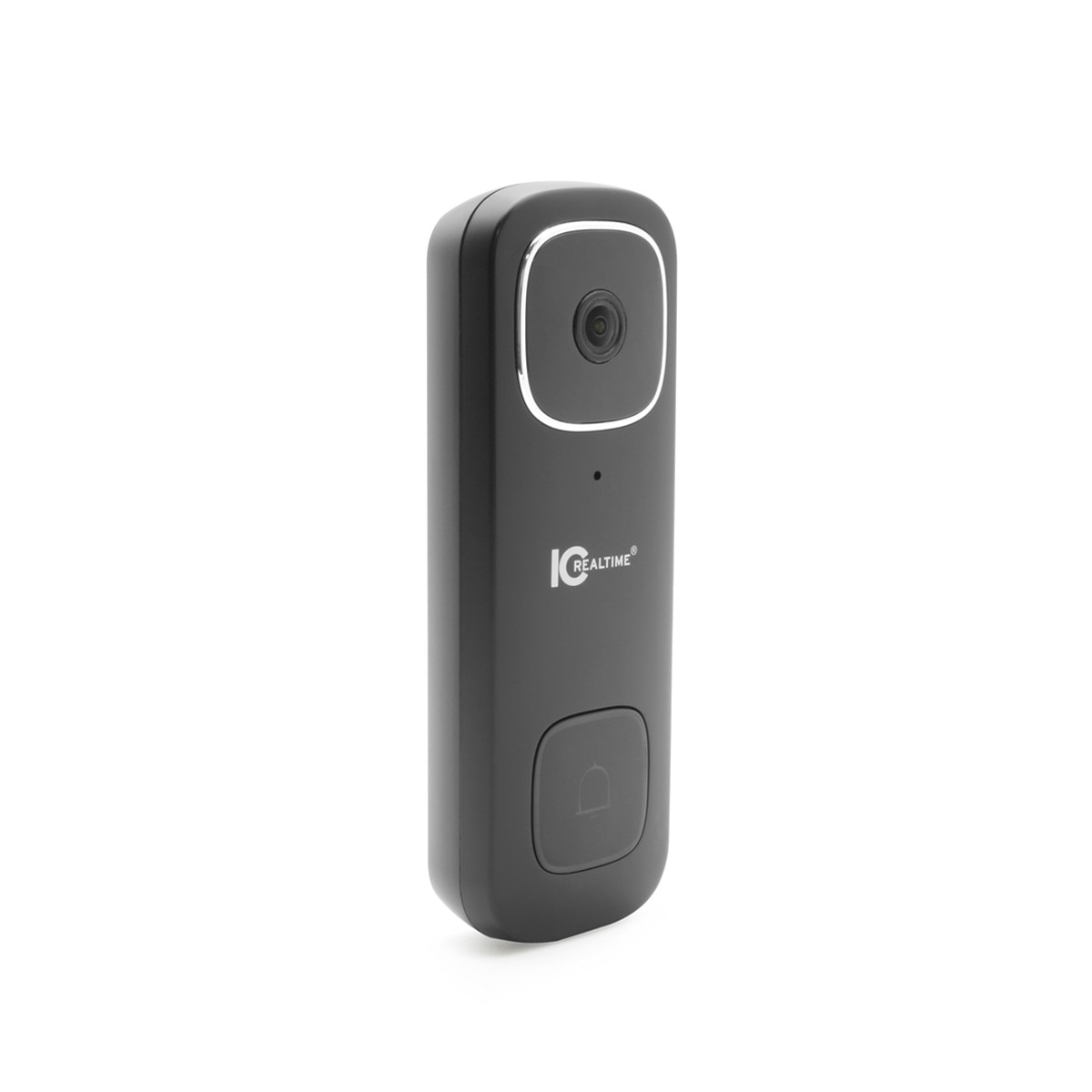

The IC Home Dinger Pro 2 offers crisp 5MP QHD+ video and a super-wide field of view, so you can see more of what’s happening at your doorstep. It features built-in IR night vision and a white-light illuminator to help deter unwanted visitors. Setup is quick and easy using the IC View Pro app, where you can watch live or recorded video, talk to visitors with two-way audio, and get instant alerts sent right to your phone. The Dinger Pro 2 can connect with existing mechanical chimes or the Singer 2 Wireless chime.
Specifications
| Camera | |
| Image Sensor: | 1/2.7-in. CMOS |
| Effective Pixels: | 5MP (2560 x 1920) |
| RAM/Rom: | 128 MB / 256 MB |
| Scanning System: | Progressive |
| Illumination Distance: | 16.5ft (5m) |
| Illumination On/Off Control: | Programmable, Auto |
| Illumination LEDs: | 2 |
| Camera Illumination Type: | IR and White Light |
| Lens | |
| Lens Type: | Fixed lens |
| Focal Length: | 2.2 mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H: 124°, V: 92°, D: 164° |
| DORI - Detect: | 144.36ft (44.0 m) |
| DORI - Observe: | 57.74ft (17.6 m) |
| DORI - Recognize: | 28.87ft (8.8 m) |
| DORI - Identify: | 14.44ft (4.4 m) |
| Intelligence | |
| IVS: | Human Detection |
| Advanced Intelligent Functions: | Call Notification |
| Video | |
| Compression: | H.265, H.264 |
| Resolution: | 2560 x 1920, 1440 x 1080, 640 x 480 |
| Frame Rate: | Main Stream: 2560 x 1920 at 15 fps Sub Stream: 640 x 480 at 15 fps |
| Bit Rate: | H.264: 32 kbps to 8192 kbps H.265: 32 kbps to 8192 kbps |
| Day/Night: | Auto (ICR), Color, B/W |
| Noise Reduction: | 3D NR |
| Motion Detection: | On, Off |
| Iris Control: | Fixed |
| WDR: | DWDR |
| Audio | |
| Compression: | G.711A, G.711Mu, PCM |
| Network | |
| Ethernet: | N/A |
| Protocol: | RTSP, CGI |
| Wifi: | 2.4 GHz: IEEE802.11b/g/n • 2400 to 2483.5 MHz, RF POWER ≤30 dBm 5 GHz: IEEE802.11a/n/ac • 5150 to 5350 MHz, 5470 to 5725 MHz, RF POWER ≤24 dBm • 5725 to 5850 MHz, RF POWER ≤30 dBm |
| Interoperability: | CGI, P2P |
| Edge Storage: | IC Realtime NVR’s and HDVR’s |
| Web Viewer: | N/A |
| Management Software: | IC Now |
| Smart Phone: | IC View Pro App (iOS, Android) |
| Interface | |
| Audio I/O: | Built-in Mic & Speakers |
| Memory Slot: | Supports up to 256GB Micro SD Card |
| Electrical | |
| Power Supply: | 12 VDC to 24 VDC or 16 VAC to 24 VAC, 0.8 A USB (5 VDC±5%, 2 A)² |
| Power Consumption: | 5 VDC: 2.3 W, Maximum: 3.3 W 12-24 VDC: 2.9 W, Maximum: 4.8 W 16-24 VAC: 2.9 W, Maximum: 4.9 W |
| Environmental | |
| Operating Conditions: | –4° F to 122° F (–20° C to +50° C), Less than 95% RH |
| Ingress Protection: | IP65 |
| Construction | |
| Casing: | Plastic |
| Dimensions: | 5.12 in. x 1.77 in. x 0.88 in. (130.0 mm x 45.0 mm x 22.50 mm) |
| Gross Weight: | 1.12 lb (0.51 kg) |
