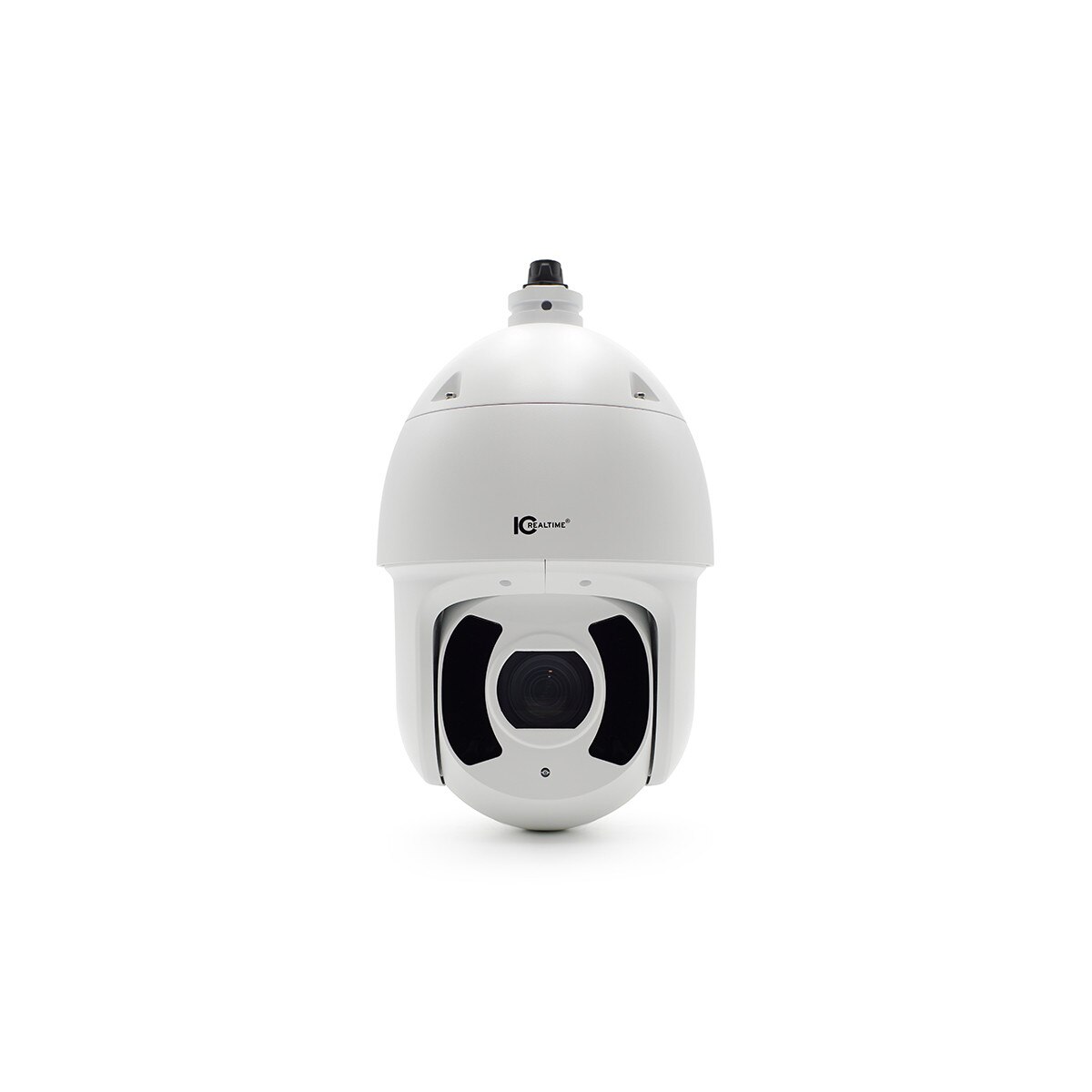

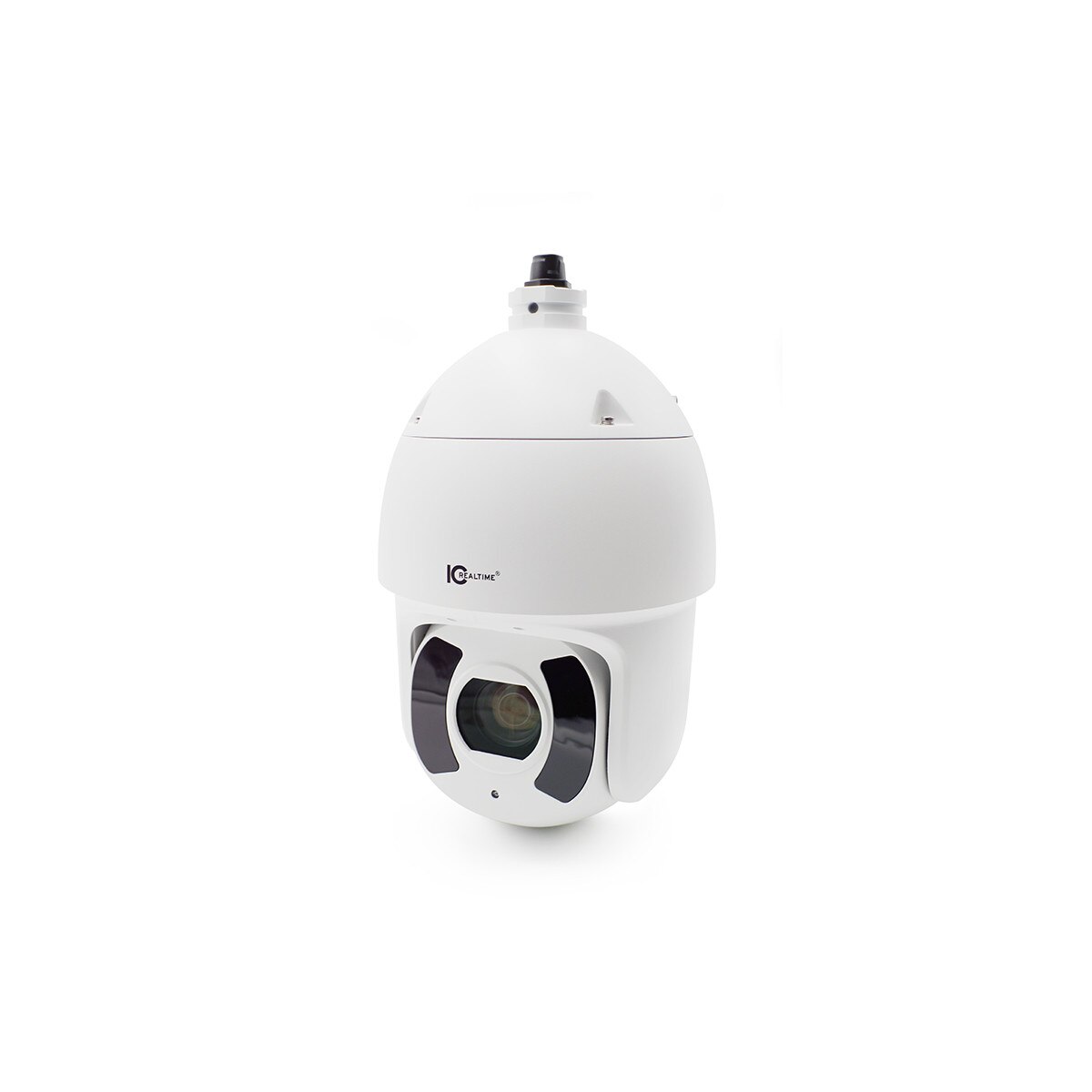

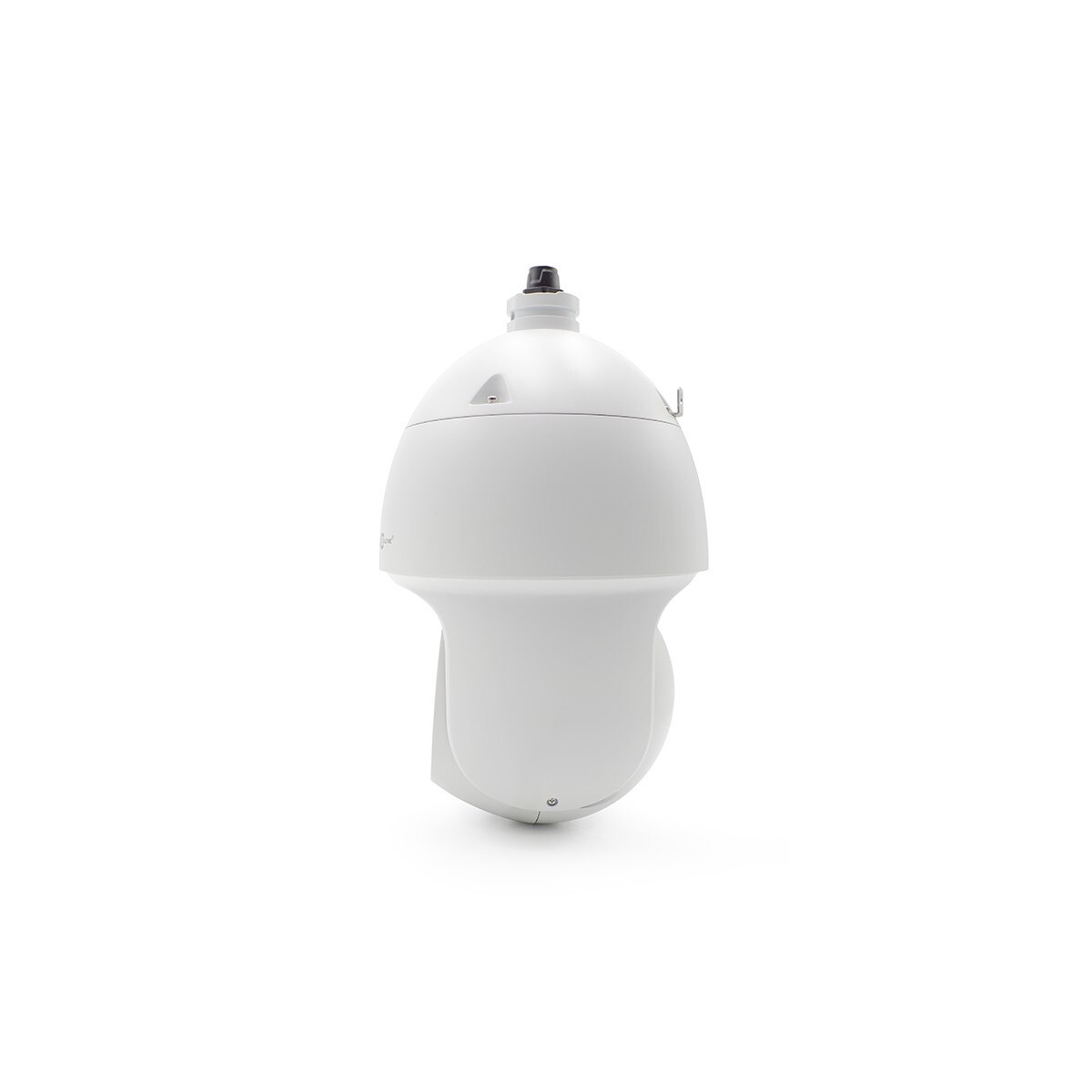

AVS-Z430IR-V2

(0) No Reviews yet
SKU: AVS-Z430IR-V2
ITEM WEIGHT: 20
4MP HDAVS Full Size PTZ. 30X Optical Zoom. 300 Feet Smart IR. 24VAC (Wall Mount Included).
1/3 CMOS | 4MP | 30fps@4MP
4.5mm to 135mm | motorized varifocal | AoV 60 to 2.2
Max. IR length 656ft| Smart IR | 6 IR LEDs
1ch audio in | 2ch alarm in 1 ch alarm out
IP67 | IK10| 24VAC | Max. 25W
AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

Featured with a powerful optical zoom and accurate pan/tilt/zoom performance, the AVS-Z430IR-V2 series PTZ camera can provide a large monitoring range in great detail. The camera delivers 4MP resolution at 30fps, with 30x optical zoom.

The AVS-Z430IR-V2 series PTZ is equipped with smooth control, a high quality image, and protection from the elements, which make it applicable in a wide range of surveillance installations.

Specifications

Camera
Image Sensor: 1/3 CMOS
Effective Pixels: 2592(H) x 1520(V) 4 Megapixels
Scanning System: Progressive
Minimum Illumination: Color: 0.05Lux@F1.6 0Lux@F1.6 (IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 200m (656ft)
IR On/Off Control: Auto/Manual
IR LEDs: 6
Lens
Focal Length: 4.5-135mm
Max. Aperture: F1.6 - F4.4
Angle of View: H: 60 - 2.2 degrees
Optical Zoom: 30x
Focus Control: Auto/Manual
Close Focus Distance: 100 - 1000mm (3.94 - 39.37in)
DORI - Detect: 2700m (8858ft)
DORI - Observe: 1080m (3543ft)
DORI - Recognize: 540m (1772ft)
DORI - Identify: 270m (886ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 endless; / Tilt: -15 ~ 90 & auto flip 180
Manual Control Speed: Pan: 0.1 ~ 160/s / Tilt: 0.1 ~ 120/s
Preset Speed: Pan: 240 degrees/s Tilt: 200 degrees/s
Presets: 300
PTZ Mode: 5 Pattern / 8 Tour / Auto Pan / Auto Scan
Speed Setup: Human-oriented focal Length / speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol: ICR-SD / Pelco-P/D (Auto recognition)
OSD Menu: Yes
Video
Resolution: 4M (2592 x 1520) / 1080P (1920 x 1080) / 720P (1280 x 720)
Frame Rate: 25/30fps@4M / 1080P 25/30 / 50/60fps@720P
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB)
White Balance: Auto / ATW / Indoor / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Digital Zoom: 16x
Flip: 180
Privacy Masking: Up to 24 areas
Interface
Video Interface: 1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
RS485: 1
Audio I/O: 1-channel audio in
Alarm I/O: 2/1
Electrical
Power Supply: AC24V/3A(+/- 10%)
Power Consumption: 17W, 25W(IR on,Heater on)
Enviromental
Operating Conditions: -40C ~ 60C (-40F ~ +140F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 209×337.4mm
Gross Weight: 9.6kg(21.16lb)
