AVS-PANO-A007

(0) No Reviews yet
SKU: AVS-PANO-A007
ITEM WEIGHT: 9
3X 2MP (6MP Total) Avs 180° Panoramic Full Size Bullet. I-SnIPer. 3X 3.6mm Fixed Lens (180°). 65 Feet Smart IR. 24VAC...
Three 1/2.8 CMOS | 2MP | 15fps@4K
3.6mm | fixed | AoV 180
Max. IR length 65ft | Smart IR | 6 IR LEDs
1ch audio in
IP67 | IK10 | 24VAC | Max. 24W
AGC | 120dB WDR | HLC | BLC | 3DNR

Details

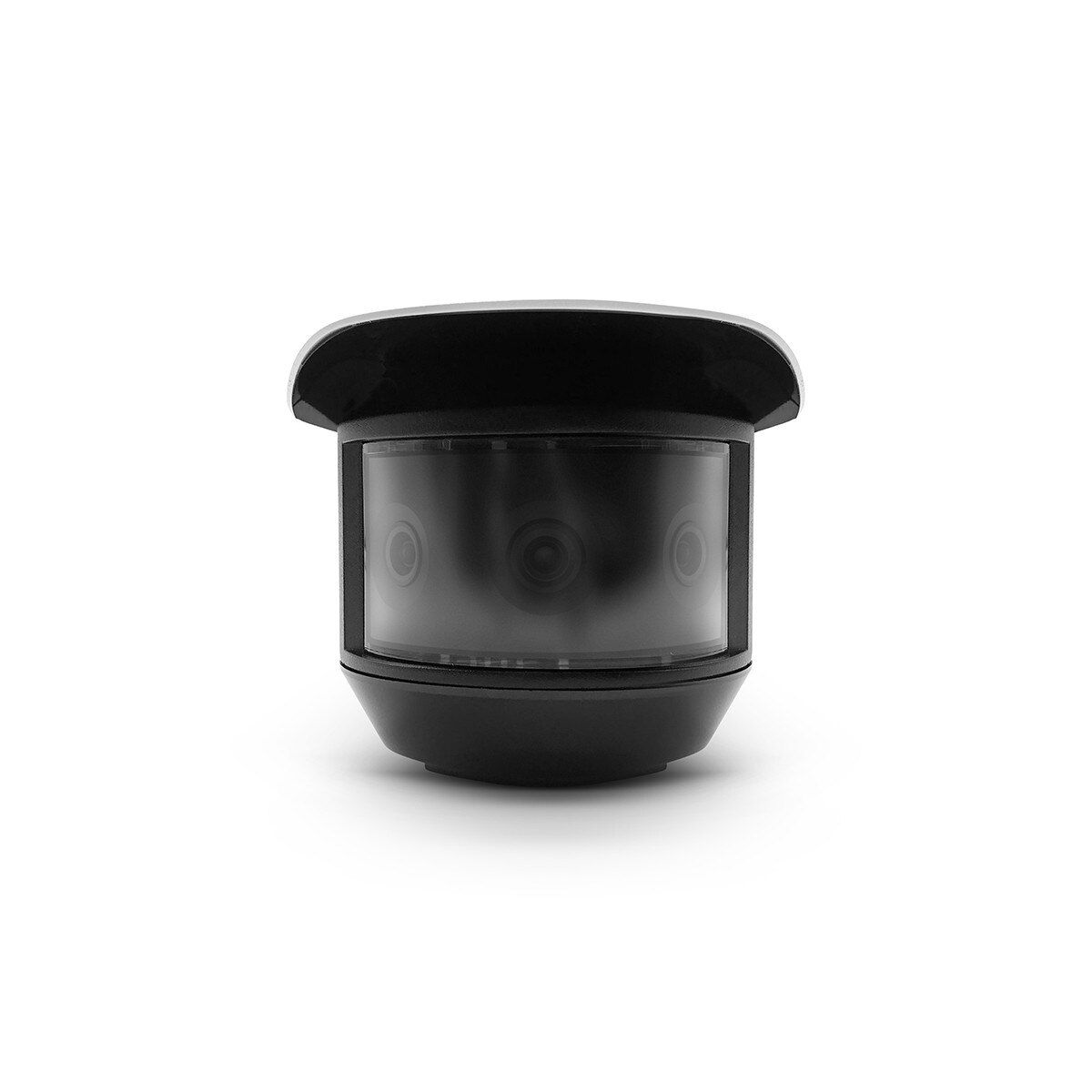

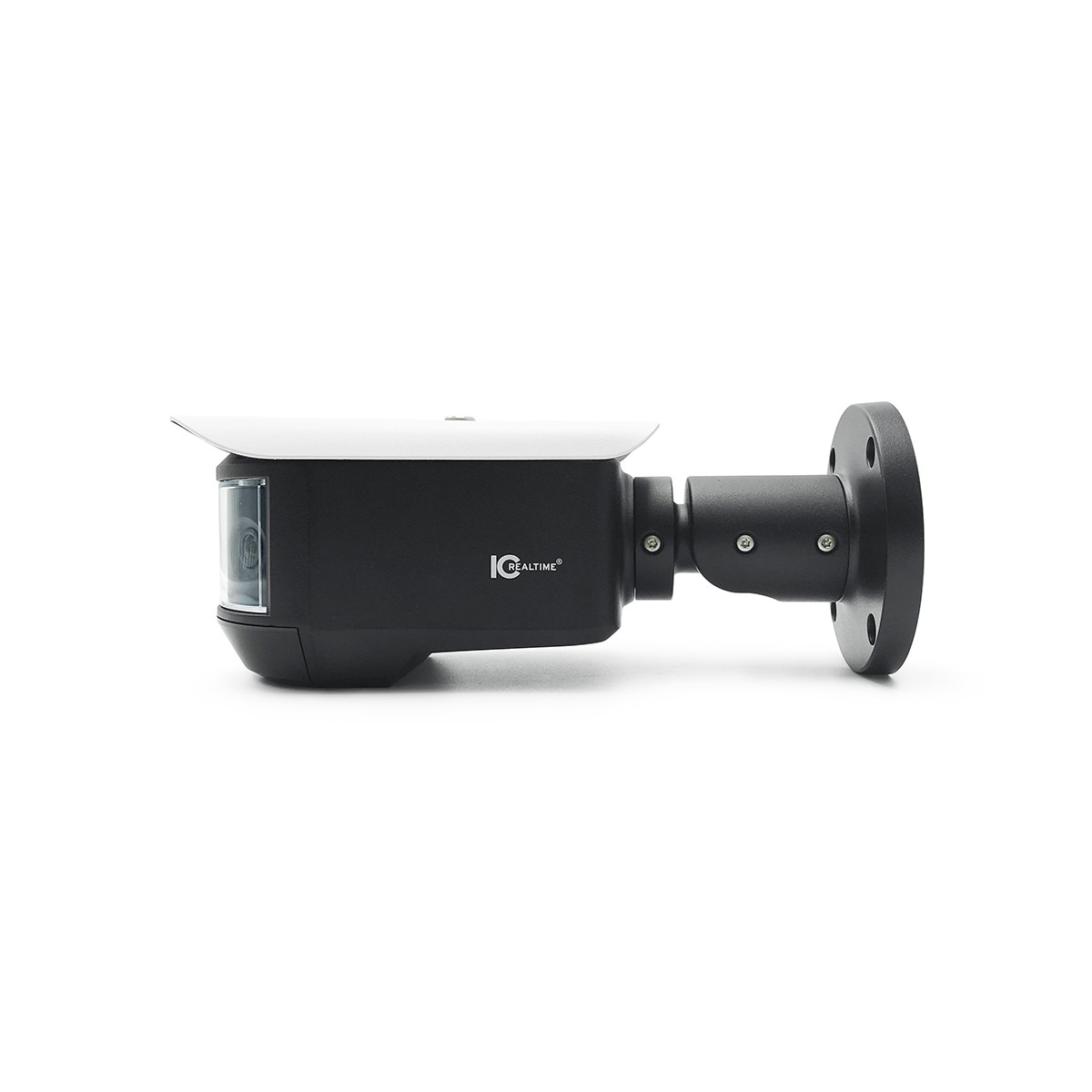

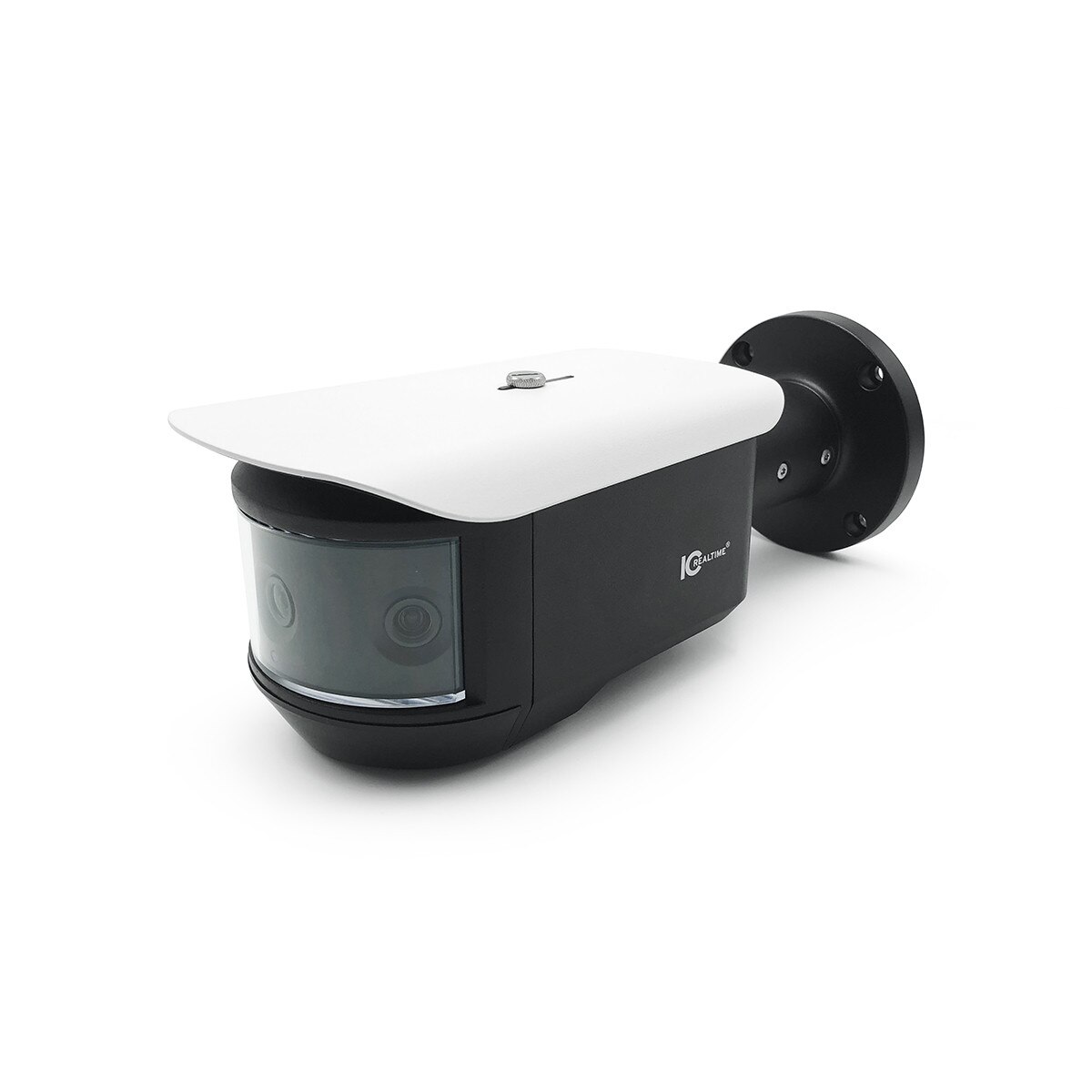

IC Realtime's unique 3 lens camera provides added flexibility for capturing wide area surveillance. Meet the AVS-PANO-A007. With three 2MP I-Sniper sensors working in unison, this camera creates a panoramic, 180° overview, allowing the camera to replace multiple single sensor cameras at a lower overall cost. Each sensor is the latest I-Sniper gen2 chipset which provides vibrant color at the lowest levels of illumination, and strong WDR capabilities.

Specifications

Camera
Image Sensor: Three 1/2.8 2 Megapixel STARVIS CMOS
Effective Pixels: 2592(H) x 1944(V)
Scanning System: Progressive
Minimum Illumination: 0.005Lux/F1.8( Color) 30IRE 0Lux/F1.8(IR on)
S/N Ratio: More than 65dB
IR Distance: 20m (66ft)
IR On/Off Control: Auto (ICR)/Color/B/W
IR LEDs: 6
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.6mm
Max. Aperture: F1.8
Angle of View: H: 180 degrees
Focus Control: N/A
Close Focus Distance: 500mm (19.7in)
DORI - Detect: 50m (163ft)
DORI - Observe: 20m (65ft)
DORI - Recognize: 10m (33ft)
DORI - Identify: 5m (16ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 / Tilt: 0 ~ 90 / Rotation: 0 ~ 360
OSD Menu: Multi-language
Video
Resolution: 4K (3840 x 2160) / 4MP (2560 x 1440)
Frame Rate: PAL:3840 x 2160@12.5fps 2560 x 1440@25fps NTSC:3840 x 2160@15fps 2560 x 1440@25fps
Day/Night: Auto (Electronic) / Manual
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto / Manual
Gain Control: AGC
Noise Reduction: 2D / 3D
Smart IR: Auto / Manual
WDR: 120dB
Interface
Video Interface: 1-channel BNC HD-AVS panoramic video output & 3-channels BNC 2MP HD-AVS video output
Audio I/O: 1-channel audio in
Alarm I/O: 2/1
Electrical
Power Supply: 24V AC +/- 25%
Power Consumption: 24W
Enviromental
Operating Conditions: -30C ~ +60C (-22F ~ +140F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Aluminium
Dimensions: 286mm x 119mmx 106mm (11.26in x 4.68in x 4.19in)
Gross Weight: 2.43kg (5.36lb)
