AVS-ID1
Details

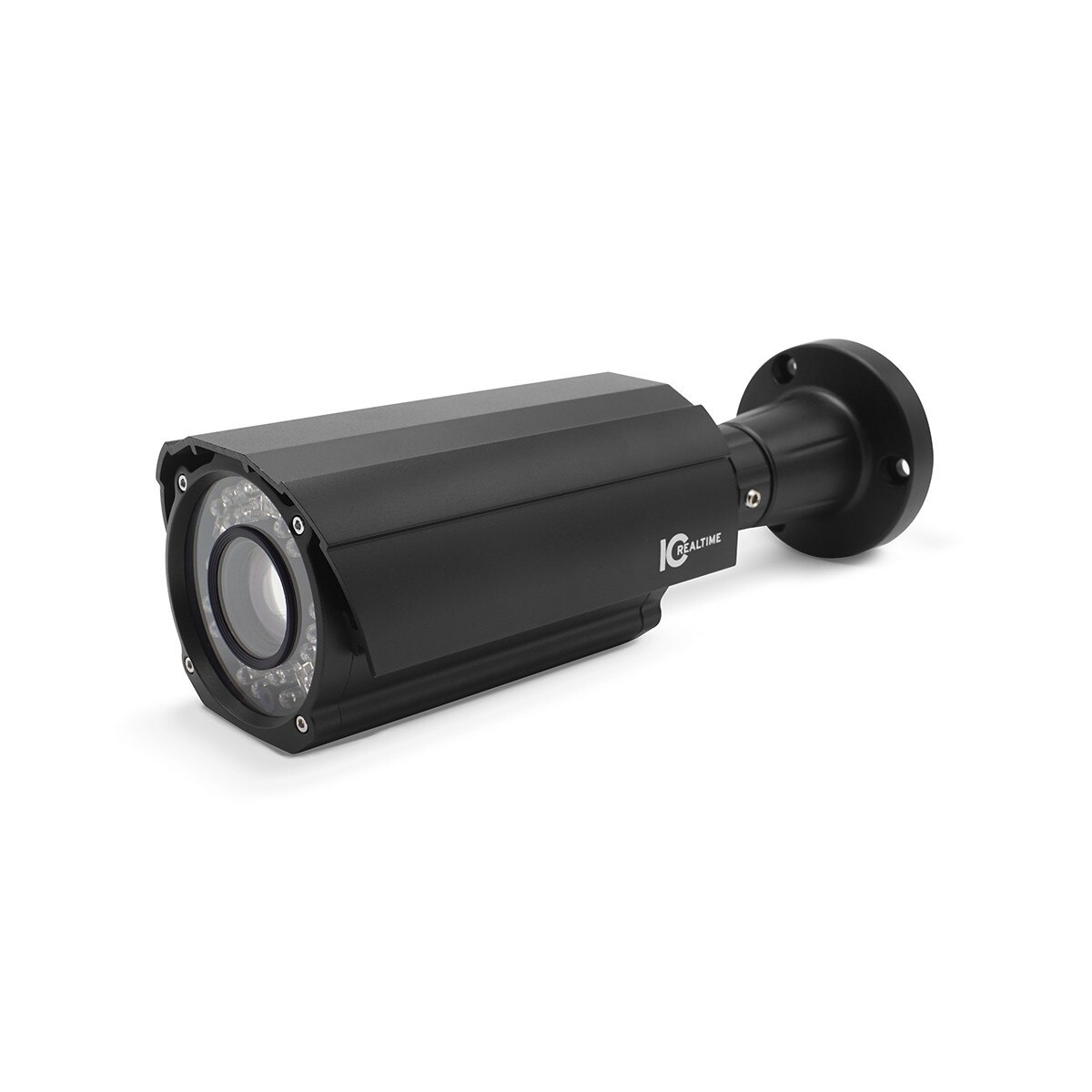

License Plate Recognition - now simpler than ever. The AVS-ID1 is a 2 Megapixel Bullet camera with a motorized 5-50mm optics, specifically designed for plate recognition. This camera utilizes a 1/3'' Panasonic CMOS sensor in tandem with a dual array of IR LED's for both short and long range. The exposure of this camera is configured to provide a B/W image for both day and night time, allowing maximum illumination of the desired license plate. It is capable of capturing license plates at distances of up to 45', at speeds of up to 30 miles per hour. Like all HD-AVS cameras, the AVS-ID1 requires an HD-AVS recorder for proper control and video output. Made in Korea.
Specifications
| Camera | |
| Image Sensor: | 1/3”(D-6mm) 2.12M Panasonic CMOS Sensor |
| Effective Pixels: | 1944 (H) × 1092 (V) |
| Scanning System: | Progressive Scan (16:9) |
| Minimum Illumination: | 0Lux (Continuous IR) |
| S/N Ratio: | > 50dB (AGC Off) |
| Illumination Distance: | Max. IR length 49ft |

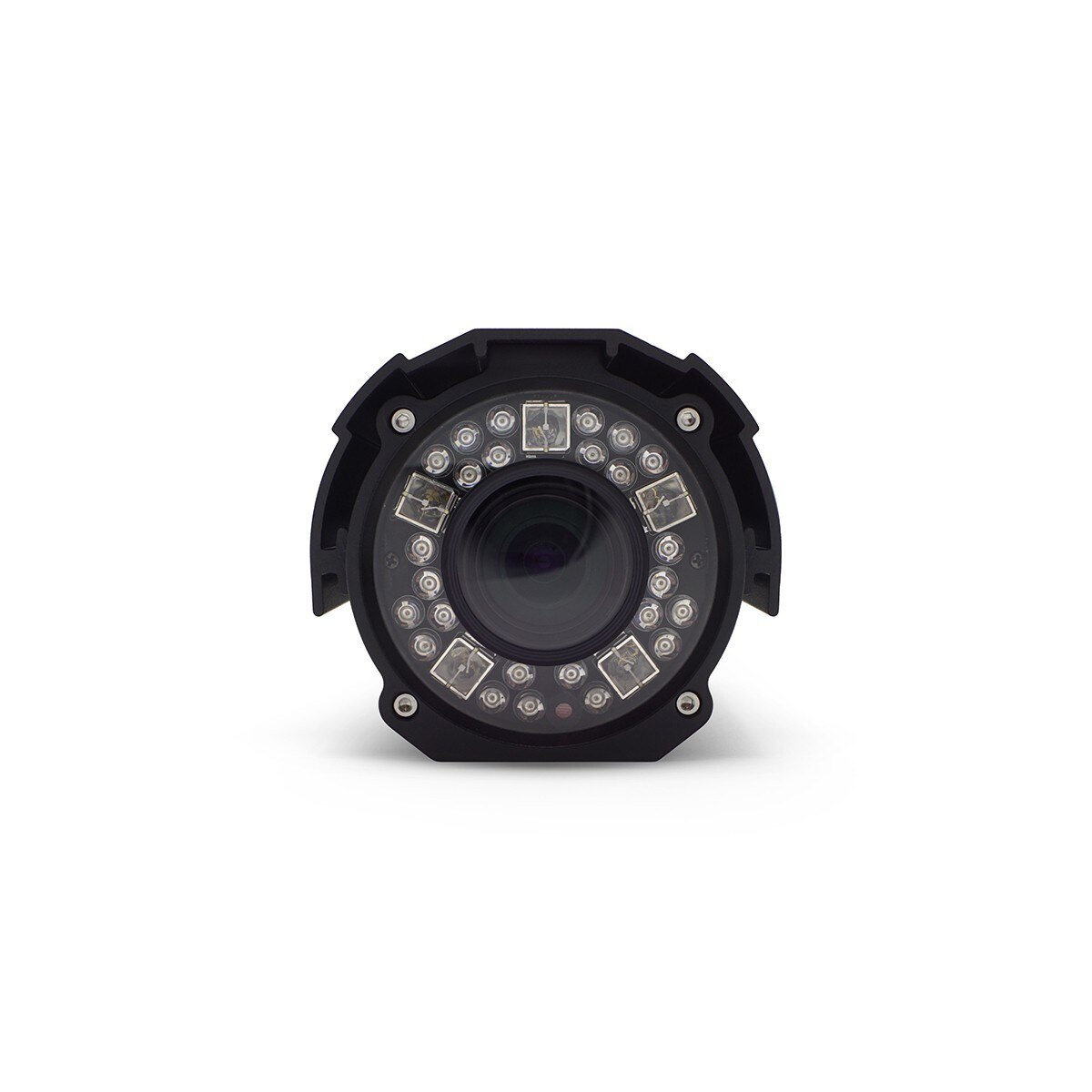

| Illumination LEDs: | 5ea SR-LED and 25ea 5Φ (850nM) |
| Lens | |
| Lens Type: | Auto Vari-focal |
| Mount Type: | Board type (Φ14) |
| Focal Length: | f=5 ~ 50mm |
| Max. Aperture: | F1.4 |
| Angle of View: | 56˚ ~ 7˚(D), 44˚ ~ 5.8˚ (H), 33˚ ~ 4.4˚(V) |
| PTZ | |
| OSD Menu: | Via 5-direction Tact-switch; Multi-language support |
| Video | |
| Resolution: | 1080p |
| Frame Rate: | AVS: 1080p@25/30 |
| Day/Night: | B/W Only |
| Backlight Compensation: | Off |
| White Balance: | Balance Auto |
| Gain Control: | AGC (1 ~ 15) |
| Noise Reduction: | 2DNR, 3DNR Mirror Off, On (Mirror, Flip, & Rotation) |
| Motion Detection: | Motion Detection (4 Zone) |
| Region of Interest: | Privacy Mask (4 Zones) |
| Interface | |
| Video Interface: | 1-channel BNC HD-AVS high definition video output, switchable to CVBS |
| Electrical | |
| Power Supply: | DC 12V |
| Power Consumption: | < 6.8 W (560mA @ DC 12V) |
| Environmental | |
| Operating Conditions: | 14°F ~ 131°C -10°C ~ 55°C; < 90% RH |
| Ingress Protection: | IP66 |
| Vandal Resistance: | N/A |
| Construction | |
| Dimensions: | 2.8” (70mm) |
