AVS-B2712SL
Details
When an entry level bullet camera just won't do look no further than the AVS-B2712SL. This sleek indoor/outdoor HD-AVS Bullet camera packs some serious hardware. Powered by a large 1/2.8'' CMOS i-Sniper sensor, this image sensor achieves maximum light gathering capability with image sharpness levels to match. Due to the large image sensor, the camera itself is able to remain in color (Day) mode longer than typical Day/Night cameras, and display full color video with only minimal lighting. On top of the iSniper imager sits a motorized 2.7mm-12mm lens which provides anywhere from a 95 to 36 degree Field of View. Supporting HD-AVS, this camera can be used for retrofit as well as green field installations. Typical applications for this type of camera include: Parking Lots, Warehouses, Exterior Residential, and commercial applications. Like all HD-AVS cameras from IC Realtime, a compatible HD-AVS recorder is required to provide HD video transmission up to 900' over conventional Coaxial cable.
Specifications
| Camera | |
| Image Sensor: | 1/2.8 CMOS |
| Effective Pixels: | 1945(H) x 1097(V) 2.1 Megapixel |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005Lux/F1.4 30IRE 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 100m (328ft) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized lens / Auto iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-12mm |
| Max. Aperture: | F1.4 |
| Angle of View: | H: 95 - 36 degrees |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 300mm (11.81in ) |
| DORI - Detect: | 48m (159ft) |
| DORI - Observe: | 19m (64ft) |
| DORI - Recognize: | 10m (32ft) |
| DORI - Identify: | 5m (17ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0 ~ 360 / Tilt: 0 ~ 90 / Rotation: 0 ~ 360 |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 1080P (1920 x 1080) |
| Frame Rate: | 25/30fps@1080P 25/30 / 50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| WDR: | 120db |
| Interface | |

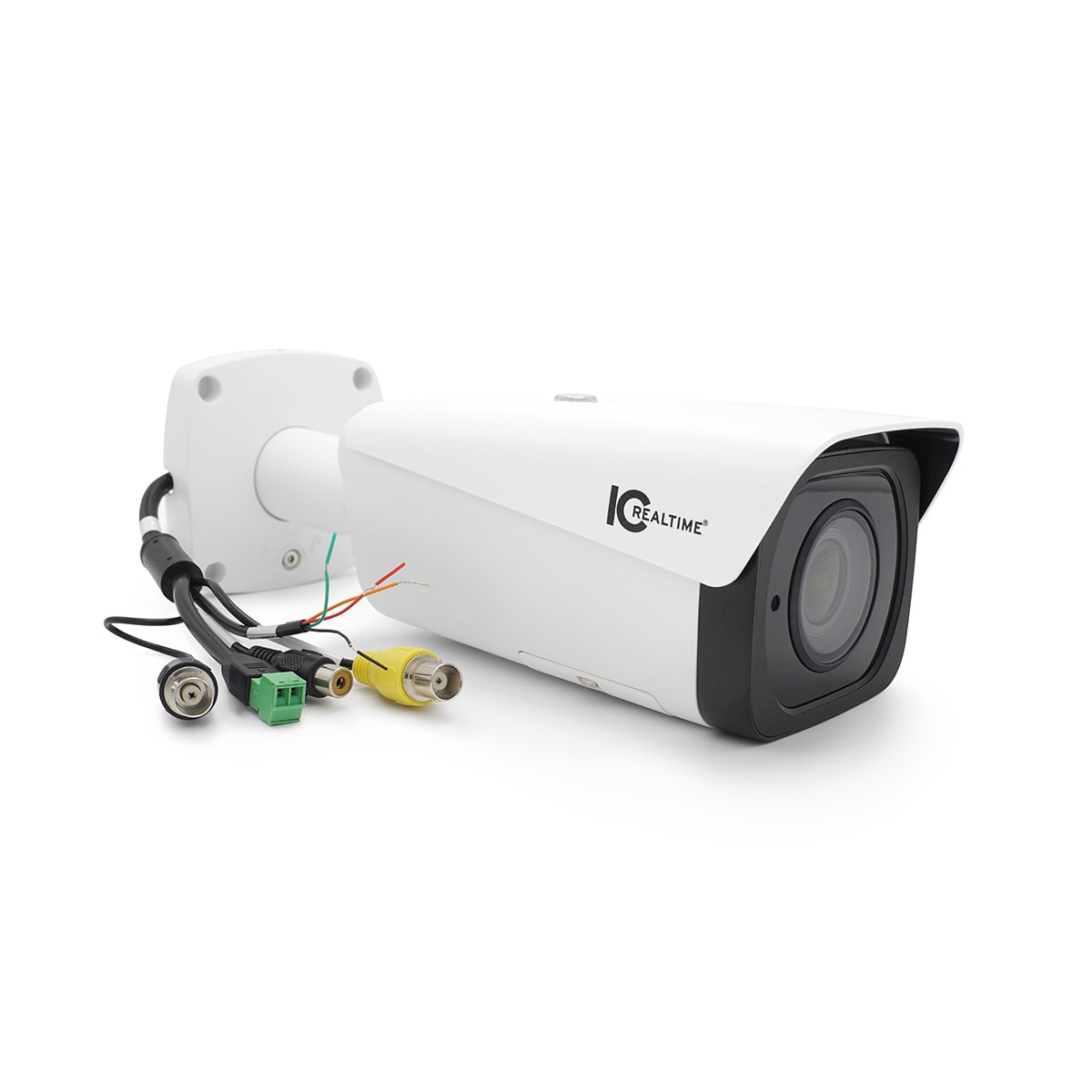

| Video Interface: | 1-channel BNC HD-AVS high definition video output & 1-channel BNC CVBS video output CVBS tester out |
| Audio I/O: | 1-channel audio in |
| Alarm I/O: | 1/1 |
| Electrical | |
| Power Supply: | AC 24V +/- 25% / DC 12V +/- 25% |
| Power Consumption: | Max 16.6W (12V DC IR on) |
| Environmental | |
| Operating Conditions: | -30C ~ +60C (-22F ~ +140F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 273.2mm x 95.0mm x 95.0mm (10.76in x 3.74in x 3.74in) |
| Gross Weight: | 1.52kg (3.35lb) |
