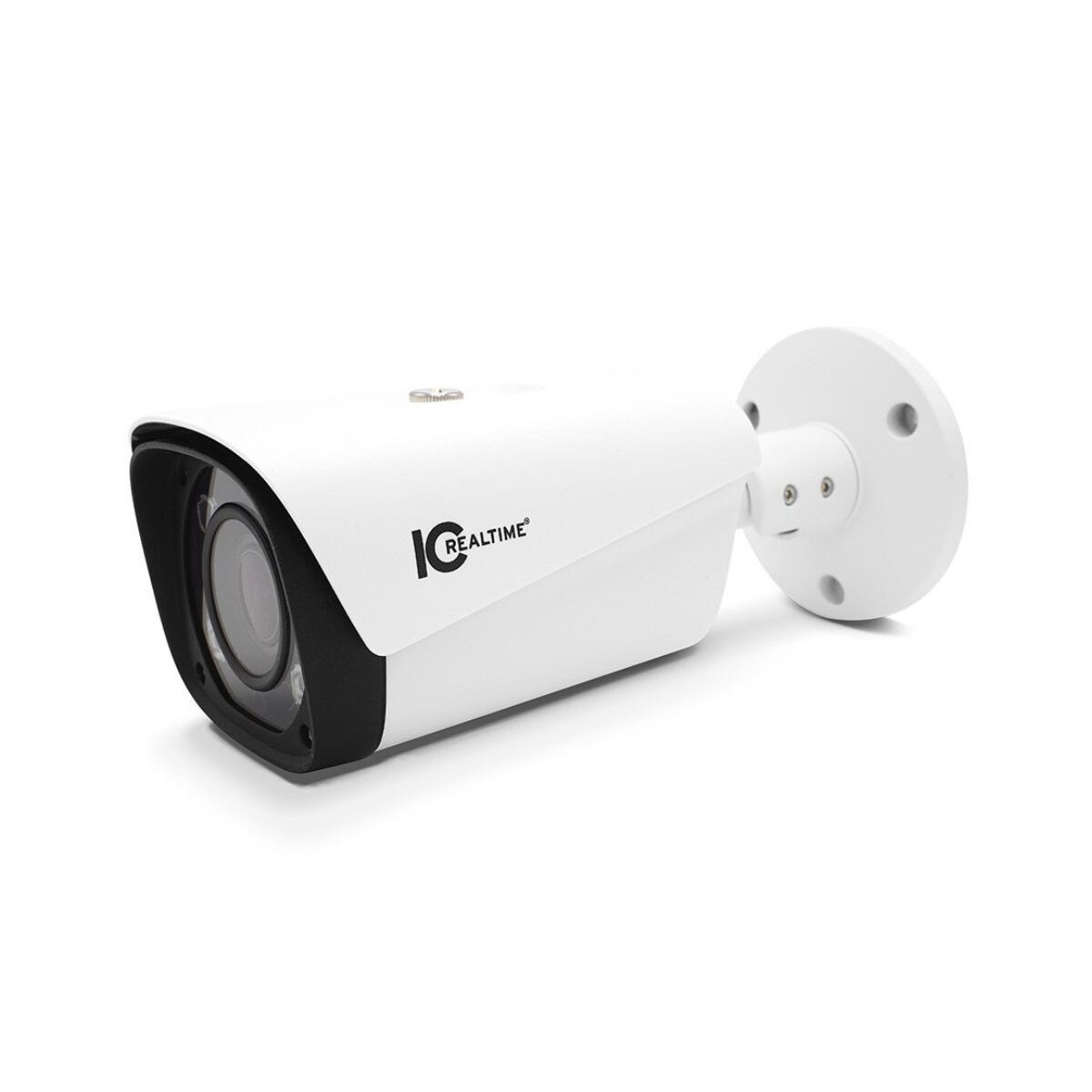

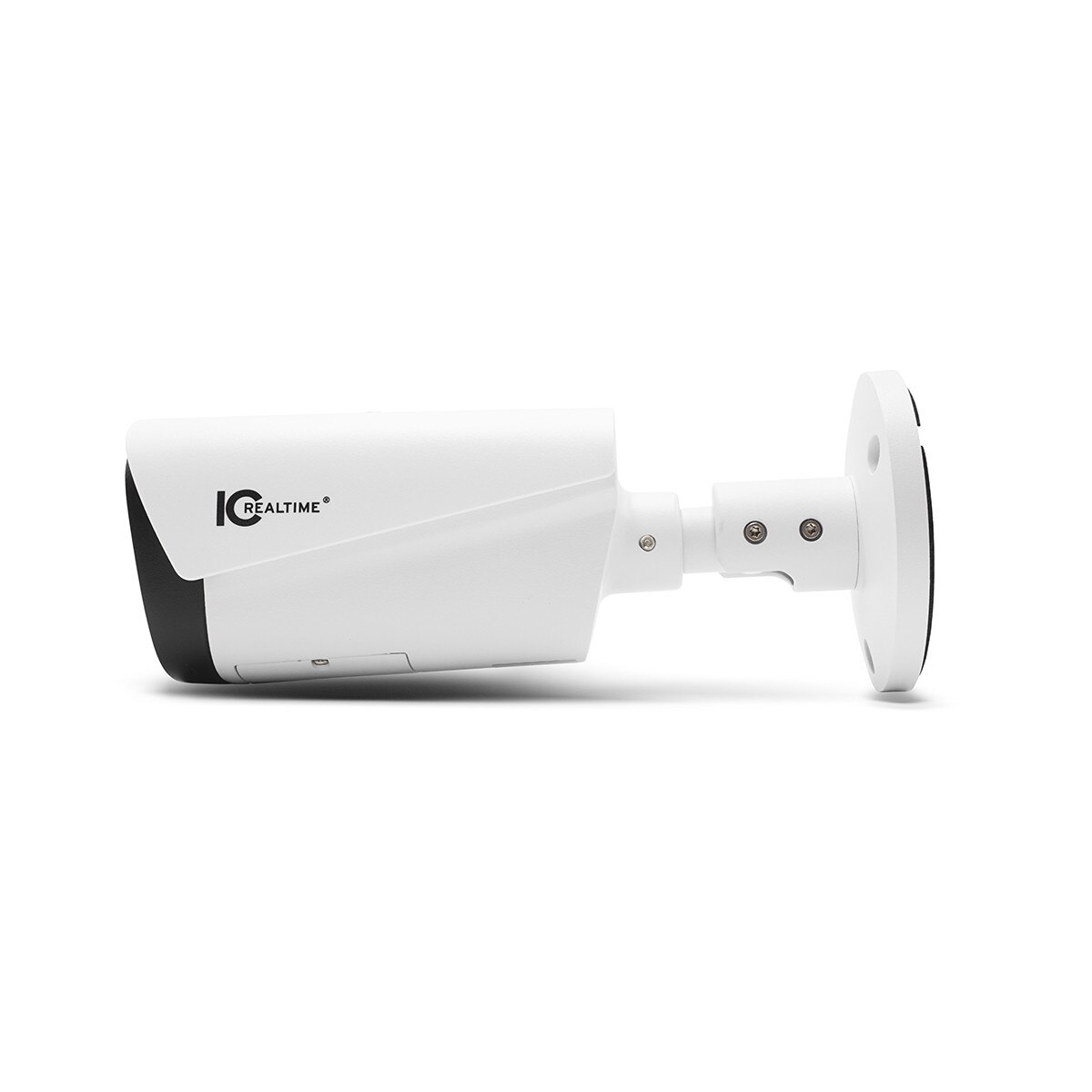

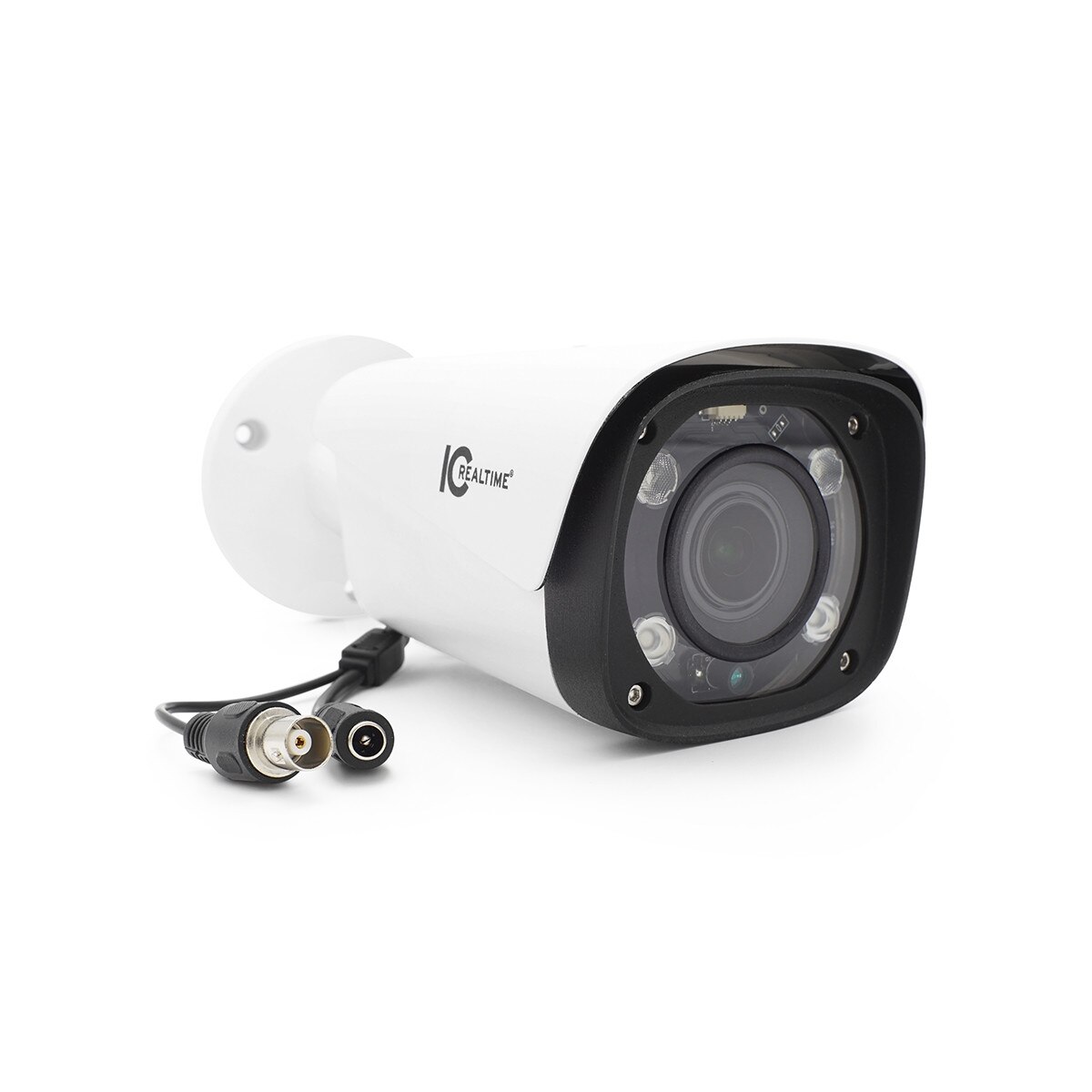

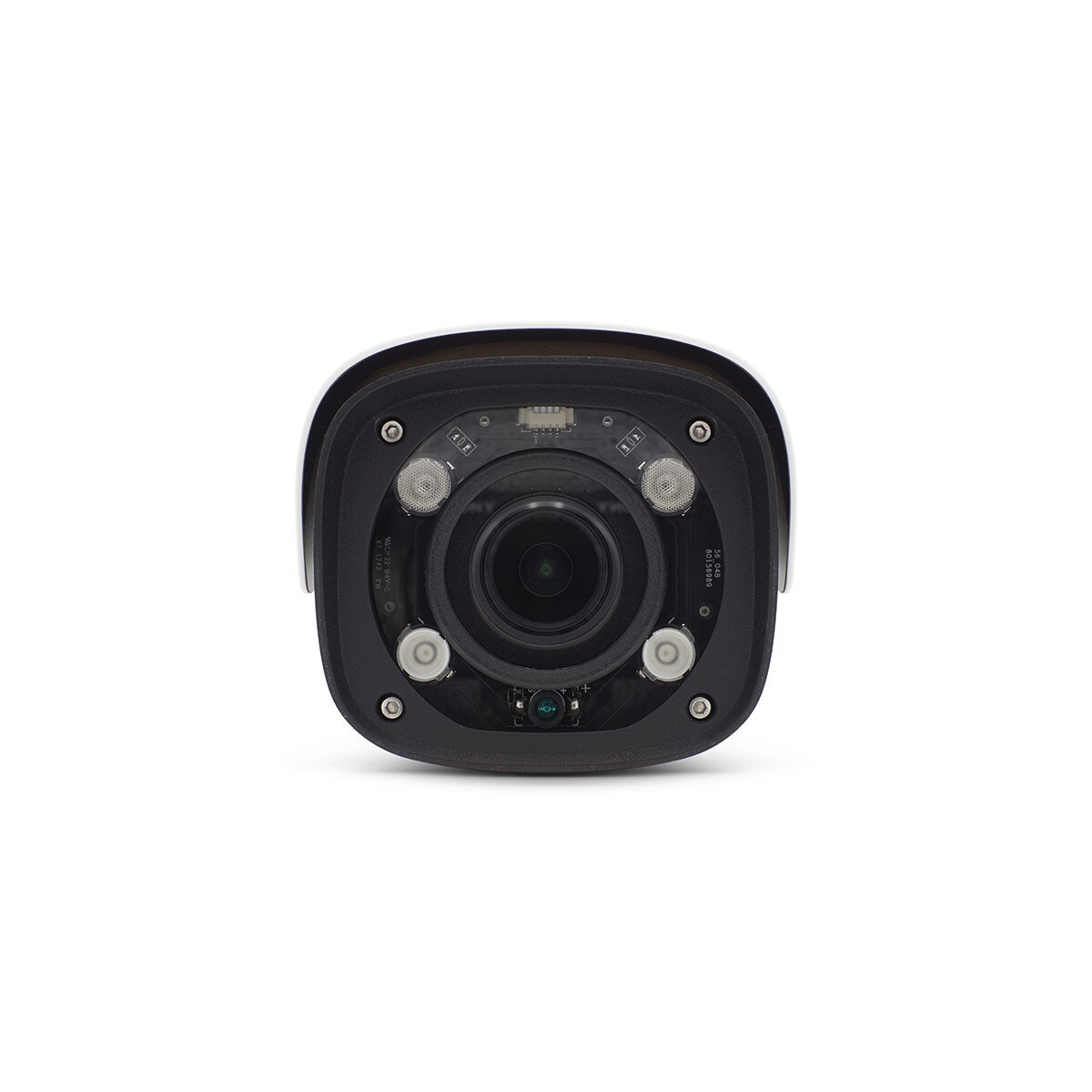

AVS-B2218Z
Details
The AVSB2218Z is a 2 megapixel weather rated bullet camera. Utilizing the new HD-AVS technology allows for 1080p high resolution video and a 1000' functional distance. The AVSB2218Z is perfect for upgrading existing analog systems to a megapixel quality level. HD-AVS cameras are only compatible with HD-AVS DVR systems, and cannot be used with standard definition recorders. By adopting this latest technology, previously existing analog CCTV systems can rapidly be upgraded to high definition by replacing both cameras and recorders with HD-AVS products!
Specifications
| Camera | |
| Image Sensor: | 1/2.8 CMOS |
| Effective Pixels: | 1920(H) x 1080(V) 2 Megapixel |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.004Lux/F1.6 30IRE 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 80m (262ft) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.7-13.5mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 108.7 - 28.7 degrees |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 200mm (7.87in) |
| DORI - Detect: | 44m (144ft) |
| DORI - Observe: | 18m (59ft) |
| DORI - Recognize: | 9m (30ft) |
| DORI - Identify: | 4m (13ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0 ~ 360 / Tilt: 0 ~ 90 / Rotation: 0 ~ 360 |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 1080P (1920 x 1080) |
| Frame Rate: | 25/30fps@1080P 25/30 / 50/60fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| WDR: | 120db |
| Interface | |
| Video Interface: | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Audio I/O: | 1-channel audio in & Built-in Mic |
| Electrical | |
| Power Supply: | 12V DC +/- 30% |
| Power Consumption: | Max. 8.2W (12V DC IR on) |
| Environmental | |
| Operating Conditions: | -30C ~ +60C (-22F ~ +140F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | 244.1mm x 90.4mm x 90.4mm (9.61in x 3.56in x 3.56in) |
| Gross Weight: | 1.02kg (2.25lb) |
