AVS-5MD5123-VIR-DP-M

(0) No Reviews yet
SKU: AVS-5MD5123-VIR-DP-M
ITEM WEIGHT: 3

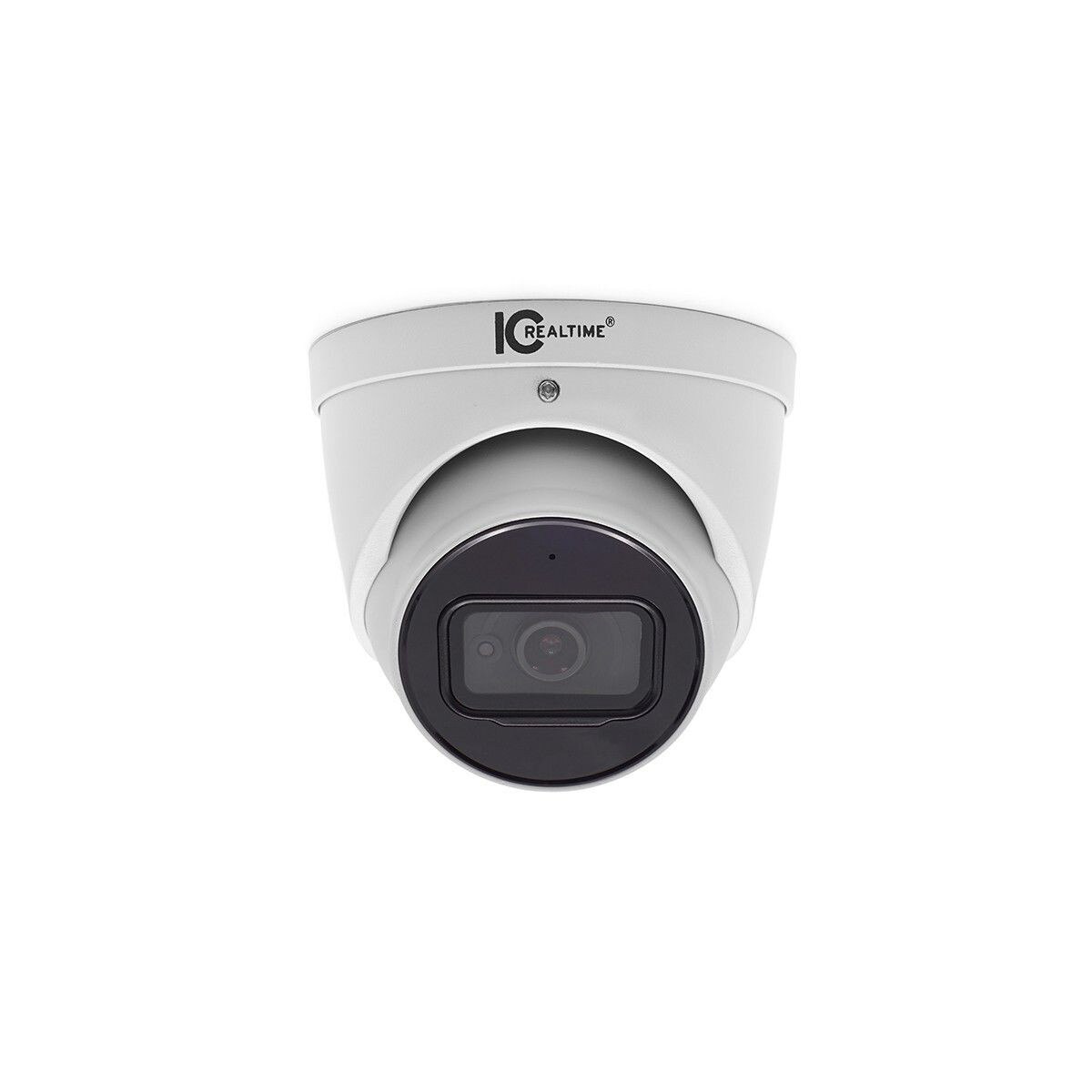

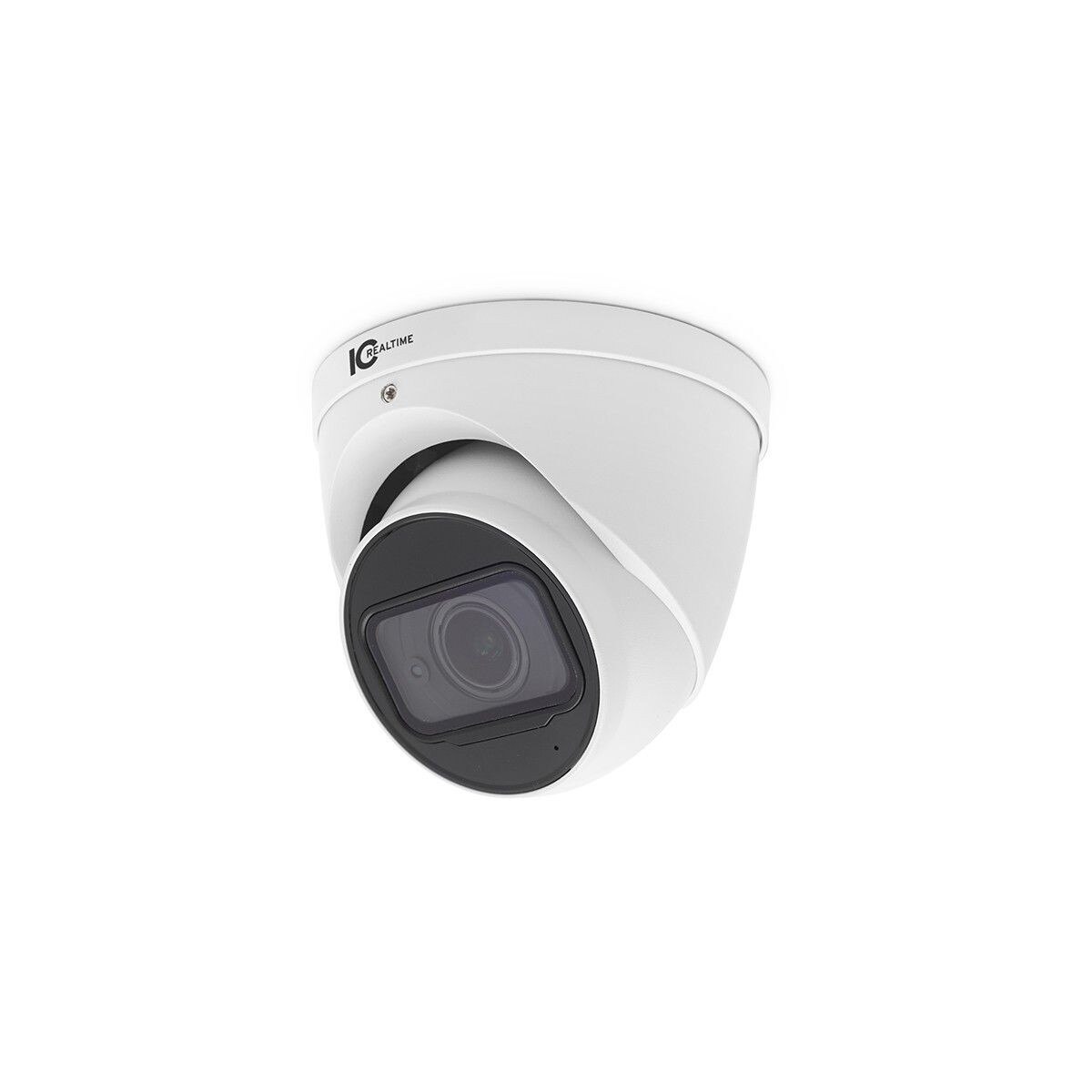

5MP HD-AVS Indoor/Outdoor Mid Size Dome 2.7-13.5mm Motorized Lens (102-29 AOV) 197 ft Smart IR 12VDC/24VAC Built-in MIC
1/2.8 CMOS Starlight | 5MP | 20fps@5MP
2.7mm to 13.5mm | motorized varifocal | AoV 102 to 29
Max. IR length 197ft | Smart IR | 2 IR LEDs
1ch audio in | built-in mic
IP67 | 12VDC or 24VAC | Max. 14.1W
AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

"""Experience 5 megapixel video with the simplicity of reusing existing coaxial infrastructure! The AVS-5MD5123-VIR-DP camera utilizes starlight and HD-AVS technology, suitable to produce a high quality image with rich details even under extreme low-light conditions. The camera also features an audio input capable to provide enhanced supplementary evidence collection. It utilizes a varifocal 2.7mm - 13.5mm lens and an imager capable of 120dB true WDR and a switchable HD/SD output. IR illumination is available thanks to intelligent IR LEDs capable of illumination at 0 lux up to 197'. Both the high resolution as well as the starlight sensor feature makes this HD-AVS camera an ideal choice for mid to large-size business and projects where both highly reliable surveillance and construction flexibility are needed. """

Specifications

Camera
Image Sensor: 1/2.8 Starlight CMOS
Effective Pixels: 3840(H) x 2160(V)
Scanning System: Progressive
Minimum Illumination: 0.005Lux/F1.3 30IRE 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 60m (197ft)
IR On/Off Control: Auto / Manual
IR LEDs: 2
Lens
Lens Type: Motorized lens / Fixed iris
Mount Type: Board-in
Focal Length: 2.7-13.5mm
Max. Aperture: F1.3
Angle of View: H: 102 - 29 degrees
Focus Control: Auto/Manual
Close Focus Distance: 200mm (7.87in)
DORI - Detect: 64m (210ft) / 222m (728ft)
DORI - Observe: 26m (85ft) / 89m (292ft)
DORI - Recognize: 13m (43ft) / 44m (144ft)
DORI - Identify: 6m (20ft) / 22m (72ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 / Tilt: 0 ~ 78 / Rotation: 0 ~ 360
OSD Menu: Multi-language
Video
Resolution: 5MP (2592 x 1944)
Frame Rate: 20fps@5MP 25/30fps@4MP 25/30fps@1080P
Day/Night: Auto (ICR) / Manual
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto / Manual
Gain Control: AGC
Noise Reduction: 2D / 3D
Smart IR: Auto / Manual
WDR: 120dB

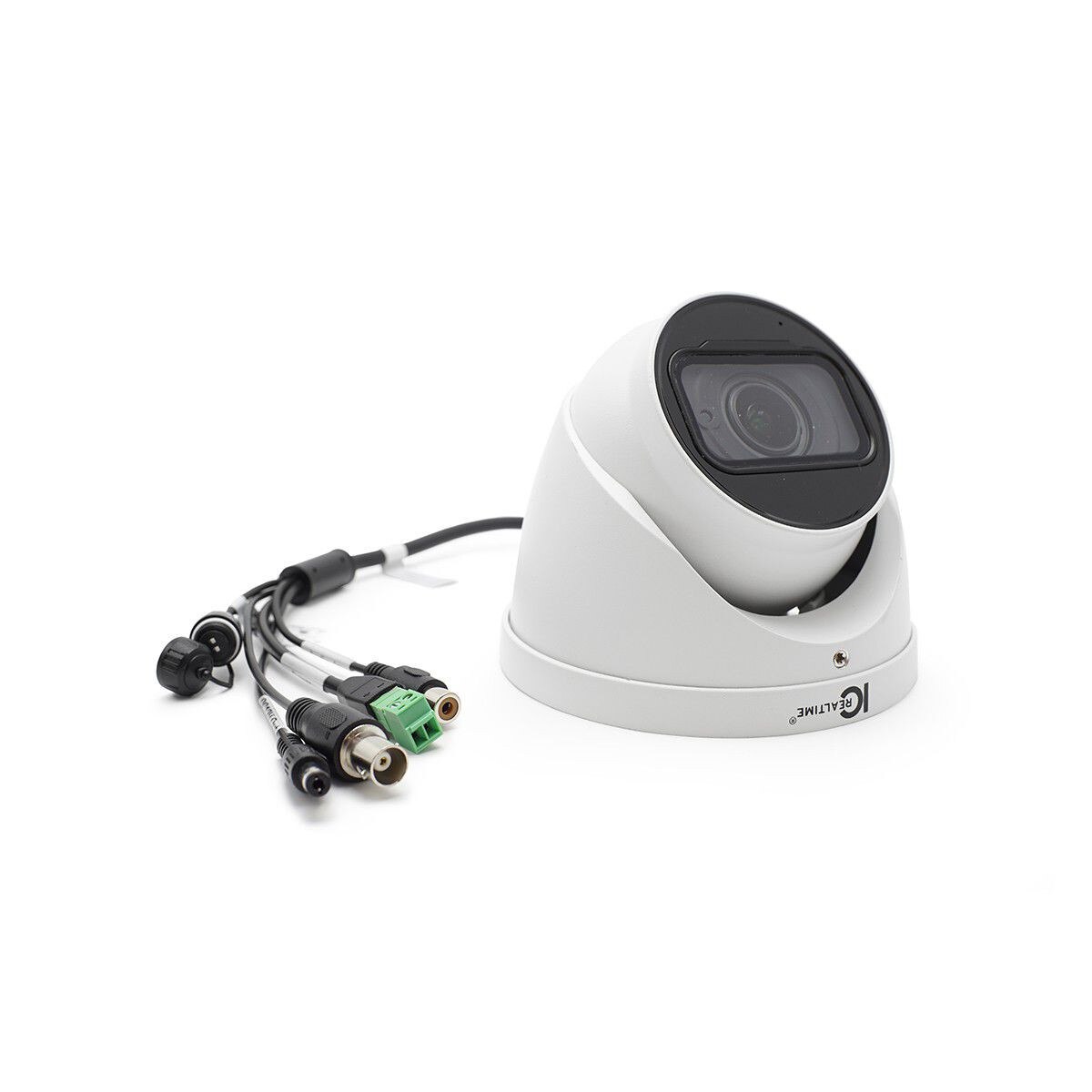

Interface
Video Interface: 1-channel BNC high definition video output / CVBS video output (DIP switch)
Audio I/O: 1-channel audio in & Built-in Mic
Electrical
Power Supply: AC 24V +/- 30% / DC 12V +/- 30%
Power Consumption: Max. 14.1W (12V DC IR on)
Enviromental
Operating Conditions: -30C ~ +60C (-22F ~ +140F) / Less than 90% RH
Ingress Protection: IP67
Construction
Casing: Aluminium
Dimensions: 122mm x 107mm (Diameter 4.8in x 4.2in)
Gross Weight: 0.84kg (1.85lb)
