AVS-4MB4012-IR
Details

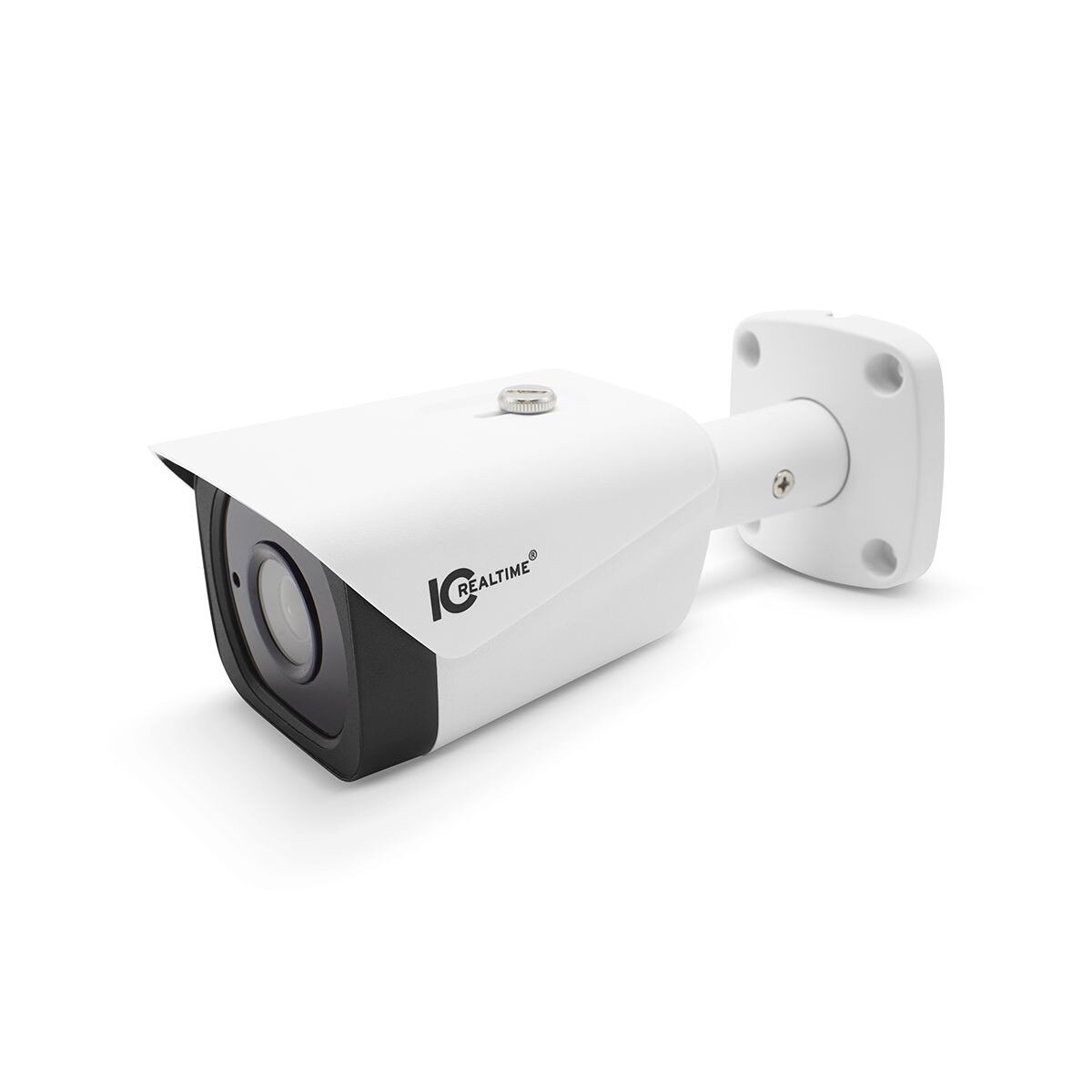

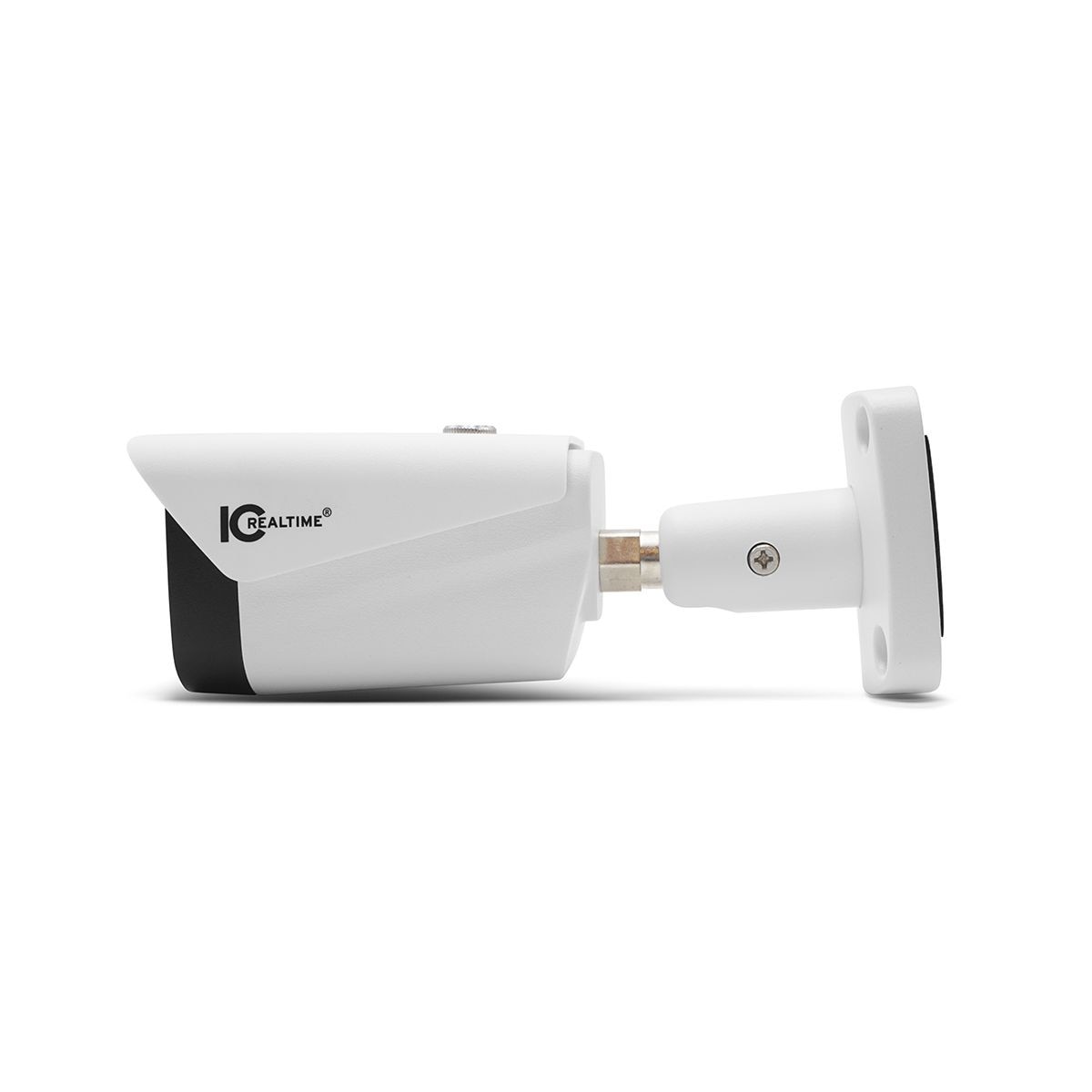

Our new 4MP series HD-AVS cameras are the absolute cutting edge of HD-AVS technology. Offering HD 4MP video with standard 16:9 video format over standard Coax cable at distances up to 2100', the AVS-4MB4012-IR leads the pack in the HD over Coax race. The AVS-4MB4012-IR is a day/night HD bullet camera with a fixed 2.8mm lens, supporting 120' of Intelligent IR illumination. It also supports 120dB of Dynamic Range, making this model an excellent choice for tough lighting scenes, thanks to its True WDR capabilities. Supporting both HD and SD outputs, this camera can be used for retrofit as well as green field installations. Typical applications for this type of camera include: Businesses, Exterior Residential Applications, Parking lots, and Gas Stations. Like all HD-AVS cameras from IC Realtime, a compatible HD-AVS recorder is required to provide HD video transmission up to 2100' over conventional Coaxial cable.
Specifications
| Camera | |
| Image Sensor: | 1/3 CMOS |
| Effective Pixels: | 2688(H) x 520(V) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.01Lux/F1.5 30IRE 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 40m (130ft) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.5 |
| Angle of View: | H: 79 degrees |
| Focus Control: | N/A |
| Close Focus Distance: | 1500mm (59in) |
| DORI - Detect: | 63m (208ft) |
| DORI - Observe: | 25m (83ft) |
| DORI - Recognize: | 13m (42ft) |
| DORI - Identify: | 6m (21ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0 ~ 360 / Tilt: 0 ~ 90 / Rotation: 0 ~ 360 |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 4MP (2560 x 1440) |
| Frame Rate: | 25fps@4MP 25/30fps@1080P 25/30fps@720P |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| Smart IR: | Auto / Manual |
| WDR: | 120dB |
| Interface | |
| Video Interface: | 1-channel BNC HD-AVS high definition video output & 1-channel BNC CVBS video output |
| Electrical | |
| Power Supply: | 12V DC +/- 25% |
| Power Consumption: | Max 5.9W (12V DC IR on) |
| Environmental | |
| Operating Conditions: | -30C ~ +60C (-22F ~ +140F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminium |
| Dimensions: | 180mm x 70mm x 70mm (7.09in x 2.76in x 2.76in) |
| Gross Weight: | 0.51kg (1.12lb) |
