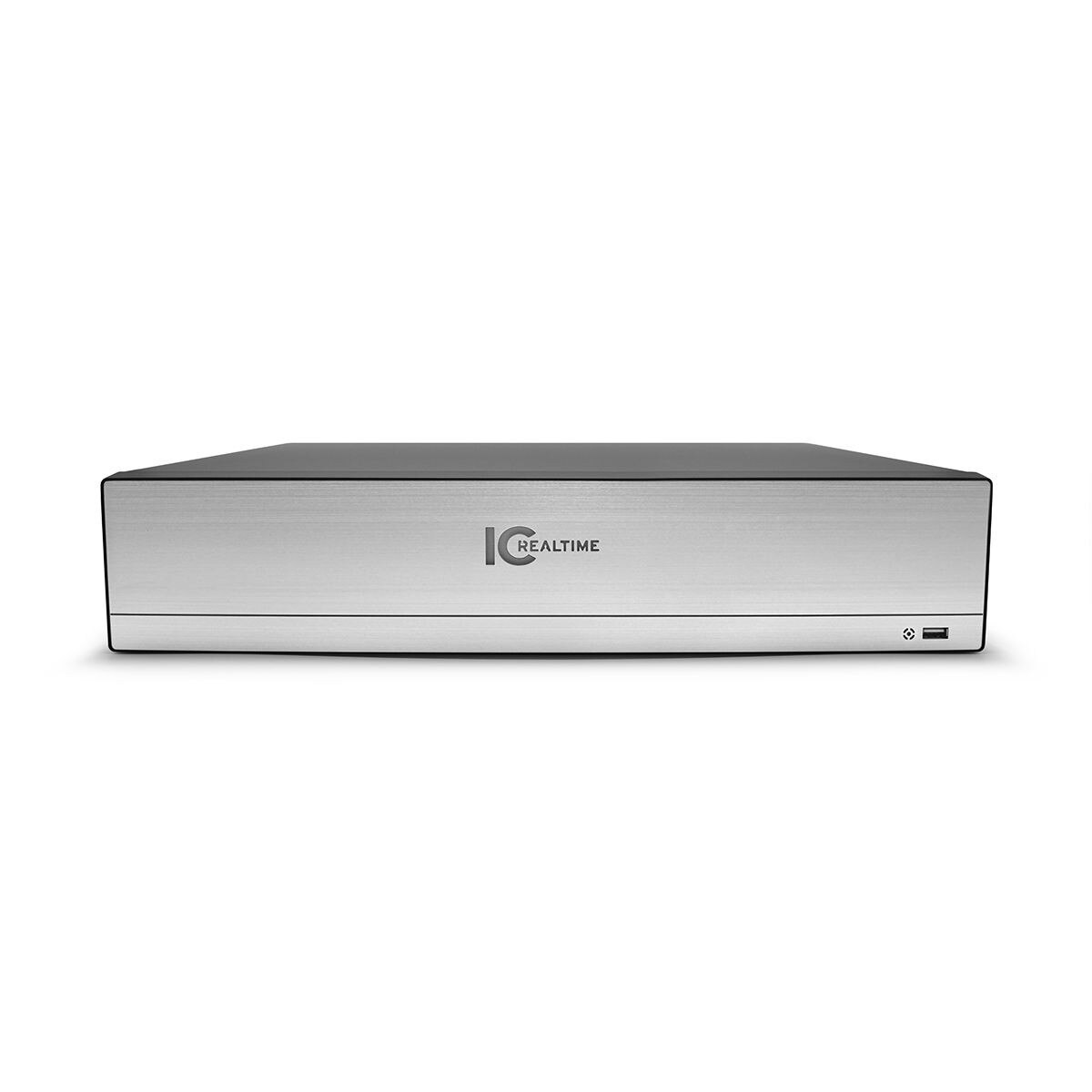

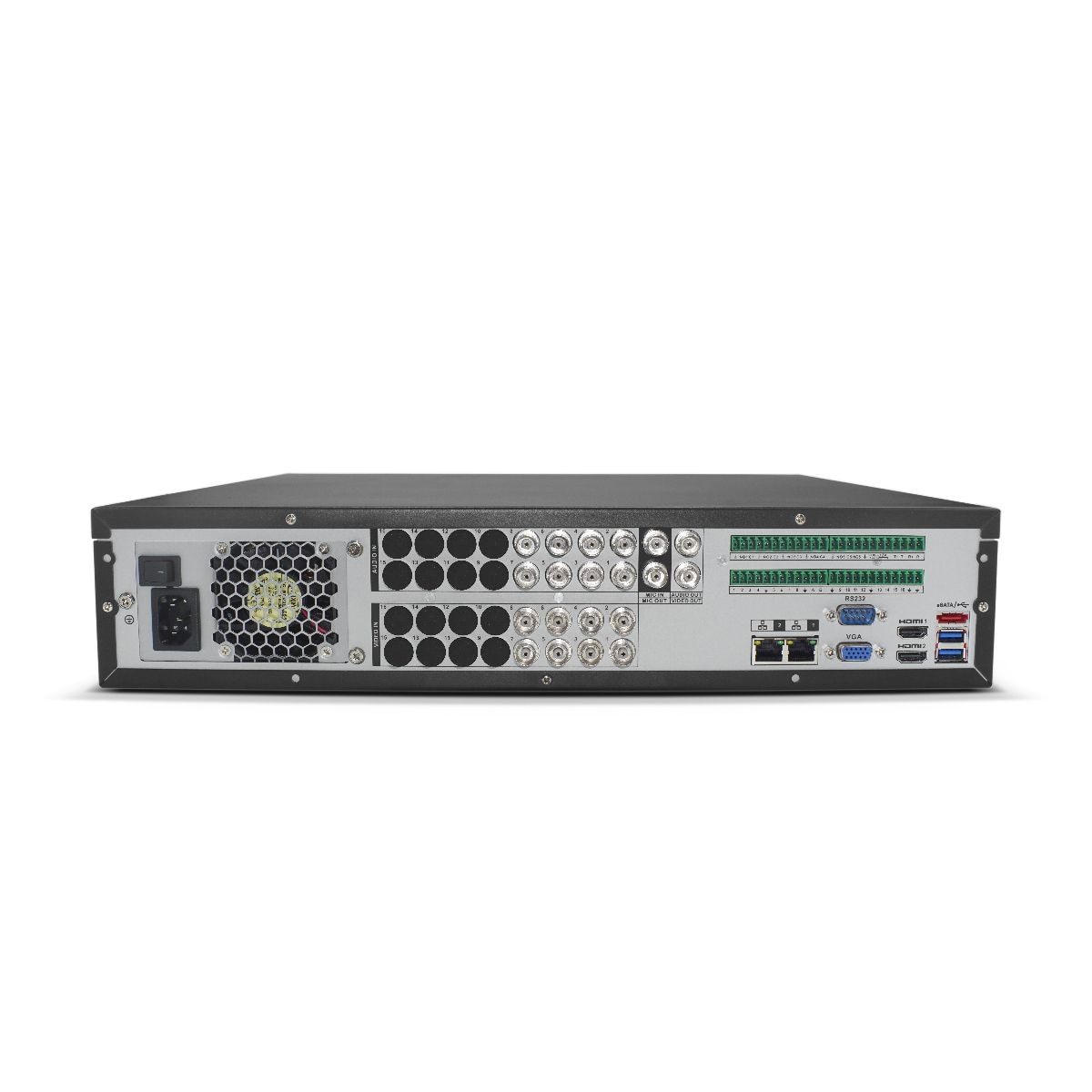

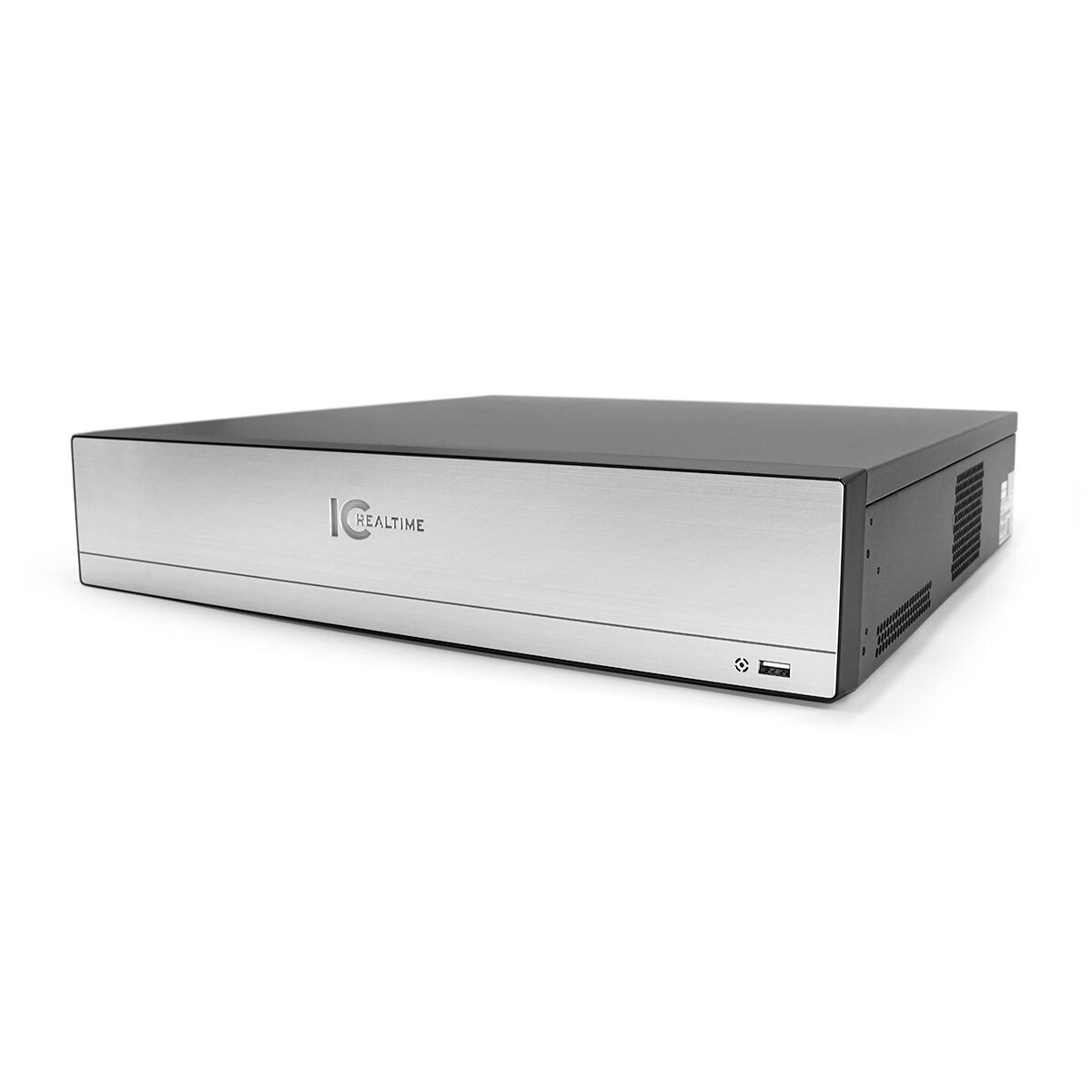

8 Channel 2U Tribrid HD-AVS DVR- Support up to 2MP Resolution - H.264 - HDMI - up to 48TB
8+56 Ch | Up to 12MP | 256Mbps Total
8 HDDs | 0/1/5/10
2 RJ-45 (10/100/1000Mbps)
4 USB | Alarm 8/6 | 2 HDMI / 1 VGA / 1 TV
ONVIF 2.42 CGI Conformant
2U | Desktop or Rack Mount


The New Tribrid series recorder - the best of all three worlds: analog, AVS, and IP. Ideal for installations where the environment is mixed between analog and IP Cameras, or for upgrading existing systems to the next level of resolution. The Tribrid series recorders are capable of recording analog cameras at 960H resolution, HDAVS cameras and IP cameras up to 1080P. Audio is supported on each and every input (both analog, and IP). The Tribrid series recorders are wrapped up in a full sized 2U DVR capable of housing 8 HDDs internally. Tribrid series recorders are available in 4, 8, and 16 channel offerings, enabling it to be deployed into diverse, and varying sized installations ranging from small office, to large scale enterprises applications. Since the Hybrid series of recorders supports both analog, HDAVS, and IP cameras, it is a good fit for existing installations that want to expand into IP cameras, without replacing analog cameras. Like all IC Realtime series recorders, this device utilizes H.264E (Enhanced H.264) compression technology, enabling crisp image viewing with the least bandwidth consumption possible. This unit adopts an embedded system design, as well as a Linux Operating System, resulting in high levels of stability, performance, and most importantly: reliability. In addition, this unit is fully operational from remote locations (Search / Playback / Backup / Configuration) over standard Ethernet networks.


Main Processor: Embedded Processor
Operating System: Embedded LINUX
Display Interface: 2 HDMI ,1 VGA,1 TV
Display Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Multi-screen Display: 8CH: 1/4/8/9
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
IP Camera Input: 64 Channel, each channel up to 12MP
HDAVS input: 8 Channel
Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss,Tampering and Diagnosis
Playback: 8CH: 1/4/9
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network/Internal SATA burner/eSATA Device
Bit Rate: 1Kbps ~ 6144Kbps Per Channel
Two-way Talk: 1 Mic In, 1 Mic Out, BNC
Record Compression: H.264+/H.264
Record Resolution: 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate: Main stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1/16~25/30fps), Sub stream:960H/D1/CIF/QCIF(1/16~25/30fps)
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Internal HDD: 8 SATA Ports, up to 8TB capacity for each disk
eSATA: 1
Ethernet: 2 RJ-45 Port (1000M)
Protocol: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search
Compatability: IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
RS232: 1 port, For PC communication & Keyboard
RS485: 1 Port, for PTZ Control
USB: 4 USB Ports (2 USB 2.0 , 2 USB 3.0)
Power Supply: AC100V-240V,50/60Hz
Power Consumption: <40W (Without HDD)
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 0~ 90% RH
Storage Conditions: -20C ~ +70C (-4F ~ +158F) , 0~ 90% RH
Installation: Desktop installation/Rack-mounted
Dimensions: 2U, 440mm x 460mm x 89mm (17.2" x 18.1" x 3.5")
