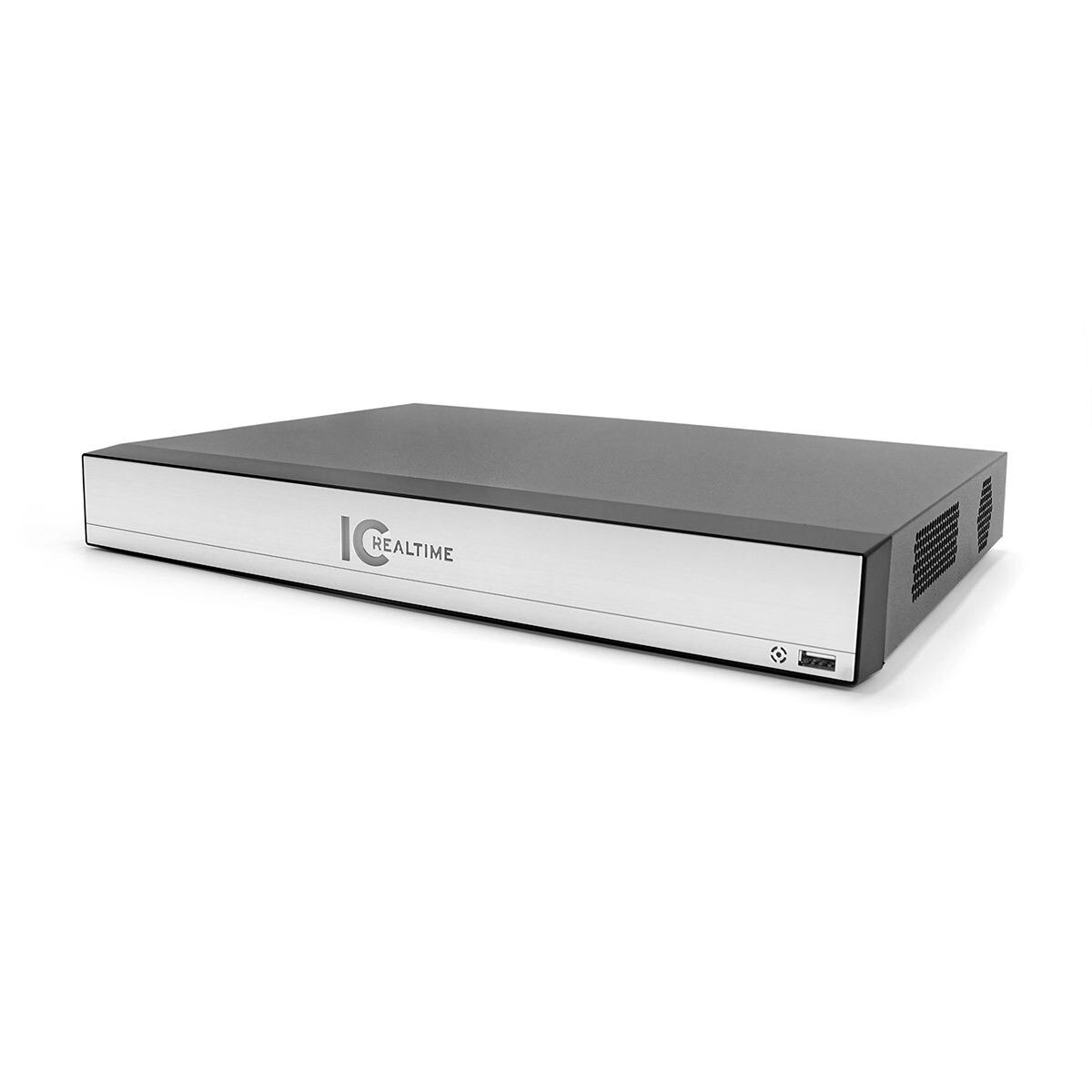

4 Channel 1U Pentabrid DVR - Supports up to 8MP Resolution - H.265 - HDMI
4+4 Ch | Up to 8MP | 32Mbps Total
1 RJ-45 Port (10/100M)

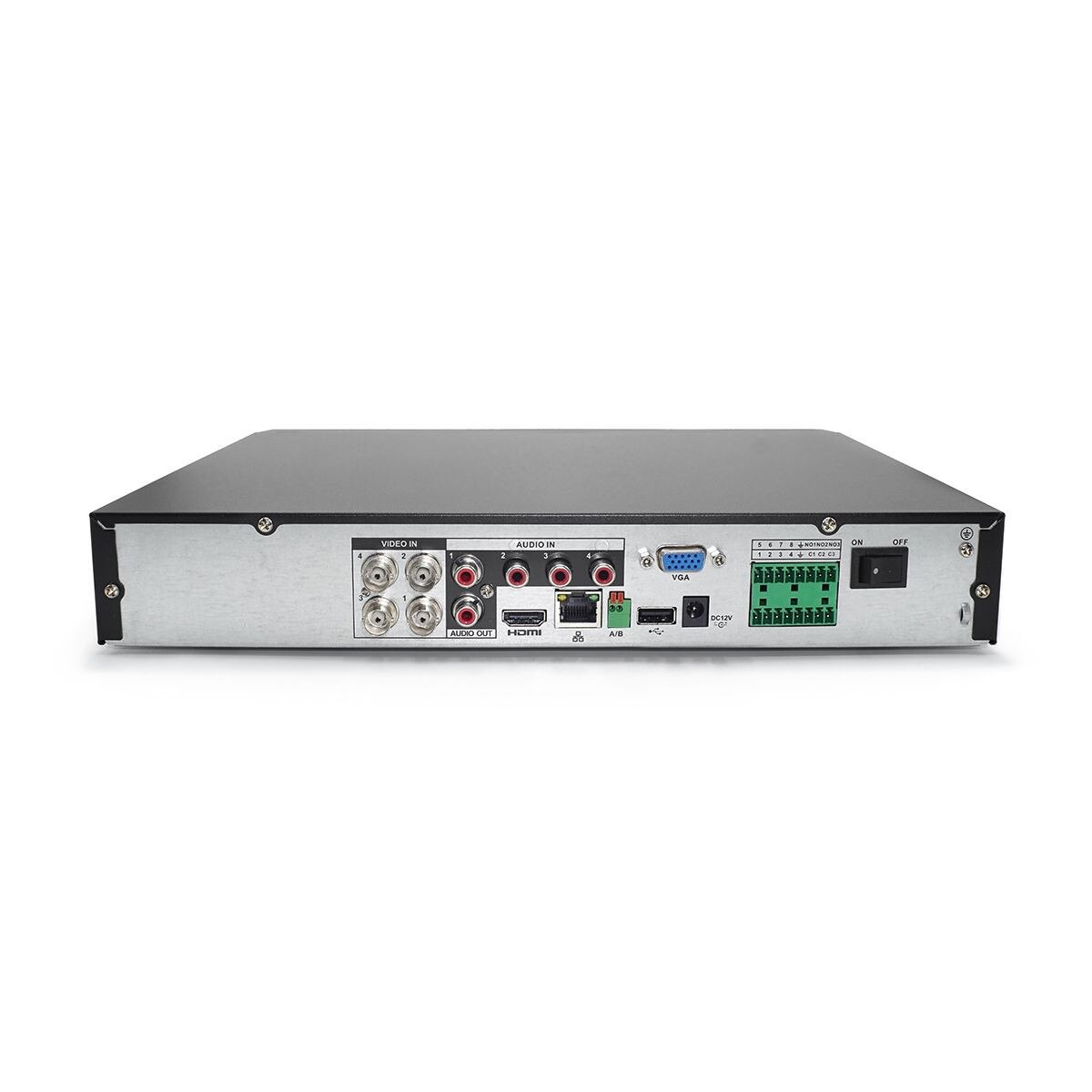

2 USB | Alarm 8/3 | 1 HDMI / 1 VGA
ONVIF 16.12 CGI Conformant
Mini 1U | Desktop or Rack Shelf
Discontinued Item, USE HDVR-MX0404-1U4K-AI1


The AVR-1704 series recorder - the best of all recording worlds: analog, HDAVS, AHD, TVI and IP. Ideal for installations where the environment is mixed between analog and IP Cameras, or for upgrading existing systems to the next level of resolution. The AVR-1704 series recorders are capable of recording analog cameras at 960H resolution, AHD / TVI up to 5MP, & HDAVS / IP cameras up to 4K. Audio is supported on each and every input (both analog and IP). The AVR-1704 series recorders are wrapped up in a mini 1U DVR capable of housing 1 HDD internally up to 10TB. Since the Hybrid series of recorders supports analog, HDAVS, AHD, TVI and IP cameras, it is a good fit for existing installations that want to expand into IP cameras, without replacing analog cameras. This device utilizes H.265+ (Enhanced H.265) compression technology, enabling crisp image viewing with the least bandwidth consumption possible. This unit adopts an embedded system design, as well as a Linux Operating System, resulting in high levels of stability, performance, and most importantly: reliability. In addition, this unit is fully operational from remote locations (Search / Playback / Backup / Configuration) over standard Ethernet networks.


Main Processor: Embedded Processor
Operating System: Embedded LINUX
Display Interface: 1 HDMI, 1 VGA
Display Resolution: HDMI:2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display: When IP extension mode not enabled: 1/4, When IP extension mode enabled: 1/4/6
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
IP Camera Input: 4+4 Channel, each channel up to 8MP
HDAVS input: 4 Channel, BNC (HD-AVS Camera: 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps, AHD Camera: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps, TVI Camera: 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps, CVBS Camera: PAL/NTSC)
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss,Tampering and Diagnosis
Playback: 1/4
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Bit Rate: 32Kbps ~ 6144Kbps Per Channel
Compression: AAC(only for the 1st channel), G.711A, G.711U, PCM
Two-way Talk: Reuse audio in/out, RCA
Record Compression: H.265+/H.265/H.264+/H.264
Record Resolution: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate: Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps) Sub stream:960H(1~15fps), D1/CIF(1~25/30fps)
Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Internal HDD: 1 SATA Port, up to 10TB capacity for each disk
HDD Mode: N/A
Ethernet: 1 RJ-45 Port (100M)
Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
Compatability: IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android
RS232: N/A
RS485: 1 Port, for PTZ Control
USB: 2 USB Ports (2 USB 2.0 )
Power Supply: DC12V/2A
Power Consumption: <10W
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 10% ~ 90% RH
Storage Conditions: -20C ~ +70C (-4F ~ +158F) , 0~ 90% RH
Installation: Desktop installation
Dimensions: Mini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2")
