MNT-JUNCTIONBOX-4-B
Details

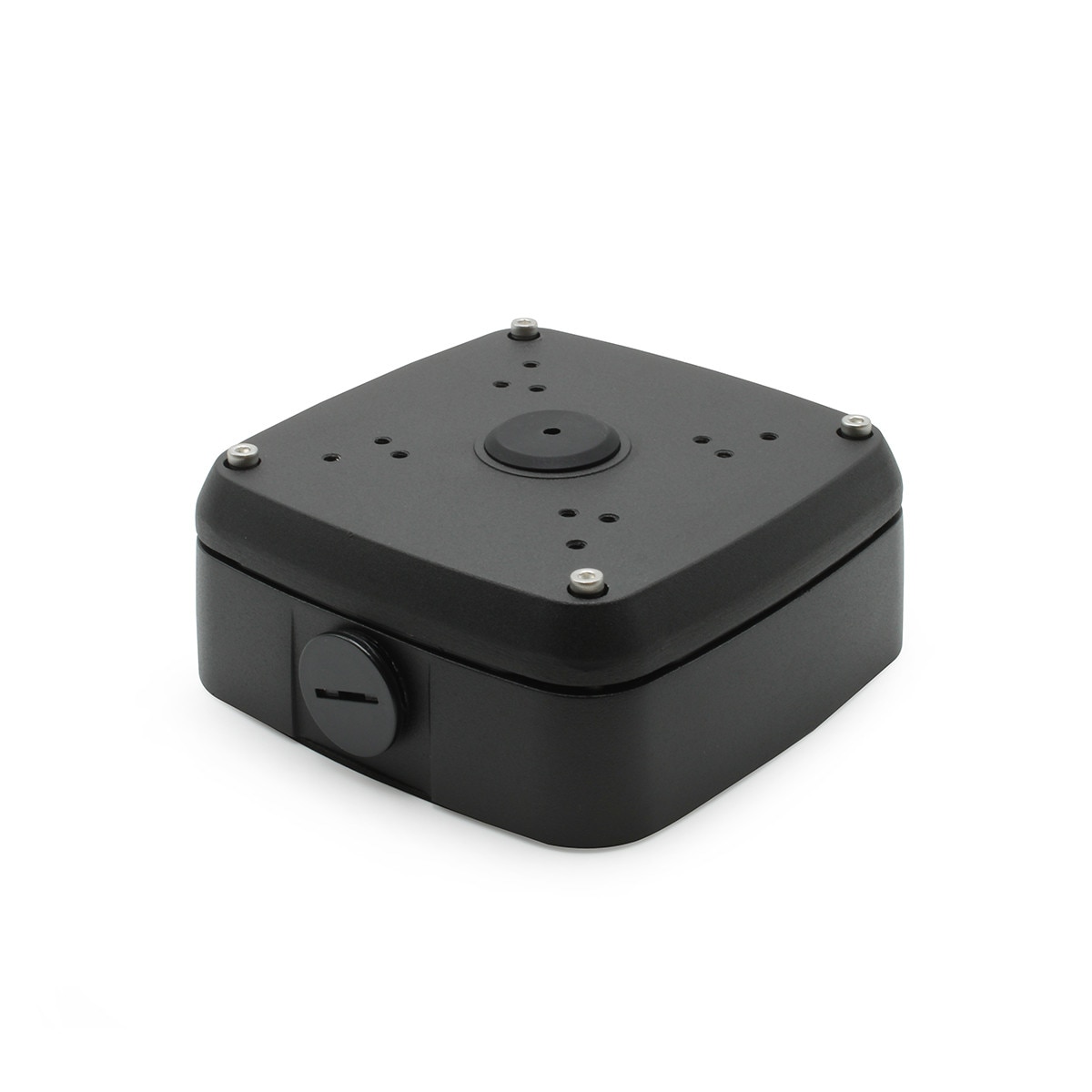

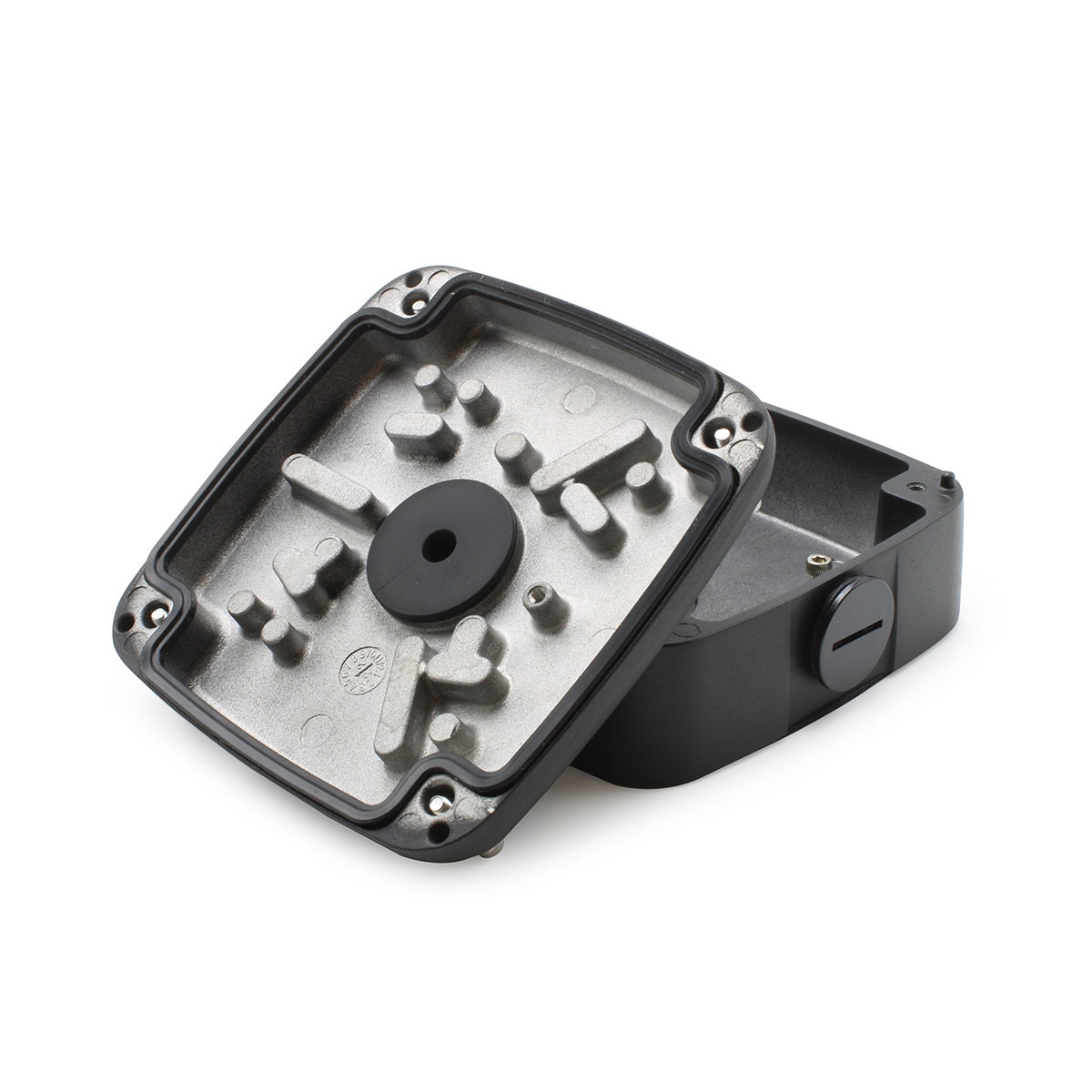

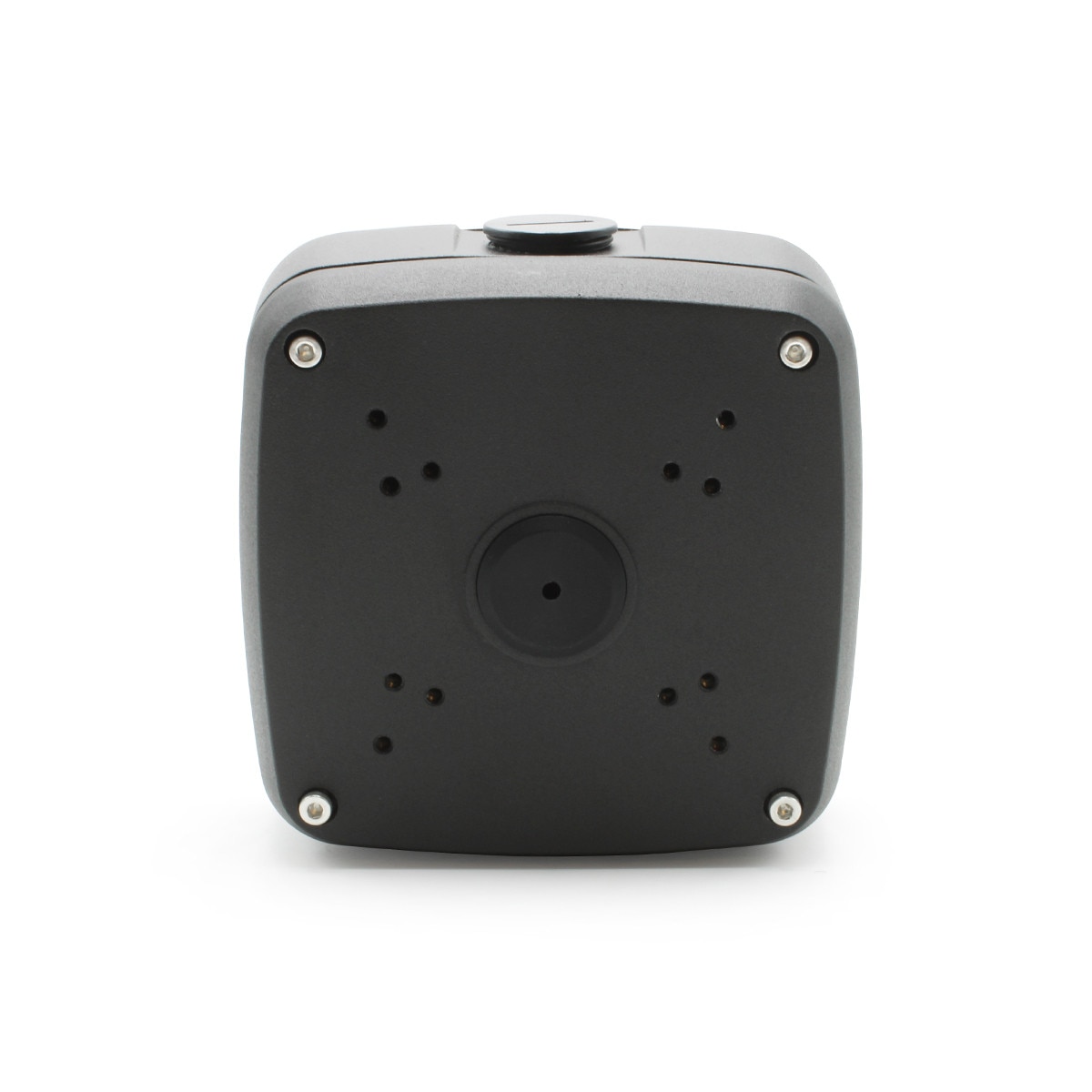

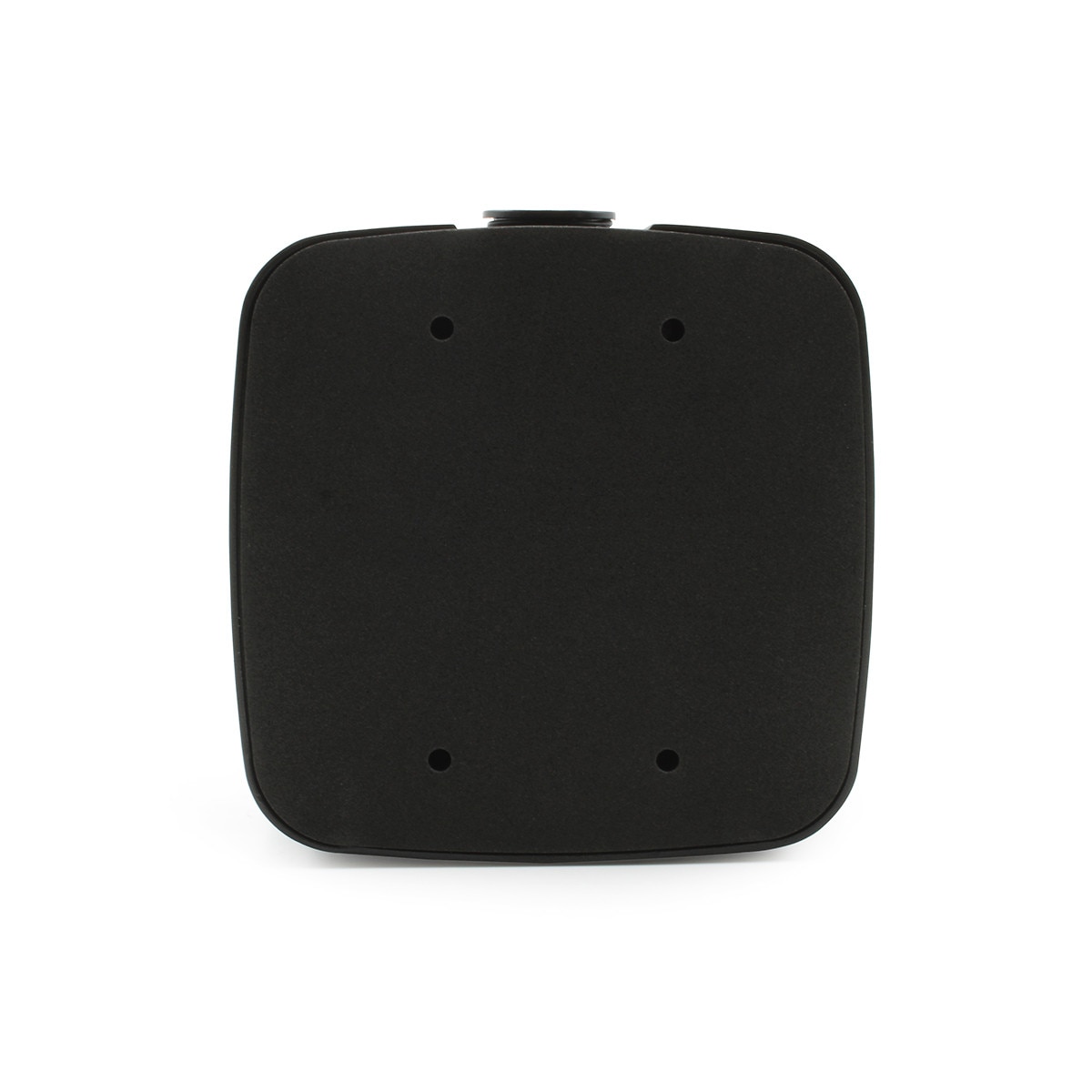

The Factory Black version of Junction Box 4 provides an installer with a perfectly color-matched, IP66 weather-sealed, round-cornered square metal junction box to conceal & protect your watertight camera wire junctions & camera pigtail connections. 4 pre-drilled mounting holes on the removable top cap and a centered pigtail port designed to fit multiple camera models. Gasketed rear base & side ½” threaded & capped conduit ports. 3 different sets of square pattern holes fit many of our Factory Black dome & bullet cameras that use a square-screw pattern base.
Specifications
Environmental | |
Operating Conditions: | -40ºC ~ 60ºC |
Construction | |
Casing: | Aluminum |
Dimensions: | 5.28”x5.25”x2.20” (134.0mmx133.5mmx56.0mm) |
Gross Weight: | 6.61lb (3Kg) |
